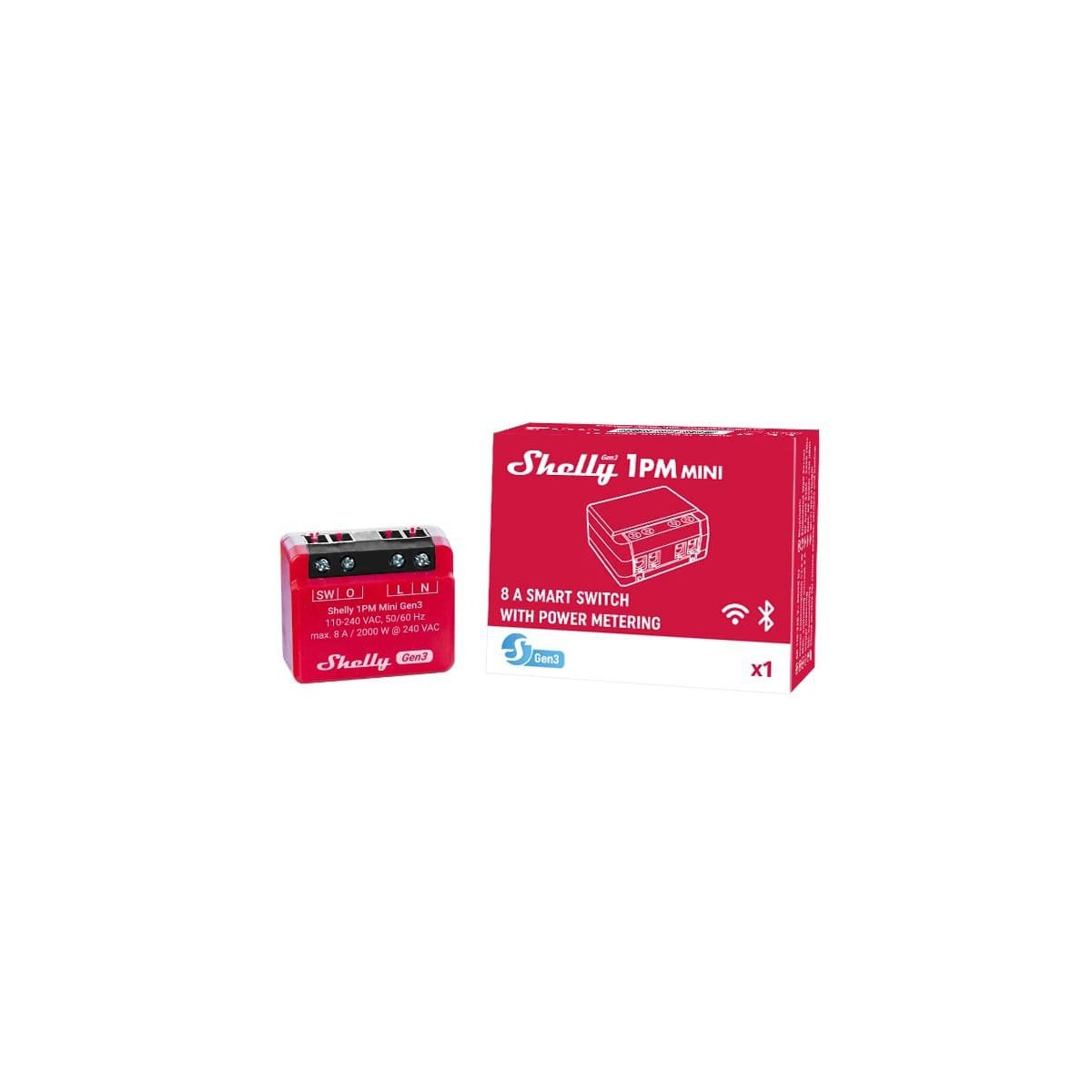

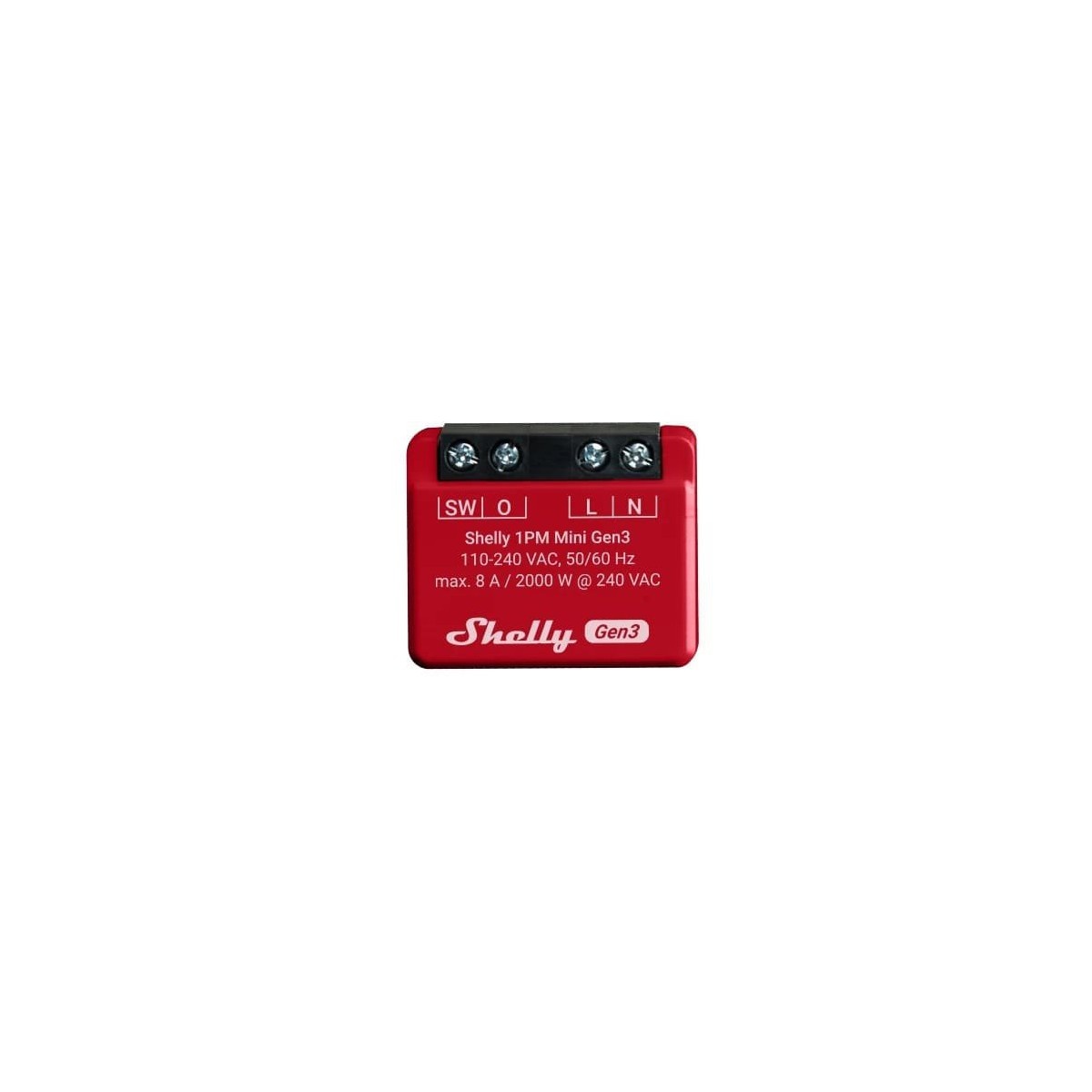

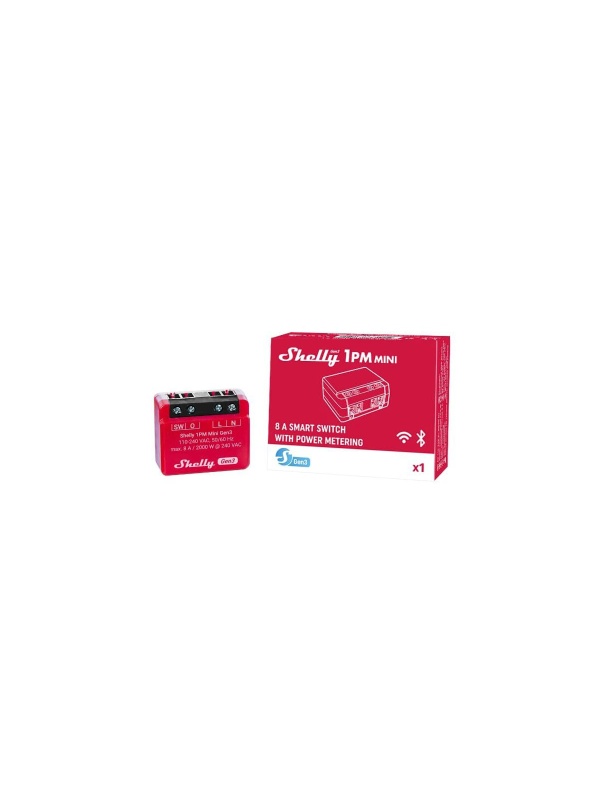

Shelly Smart Relay 1PM Mini GEN3, 1 channel, 8A
Description
Shelly 1PM Mini Gen3 - Mini Size, Maximised Performance
🔹 Why Shelly 1PM Mini Gen3?

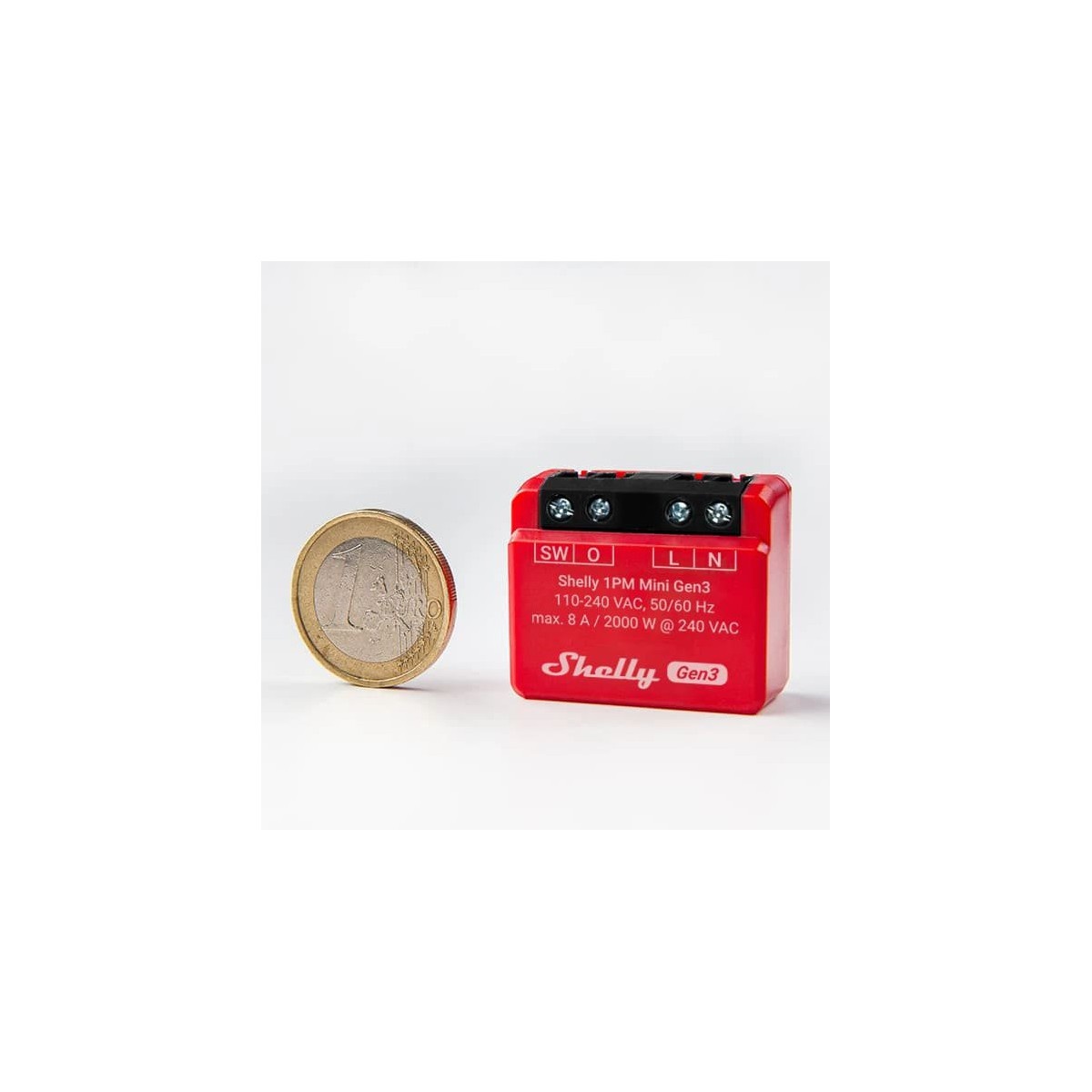

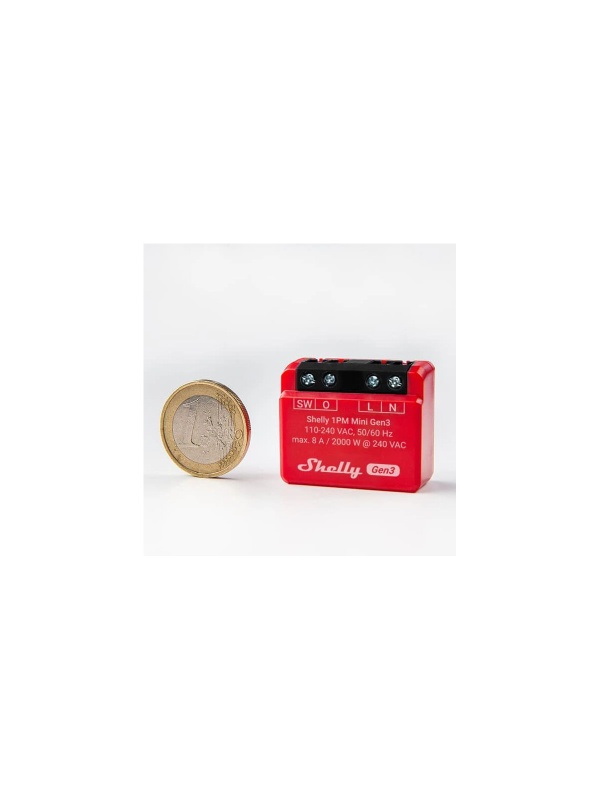

Designed for convenience and space saving, this smart miniature relay offers all the functionality of the Shelly Plus series in a compact size. With a 35% smaller footprint than Shelly Plus devices, the Shelly Mini is the ideal solution for tight spaces where traditional relays won't fit. Yet performance and functionality remain top-notch.
🔺 Note: This is the GEN3 model with new processor and expanded flash memory.
-
New ESP32-C3 processor with 4MB flash memory
-
Improved, more durable terminals
-

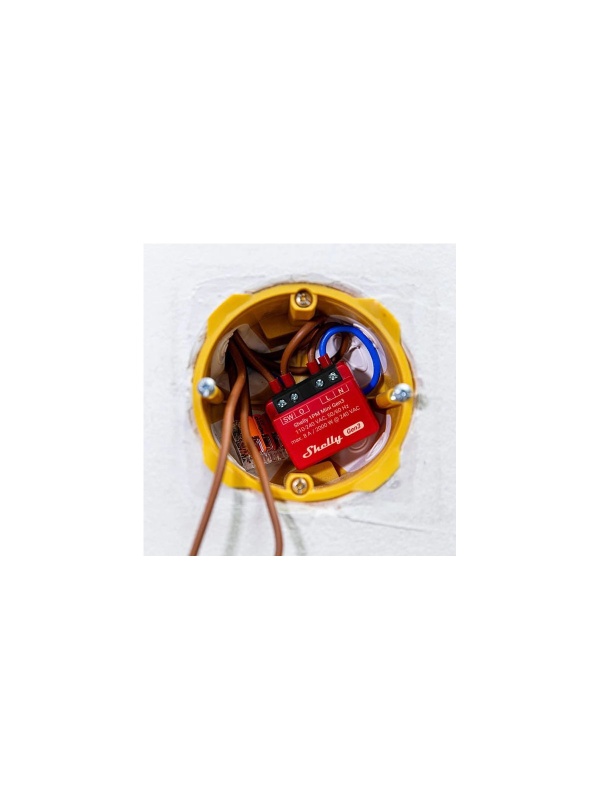

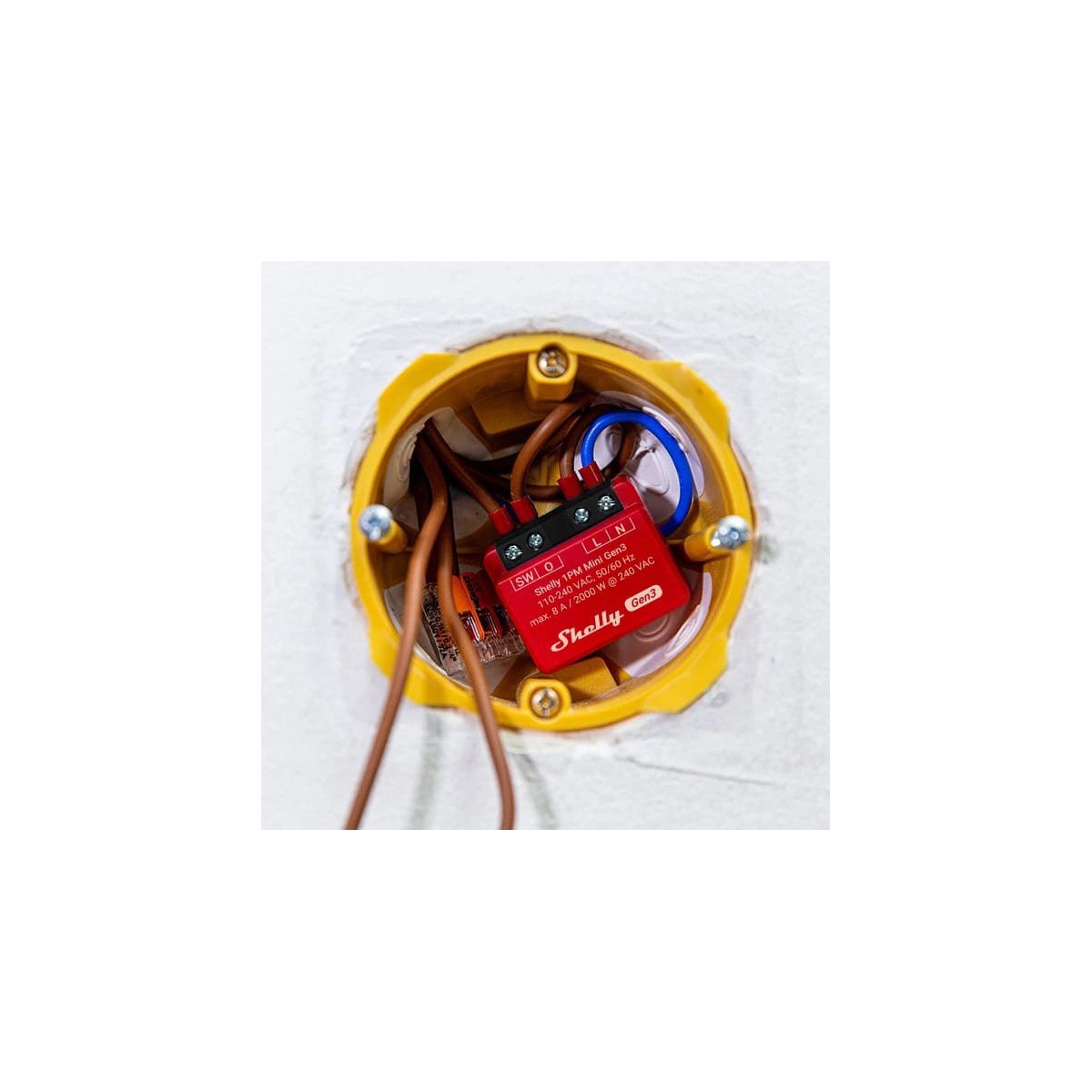

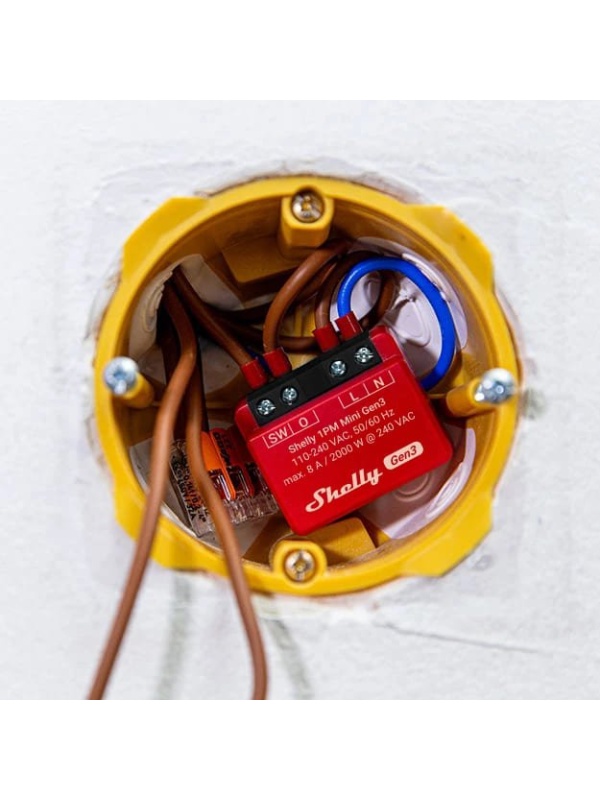

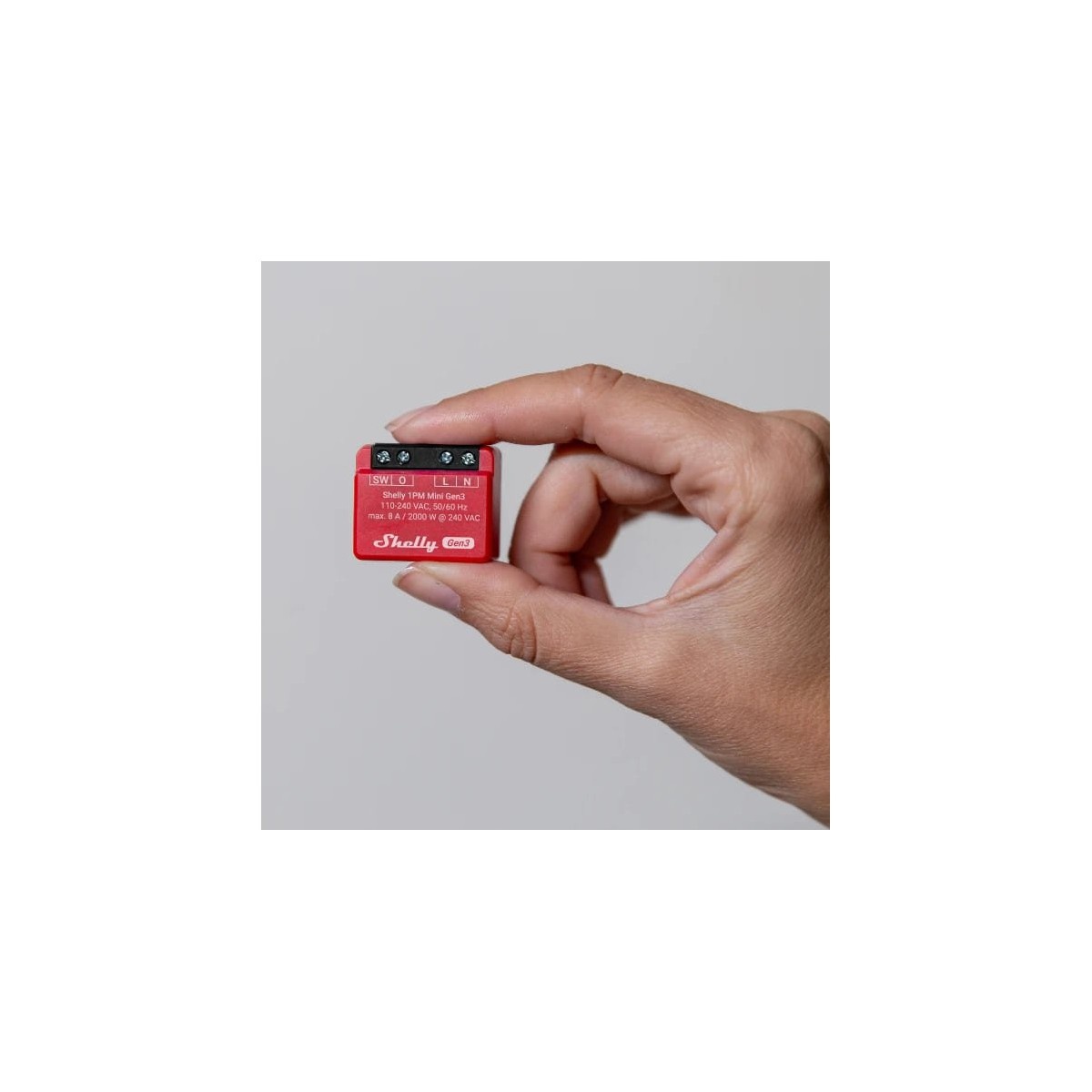

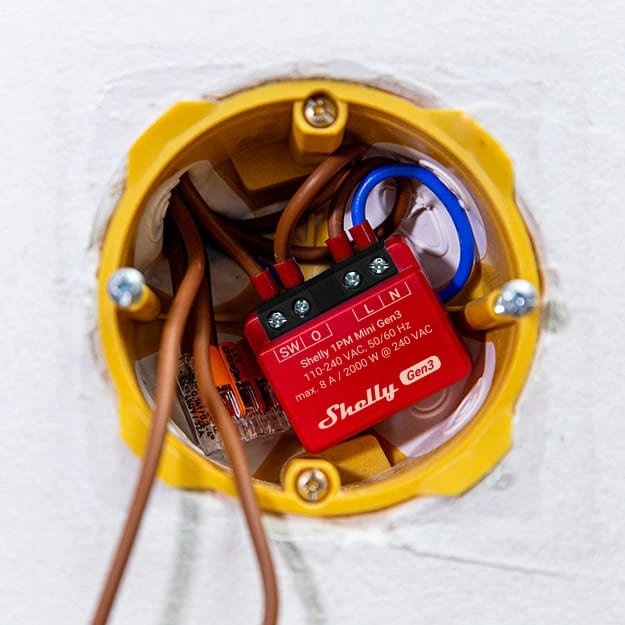

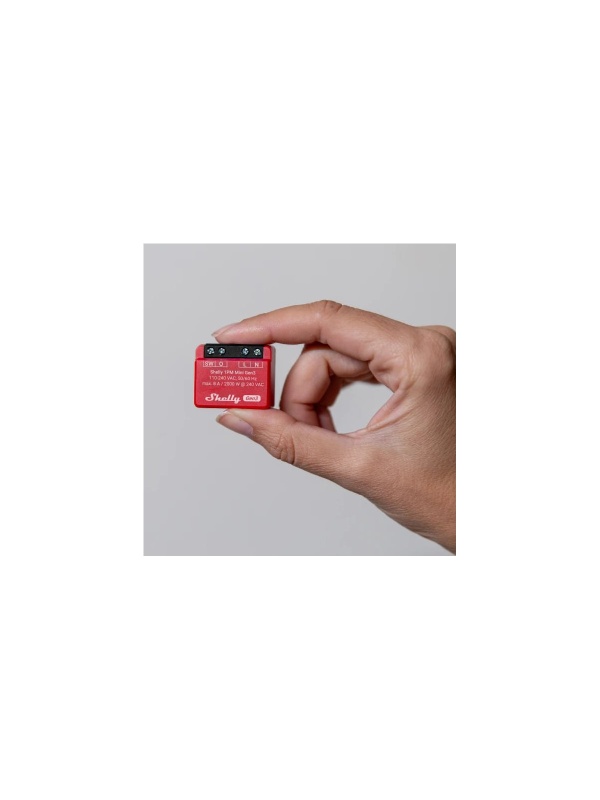

Ultra-compact size - fits in any wall dock
🔧 Ideal for:
-
Danish-style wall canisters
-
Mounting inside appliances
-
Clustered electrical boxes
⚙️ Main features
-
Control via Wi-Fi - Connects directly to the network without hub
-
Bluetooth - Quick setup or gateway to other devices
-
Energy metering - Precise monitoring to optimise consumption
-
Smart schedules - Customised or dawn/sunset schedules
-
Smart scenes - Activate multiple devices simultaneously
-
Scripting (mjS) - Create complex custom automation
-
HTTP/HTTPS Webhooks - Interact with other devices or systems
-
Broad compatibility - Works with Alexa, Google Home, Android, iOS
📐 Technical Specifications
| Feature | Details |
|---|---|
| Dimensions | 29 × 34 × 16 ±0.5 mm |
| Weight | 18 ±1 g |
| Mounting | Wall box |
| Housing material | Plastic (red colour) |
| Supply voltage | 110 - 240 V AC / 24 - 30 V DC |
| Relay contact | NO, 1 pole, µ contact |
| Power consumption | < 1.2 W |
| Switching max. AC | 240 V / 8 A / 2000 W |
| Energy consumption measurement | Yes |
| Voltage / current protection | Yes (voltage, current and power) |
| Internal temperature sensor | Yes |
| Wi-Fi protocol | 802.11 b/g/n (2.4 GHz) |
| Wi-Fi range | Up to 30 m indoor / 50 m outdoor |
| Bluetooth protocol | 4.2 |
| CPU | ESP32-C3 |
| Flash Memory | 4 MB |
| Webhooks (URL actions) | 20 actions, each with 5 URLs |
| Scripting / MQTT / UDP | Yes |
