Description

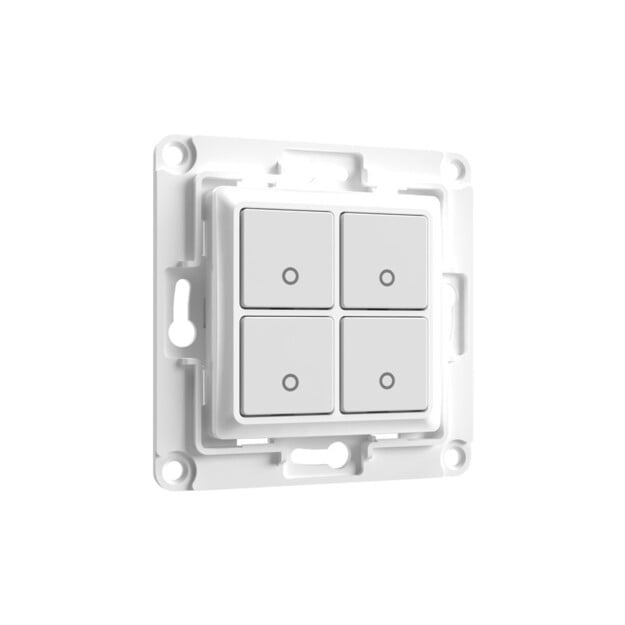

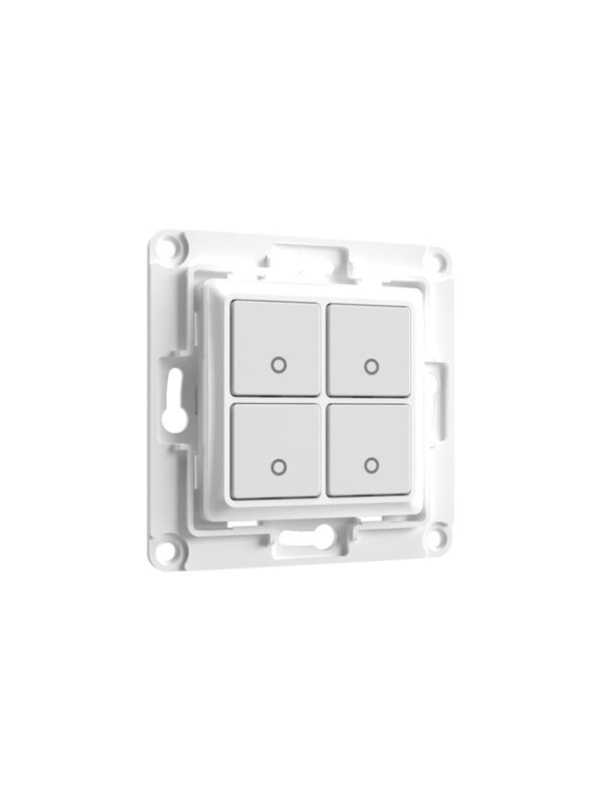

Shelly Wall switch 4 is the four-position physical button designed to control a Shelly relay mounted in a wall box or in the electrical panel, working both as a conventional manual switch and as a control element for smart automations. It comes with a single detachable bracket, compatible with the whole Shelly Plus range, with Shelly 1/1PM/2PM/i4/Dimmer/DALI Dimmer Gen3 and with Shelly 1/1PM Gen4, which makes it compatible with most modern relays in the Shelly portfolio.

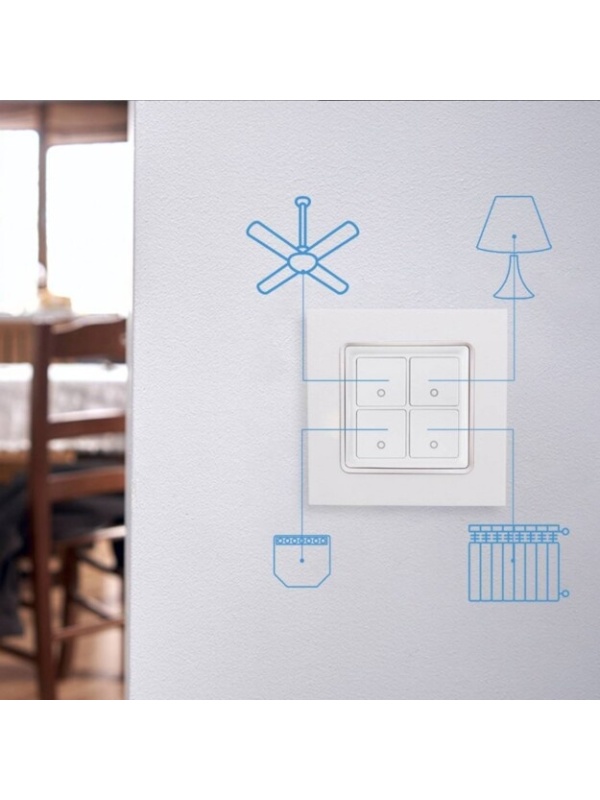

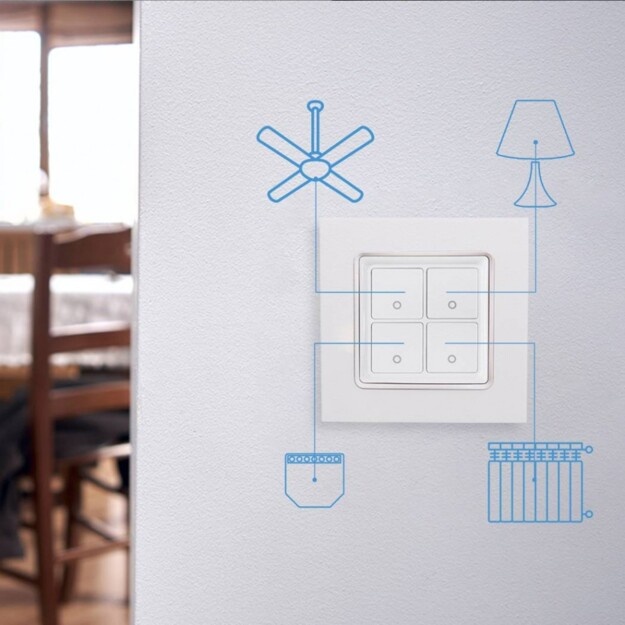

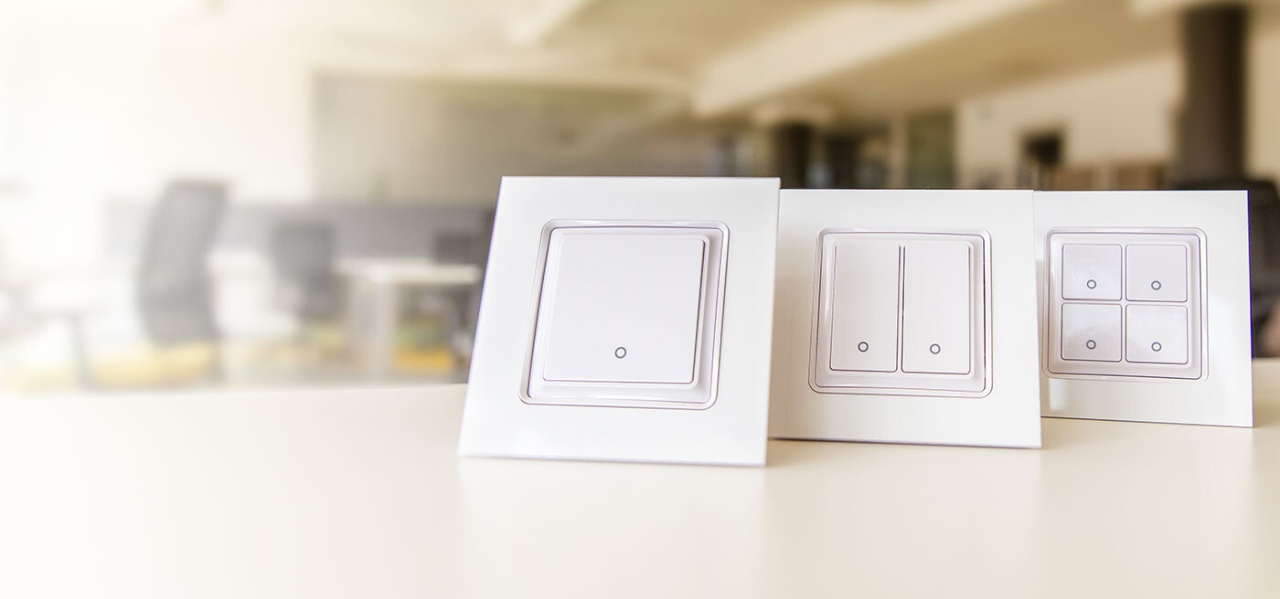

The white version suits bright, minimalist or classic interiors, and complements the Shelly Wall frame for a finished installation, just like a traditional four-button panel. The four positions can be used to activate scenes, for on/off control of four circuits, or to control two pairs of dimmers or electric roller shutters, depending on the connected relays.
It is the right solution for anyone who wants a complete control panel next to the front door or in the living room, able to trigger up to four different scenes or circuits from a single point, with no extra visible cables and without changing household habits. The Wall Frame and the relays are purchased separately.
Practical use cases
- Mounted next to the front door, with the four positions linked to Shelly relays (e.g. Shelly 1PM Gen4 or Shelly i4), it switches up to four different lighting circuits on and off from the same place.
- Used as a scene console in the living room: each position triggers a different scene (evening, film, cleaning, all off), without opening the app.
- Connected to two Shelly dimmers or two roller shutter controls, it operates two pairs of functions (up/down brightness, open/close) from a single switch plate.

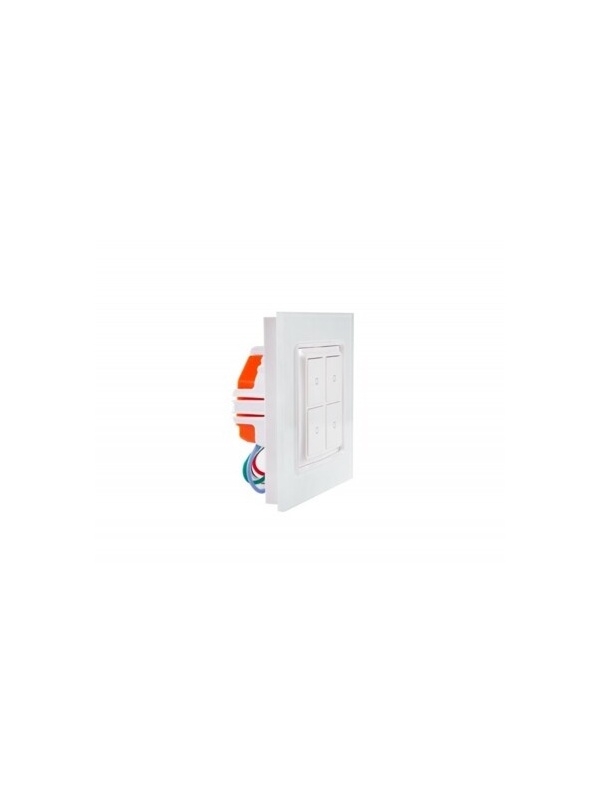

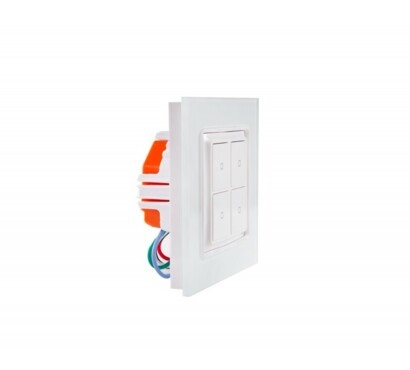

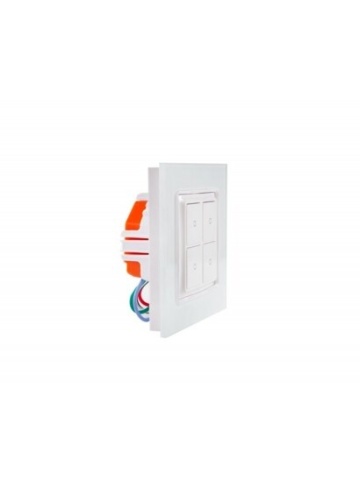

- Combined with the white Shelly Wall Frame, it completes a finished wall installation, just like a traditional four-button switch plate; the frame and relays are sold separately.
Technical specifications
| Product type | Wall Switch button with 4 positions |
| Material | Plastic |
| Colour | White |
| Bracket included | 1 type, compatible with most modern Shelly relays |
| Maximum switched voltage | 12 VDC / 18 VAC |
| Maximum switched current | 50 mA |
| Supported functions | Scenes, on/off 4 circuits, 2 dimmers or roller shutters |
| Sold | Separately from the frame and relay |
| Warranty | 2 years |
The white Shelly Wall switch 4 provides full manual control of four different circuits or scenes from a single, elegantly wall-mounted panel.
