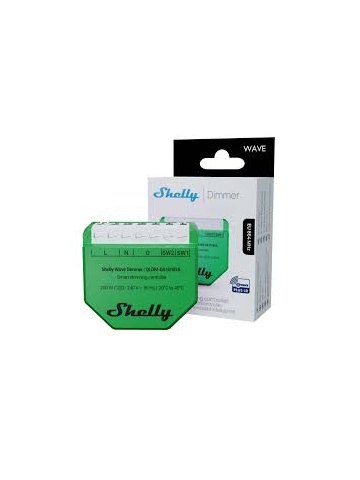

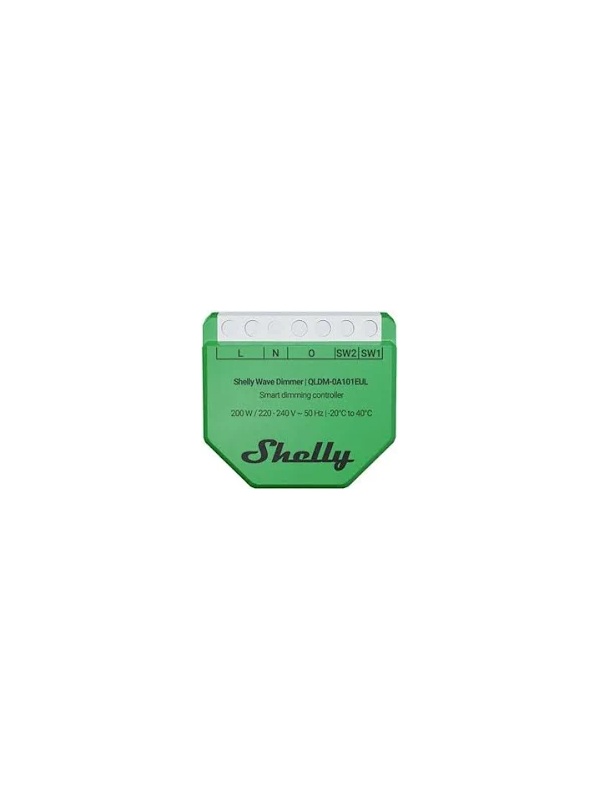

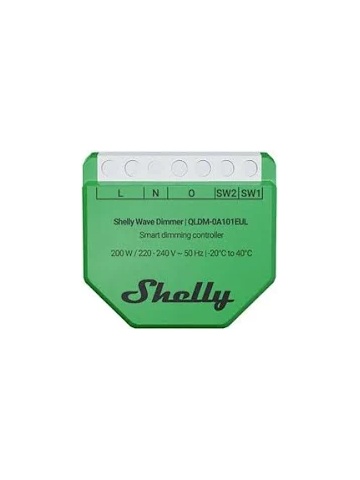

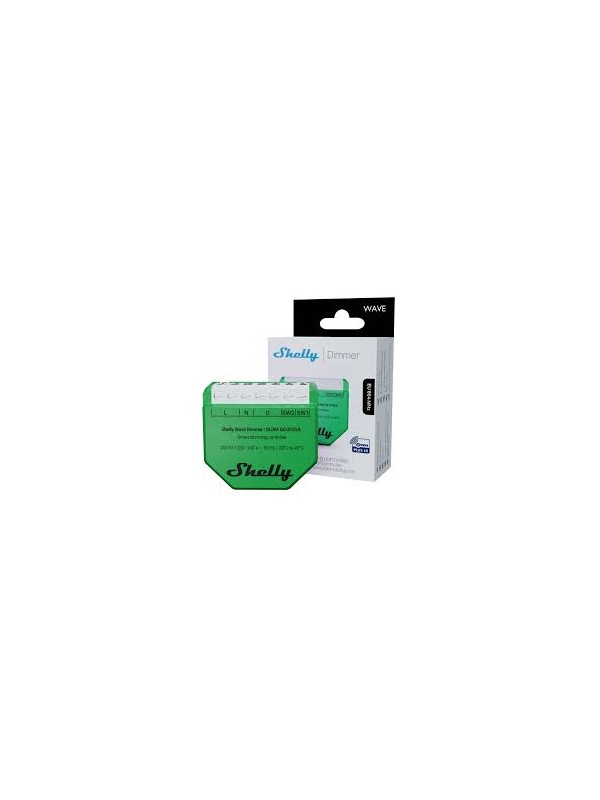

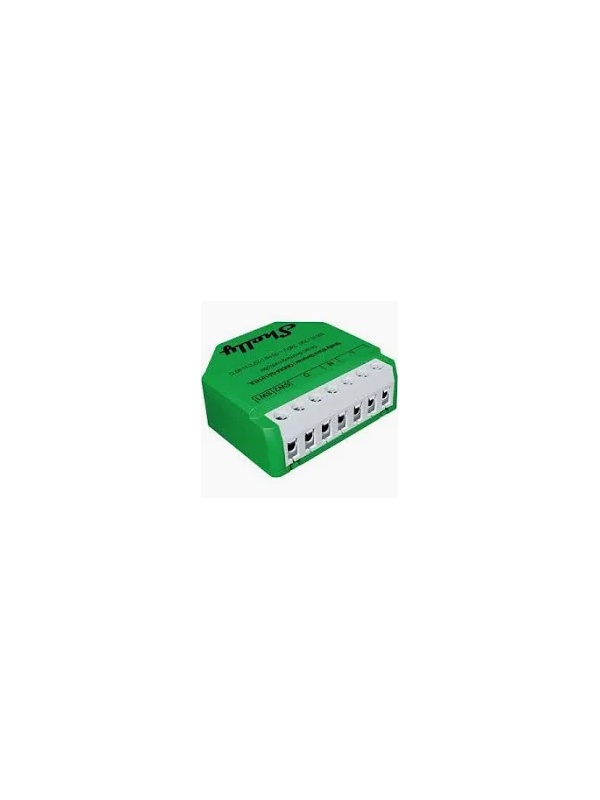

Shelly Wave Dimmer (2025) LR – Smart dimmer Z-Wave 800, Long Range, 200W, no neutral

Shelly Wave Dimmer (2025) LR is a Z-Wave 800 smart dimmer that offers fine control of light intensity for light fittings of up to 200W, with Long Range technology for extended coverage from the hub. It works both with and without a neutral wire, using trailing-edge dimming.

Coverage in a standard Z-Wave mesh network is up to 40m indoors, while Long Range mode extends the range to 80m indoors and 100m line of sight outdoors, offering flexibility for installations where the dimmer is far from the central controller. The device supports both network topologies, mesh and Long Range star.

It includes protection against overheating, overcurrent and overvoltage, as well as smart scheduling functions and a night mode, which allow the dimming behaviour to be adjusted automatically depending on the time of day or activity in the home. Its small size (37x42x16mm) allows mounting in standard wall boxes.

Please note: installation must be carried out by qualified personnel, and operation requires a compatible Z-Wave hub; a compatible Z-Wave LR receiver is required for Long Range coverage.

Practical use cases

• Installed on the lighting circuit of a living room, it lets you adjust light intensity directly from the app or by voice command, for the right atmosphere at every moment of the day.
• Integrated into an automation system, it can gradually lower the brightness in the evening, simulating an artificial sunset that helps you relax before bed.
• Combined with a motion sensor, it turns on the hallway lights at reduced intensity at night, without disturbing anyone with overly bright light.
• Lets you create different scenes (reading, relaxing, entertaining) for the same bulb or chandelier, with no need to install a classic wall dimmer.

Technical specifications

For fine lighting control in Z-Wave installations with or without neutral, at extended distances from the hub, Shelly Wave Dimmer 2025 LR offers reliability and mounting flexibility.
