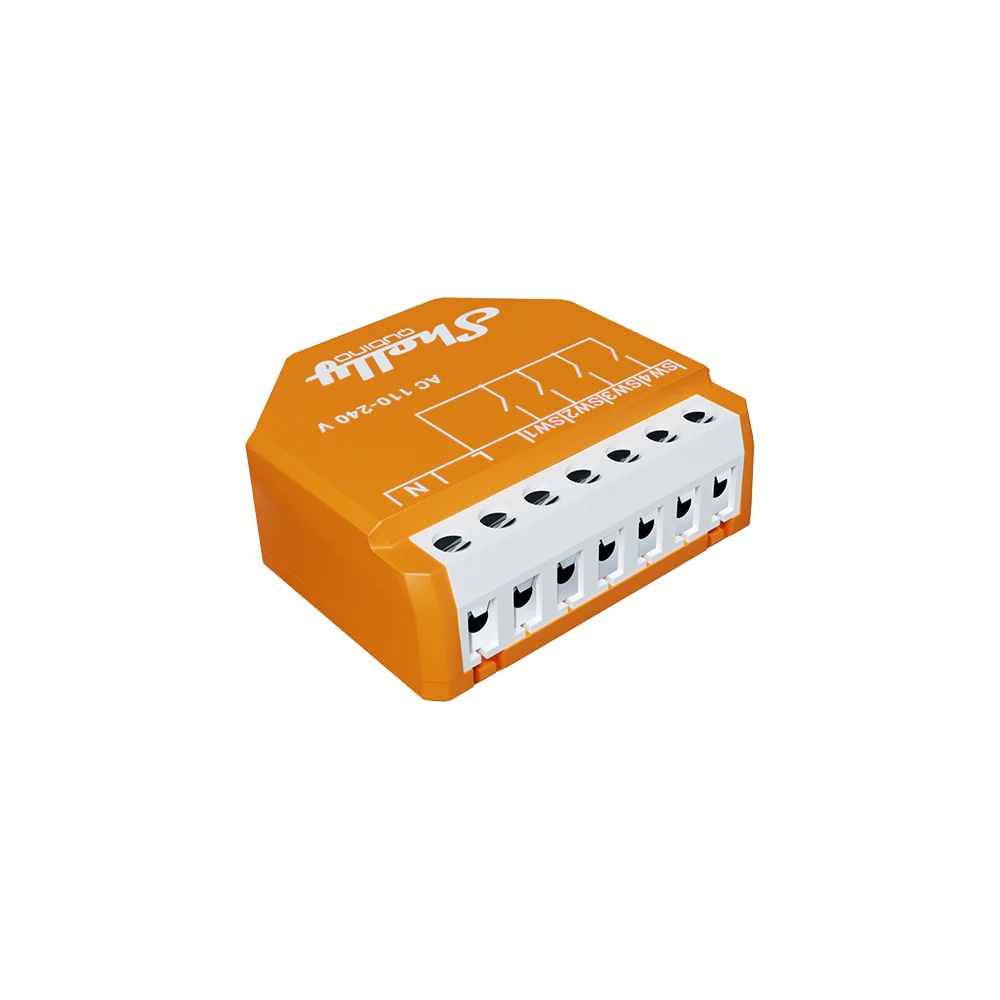

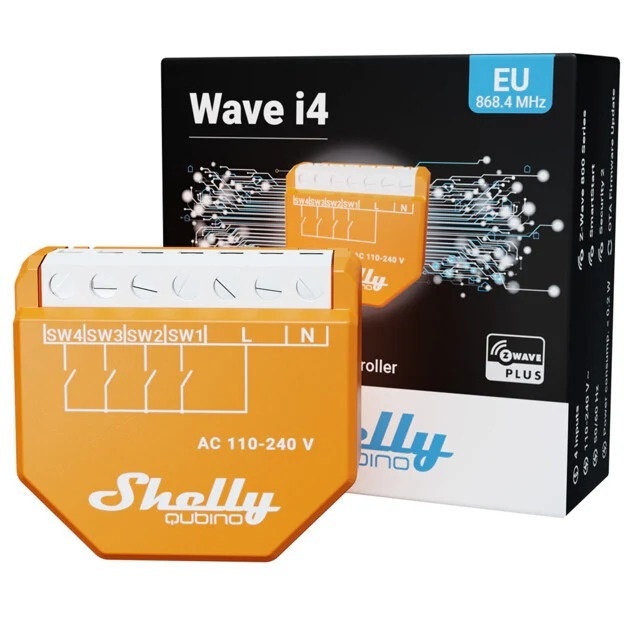

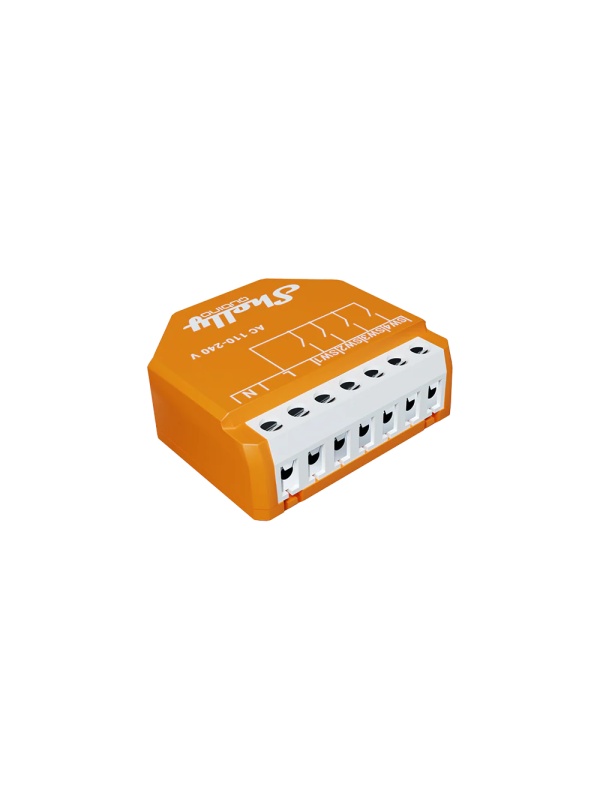

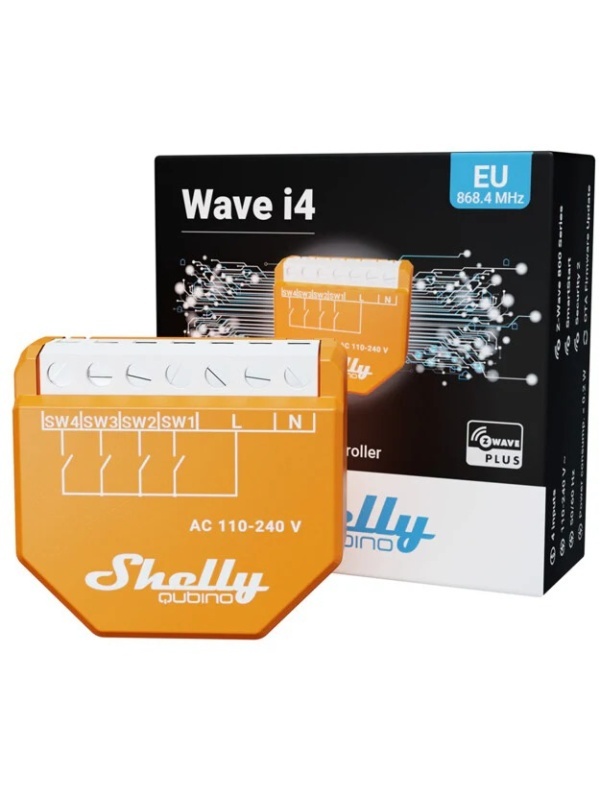

Shelly Wave i4 LR - Intelligent Scene Controller Z-Wave 800, Long Range, 4 Digital Inputs

TheShelly Wave i4 LR is an input reader device that turns any classic wall switch into a smart whole-home control centre. It does not directly control an electrical circuit (it has no internal relays), but instead senses your actions on physical buttons and triggers complex scenes in the Z-Wave network. Based on the cutting-edge Z-Wave 800 technology, the "Long Range" model provides instant response speed and a much extended range.

Key Benefits (Selling Points)

• Z-Wave 800 Series Chipset: Utilises the latest Z-Wave hardware platform, offering superior power efficiency, fast processing and the highest level of data security (S2 Authenticated).

• Long Range (LR) Technology: The LR architecture allows the device to communicate directly with the gateway over distances of up to several hundred metres in optimal conditions, ideal for large homes or for remote control of the garage and garden.

• Multi-Click Control (Up to 12 actions): Each of the 4 inputs can recognise 3 types of interaction: short press, double press and long press. So you can configure up to 12 different commands on a single switch panel.

• No Relays - Ideal for Scenes: Because it has no power outputs, the device doesn't heat up and takes up minimal space in the can. It is designed exclusively to "control" other devices in your smart network.

• Universal Compatibility: Can be connected to switches with 1, 2, 3 or 4 buttons, either rocker or push button.

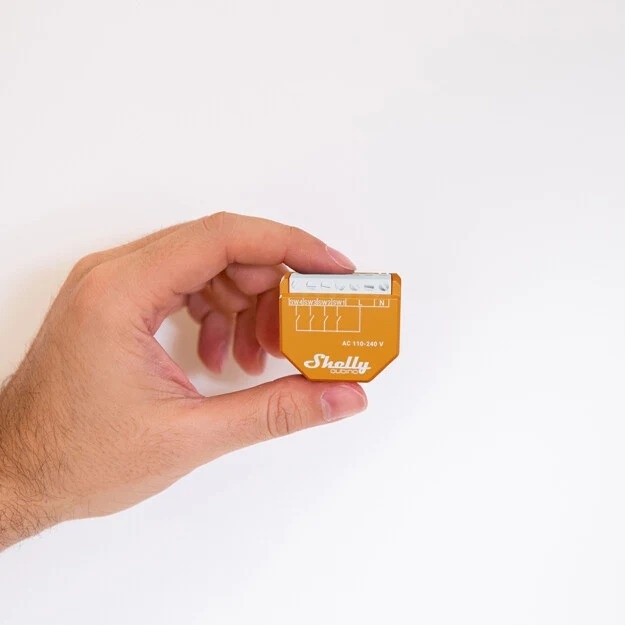

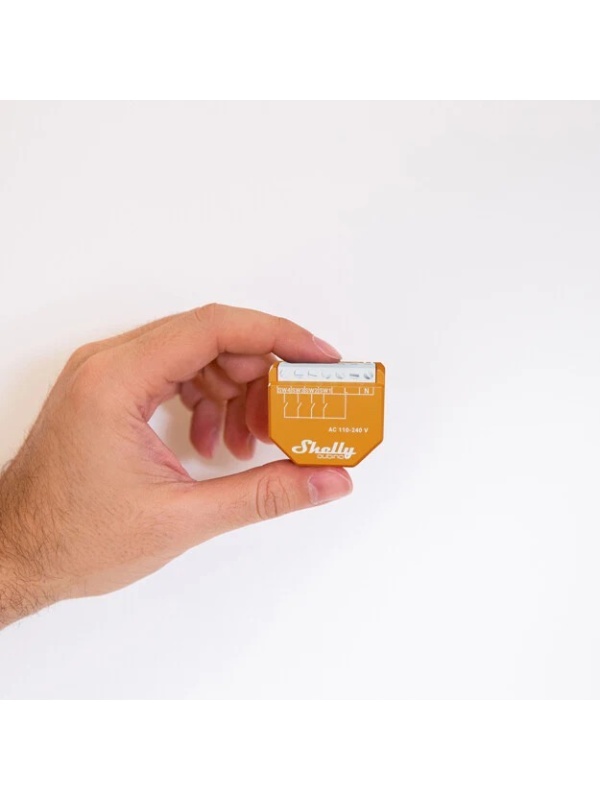

• Invisible Installation: Ultra-compact dimensions allow it to be mounted behind your existing switch, preserving the original aesthetics of your rooms.

Examples of Smart Automation

1. "Good Morning" Scenario: One press of button 1 can raise all the blinds in the house, activate the espresso machine and switch on the kitchen lights.

2. Centralised Lighting Control: Configure buttons to control groups of devices. For example, Button 2 can switch off all the lights upstairs simultaneously, regardless of where their relays are mounted.

3. Virtual Dimming: Although the i4 is not a physical dimmer, a long press on one of the buttons can be programmed to increase or decrease the dimming intensity of another dimmer device on the Z-Wave network.

Technical Specifications

• Model: Shelly Wave i4 LR

• Technology: Z-Wave 800 Series (Long Range)

• Power supply: 110-240V AC, 50/60Hz

• Inputs: 4 digital inputs for external switches

• Power consumption: < 0.3 W (extremely efficient)

• Security: Z-Wave S2 Authenticated

• Operating distance: Up to 40m indoors / Hundreds of metres in Long Range mode

• Dimensions: 37 x 42 x 16 mm

Package Contents: 1 x Shelly Wave i4 LR, user manual(Note: This device requires a compatible Z-Wave Hub/Gateway to operate and cannot directly switch off/on the power of a bulb.)

Why choose Shelly Wave i4 LR?

If you already own a Z-Wave ecosystem and want a discrete controller to "empower" your wall switches, the Wave i4 LR is the perfect choice. It's a versatile tool that gives you the freedom to create complex scenarios without being limited by traditional electrical wiring, all on an ultra-stable, long-lasting connection.
