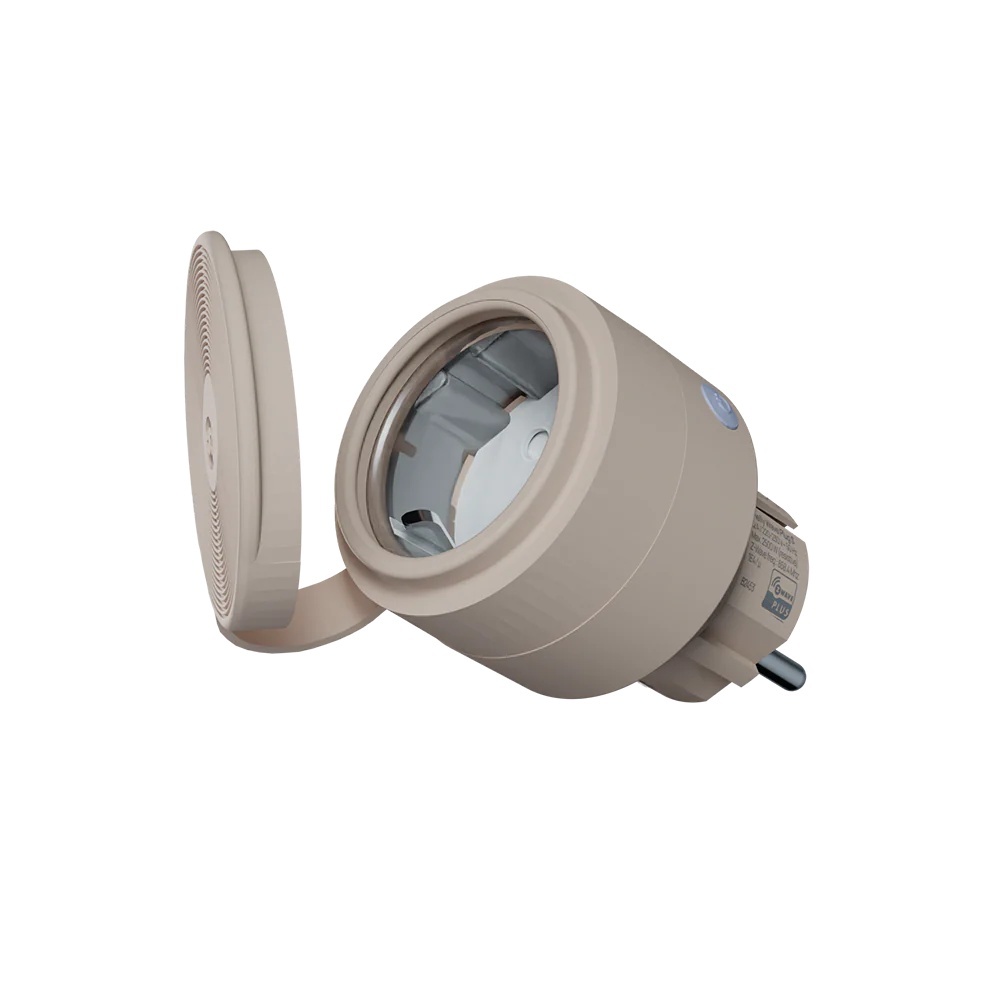

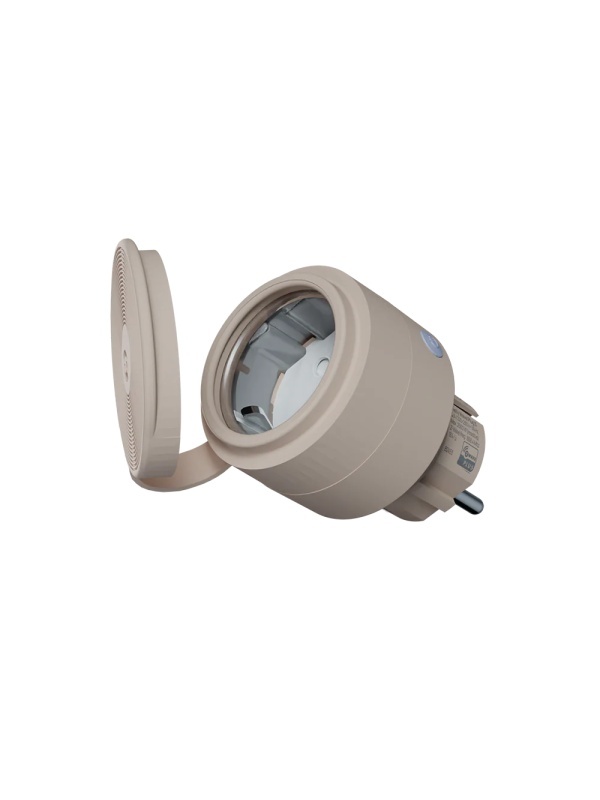

Shelly Wave Outdoor Plug S LR – Outdoor Smart Plug, Z-Wave 800, Energy Monitoring, Long Range Technology

The Shelly Wave Outdoor Plug S LR is an outdoor smart plug with IP44 protection, designed for controlling electrical appliances installed outside the house, such as decorative lighting, garden pumps or Christmas lights. It runs on the Z-Wave 800 protocol and supports both the classic mesh topology and Z-Wave Long Range, which provides coverage of up to 80 metres indoors through walls and up to 1000 metres outdoors with direct line of sight.

The plug supports loads of up to 12A (2500W) at the standard voltage of 230V AC and integrates real-time energy monitoring, useful for tracking the costs of outdoor lighting or seasonal equipment. Installation is Plug & Play, with no additional wiring, directly into an existing outdoor socket.

Built-in protection against overheating, overcurrent and overvoltage ensures safe long-term operation, even in the humidity and temperature variations typical of outdoor conditions. Its low own consumption, of up to 0.7W, keeps the energy efficiency of the whole installation high.

Note: the plug requires a compatible Z-Wave hub or gateway for setup and control; it does not replace the electrical protection of the installation and must be used in accordance with the maximum load guidance.

Practical use cases

• Connected to Christmas lights or decorative garden lighting, it switches the lights on and off on a schedule.
• Used for the garden pump, it allows remote switch-on and automatic switch-off according to a set schedule.
• Fitted to an outdoor socket far from the house, it stays connected to the Z-Wave hub thanks to the Long Range coverage of up to 1000 m outdoors.
• Monitors the consumption of seasonal outdoor equipment, giving a clear estimate of running costs.

Technical specifications

For gardens, terraces and paths where electrical appliances need to be controlled remotely whatever the weather, the Wave Outdoor Plug S LR offers a robust, weatherproof solution fully integrated into the home's Z-Wave network.
