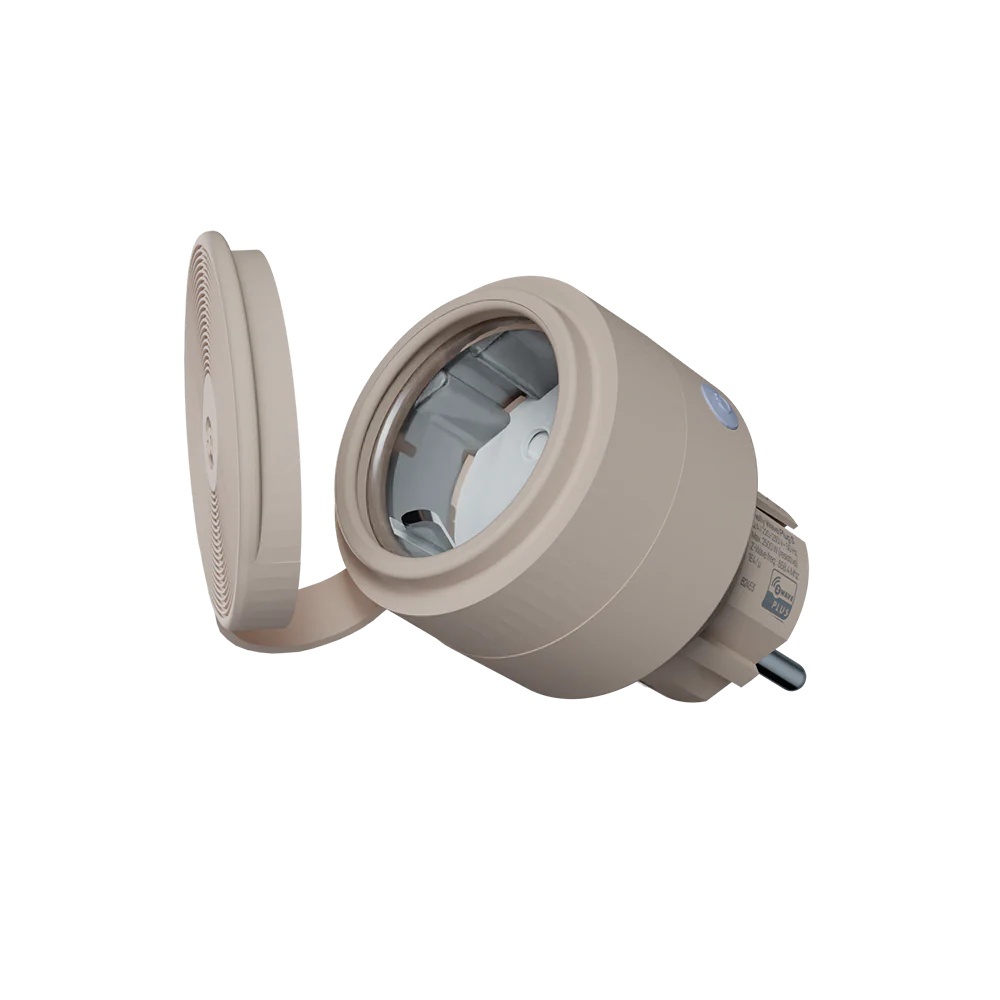

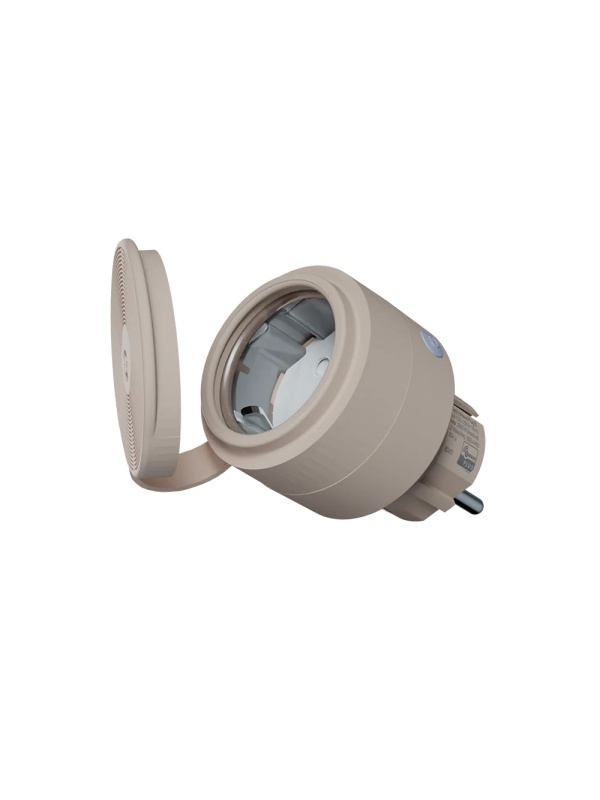

Shelly Wave Outdoor Plug S LR - Intelligent Outdoor Plug, Z-Wave 800, Consumption Monitoring, Long Range Technology

TheShelly Wave Outdoor Plug S LR is an extremely robust outdoor smart plug based on the latest Z-Wave protocol (800 series). Specially designed to withstand the elements, this plug allows you to automate and monitor the power consumption of electrical devices in your garden, patio or yard. Thanks to Z-Wave Long Range (LR) technology, the device offers extended range and superior security, making it the ideal solution for automations at long distances from the central hub where regular Wi-Fi signals cannot reach.

Key Benefits (Selling Points)

• Z-Wave 800 & Long Range (LR) Technology: Uses the most advanced Z-Wave generation, offering increased communication speed and a range of up to several hundred metres in Long Range (unhindered) mode, optimising mesh network power consumption.

• IP44 (Outdoor Ready) Protection: The housing is sealed to withstand dust and splash water from any direction. It is the safe solution for powering garden pumps, festive lighting systems or outdoor heaters.

• Real-Time Consumption Monitoring: Accurately measure your electricity consumption (W, kWh). You can quickly identify appliances that are over-consuming and view consumption history directly from your Z-Wave hub interface.

• Large Load Capacity: Supports loads up to 16A (3680W) and is capable of safely handling large consumers such as electric grills, pool filtration systems or gardening tools.

• S2 Authenticated Security: Benefits from the highest standard of Z-Wave encryption, ensuring a protected connection against any unauthorised access attempts.

• Signal Repeater Function: Permanently powered to the network, the outlet acts as a node in the Z-Wave network, relaying the signal to other outdoor smart devices, eliminating no coverage areas.

Examples of Smart Automation

1. Automated Irrigation: Connect the water pump to the Wave Outdoor outlet and set up a scenario where it only turns on on Tuesdays and Thursdays between 05:00 and 06:00 if soil sensors indicate low humidity.

2. Ambient Evening Lighting: Programme the lights in your conservatory to automatically switch on at dusk and switch off at dawn or at a set time, effortlessly saving energy.

3. Energy Management: Sets the socket to automatically switch off the patio heater if its consumption exceeds a certain value within a set time, preventing overload on the mains.

Technical Specifications

• Model: Shelly Wave Outdoor Plug S LR

• Protocol: Z-Wave 800 Series (Z-Wave Plus)

• Technology: Supports Z-Wave Long Range (LR)

• Maximum Load: 16A / 3680W (Resistive Loads)

• Degree of Protection: IP44 (Dust and Water Resistant)

• Frequency: 868.4 MHz (European Standard)

• Functions: Power Consumption Measurement, On/Off Switching, Mesh Repeater

• Own Power Consumption: Less than 0.3 W

• Compatibility: Requires a Z-Wave Gateway/Hub (e.g. Home Assistant, Fibaro, SmartThings)

Package Contents: 1 x Shelly Wave Outdoor Plug S LR, User Manual.

Why choose Shelly Wave Outdoor Plug S LR?

It is the professional choice for those who want to extend the smart home beyond the walls of their home. Z-Wave 800 LR technology offers a reliability that Wi-Fi can't match outdoors, ensuring your devices will respond instantly, no matter the distance. It's robust, provides accurate power consumption data and is built to last through any season.
