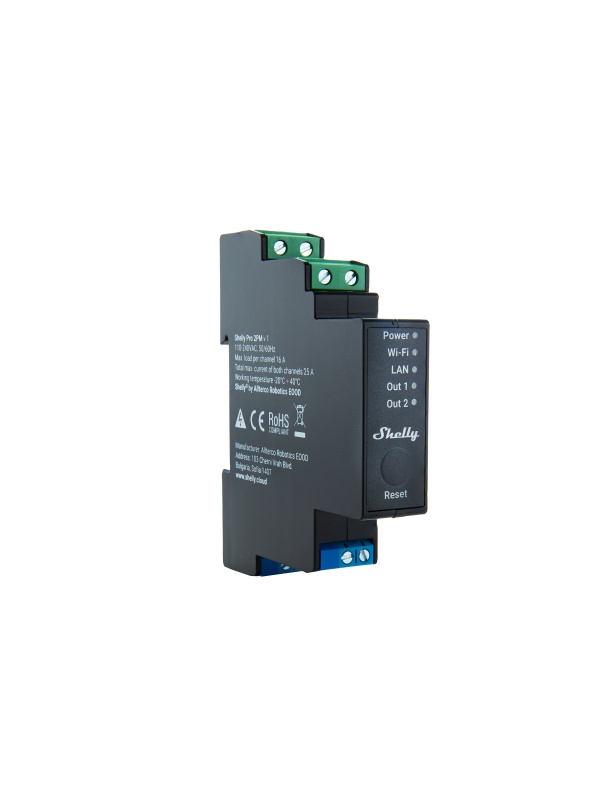

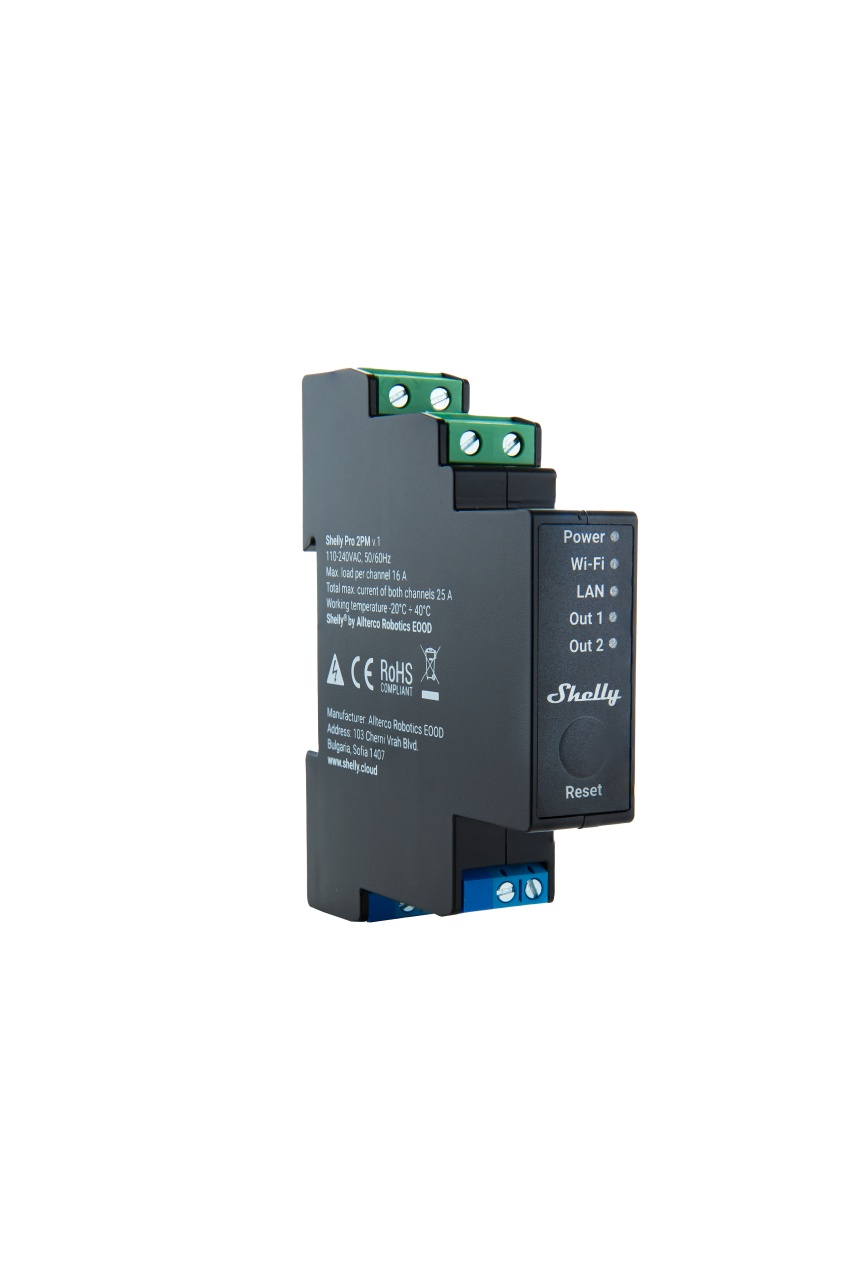

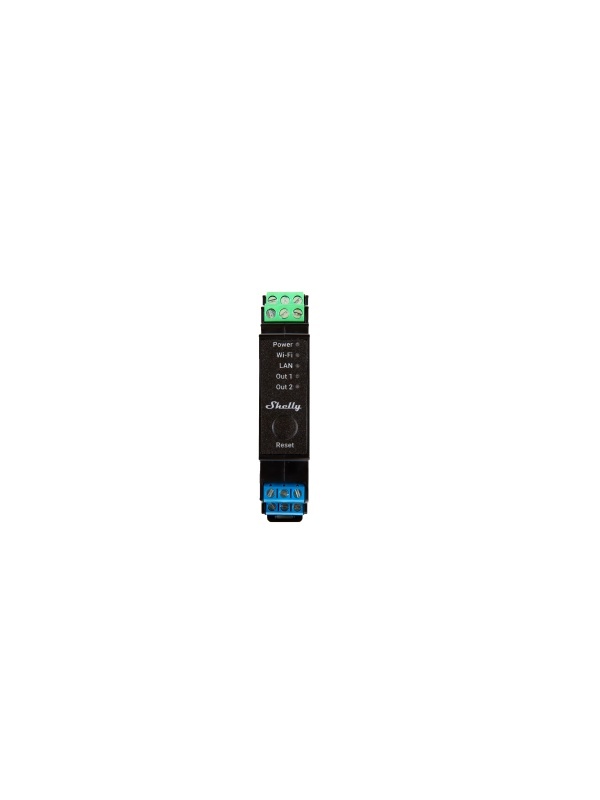

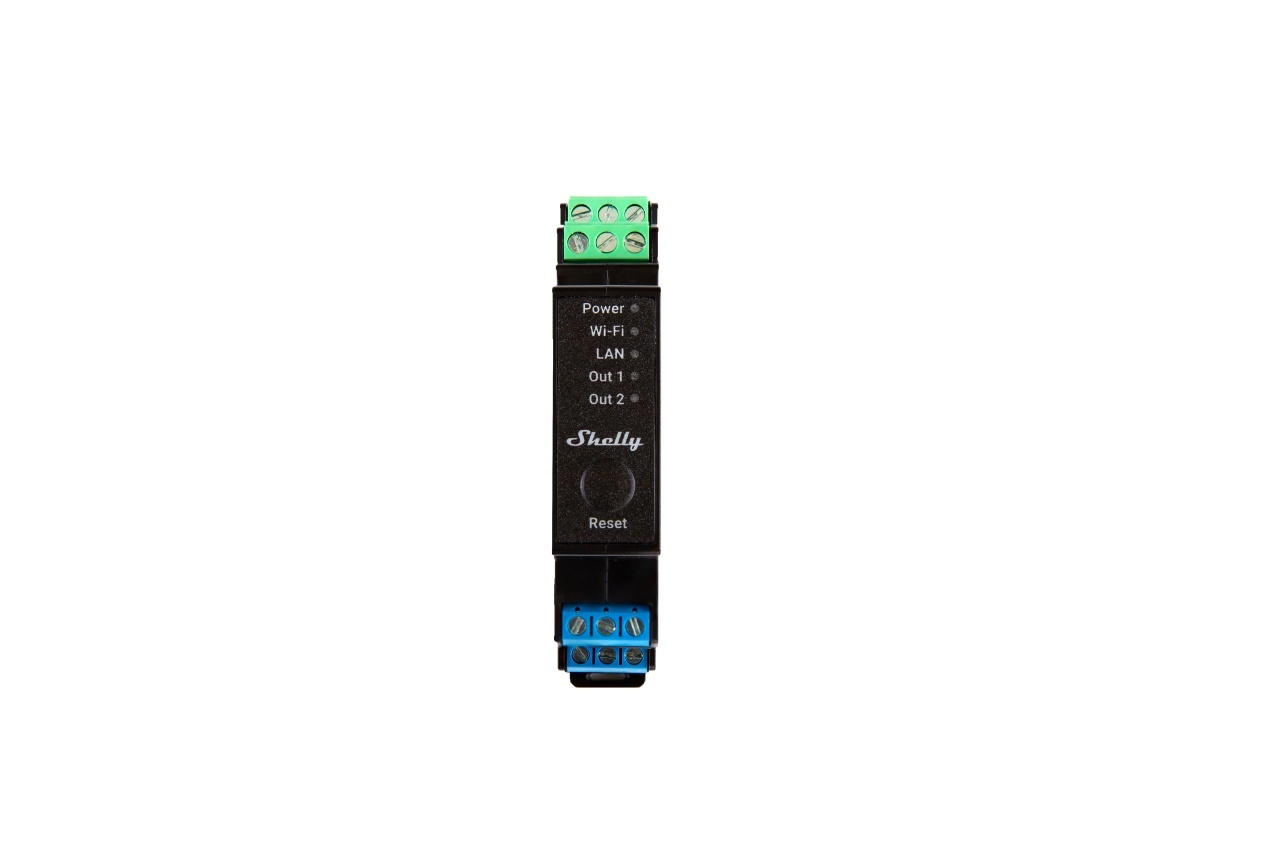

Shelly Wave Pro 2PM LR - 2 Channel Professional Relay, DIN Rail Mountable, Z-Wave 800, Energy Monitoring and Long Range Technology

Shelly Wave Pro 2PM LR is an intelligent 2-channel relay designed for professional home and commercial building automation. The device mounts directly into the DIN rail electrical panel and utilises the most advanced Z-Wave (800 series) protocol. With dual channel energy monitoring functions and support for Z-Wave Long Range (LR), this module enables precise control of lighting, rollers or electrical appliances, providing extended range and industrial reliability.

Key Benefits (Selling Points)

• Z-Wave 800 & Long Range Protocol: Benefit from the fastest transmission rate and increased security. Long Range (LR) technology enables communication over long distances (hundreds of metres), ideal for large properties or signals that need to pass through thick walls.

• Dual Control with Monitoring (2PM): Features two independent channels that can control loads of up to 16A per channel (25A total). Includes real-time consumption monitoring for each channel, helping you to optimise energy costs.

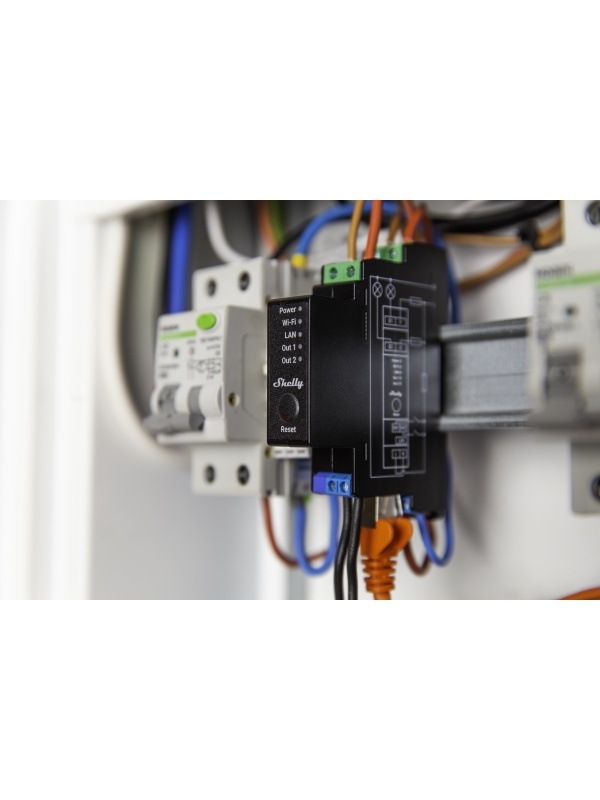

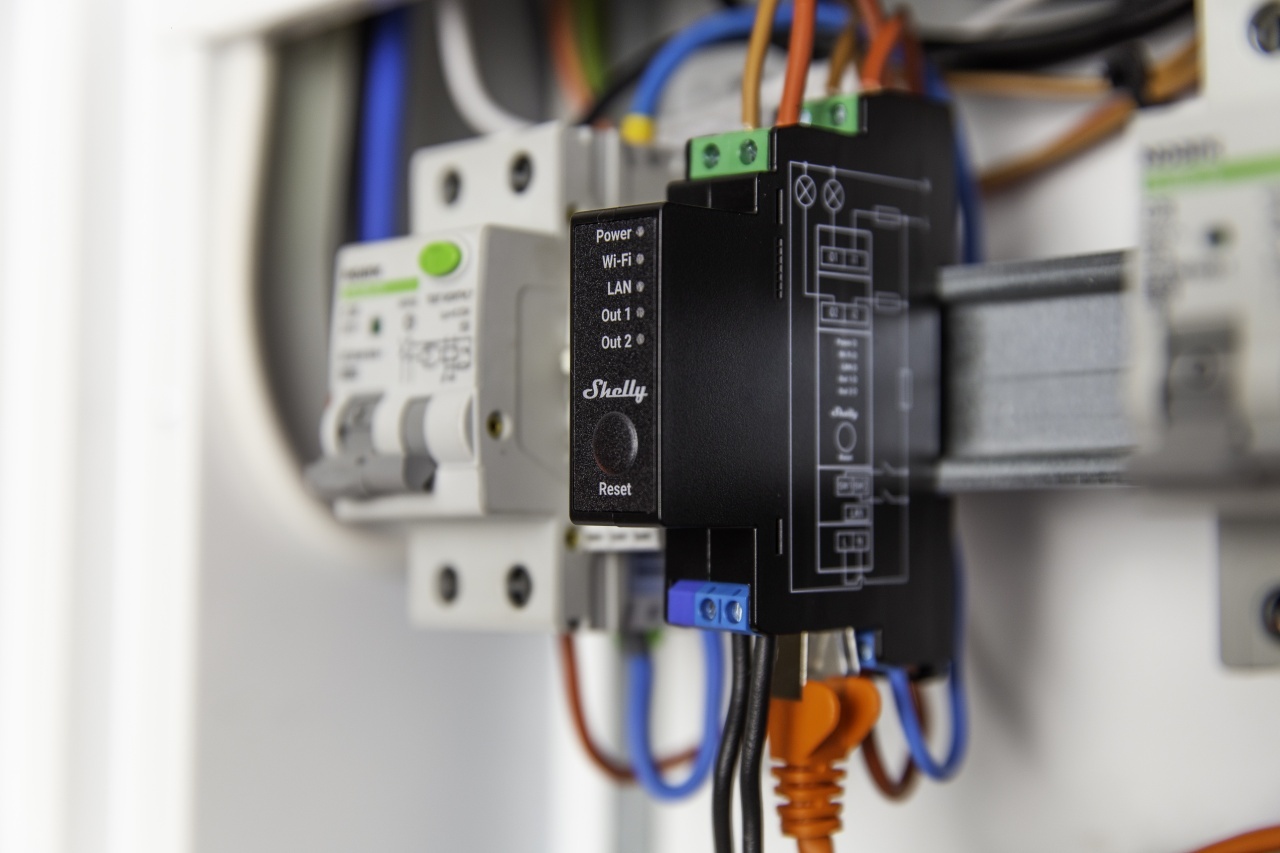

• Professional DIN Rail Mounting: Designed to be installed in the electrical panel, providing a tidy and secure look. The perfect solution for new builds or renovations where centralised automation is desired.

• Control Blinds and Roller Blinds: Advanced firmware allows the use of two channels to control bi-directional motors (blinds, awnings, roller blinds), including precise positioning and calibration functions.

• High Level Security (S2 Authenticated): State-of-the-art encryption ensures your smart network remains protected against any hacking attempts.

• Local and Mesh Operation: Does not depend on internet connection to run locally scheduled scenes. It also acts as a signal repeater, reinforcing the stability of the entire Z-Wave network in the building.

Examples of Intelligent Automation

1. Centralised Roll Management: Install modules in the electrical panel to control all the house's rolls. You can create a "Night" scene that lowers all rolls to 90% at sunset.

2. Large Consumer Monitoring: Plug in your water heater or air conditioning unit. You'll be able to see exactly how much current it's drawing, and you can set power limits to prevent overloading circuits.

3. Zone Lighting Control: Manage two separate lighting circuits (e.g. hallway and living room) from a single module, integrating them into complex occupancy or activity simulation scenarios.

Technical Specifications

• Model: Shelly Wave Pro 2PM LR

• Protocol: Z-Wave 800 Series

• Power Supply: 110-240V AC, 50/60Hz

• Channels: 2 independent channels with energy monitoring

• Maximum Load: 16A per channel / 25A Total (Resistive Loads)

• Mounting: DIN rail (35mm standard)

• Contacts: Potential contacts (Dry contacts: NO)

• Frequency: 868.4 MHz (EU Region)

• Power Consumption: < 0.3 W

• Compatibility: Requires a Z-Wave Gateway/Hub (e.g. Home Assistant, Fibaro, SmartThings)

Package Contents: 1 x Shelly Wave Pro 2PM LR, User Manual and Installation Guide.

Why choose Shelly Wave Pro 2PM LR?

It is the top of the range for professional installations using Z-Wave. Combining the ruggedness of the "Pro" series with the amazing range of "Long Range" technology, this module eliminates connectivity issues in large buildings. It is an accurate, reliable and highly versatile device capable of managing both lighting and electric motors while providing valuable energy consumption data.
