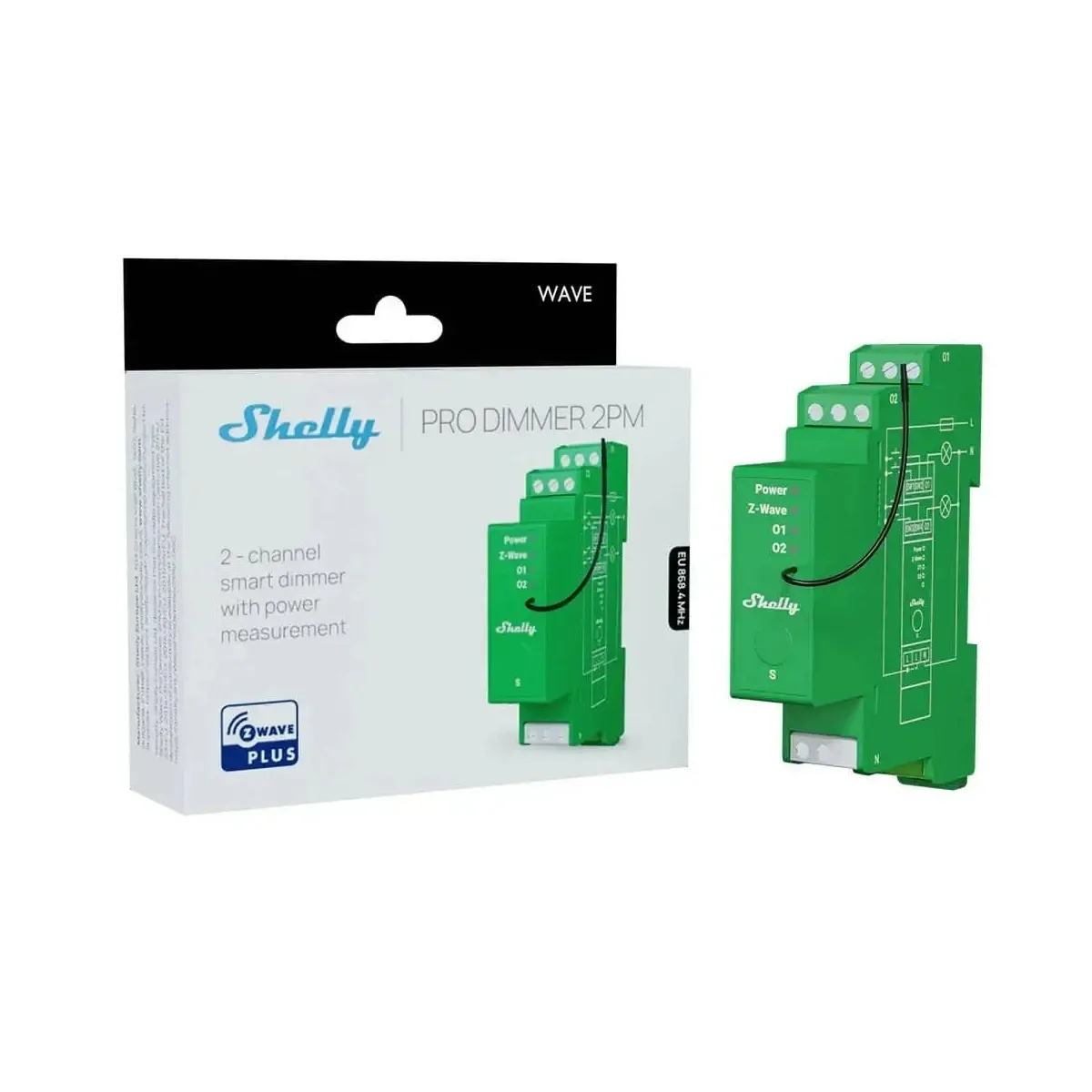

• Shelly Wave Pro Dimmer 2PM - dimming module with 2 outputs (Z-Wave) - Img 1

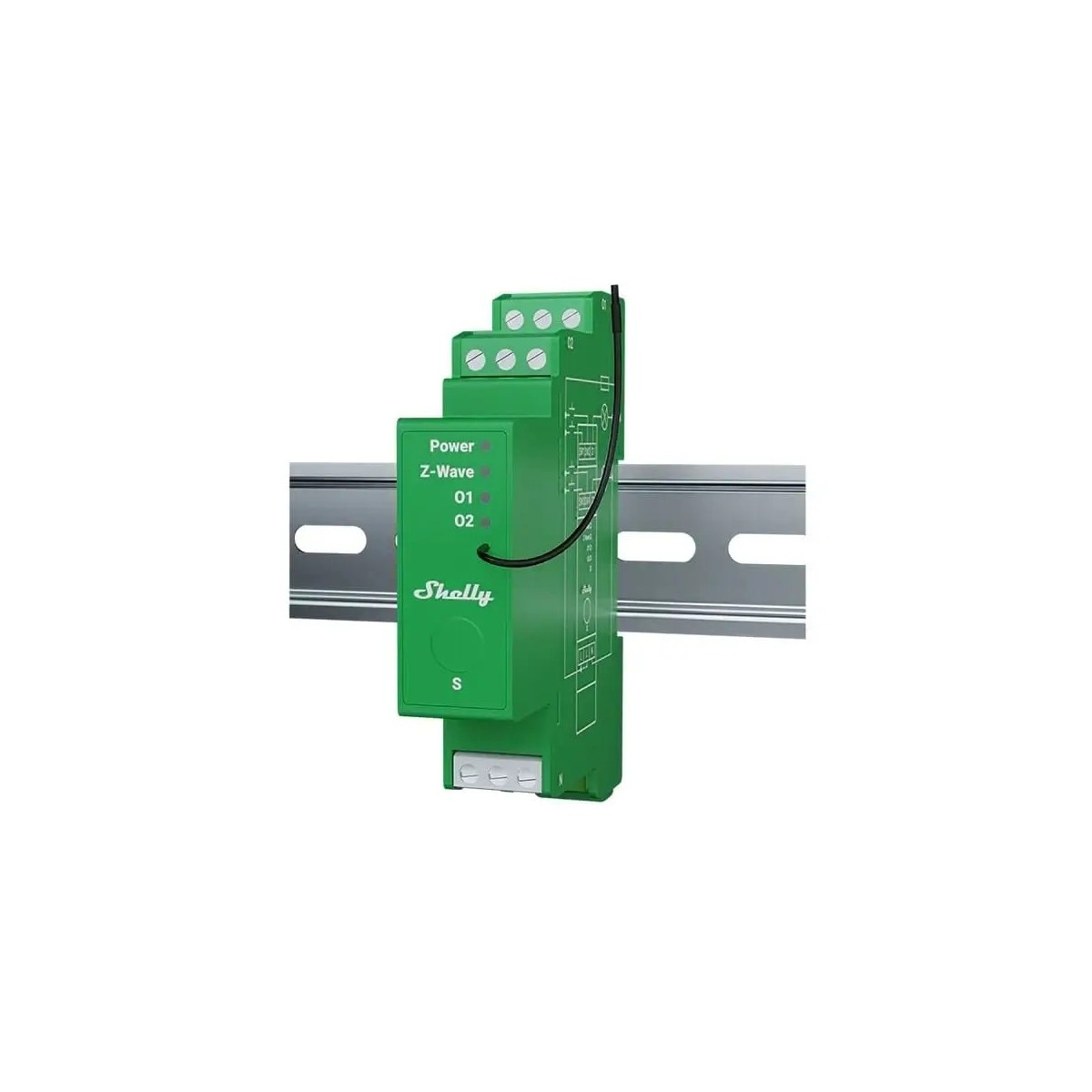

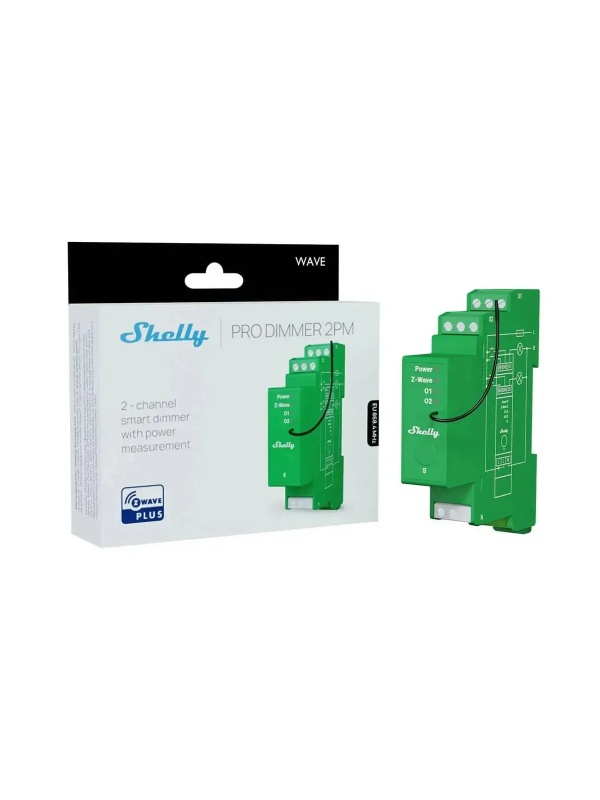

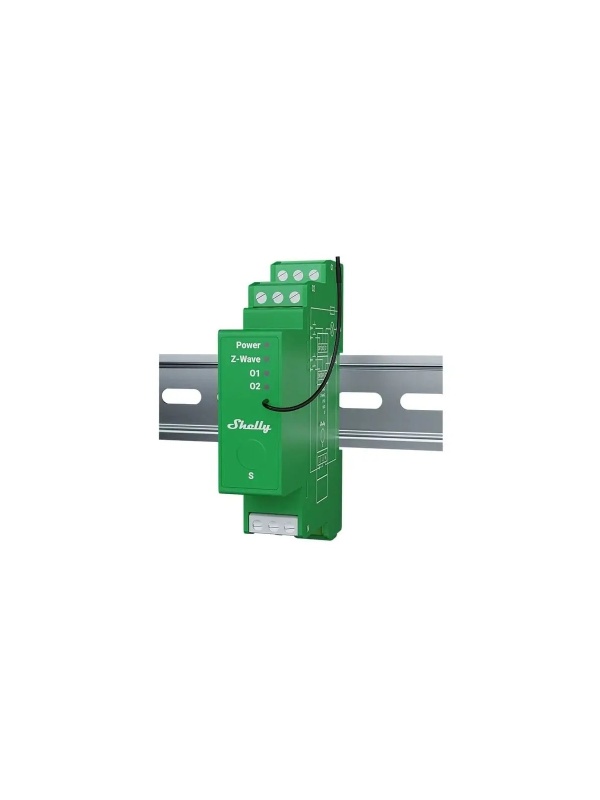

  • Shelly Wave Pro Dimmer 2PM - dimming module with 2 outputs (Z-Wave) - Img 2

Shelly Wave Pro Dimmer 2PM - dimming module with 2 outputs (Z-Wave)

Shelly
RON 400.50 (VAT included)
RON 330.99 (VAT excluded)
shipping cost is not included
Shelly
Product code - SKU 3800235268698
EAN 3800235268698
Add to Favorites

Description

💡 Shelly Wave Pro Dimmer 2PM - Professional Z-Wave® dimming module, 2 outputs, consumption monitoring, DIN mounting

Dual control and perfect lighting - Shelly Wave Pro Dimmer 2PM is a smart module with 2 independent outputs, ideal for dimming control in smart homes, offices or commercial spaces. It provides power monitoring, fine light control and mounts directly to DIN rail and is compatible with all Z-Wave® certified hubs.

✅ Key benefits:

🎚️ 2 independent outputs for separate control - You can dim two separate lighting zones
📊 C onsumption monitoring (W) - Visualise in real time the energy consumed by each channel
📦 Professional DIN rail mounting - Ideal for switchboards and automation projects
📶 Z-Wave 800 (S800) - Reliable communication, extended range and broad compatibility
🔐 Security 2 Authenticated - Encrypted protection for secure and stable Z-Wave® networks
📲 S martStart quick setup & OTA updates - Hassle-free installation
🔁 Integrated Z-Wave® repeater - Extend and optimise your smart network
🌡️ Advanced protections - Against overload, overvoltage and overheating

🧠 Smart automations:

💡 Personalised lighting scenarios - Create the perfect atmosphere for every time of day
⏰ Automated programmes and scenes - Control light by time, sunrise, sunset or presence
📉 Maximum energy efficiency - Reduce consumption with fine tuning and constant monitoring

⚙️ Technical specifications:

  • Power supply: 110 - 240 V AC, 50/60 Hz

  • Number of outputs: 2 independent outputs for dimmable lighting

  • Source compatibility: LED, halogen, incandescent (depending on type)

  • Consumption monitoring: Yes (individual for each channel)

  • Radio protocol: Z-Wave® S800

  • RF Frequency: 868.4 MHz

  • Emitted power: < 25 mW

  • Own consumption: < 0.3 W

  • Works as Z-Wave® repeater: Yes

  • Protections: Overload, overvoltage, overheating

  • Mounting: DIN rail

  • Dimensions: 94 x 38 x 69 mm

  • Weight: ~80 g

  • Housing material: Fire-retardant plastic

  • Colour: Black

  • Operating temperature: -20°C to +40°C

  • Humidity: 30% - 70% RH

  • Maximum altitude: 2000 m

🔗 Shelly Wave Pro Dimmer 2PM is the ideal solution for advanced and efficient lighting control in any Z-Wave® network. Compatible with Home Assistant, Fibaro, SmartThings and many other smart platforms.

📦 Note: Requires a compatible Z-Wave® gateway for complete setup and use.
