SM6110-LR
Description

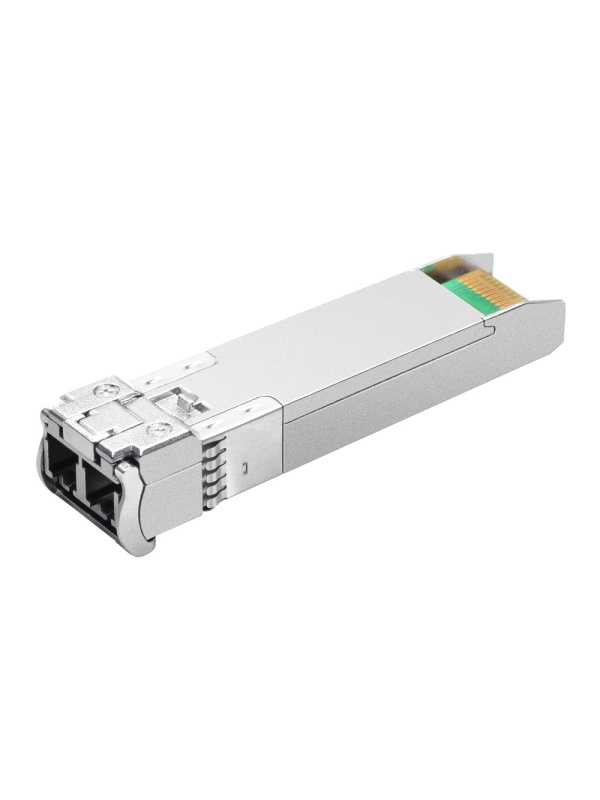

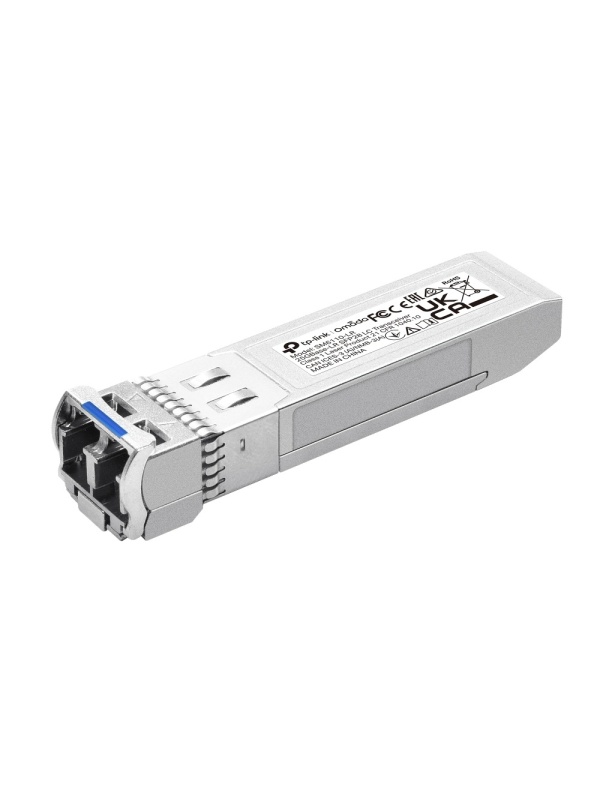

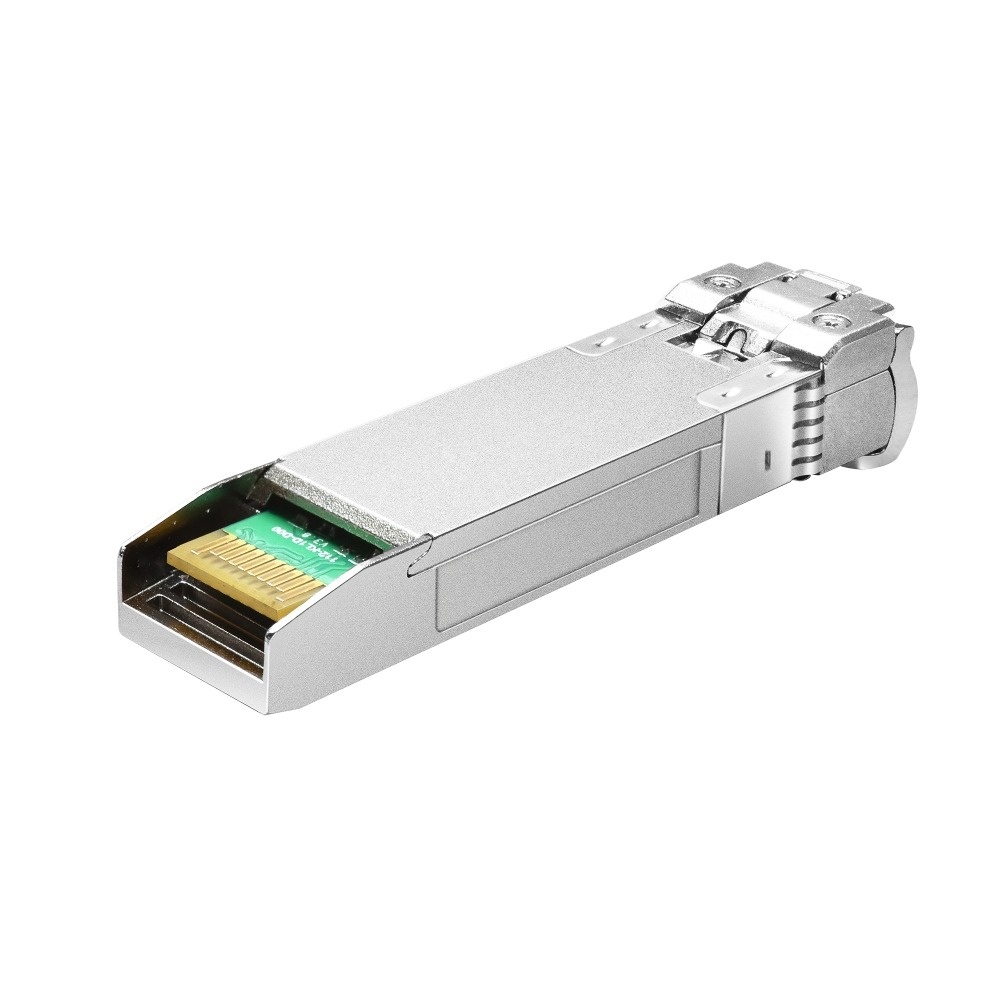

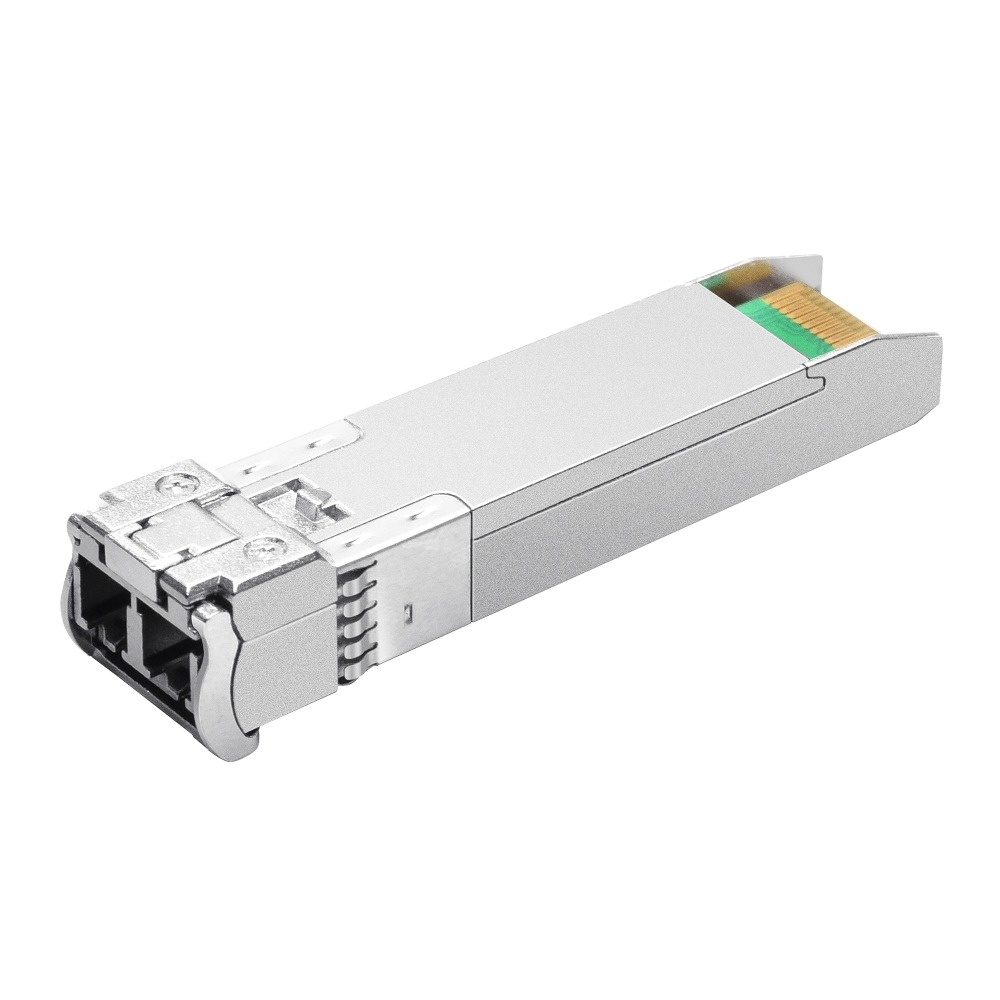

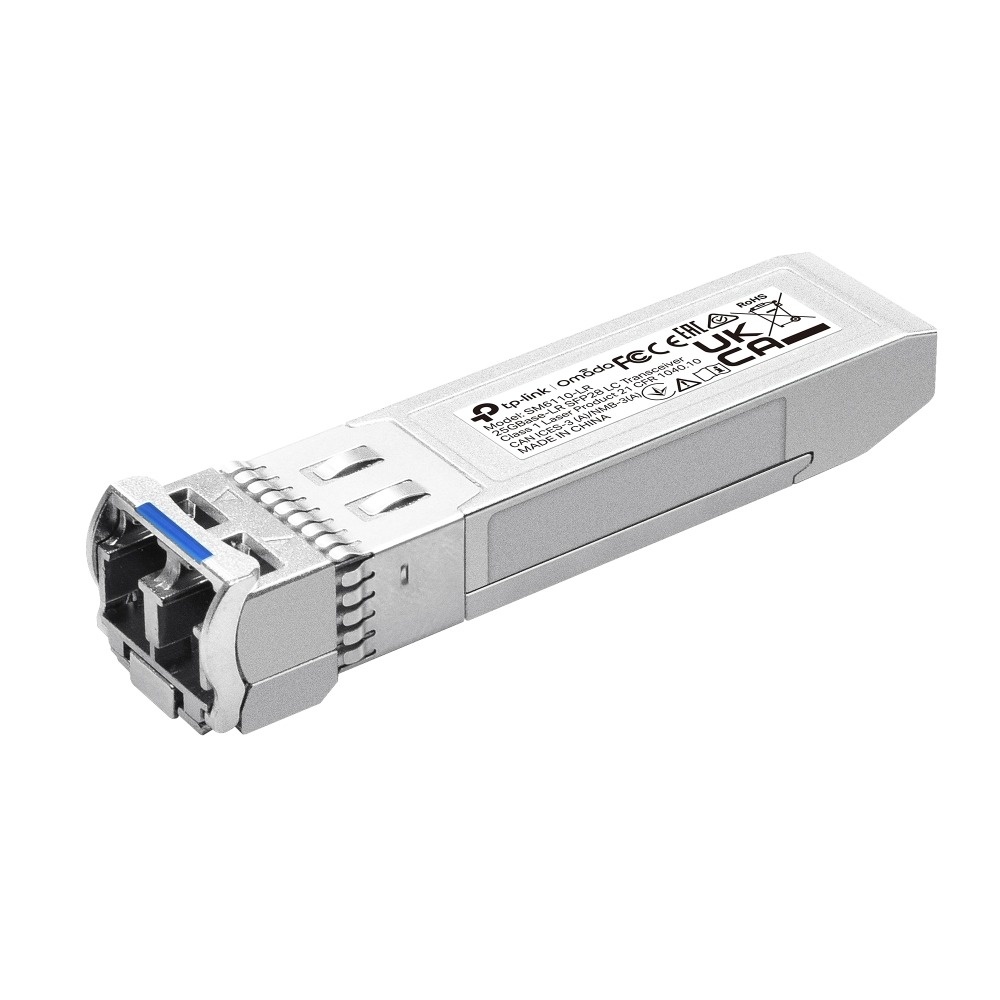

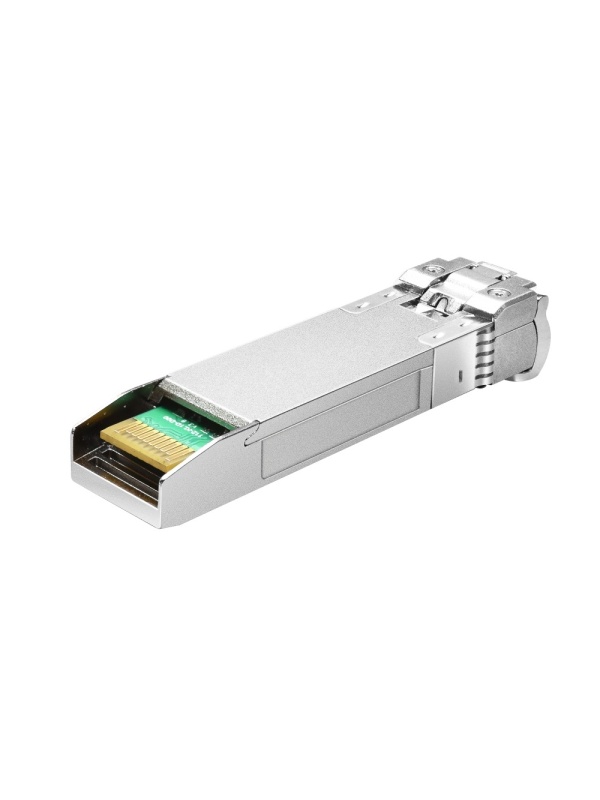

Omada 25 GBASE-LR Transceiver - TP-Link TL-SM6110-LR
🚀 25 Gbps single-mode fibre connections up to 10 km
🔍 Key features
-
Dual-rate 25.78 Gbps and 10.31 Gbps support, SFP28 port-compatible and 10G backward-compatible(tp-link.com, static.tp-link.com)
-
Single-mode 9/125 µm fibre , maximum distance 10 km at 1310 nm(static.tp-link.com)
-
Duplex LC/UPC connector, in SFP28 hot-pluggable (MSA) format, powered at 3.3 V, ≤ 1.2 W power consumption(static.tp-link.com)
-
Includes DDM (digital monitoring), CDR, IEEE 802.3ae/cc and SFF-84xx compliant(static.tp-link.com)
-
Operating temperatures from 0 °C to 70 °C, storage -40...85 °C(tp-link.com)
-
Compatible with Omada switches such as SX6632YF, SG3428X, SG3452X(static.tp-link.com)
✅ Comparative advantages wifishop.co.uk style
-
High-speed performance over long distances - ideal for rack-to-rack or campus-to-campus backhaul
-
Versatile and energy efficient - dual-rate, low power consumption and super-compatible with Omada ecosystem
-
Easy to integrate - hot-swap mountable, advanced monitoring, SFP28 MSA standard ensuring interoperability
📊 Specifications in brief
| Parameter | Details |
|---|---|
| Supported speed | 25.78 Gbps / 10.31 Gbps (dual rate) |
| Fibre type | Single-mode 9/125 µm, LC duplex |
| Maximum length | 10 km (1310 nm) |
| Power consumption | ≤ 1.2 W |
| Monitoring | DDM, CDR |
| Form | SFP28 MSA, hot-pluggable |
| Operating environment | 0-70 °C; storage -40-85 °C |
| Compatibility | IEEE 802.3ae/cc, SFF-84xx, CPRI, eCPRI |
🎯 Quick tip
TheTP-Link TL-SM6110-LR is the ideal module for high-performance professional networks, offering 25 Gbps over single-mode fibre at distances up to 10 km with low power consumption, advanced monitoring and broad compatibility - the perfect solution for factories, data centres, Wi-Fi 7 backhaul and enterprise infrastructures.
