SM6220-1M
Description
Omada 25G Direct-Attach Omada Cable - TP-Link SM6220-1M
🚀 100% passive, fast rack-to-rack connection - 25 Gbps at a low price
🔌 What's in the SM6220-1M?
-

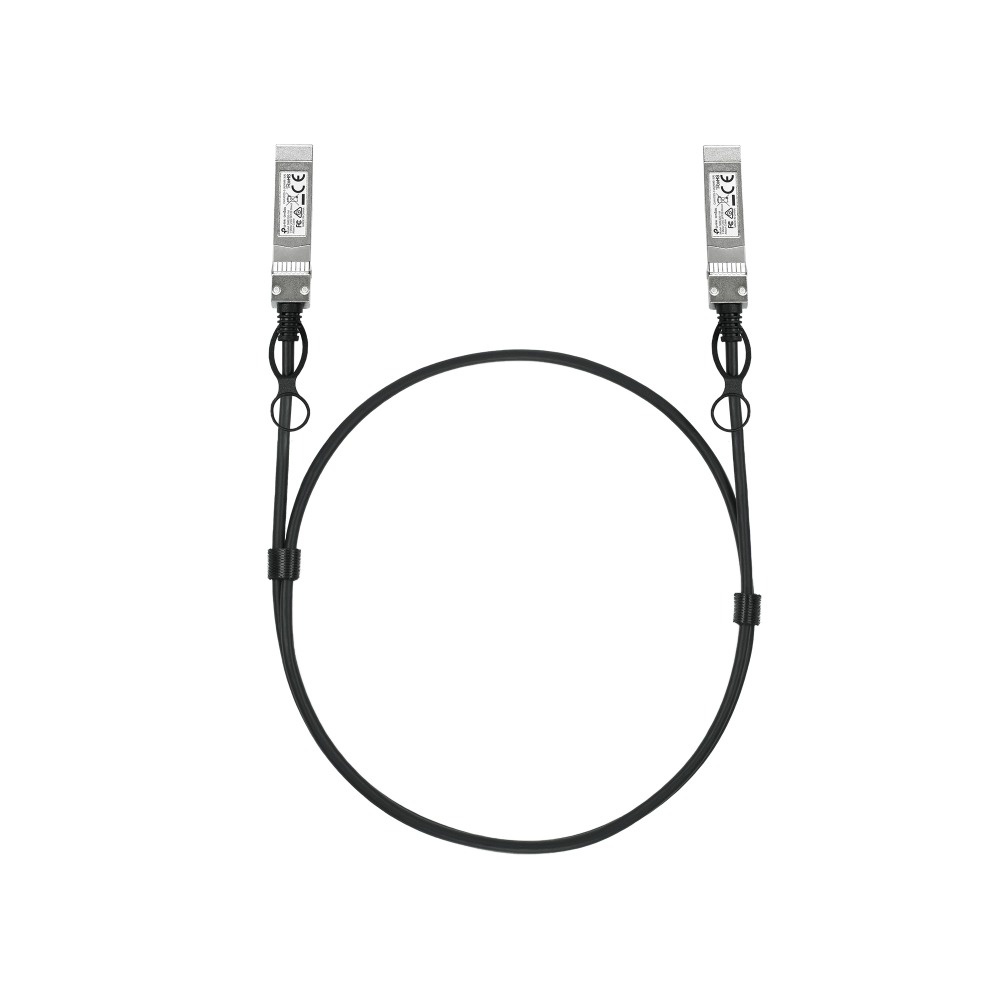

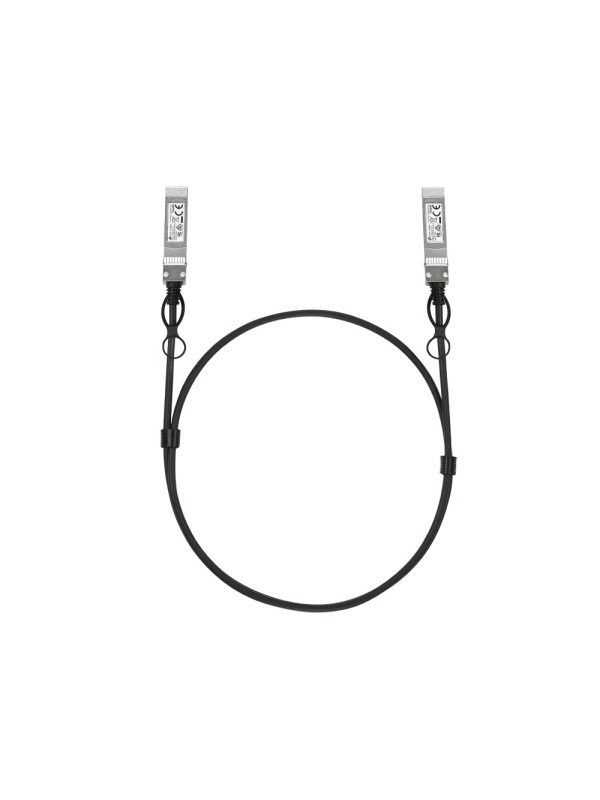

Passive twin-ax with SFP28 connectors at both ends - ideal for rack-to-rack interconnection over distances up to 1 metre(tp-link.com, static.tp-link.com)
-
Supports 25 Gbps, backward compatible with 10 Gbps and 1 Gbps
-
Silver-plated copper wires, AWG30, minimum bend radius 22.5 mm
🌡️ Key Features
| Specification | Details |
|---|---|
| Length | 1 metre (≈39.4 inches) |
| Operating temperature | 0 °C - 70 °C; storage -40 °C - 85 °C(static.tp-link.com) |
| Operating Humidity | 10-90 % RH (non-condensing) |
| Construction | Twin-ax passive, SFP28 male QSFP28 connectors on both sides |
✅ Advantages wifishop.co.uk
-
Accelerated performance: up to 25 Gbps on a short link - ideal for high-end server and switch infrastructures
-
Cost-effective: passive twin-ax eliminates active power component, delivering low-cost performance(cpcireland.farnell.com)
-
Fast and stable link: plug-and-play, no configuration - perfect in data racks
-
Compact and durable: small size, premium materials - silver-plated copper, fl exible TE
🎯 Ideal uses
-
Rack-to-rack interconnection in data centres or servers
-
Reliable backup between Omada switches or other SFP28 compatible equipment
-
Extend Wi-Fi 7 infrastructure or storages at next-generation speeds
📦 TP-Link SM6220-1M - the passive direct-attach solution offering 25 Gbps performance and plug-and-play compatibility, ideal for professional networks with high demands.
