SM9220-1M
Description

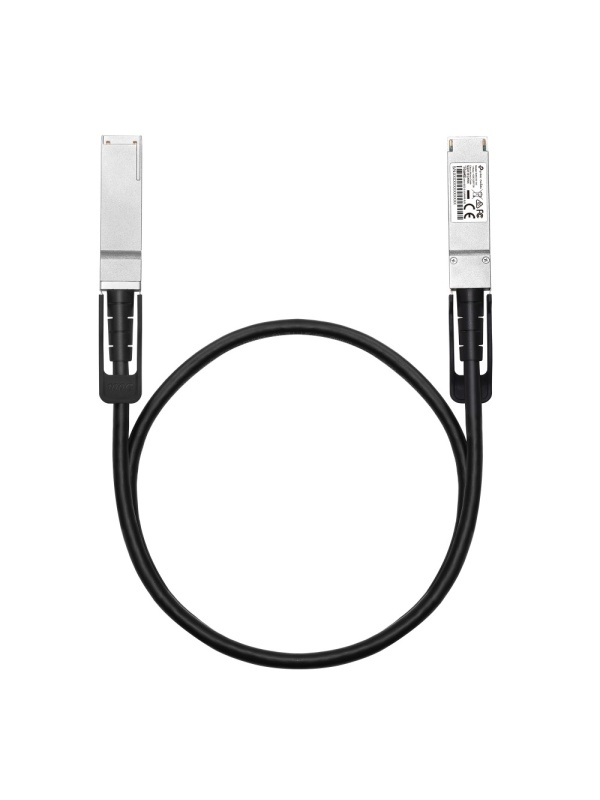

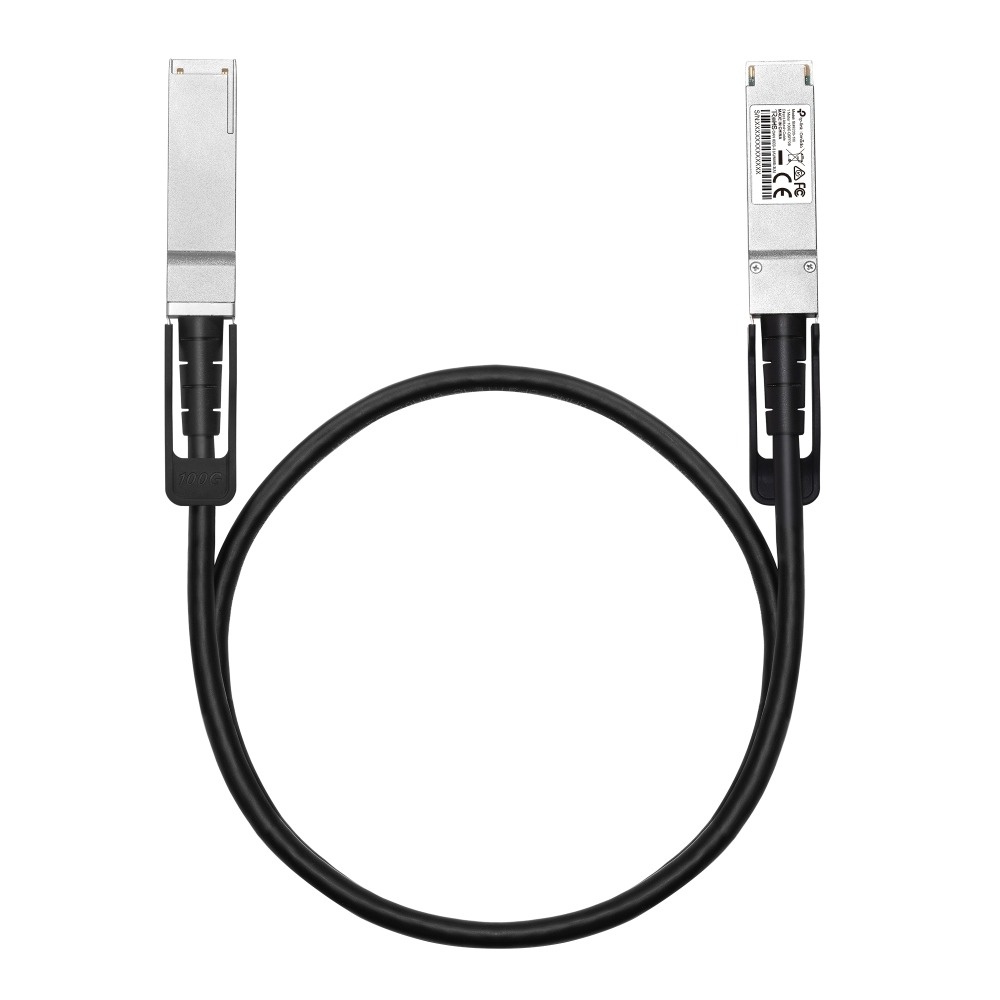

Direct Attach Cable QSFP28 Omada QSFP28 100 G - TP-Link SM9220-1M
🚀 Ultra-high performance between rack-to-rack devices
💡 Key Features
-
100 Gbps full duplex (40 Gbps also compatible)speed for interconnecting servers, switches and high-end equipment in adjacent racks(static.tp-link.com).
-
QSFP28 connectors on both ends, compact and reliable form factor(static.tp-link.com).
-
Passive 1m passive Twinax cables: cost-effective solution for short rack distances(static.tp-link.com).
-
Hot-swappable mounting, no external power supply, plug & play(static.tp-link.com).
-
Optimum operatingtemperature 0 °C to 70 °C, storage -40 °C to 85 °C(static.tp-link.com).
✅ Key benefits wifishop.co.uk style
-
Maximum performance: 100 Gbps rack-to-rack backhaul for data centres, servers or Wi-Fi infrastructure 7.
-
Efficient and cost-saving: passive Twinax eliminates active components and power consumption, at a low cost compared to optical solutions.
-
Simplified design: 1m length - ideal between switches or servers in the same rack.
📊 Key technical specifications
| Specification | Detail |
|---|---|
| Supported speed | 100 Gbps / backward 40 Gbps |
| Connector | 2× QSFP28 |
| Cable length | 1 metre (≈ 39.4″) |
| Operating temperature | 0-70 °C; storage -40-85 °C |
| Plug dimensions | 72.45 × 18.35 × 13.5 mm |
| HDMI | Twinax 30 AWG, jacket OFNR PVC; bend radius 33 mm |
| Compliant with | IEEE 802.3bm/ba, SFF-8636/8679/8663 |
🎯 Who is it suitable for?
For enterprise data centres, advanced Wi-Fi infrastructure or any environment that needs fast and reliable rack-to-rack connections. The SM9220-1M delivers 100 Gbps without configuration, ideal for video backhaul, data transfer and high-speed networking.
📦 SM9220-1M - the cable that makes the difference in ultra-hassle-free, ultra-efficient, high-performance networking.
