Smart control panel Sonoff NSPanel Pro, 3.95" touchscreen, Zigbee hub, thermostat function

Description

Sonoff NSPanel Pro smart control panel, with touch screen, Zigbee + Bluetooth hub, thermostat function, grey frame

Sonoff NSPanel Pro is an all-in-one smart home control panel with a 3,95” touchscreen, built-in Zigbee 3.0 hub, eWeLink-Remote Bluetooth gateway and an advanced thermostatfunction. Designed for centralised control of all eWeLink-compatible devices, NSPanel Pro is the heart of any modern smart system.

Total control for your smart home

• Manage switches, sockets, lights and sensors from a single place

• Control up to 3 customisable screens: devices, scenes, temperature

• Compatible with all Sonoff and SmartWise smart devices in the eWeLink ecosystem

Built-in Zigbee 3.0 gateway

• Can act as the main Zigbee bridge for sensors, switches, bulbs and sockets

• Also compatible with Zigbee products from Philips Hue, IKEA and other manufacturers

• Configurable security modes: HOME / AWAY / SLEEP

• Triggers local alarms based on the Zigbee sensors selected for each mode

eWeLink-Remote Bluetooth hub

• Feature active from firmware v1.5.6

• Allows pairing with Sonoff R5, S-MATE or other eWeLink-Remote switches

• You can trigger scenes or control other WiFi devices via the cloud

Video camera and intercom support

• Displays the live feed from compatible eWeLink, RTSP or ESP32-CAM cameras

• Audio intercom between several NSPanel Pro units or with the eWeLink app

• Two-way audio for compatible cameras – see, hear and answer from the panel

Advanced thermostat function

• Create cloud thermostats using Zigbee sensors (e.g. Sonoff, SmartWise)

• Automatically control switches or sockets based on the desired temperature

• Select heating or cooling mode, with configurable hysteresis (1–5°C)

Energy dashboard and real-time data

• Displays energy consumption for eWeLink devices with a monitoring function

• Perfect for efficient energy management in the home

Weather, time and alarm display

• See the 7-day weather forecast

• Includes an alarm clock, timer and customisable wallpaper

• Automatic screen brightness adjustment via a light sensor

Extended compatibility and firmware updates

• Compatible with Home Assistant

• Ready for Matter (via a firmware update available Q4 2023)

• You can open web pages set in the eWeLink app directly from the screen

Practical use cases

• Installed in place of a classic switch, it becomes a central control panel for all the scenes and smart devices in the home.
• Used as a smart thermostat to control the boiler or the air conditioning, with a touch display for quick temperature adjustment.
• Integrated into an advanced automation system (e.g. Home Assistant), showing sensor status directly on the screen.

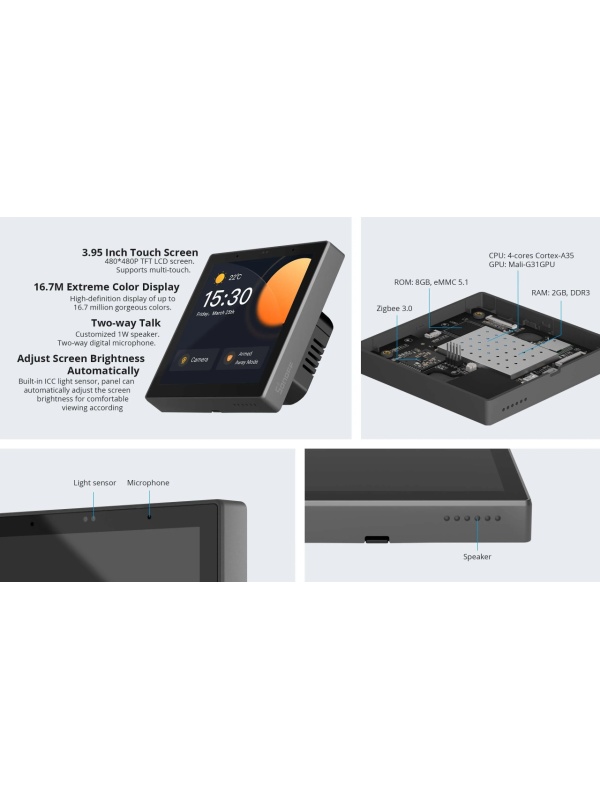

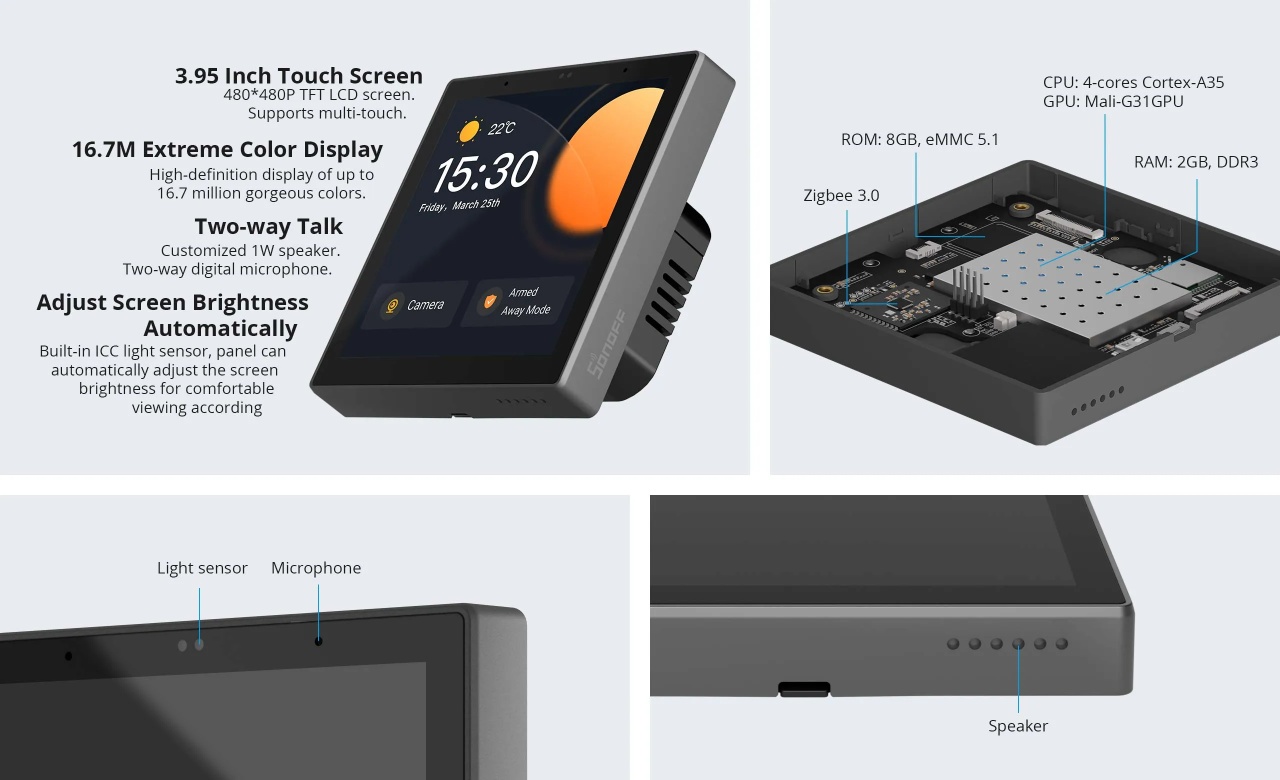

Technical specifications:

Sonoff NSPanel Pro is not just a smart switch – it is an advanced control panel for the whole home. Control, automate, monitor and communicate – all from a single point, with a premium design that blends perfectly into any decor.

NSPanel86PB is the right choice for anyone who wants an elegant, intuitive central control panel for the whole smart home.
