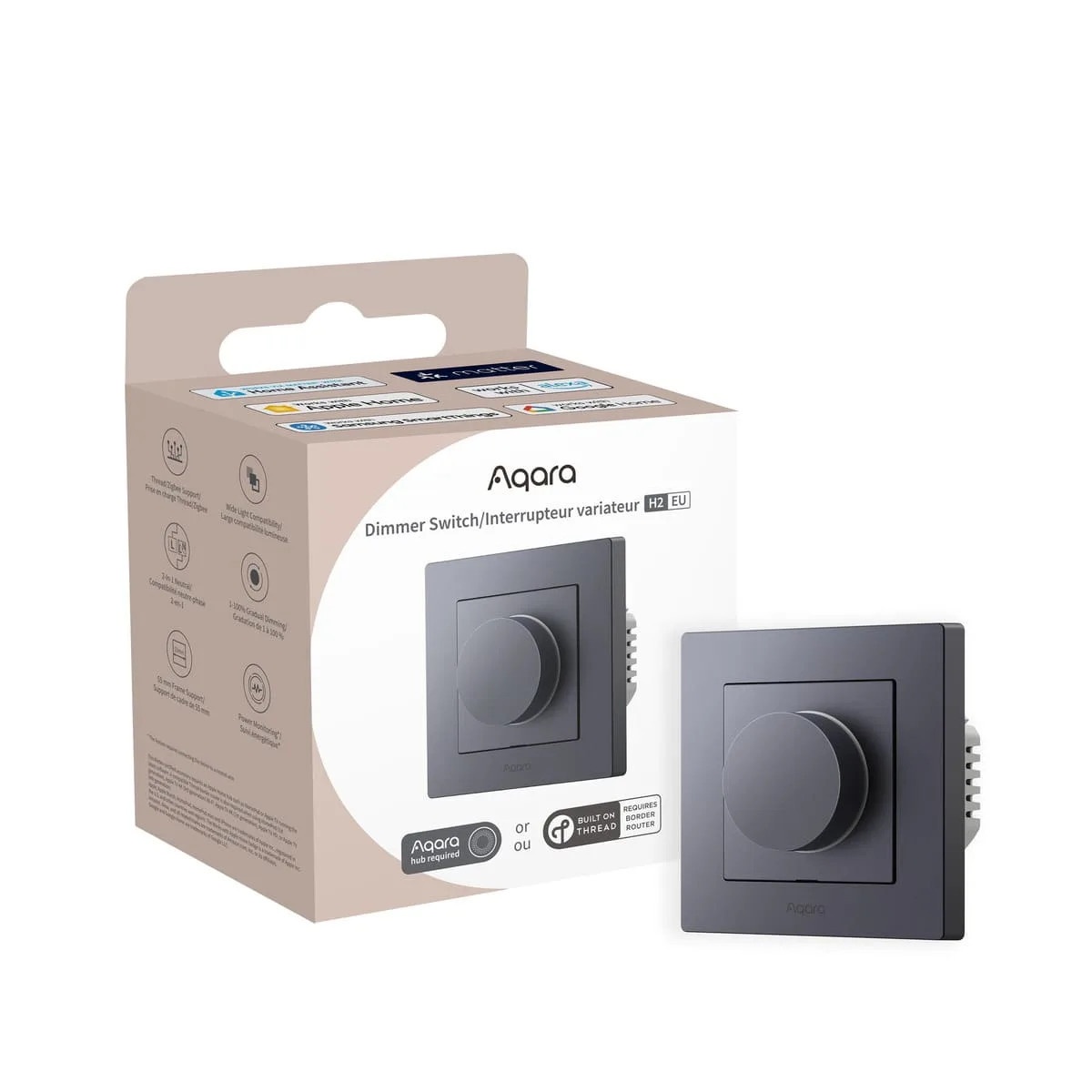

• Smart Dimmer AQARA Light Switch H2 EU Grey (KD-R01D-G) , Zigbee and Thread - Img 1
  • Smart Dimmer AQARA Light Switch H2 EU Grey (KD-R01D-G) , Zigbee and Thread - Img 2

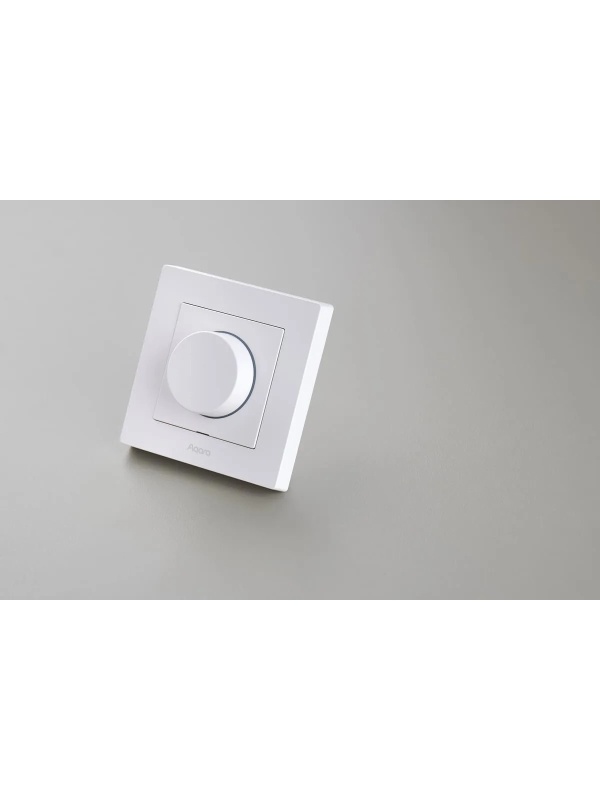

  • Smart Dimmer AQARA Light Switch H2 EU Grey (KD-R01D-G) , Zigbee and Thread - Img 3
  • Smart Dimmer AQARA Light Switch H2 EU Grey (KD-R01D-G) , Zigbee and Thread - Img 4
  • Smart Dimmer AQARA Light Switch H2 EU Grey (KD-R01D-G) , Zigbee and Thread - Img 5
  • Smart Dimmer AQARA Light Switch H2 EU Grey (KD-R01D-G) , Zigbee and Thread - Img 6
  • Smart Dimmer AQARA Light Switch H2 EU Grey (KD-R01D-G) , Zigbee and Thread - Img 7
  • Smart Dimmer AQARA Light Switch H2 EU Grey (KD-R01D-G) , Zigbee and Thread - Img 8

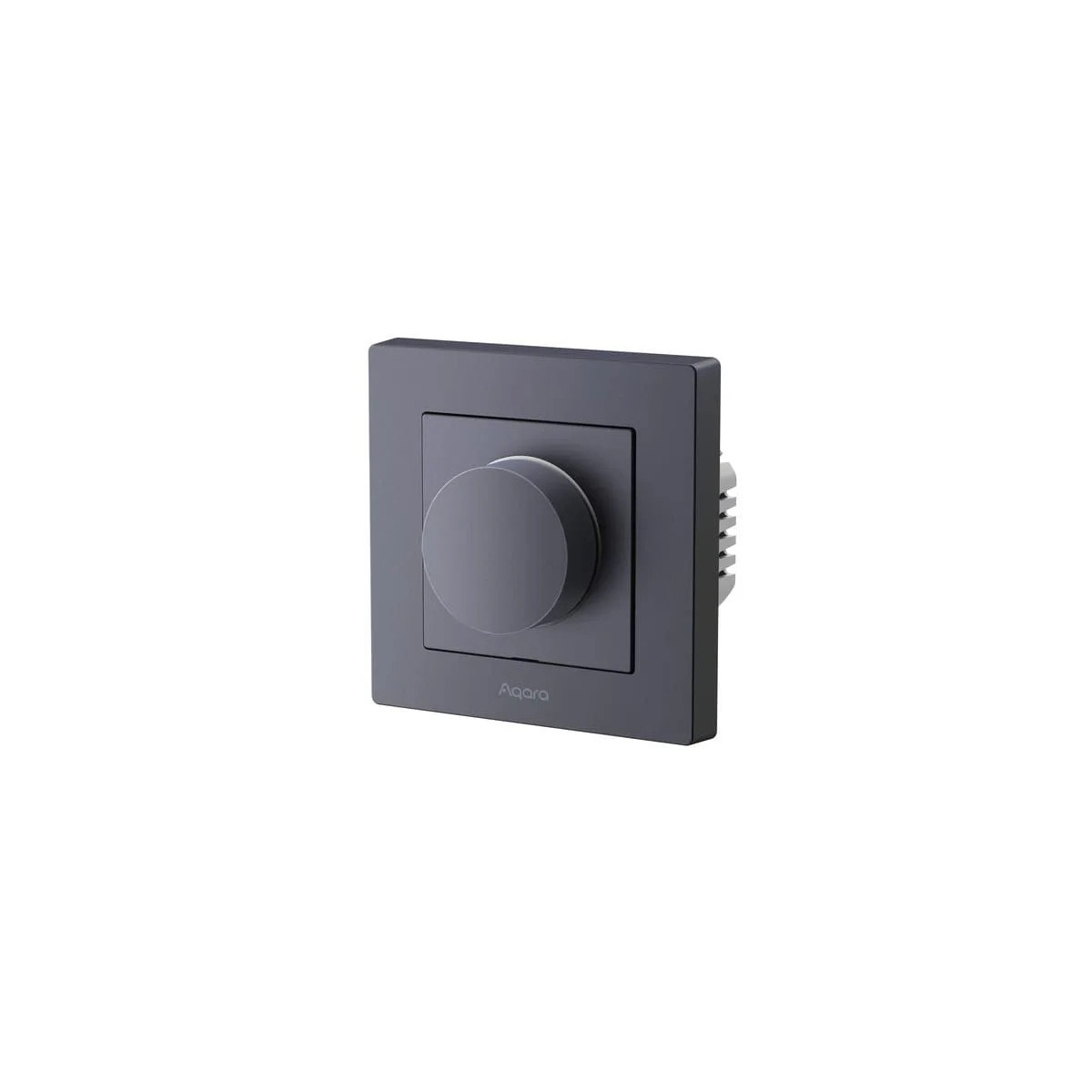

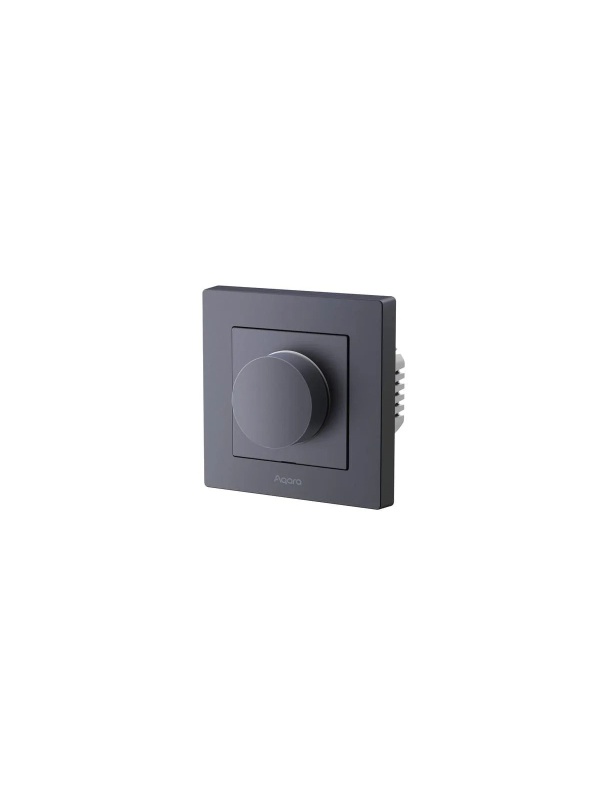

Smart Dimmer AQARA Light Switch H2 EU Grey (KD-R01D-G) , Zigbee and Thread

Aqara
RON 254.15 (VAT included)
RON 210.04 (VAT excluded)
shipping cost is not included
Aqara
Product code - SKU 6975833357284
EAN 6975833357284
In stock
Add to Favorites

Description

Aqara Dimmer Switch H2 EU - Zigbee and Thread compatible smart rotary switch

The Aqara Dimmer Switch H2 EU is a multifunctional smart rotary switch designed for extended compatibility and maximum convenience. It supports both Zigbee and Matter over Thread protocols for seamless integration with third-party ecosystems. It operates with or without null wire and is compatible with a variety of luminaires: incandescent, halogen, dimmable LED and CFL. Allows dimming mode switching depending on load type for stable and efficient operation.

🔧 Key Features:

✅ Zigbee & Thread Support
The switch offers dual support:

  • Thread mode: no Aqara hub required to connect to Matter ecosystems (e.g. Apple, Google, Alexa).

  • Zigbee mode: unlocks Aqara exclusive features such as MARS-Tech, power monitoring and fine control.

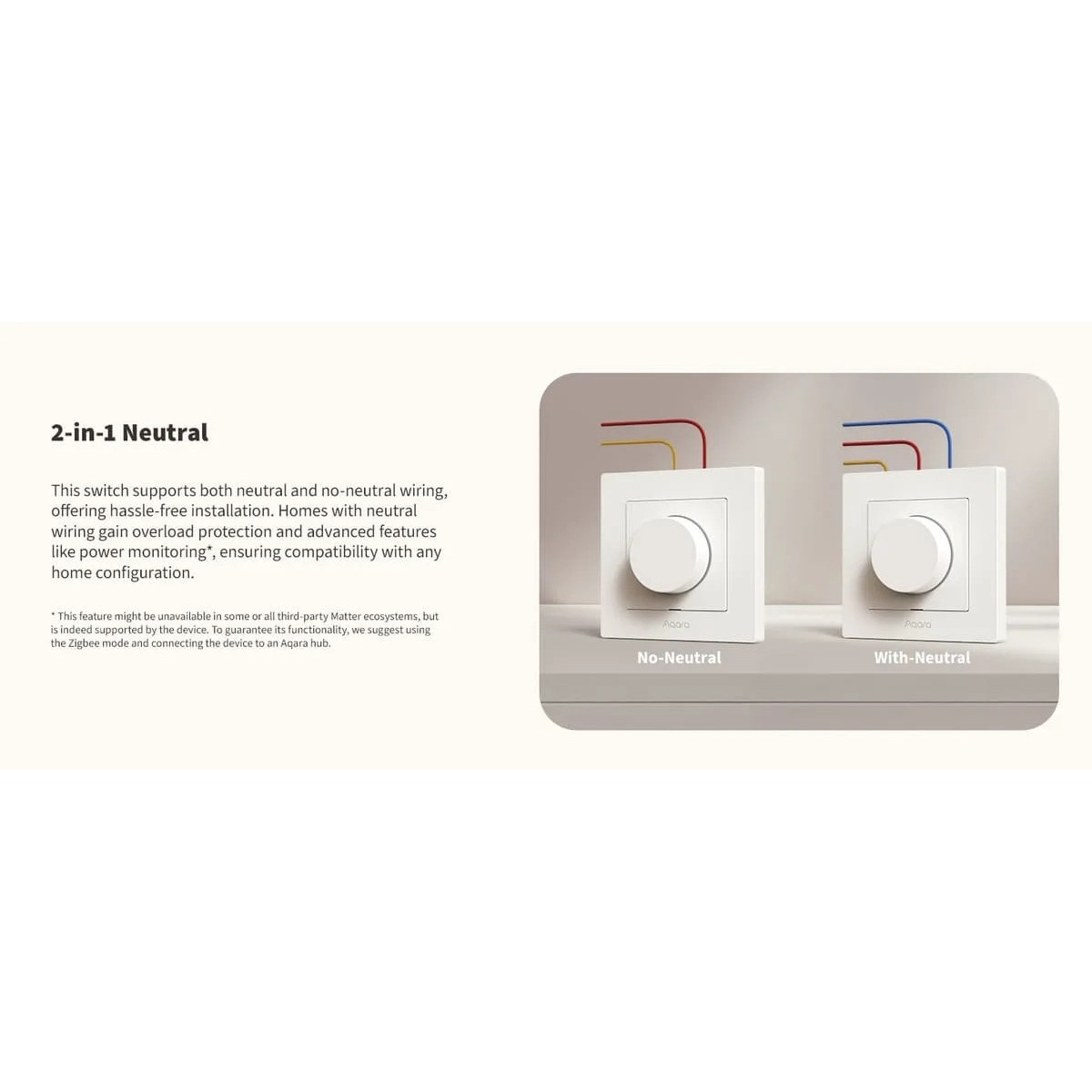

🔌 Easy installation with or without null wire
Whether your home has null wire or not, the switch is compatible:

  • No wiring modifications required.

  • With null wire: activates overload protection and consumption monitoring.

🎛️ Multi-function rotary switch

  • Press: on/off.

  • Turn: fine adjustment between 1% - 100%.

  • Adjustable transition time between 0 - 10 seconds.

  • Customisable rotation sensitivity.

💡 Wide compatibility with light sources
Compatible with:

  • Incandescent bulbs

  • Halogen

  • Dimmable LED/CFL
    Default Mode: Trailing Edge Dimming (most stable method for most sources).

🧱 Compatible with standard 55 mm frames
Fits into popular modular frames in Europe (Gira, Merten, Schneider etc.).

📊 Energy consumption monitoring
Via Zigbee connection and null wire, the switch can:

  • Monitor consumption daily/weekly/monthly.

  • Generate reports in the Aqara Home app.

🌗 Brightness range setting
You can set maximum/minimum values to avoid flickering or accidentally switching off low wattage bulbs.

ℹ️ Technical specifications:

  • Model: KD-R01D

  • Dimensions: 86 × 86 × 86 × 55.45 mm

  • Operating temperature: 0°C - 40°C

  • Humidity: 0 - 95% RH, non-condensing

  • Rated voltage: 220-240V~, 50/60Hz

  • Minimum power: 4W (Aqara Home), 9W (other methods)

  • Maximum wattage:

    • Incandescent/Halogen: ≤ 300W

    • Dimmable LED/CFL: ≤ 200W

  • Wireless protocols: Thread, Zigbee, Bluetooth

📦 Package Contents:

  • 1 × Dimmer Switch H2 EU

  • 1 × User guide

  • 1 × Declaration of Conformity

  • 1 × Screw kit
