Smart energy meter Shelly EM Mini Gen4 - set of 2 pieces, single-phase, ultra-compact, Wi-Fi, Bluetooth and Zigbee, MQTT and local API, app control
RON 209.72
(VAT included)
RON 173.32
(VAT excluded)
shipping cost is not included
Description

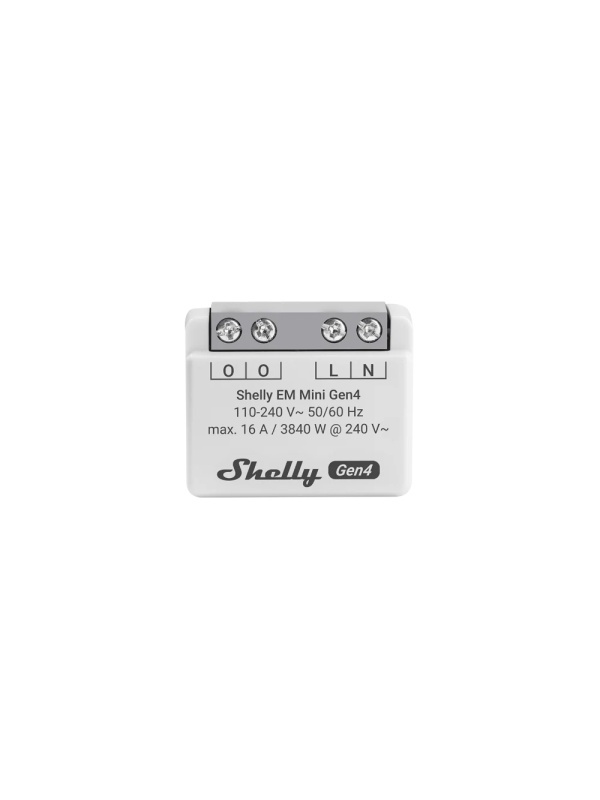

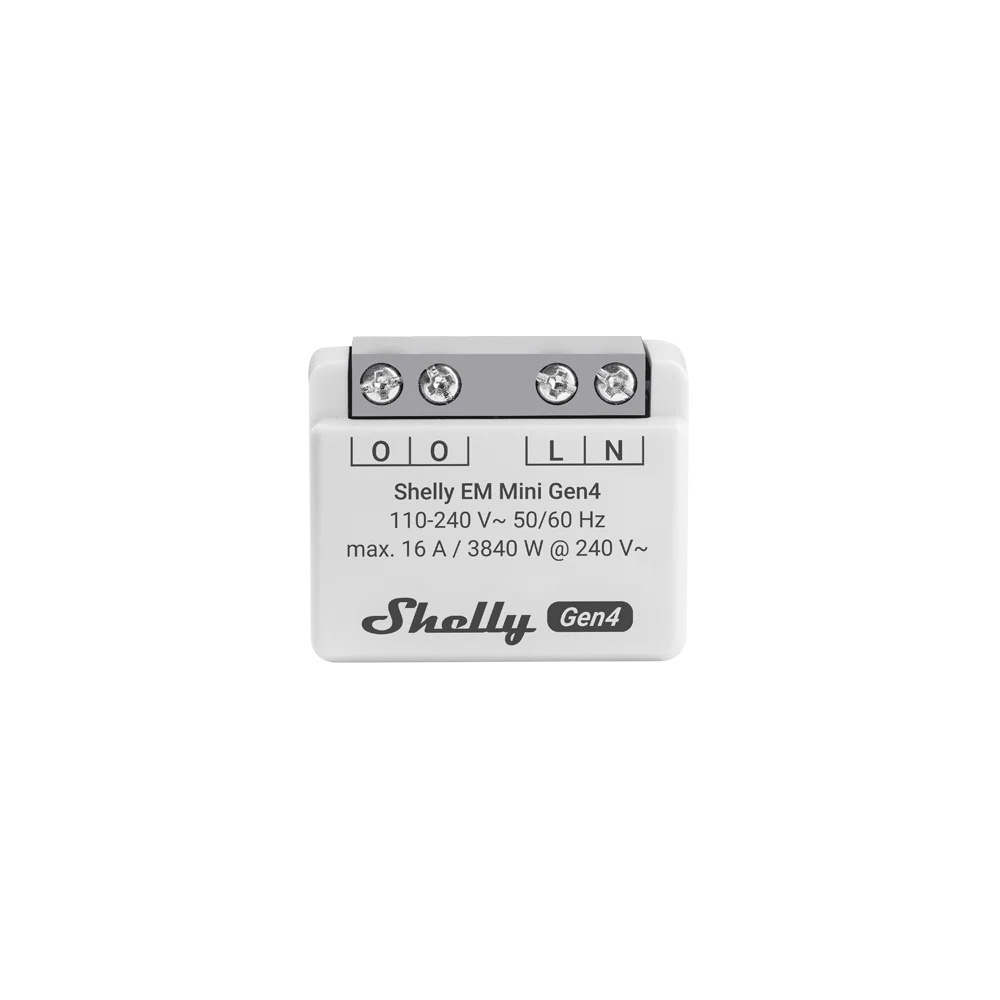

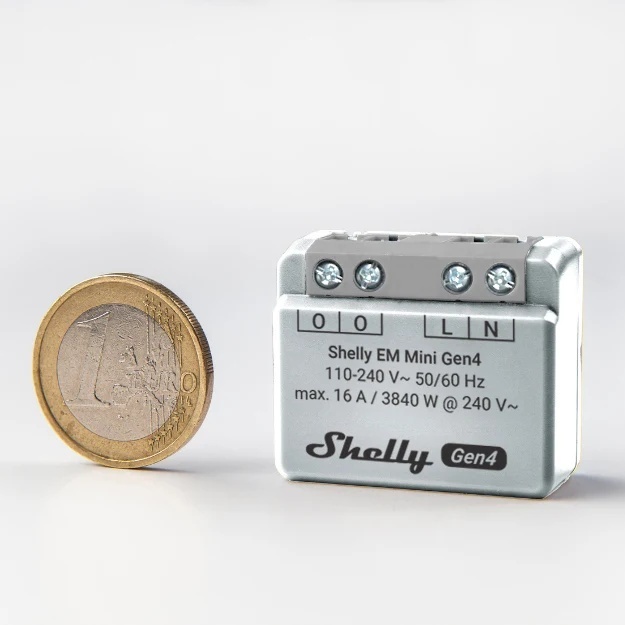

Shelly EM Mini Gen4 is a very small energy meter that brings the flexibility of Gen3 firmware together with features specific to Shelly EM devices. It can work standalone on a local Wi-Fi network or be operated through cloud automation services, using MQTT, HTTP and WebSocket; all incoming connections support TLS.
The device is an improved version of the Shelly PM Mini Gen3, with a more advanced processor and Zigbee connectivity. The multi-protocol wireless microcontroller provides Zigbee and Bluetooth connectivity with a secure connection. The built-in web interface allows direct monitoring and configuration of the device. This item is the two-piece pack.
Key features
- Set of 2 Shelly EM Mini Gen4 metres in a single pack

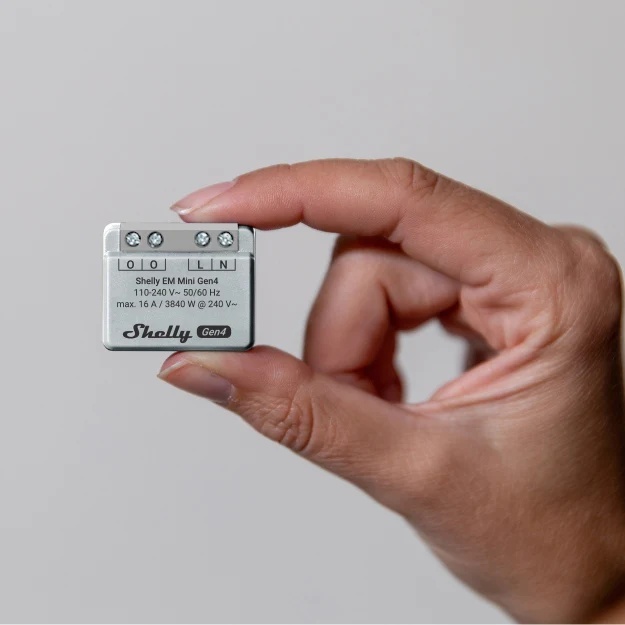

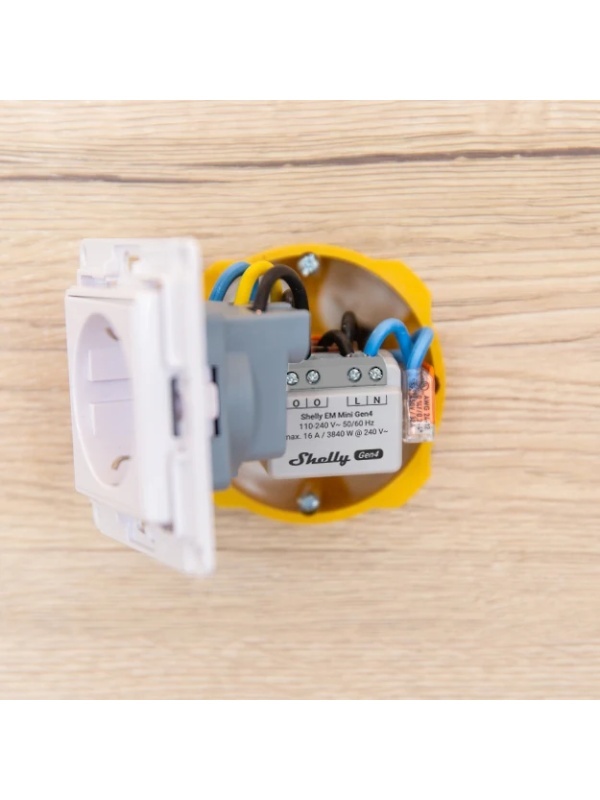

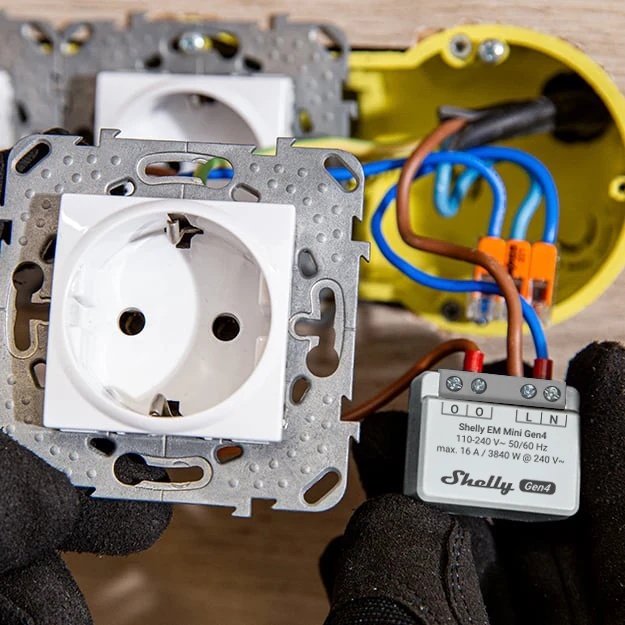

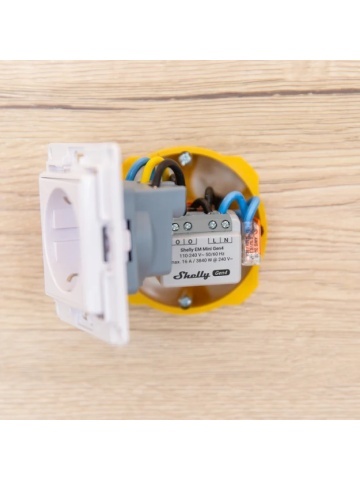

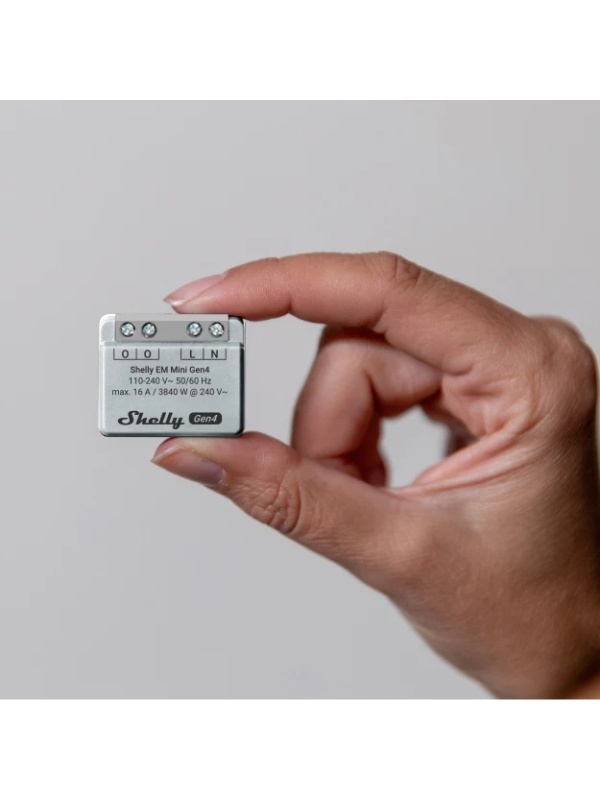

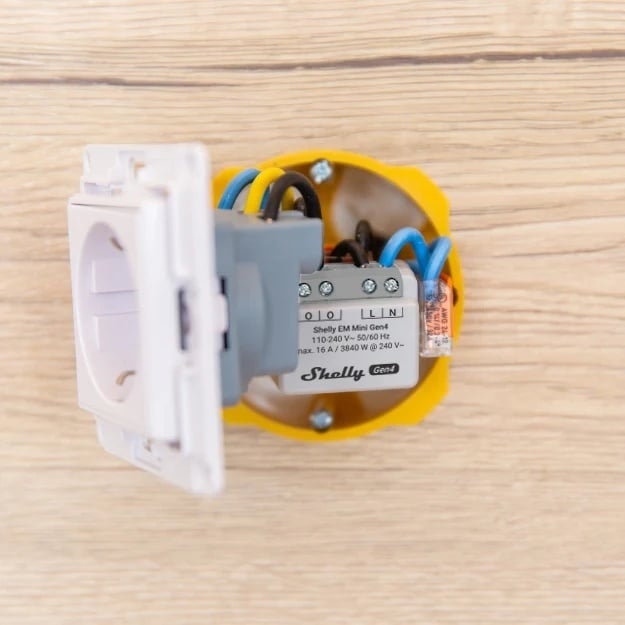

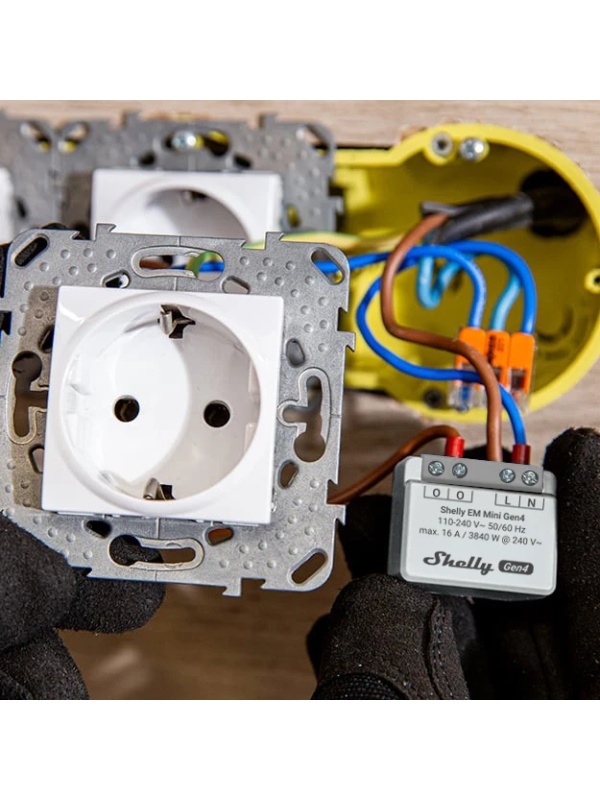

- Ultra-compact format, for mounting in a wall box or in the electrical panel
- Single-phase energy metering
- Wi-Fi, Bluetooth and Zigbee, via a multi-protocol wireless microcontroller
- MQTT, HTTP and WebSocket, with TLS on incoming connections
- Standalone operation on the local network, with no cloud dependency
- Built-in web interface for monitoring and configuration
- More powerful processor compared to the Shelly PM Mini Gen3
Practical use cases
- Separately metering two large circuits in a panel. One meter on the kitchen circuit and one on the air conditioning circuit show exactly where the bill goes, without changing the panel.
- Monitoring a rental apartment. One meter on the unit's main circuit and the second on the water heater, with remote reading, for fair cost allocation between tenants.
- Checking the output of a small photovoltaic installation. One meter on the house consumption and one on the inverter output, with the data aggregated in Home Assistant via local MQTT.
- Integrator delivering to two sites. The double pack covers two small job sites from a single purchase, and the local API allows them to be included in the same dispatch system.
Technical specifications
| Construction and dimensions | |

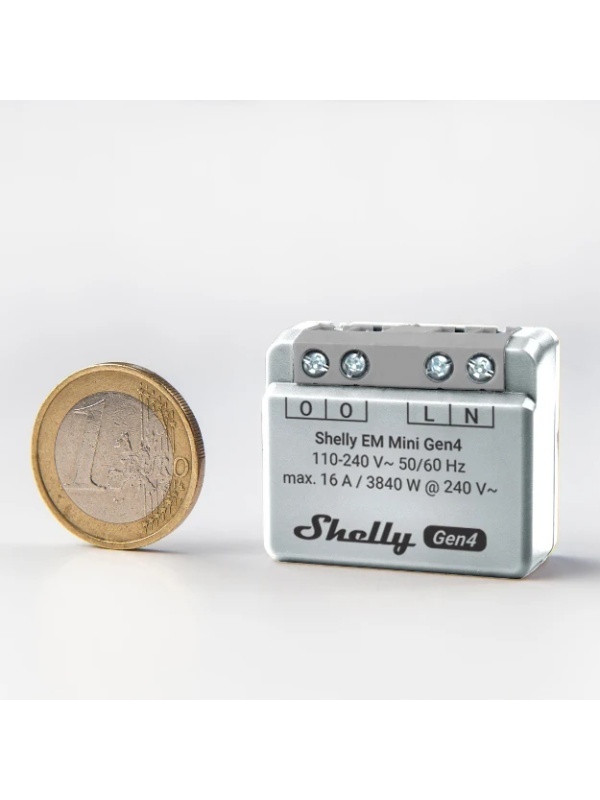

| Dimensions (H x W x D) | 29x34x16 mm / 1.34x1.11x0.63 inch |
| Weight | 13 g / 0.46 oz |
| Maximum screw terminal torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 ... 4 mm² / 20 ... 11 AWG (solid, stranded and with ferrules) |
| Conductor stripping length | 6 ... 7 mm / 0.24 ... 0.28 in |
| Mounting | Wall mount |
| Housing material | Plastic |
| Housing colour | White |
| Terminal colour | Grey (Mouse Grey) |
| Environmental conditions | |
| Ambient operating temperature | -20 °C ... 40 °C / -5 °F ... 105 °F |
| Humidity | 30 % ... 70 % RH |
| Maximum altitude | 2000 m / 6562 ft |
| Electrical parameters | |
| Power supply | 110-240 V~ |
| Power consumption | < 1 W |
| External protection | Circuit breaker with B or C characteristic, max. rated current 16A, min. breaking capacity 6 kA, energy limitation class 3 |
| Sensors and metering | |
| Voltmeter (AC) | 110-240 V~ 50/60 Hz |
| Voltmeter accuracy | ±1% |
| Ammeter (AC) | 0 - 16A |
| Ammeter accuracy | ±1% |
| Power and energy measurement | Active power, active energy |
| Measurement data storage | At least 10 days, with 1 min resolution |
| Data export | CSV for recorded PQ values, export in JSON format via RPC |
| Measured circuit parameters (load) | |
| Power metering | Da |
| Max. measured voltage | 240 V~ |
| Max. measured current | 16 A |
| Max. measured power | 3840 W |
| Radio communication | |
| Wi-Fi | |
| Protocol | 802.11 b/g/n/ax |
| RF band | 2412 - 2472 MHz |
| Maximum RF power | < 20 dBm |
| Range | up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (depending on local conditions) |
| Bluetooth | |
| Protocol | 5.0 |
| RF band | 2402 - 2480 MHz |
| Maximum RF power | < 4 dBm |
| Range | up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (depending on local conditions) |
| Zigbee | |
| Protocol | 802.15.4 |
| RF bands | 2400 ... 2483.5 MHz |
| Maximum RF power | < 20 dBm |
| Range | up to 100 m / 328 ft indoors and 300 m / 984 ft outdoors (depending on local conditions) |
| Microcontroller | |
| Processor | ESP-Shelly-C68F |
| Flash memory | 8MB |
| Firmware features | |
| Schedules | 20 |
| Webhooks (URL actions) | 20 with 5 URLs per webhook |
| Scripting | Da |
| MQTT | Da |
| UDP | Da |
| Advanced schedules | Da |
| KVS (key-value storage) | Da |
Shelly EM Mini Gen4 x2 is the right choice for anyone who wants to meter two circuits separately, in minimal space and with data available locally, with no mandatory cloud.
