Smart lock Aqara U200 Kit, black, Apple HomeKit, Matter

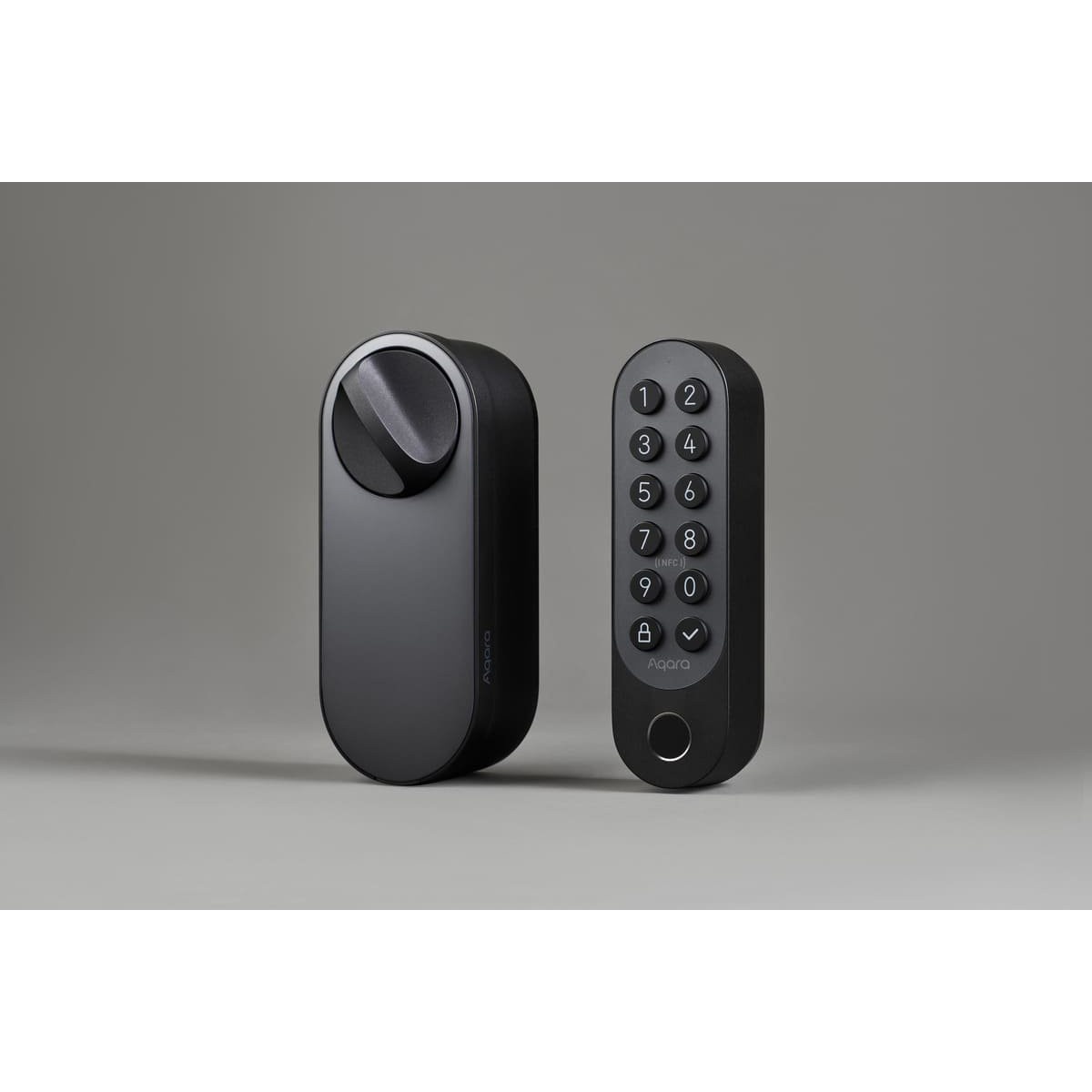

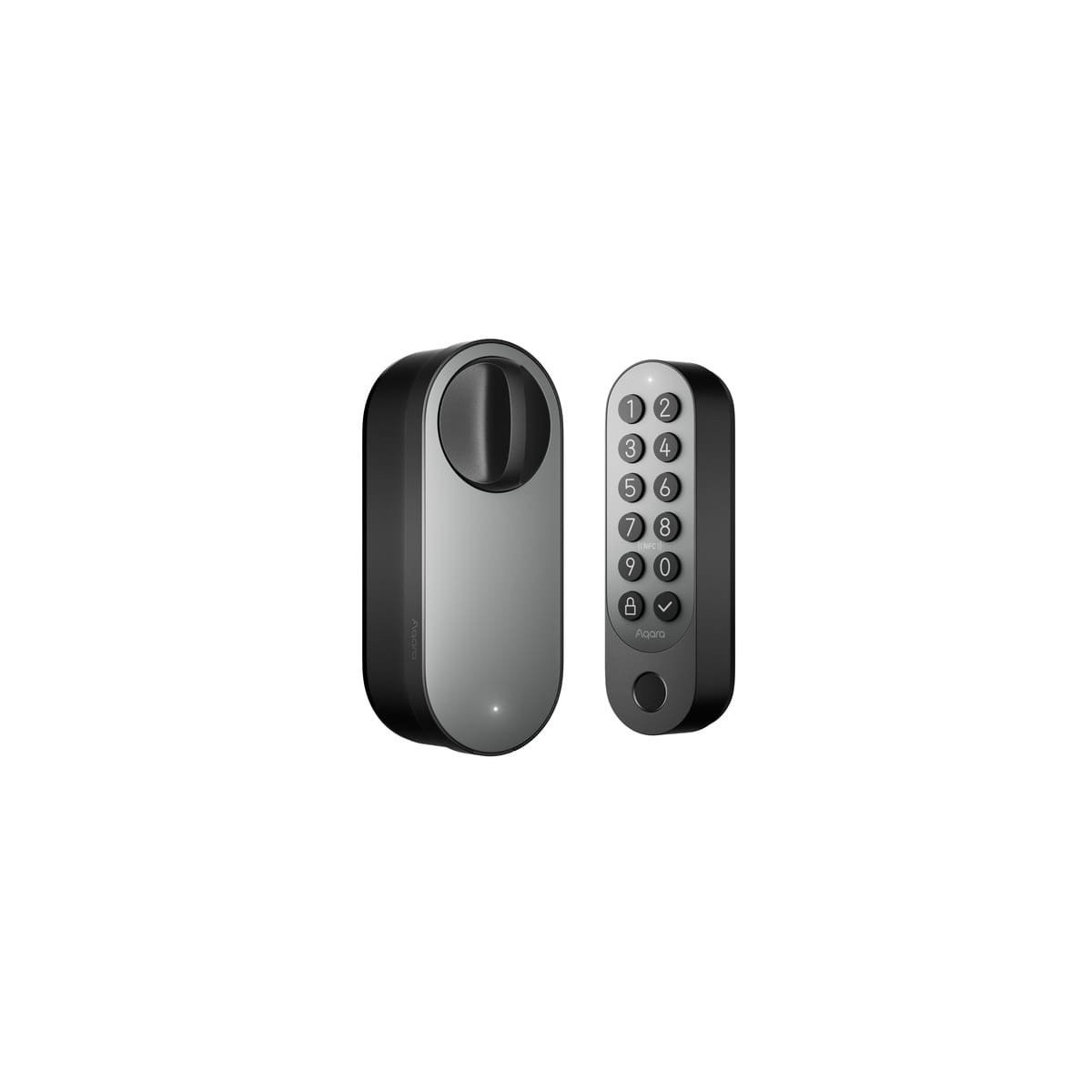

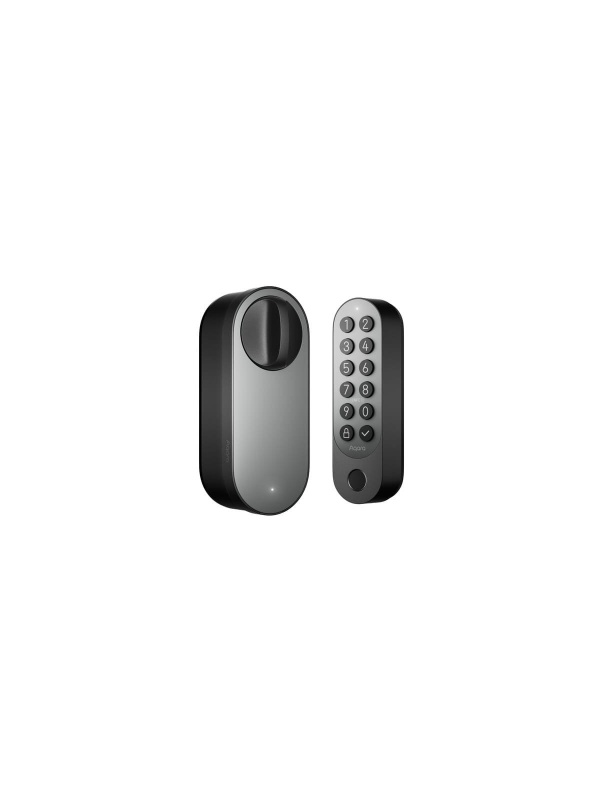

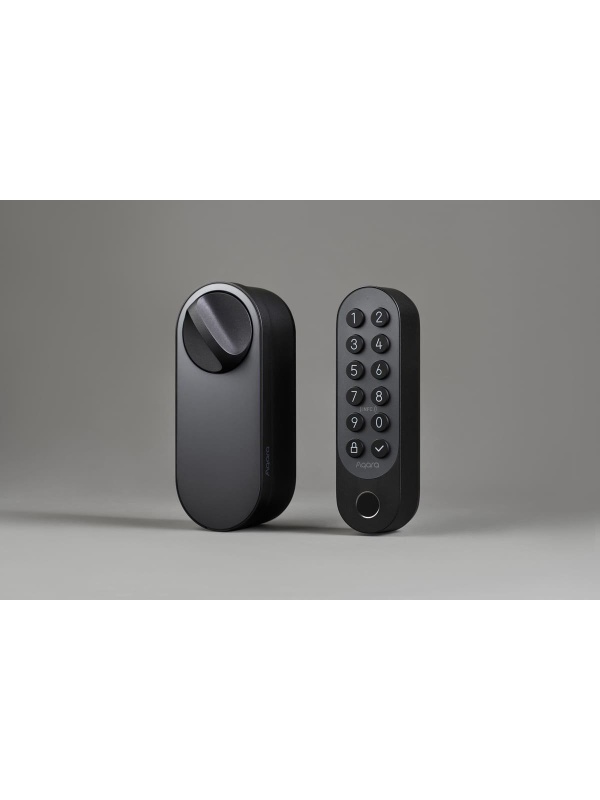

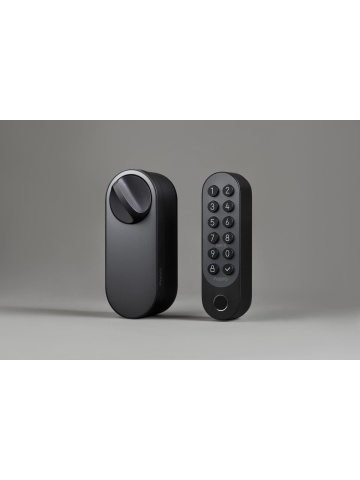

Aqara Smart Lock U200 Kit – Retrofit smart lock for a keyless life

Turn your door into a smart lock without modifying or drilling it, with the Aqara Smart Lock U200 Kit. It fits easily over the existing lock and offers multiple unlocking methods, including fingerprint, NFC, passcode, Apple Home Keys and remote access via the app. It is Matter compatible and built to last, with a battery life of up to 6 months and IPX5 certification – ideal for indoor and outdoor use.

Key points:

Apple Home Keys and a variety of unlocking methods

• Compatible with Apple Home Keys (requires a Matter controller and a Thread Border Router)

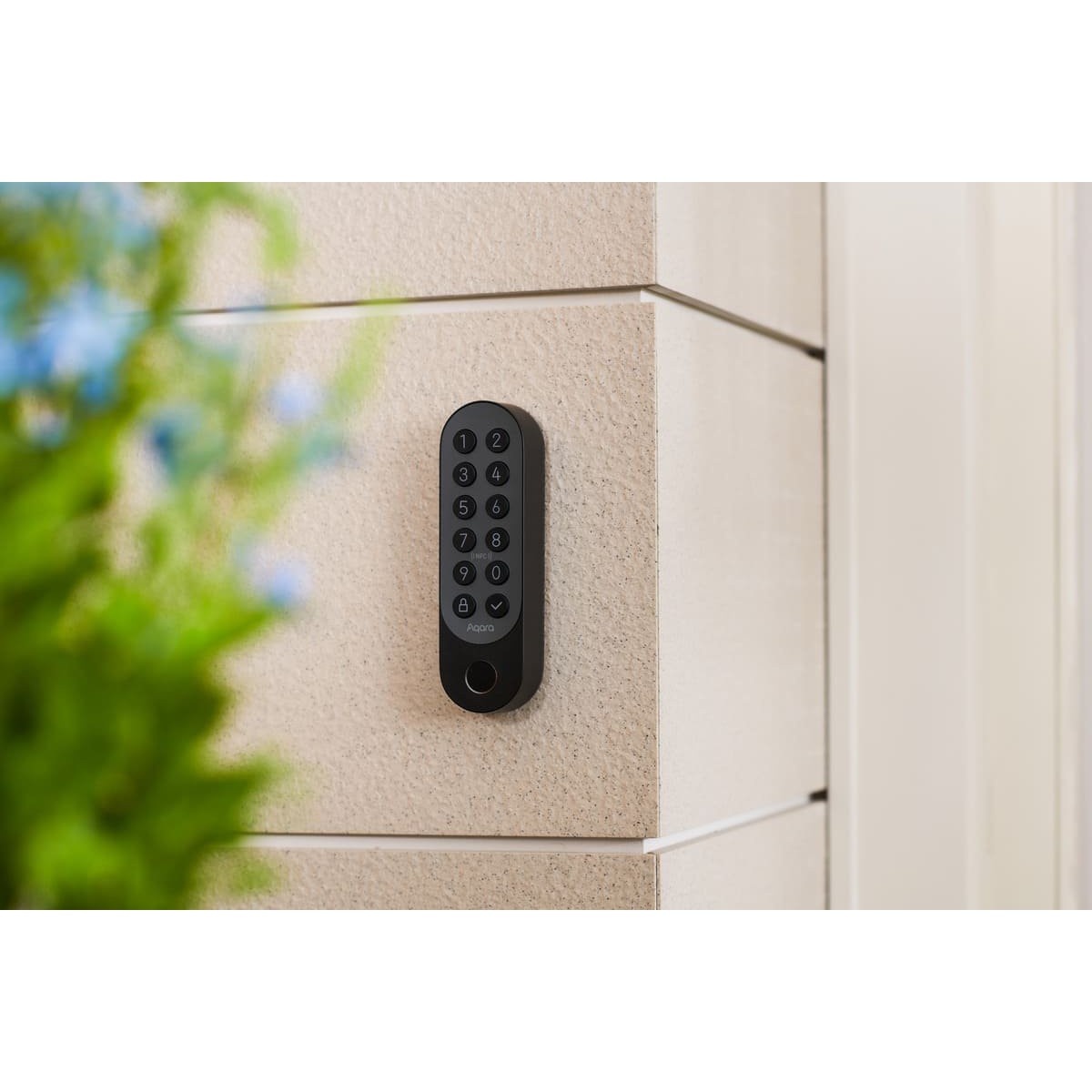

• Fingerprint**, passcode (keypad included), NFC*, physical key

• Temporary access (one-time or recurring passcode)

• Voice control (Siri, Alexa)

• Access via the app (Bluetooth or Thread)

Smart software features

• Silent mode for locking/unlocking

• Activity log

• Auto-lock

• Do Not Disturb mode

• Anti-peep PIN protection (you can enter extra digits before/after the real code)

• Passage mode, always-on mode, hands-free unlocking

Native Matter compatibility over Thread

• Integrates natively with Apple Home, Google Home, Alexa and Samsung SmartThings**

• Thread protocol: faster, more stable and energy-efficient connectivity

Rechargeable battery and multiple power options

• Lock: rechargeable Li-Ion battery (up to 6 months)

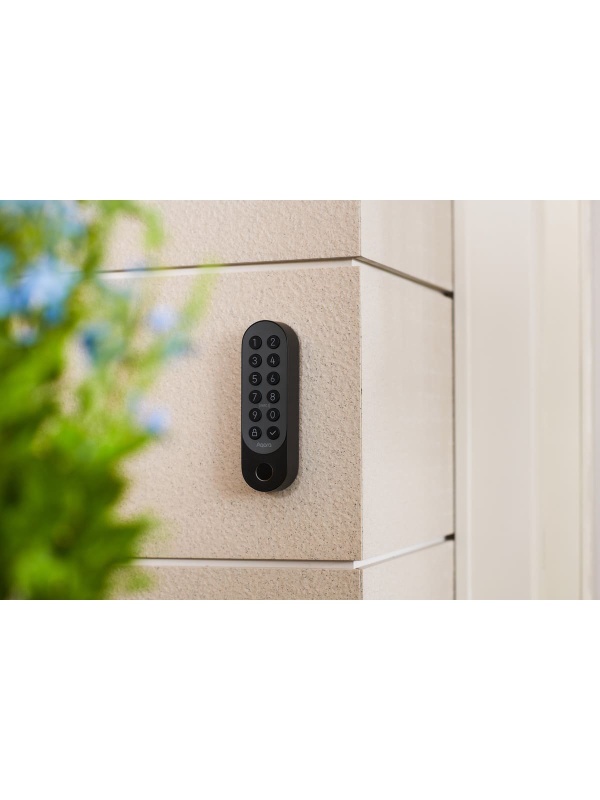

• Keypad: 4 AAA batteries or wired power (12V-24V AC/DC)

• Withstands -15°C to 66°C

• IPX5 certification – water and dust resistant

Simple installation and wide compatibility

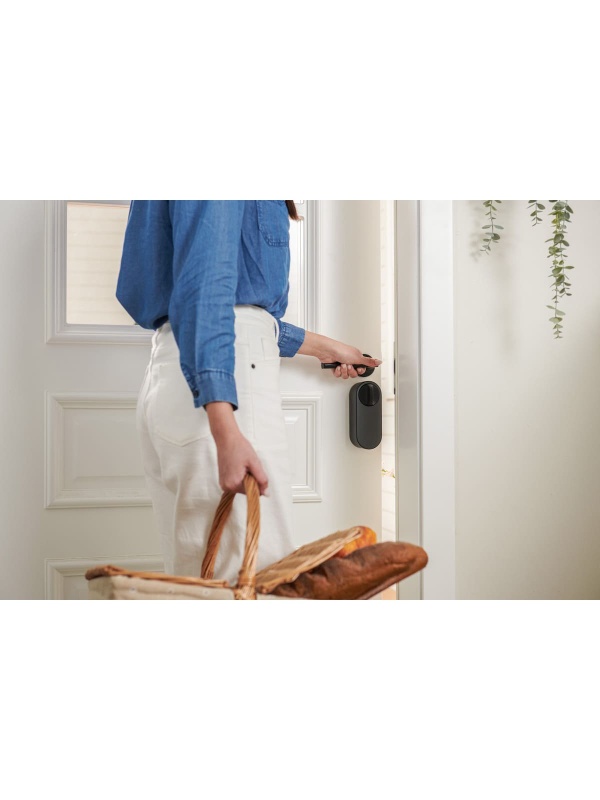

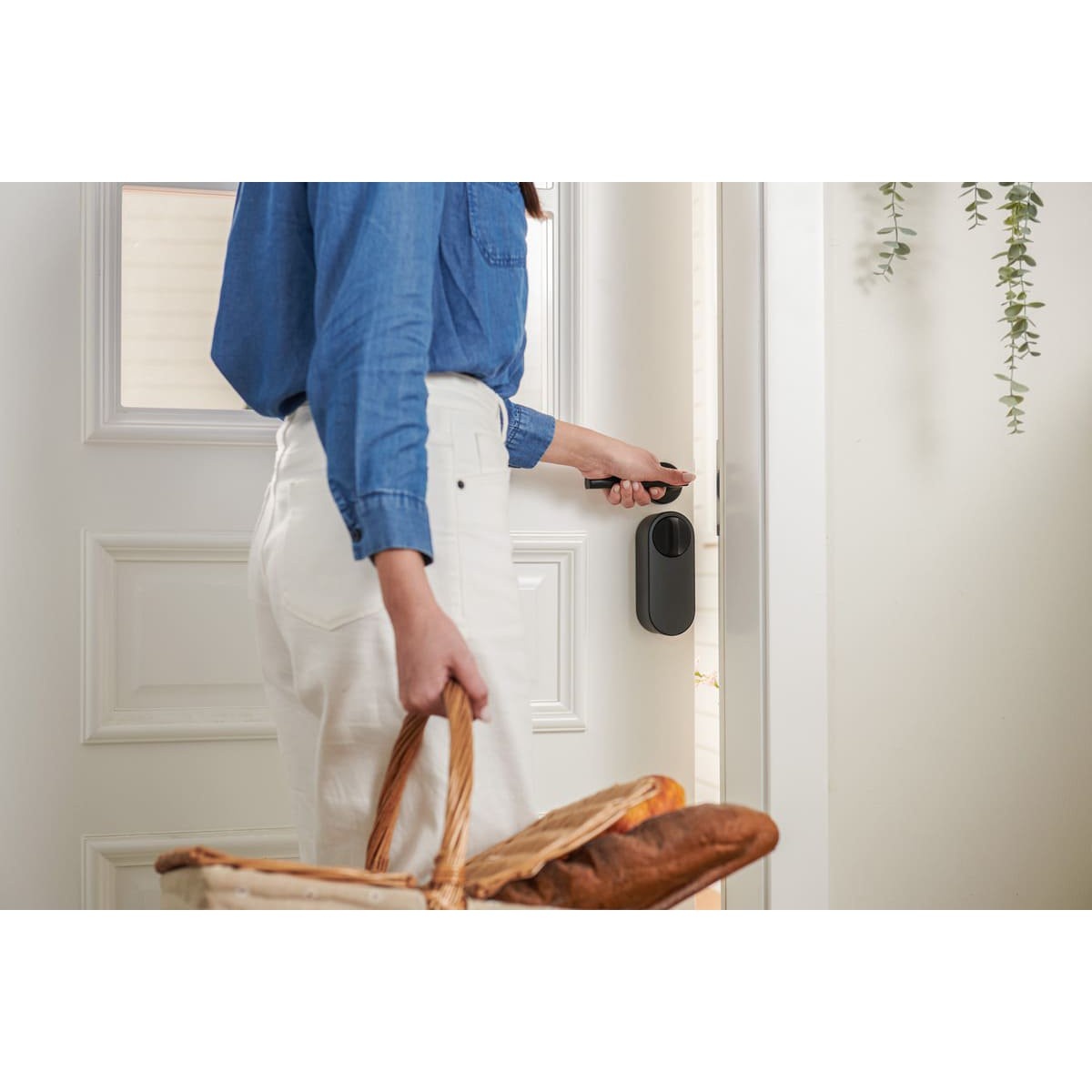

• Fits over the existing lock without drilling

• Compatible with Euro cylinders and certain Scandinavian cylinders

• Supports retrofit and single-sided key cylinders**

Advanced security

• AES encryption

• Fingerprint module encryption

• Access log

• Tamper alert

Accessories included in the Kit version:

• NFC card for quick access

• Wood-texture panel for aesthetics

• AA battery adapter for extended battery life

Automation examples:

1. Unlocking with the Mini Switch T1

   • If the Mini Switch T1 is pressed, the U200 unlocks
     (U200 + Hub M3 + Wireless Mini Switch T1)

2. Control via the G4 video doorbell

   • If someone rings the doorbell, you get a notification, see who it is and can open the door from the app
     (U200 + Hub M3 + G4 Video Doorbell)

3. Arriving home scene

   • If the U200 is unlocked, the curtains open and the lights turn on
     (U200 + Hub M3 + Curtain Driver E1 + Wall Outlet H2 EU)

4. One-click leaving scene

   • When the door closes, the security system is armed and the lights/appliances are switched off
     (U200 + Hub M3 + Camera E1 + Wall Switch H1 EU)

Technical specifications:

• Model: EL-D02D

• Lock dimensions: 62.3 × 60.6 × 152.5 mm

• Keypad dimensions: 42.7 × 33 × 146 mm

• Lock power supply: 7.4V Li-Ion battery (rechargeable)

• Keypad power supply: 4 AAA batteries or 12-24V AC/DC

• Wireless protocol: Thread, Bluetooth 5.1, NFC

• Operating temperature: -15°C ~ 66°C

• Humidity: 0 ~ 93% RH

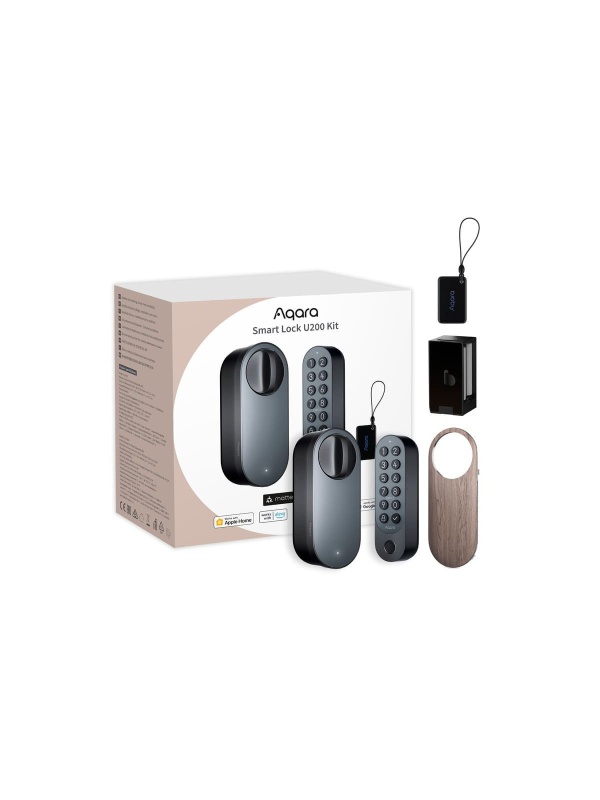

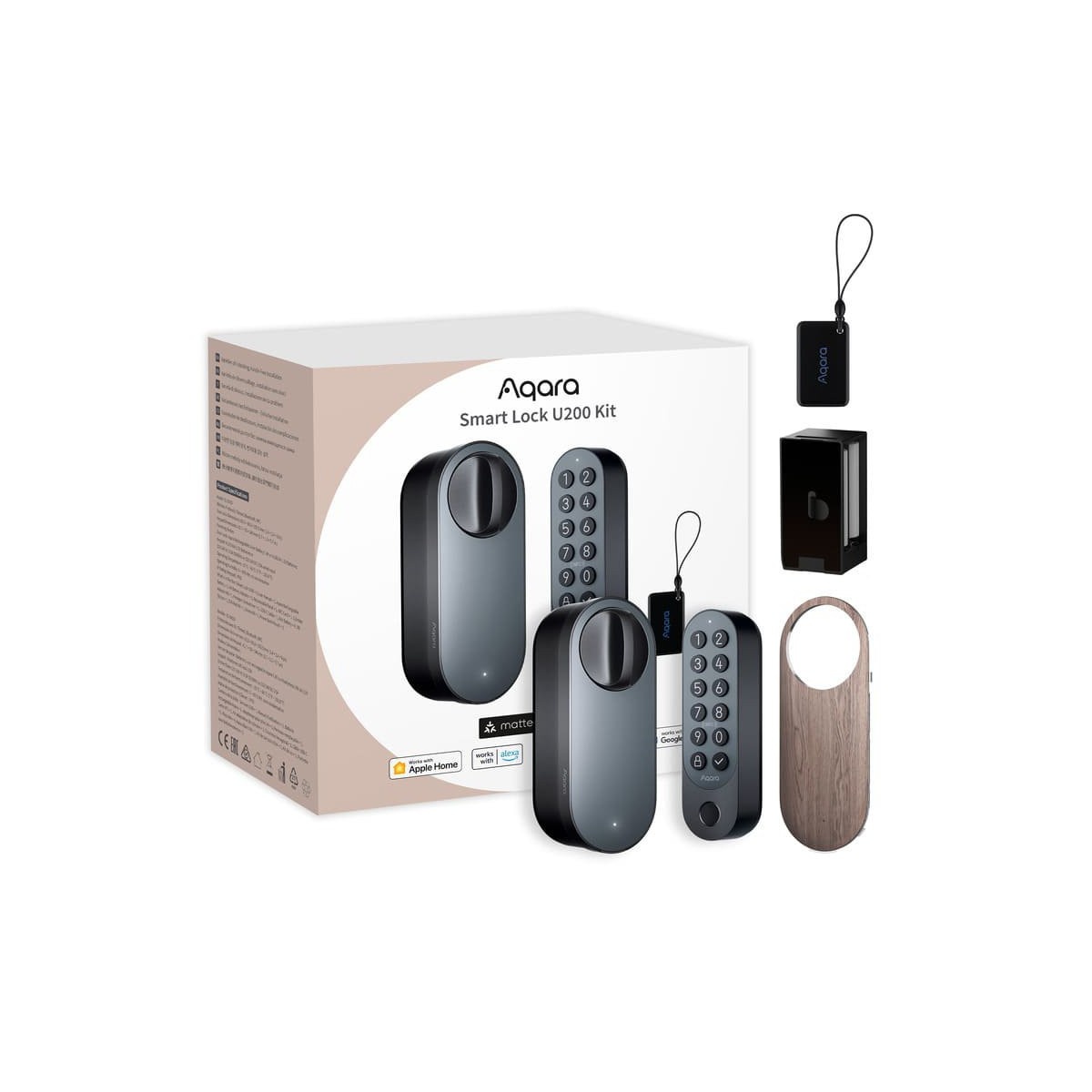

What's in the box:

• U200 lock ×1

• Aqara rechargeable battery ×1

• Cylinder adapter ×1

• Keypad with AAA battery holder ×1

• AAA batteries ×4

• USB-C → USB-A cable ×1

• NFC card ×1

• AA battery adapter ×1

• Screwdriver, screw kit, 3M sticker, EVA pad

• Power bank pouch

• User manual ×1

The U200 is the ideal solution for a smart and secure home, with a discreet design, a range of modern features and wide compatibility. Perfect for those who want an elegant upgrade without structural changes.

Practical use cases

• Unlock the door with your fingerprint, a PIN code or directly from the app, without having to look for the key.
• Generate temporary codes for guests or cleaning staff, valid only within a specific time window.
• Get a notification on your phone every time the door is unlocked, with information about who came in.
