Smart relay Shelly 1 GEN3, 1 channel, 16A, WiFi, dry contact
Description
Shelly 1 Gen3 is a single-channel WiFi smart relay, able to switch up to 16A, designed for remote control of electrical appliances from a phone, tablet or home automation system. The potential-free contacts allow a wide range of loads to be connected, from conventional lighting to pumps, water heaters or other consumers that only need an on/off command.

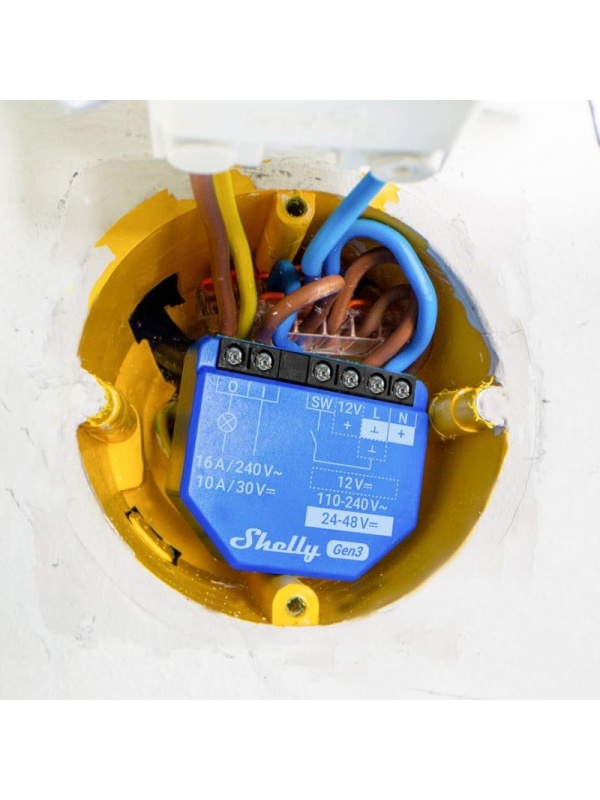

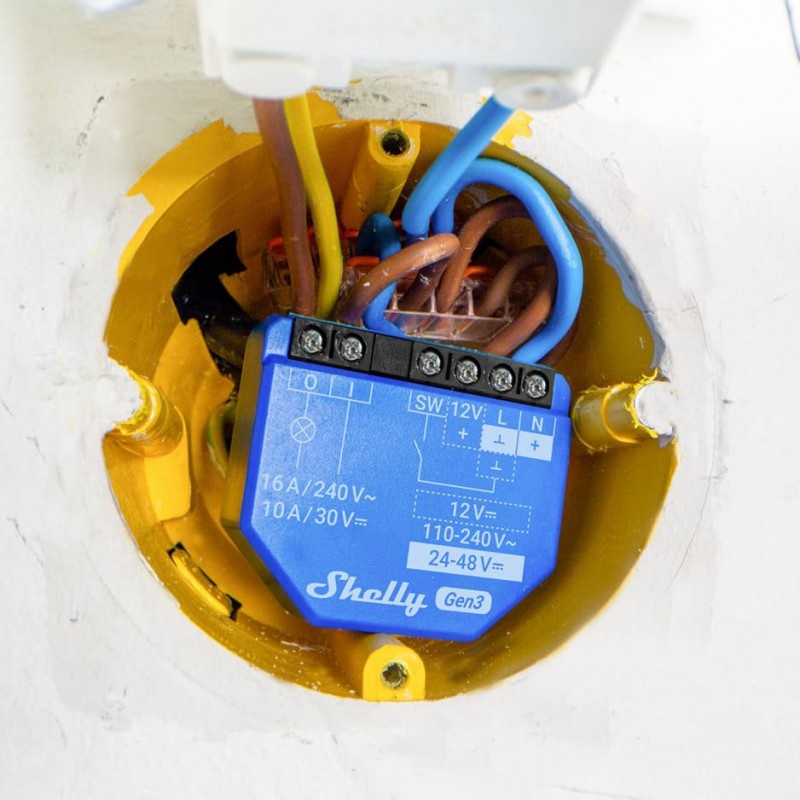

The compact design allows mounting in a wall box, behind an existing switch or socket, without needing extra space in the electrical panel. It is powered either by 110-240V alternating current or by 24-48V direct current, which also makes it suitable for low-voltage applications, such as solar systems or light industrial automation.
The new ESP-Shelly-C3F processor, with memory increased to 8 MB, offers better performance and greater stability than previous generations. The device supports WiFi and Bluetooth 4.2, can be integrated with Google Home, Amazon Alexa and Samsung SmartThings, and works both independently on the local network and through cloud services.
Practical use cases
- Mounted behind a conventional wall switch, it turns a room's lighting into a circuit controlled from the app, by voice command or automatically, without replacing the existing switch.
- Installed on the circuit of a recirculation pump or an electric water heater, it allows remote switching on/off and scheduling of operating hours to save energy.
- Integrated into a home automation system, it can automatically switch off sockets or lighting when the whole family leaves home, based on geolocation from the app.
- Used in an electrical panel to control outdoor lighting, it can be scheduled to switch on automatically at sunset and switch off in the morning.
Technical specifications
| Channels | 1, potential-free contacts |
| Maximum current | 16A |
| Power supply | 110-240V AC or 24-48V DC |
| Connectivity | WiFi 802.11 b/g/n, Bluetooth 4.2 |
| Processor | ESP-Shelly-C3F, 8 MB memory |
A simple and reliable relay for remote control of any electrical appliance, with discreet mounting and broad compatibility with popular smart home platforms.
Frequently asked questions
Does it require a neutral?
Yes, when powered at 110-240 V~ it needs a neutral. It can also be powered by direct current, at 12 V⎓ or 24-48 V⎓.
What load can it handle?
Up to 16 A at 240 V~ or 10 A at 30 V⎓, via a potential-free contact relay (dry contact).
Does it work without internet and with Home Assistant?
Yes. The Shelly integration in Home Assistant communicates directly with the relay, without the cloud; the relay also has an HTTP API, MQTT, webhooks and scripting.
Which protocol does it use? Does it support Matter?
Wi-Fi 802.11 b/g/n and Bluetooth 4.2; no hub required. Shelly lists Matter under compatibility for Gen3, available via a firmware update.
