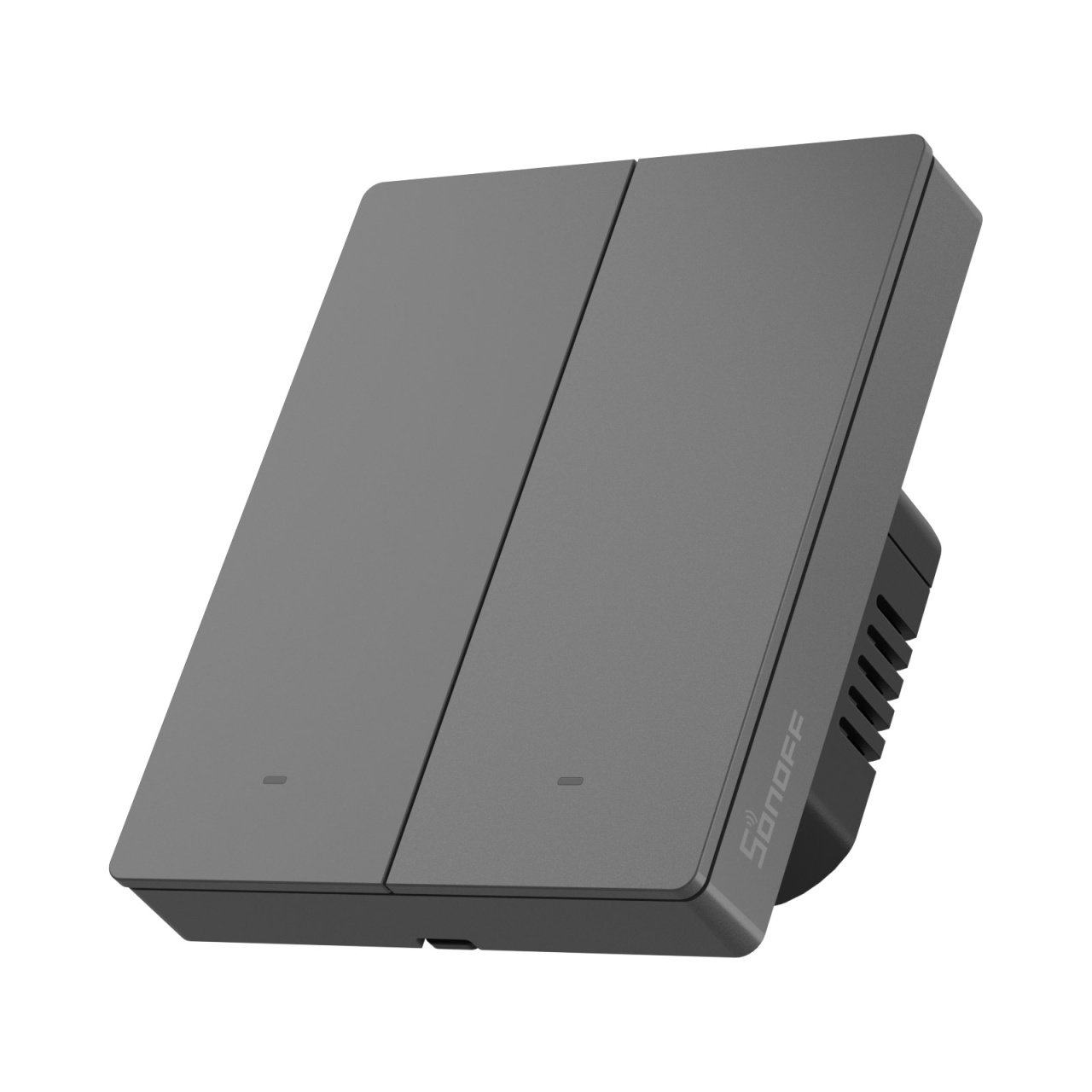

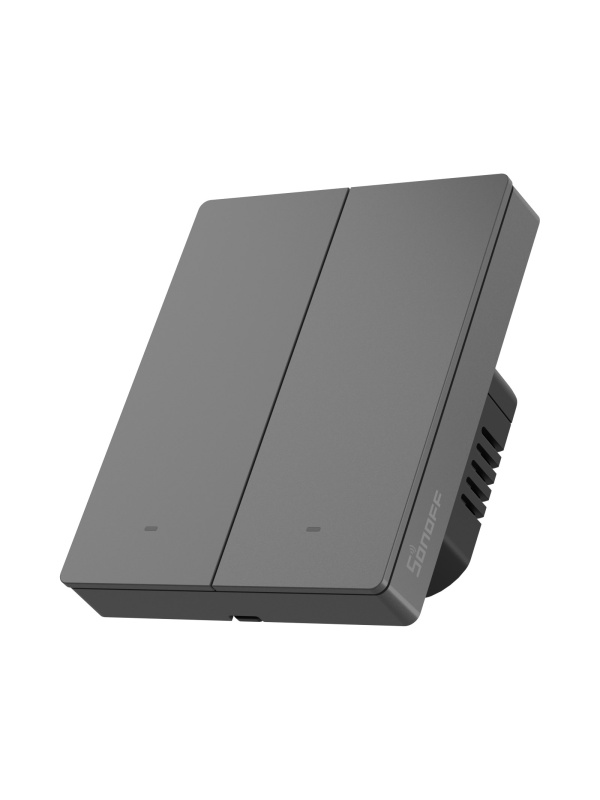

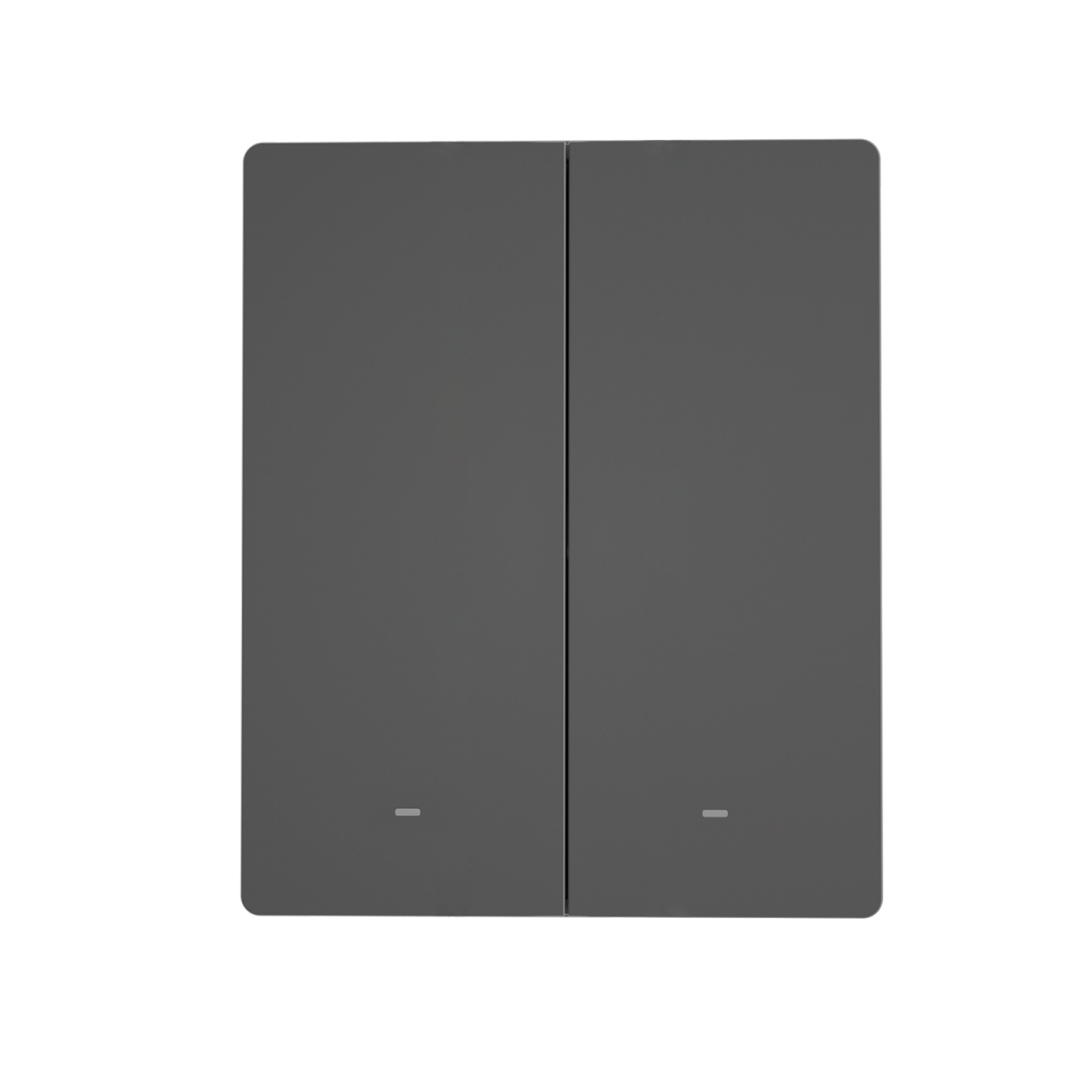

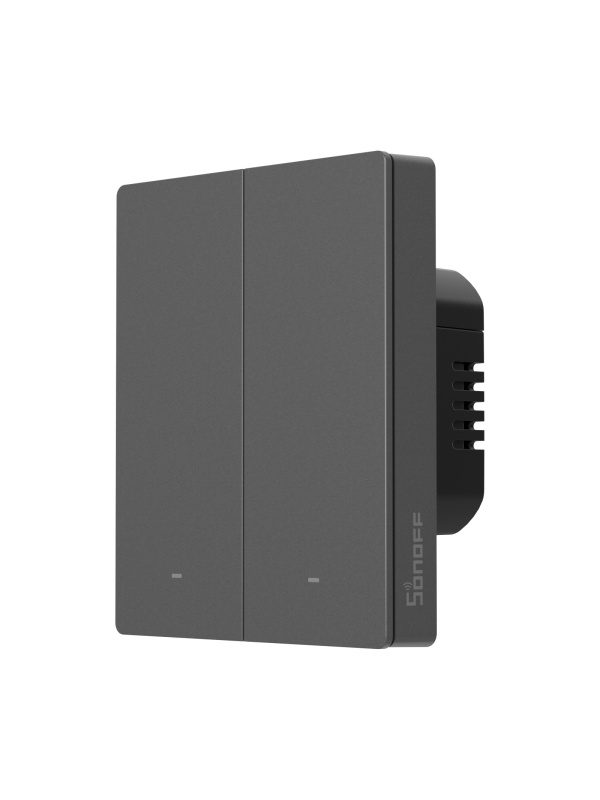

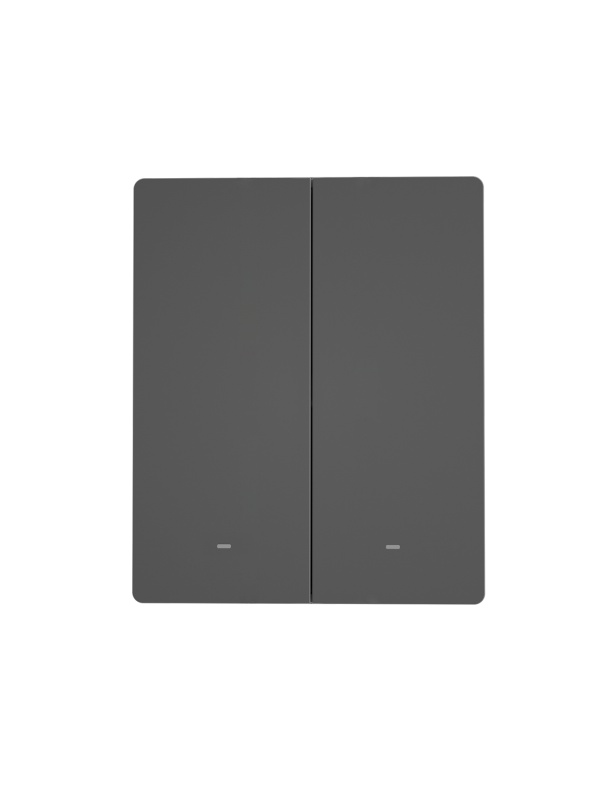

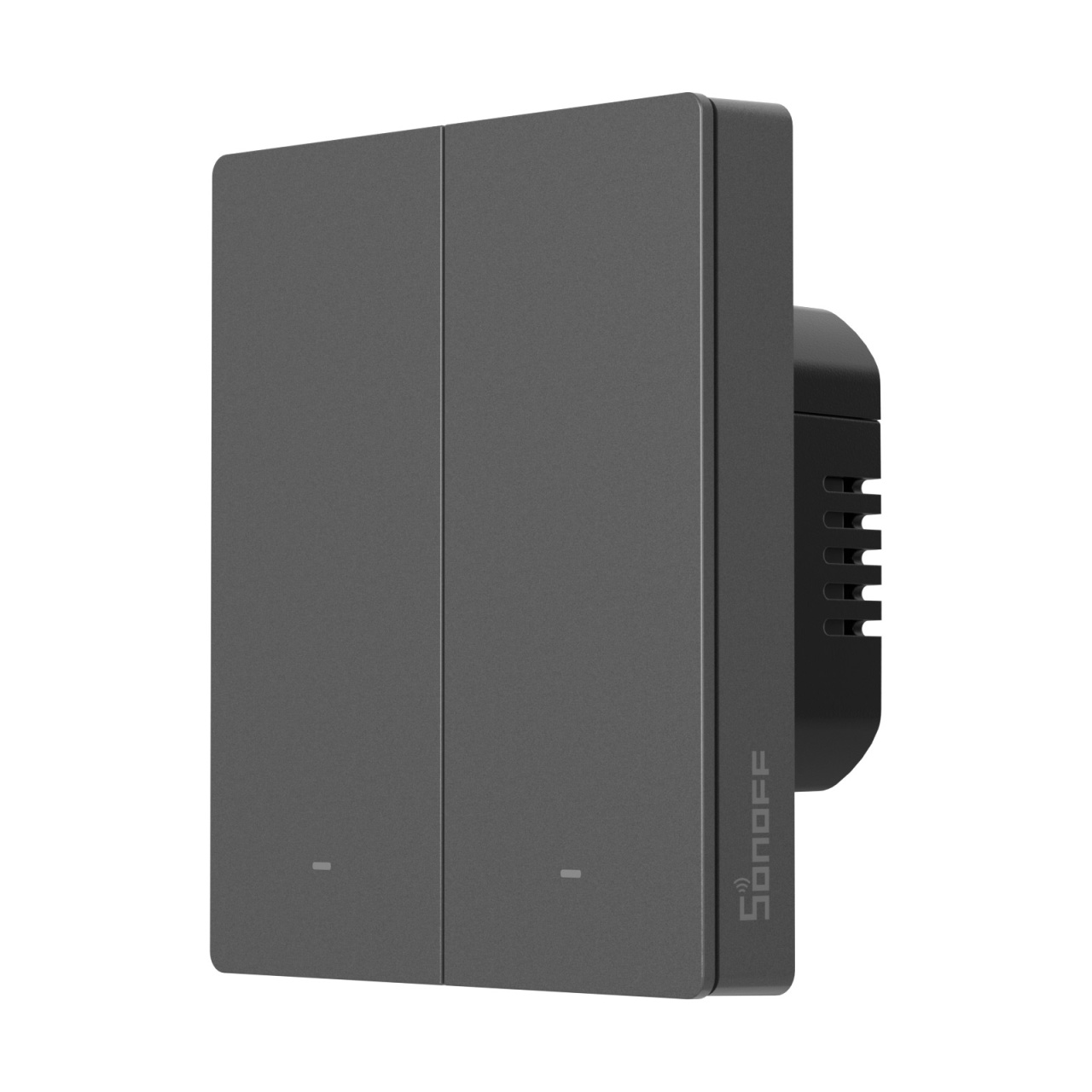

Sonoff M5-2C-80M - Intelligent Double Switch with Physical Button, 2 Channel, Protocol Matter, SwitchMan Series (Type 80)

TheSonoff M5-2C-80M is the two-channel version of the SwitchMan series, designed specifically for rectangular (standard 120/80) rectangular cans. This model integrates the state-of-the-art Matter protocol, which enables native and instant communication with Apple Home, Google Home, Alexa and SmartThings without the dependence on additional hubs. With two independent physical buttons and a premium 'Starry Grey' finish, the M5-2C-80M provides precise touch control for two different lighting zones, making it the ideal choice for a smart, modern and unified smart home.

Key Selling Points

• Native Matter Certified: Matter is the future of smart homes. This switch can be added to multiple smart applications simultaneously by scanning a single QR code, ensuring full interoperability and fast, latency-free local control.

• Rectangular Format (Type 80/120): The dimensions are optimised for installation in rectangular bins, making it the ideal aesthetic solution to replace classic double switches in horizontal or vertical configurations.

• Independent Dual Control: Manages two separate electrical circuits (e.g. main light and secondary batten) from a single compact panel, reducing wall clutter.

• Physical Touch Responsive Buttons: Unlike touchresponsive models, the M5 Series uses mechanical buttons that provide a crisp, tactile feel, making them safer and easier to use by all members of the family.

• Smart LED Indicator: The control light on the buttons can be adjusted in intensity from the application. It can be set to "Sleep" mode, becoming discreet at night, or switched off completely so as not to disturb in the bedroom.

• Safety and Build Quality: Made of flame-retardant polycarbonate (PC V0), the device guarantees superior fire protection and optimum heat dissipation for an extended lifetime.

Examples of Intelligent Automation

1. Multi-Brand Control via Matter: Set one button to light a Philips Hue LED strip, while the second button controls a classic chandelier, all seamlessly integrated via Apple HomeKit or Google Home.

2. "Quick Leave" Scenario: Set one of the buttons so that a long press turns off all Sonoff devices in the home and activates the alarm system.

3. Safety Illuminated: Programmes the lights to come on at 10% intensity (using associated smart bulbs) when the motion sensor detects presence during the night.

Technical Specifications

• Model: M5-2C-80M (2 Channel/Dual)

• Wireless Protocol: Wi-Fi IEEE 802.11 b/g/n 2.4GHz

• Smart Standard: Matter

• Maximum Load: 5A per channel (10A Total)

• Power Supply: 100-240V AC, 50/60Hz

• Dimensions: 120 x 74 x 41.5 mm (Rectangular Format)

• Material: PC V0 (fire resistant)

• Colour: Starry Grey

Package Contents: 1 x Sonoff M5-2C-80M smart switch, fixing screws, user manual(Note: Requires Null wire in the socket for operation).

Why choose Sonoff M5-2C-80M?

If you own rectangular cans and want a product that will work flawlessly with whatever smart platform you choose in the future, Matter certification makes this switch a safe investment. It combines modern aesthetics with the reliability of physical buttons, offering dual control in a format that redefines convenience standards.
