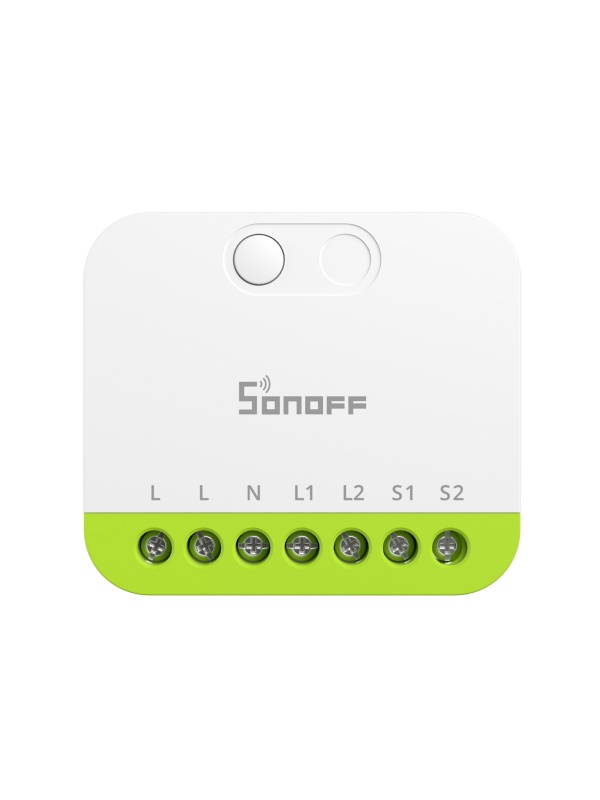

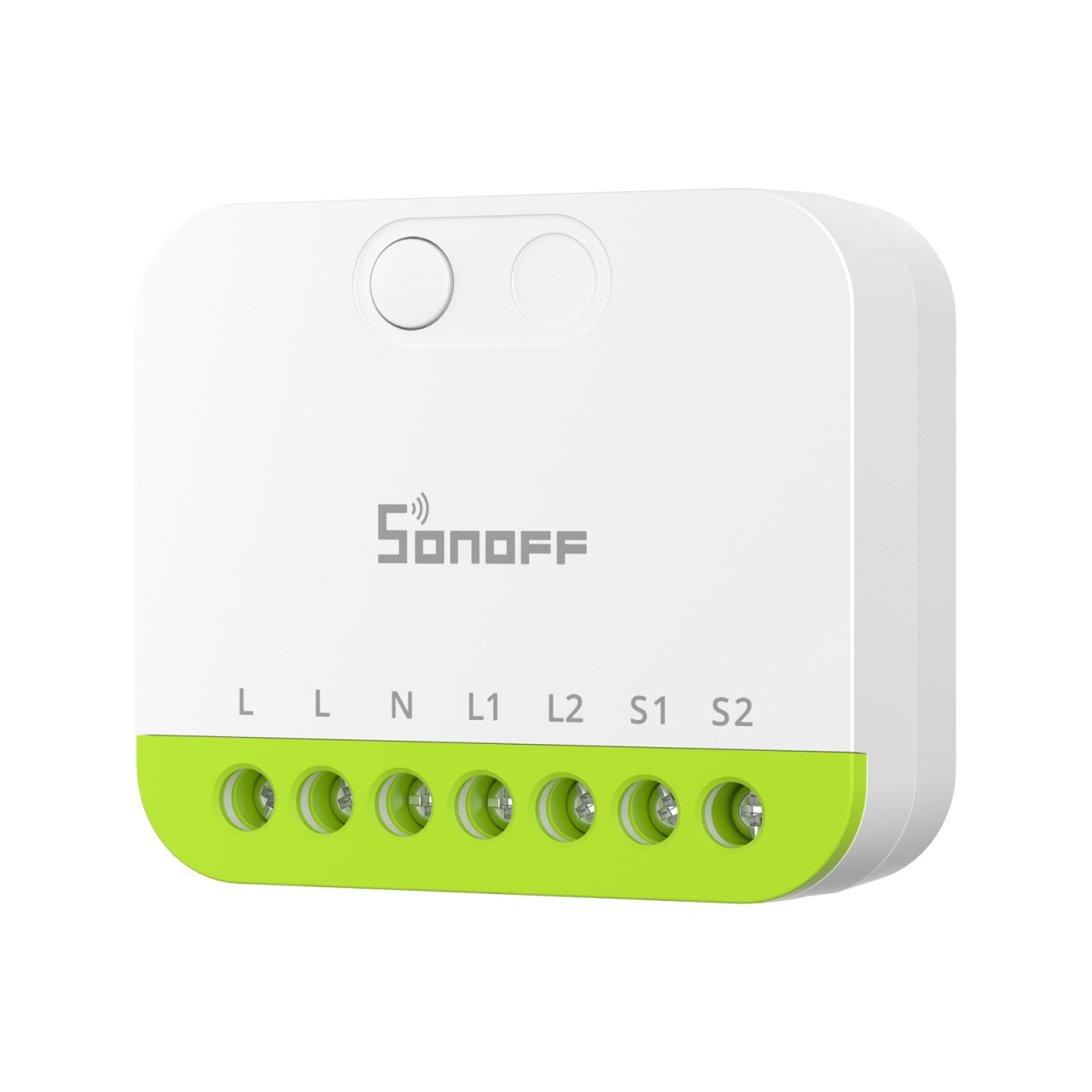

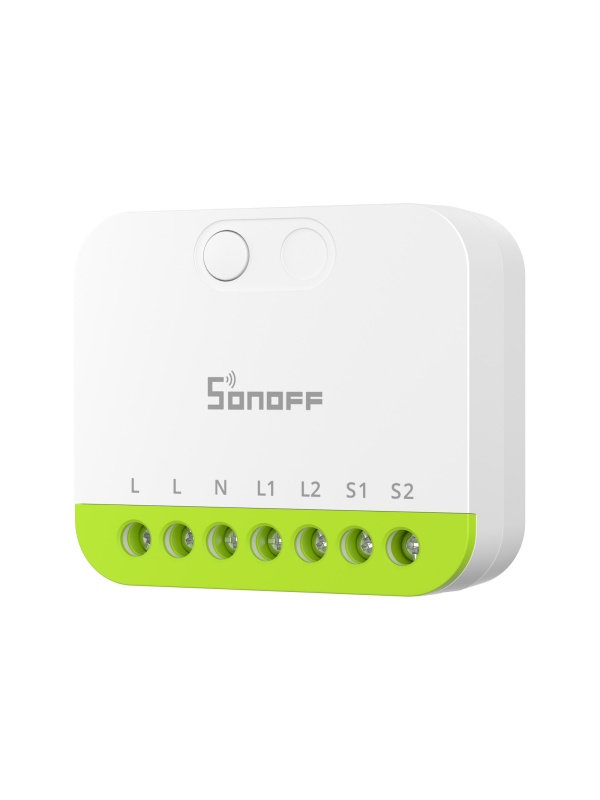

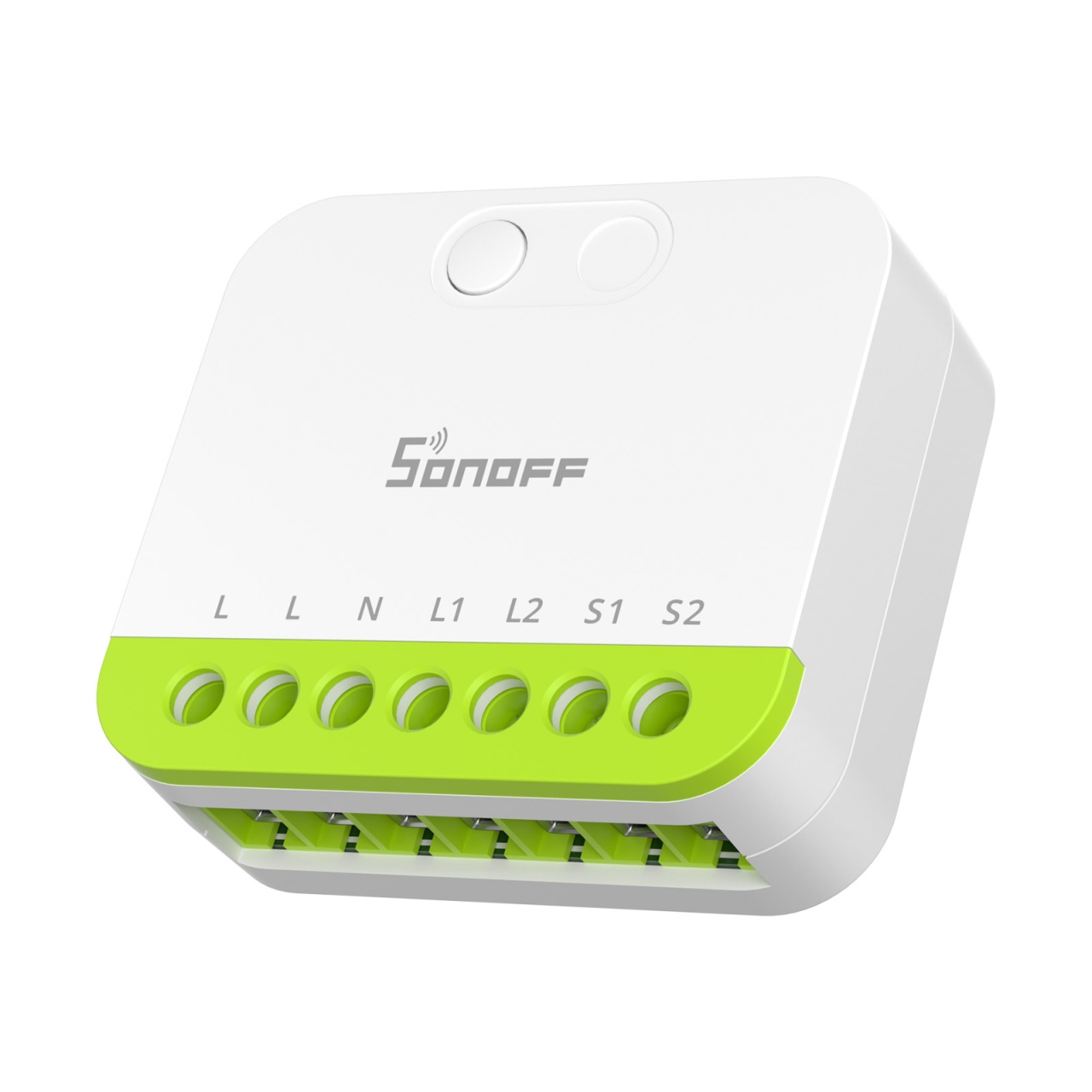

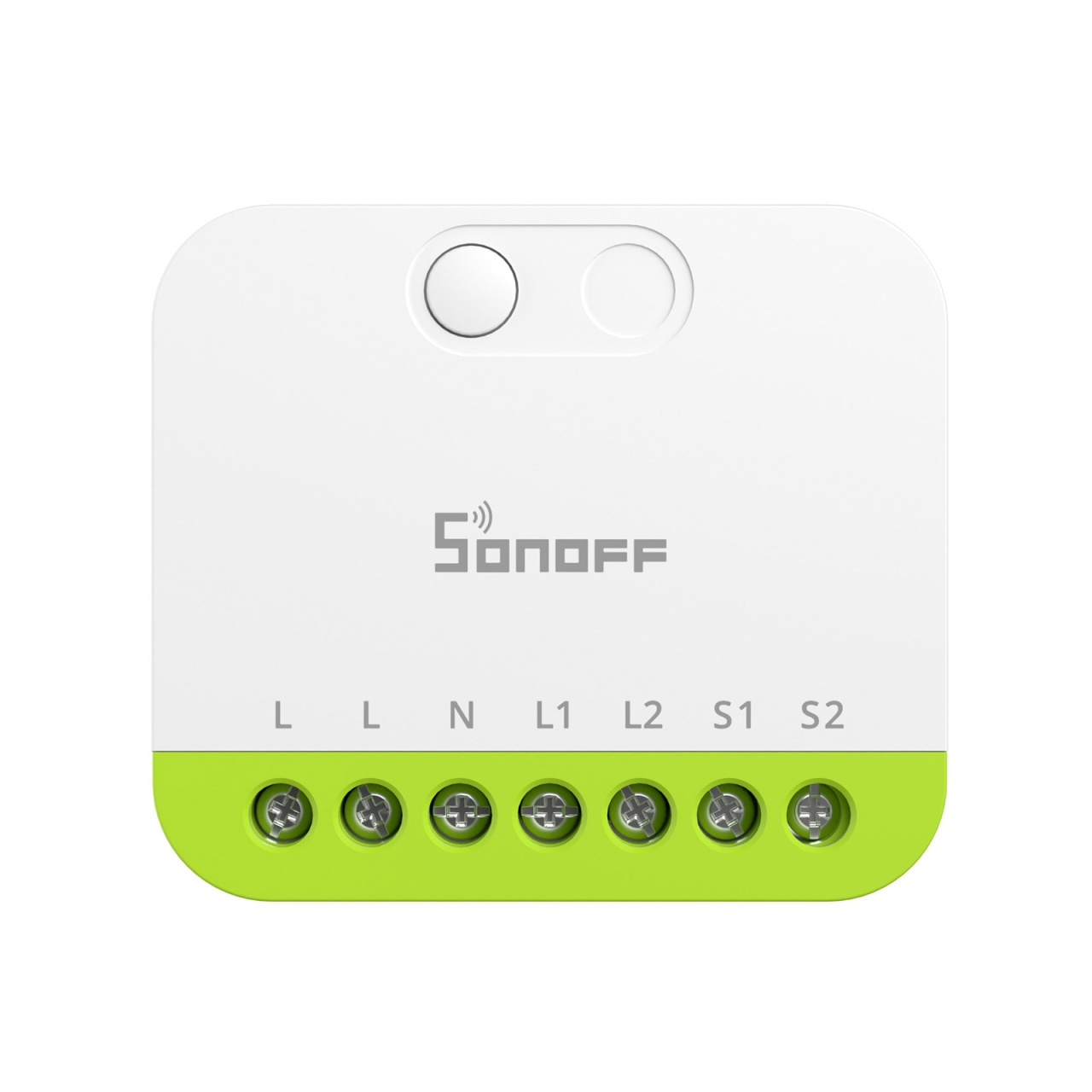

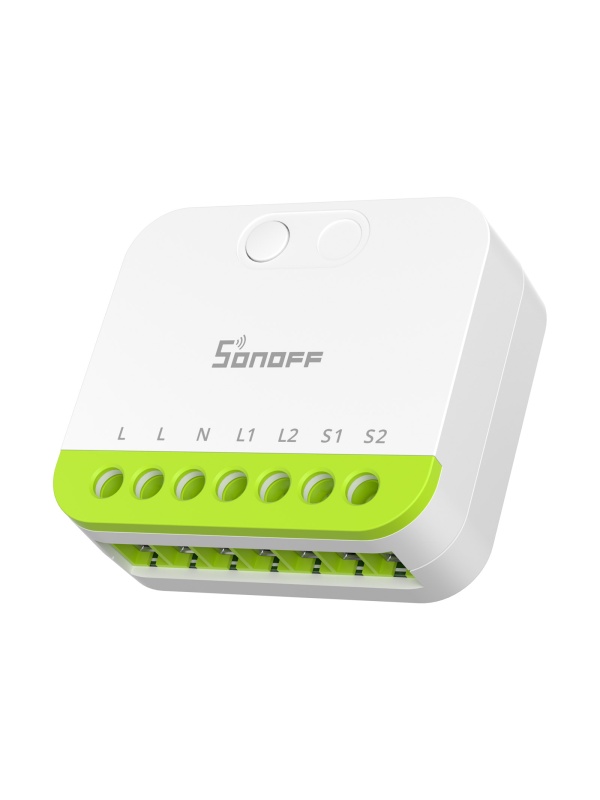

Sonoff MINI-ZB2GS - Mini Zigbee 3.0, 10A, Mini Zigbee Smart Relay with Bare Wire, Extreme Design and Silver Finish

Sonoff MINI-ZB2GS is the latest evolution of Sonoff's miniature smart relays. Part of the Extreme series, it is up to 40% smaller than previous models, making it the champion for installations in extremely crowded wall canisters. This variant (GS - Silver) utilises the Zigbee 3.0 protocol and requires Null wire for operation, instead offering superior stability and signal repeater functionality for your smart network.

Key Selling Points

• "Extreme" Record Record Size: The ultra-compact design allows it to be installed in any type of dock (European, Type 60 or behind thin luxury switches) without straining existing wiring.

• Zigbee 3.0 Protocol & Router Function: In addition to controlling the connected device, the MINI-ZB2GS acts as a network extender. Being Null-powered, it relays the Zigbee signal to other devices (sensors, buttons), eliminating no-signal zones in your home.

• Universal Switch Compatibility: Supports control via rocker switches, push buttons and even dry-contact sensors, providing maximum flexibility in upgrading existing circuits.

• Detach Relay Mode: An essential feature for modern homes - you can separate the physical actuation of the switch from the relay itself. This way, you can use the wall switch to control other smart devices or scenes without cutting the bulb current on that circuit.

• Enhanced Safety and Reliability: Constructed of PC V0 V0 flame retardant materials and certified for surge protection, this relay is designed to operate in complete safety 24/7.

• Dual Control: Smart and Manual: Even if the internet or Zigbee hub is not available, you can still control the lights using the classic wall switch.

Examples of Smart Automation

1. Whole-Home Synchronisation: Configure the MINI-ZB2GS so that a double flick of the switch in the bedroom turns off all the lights in the house (using eWeLink scenarios).

2. Automatic Lighting in Lobby: Pair the relay with a Zigbee motion sensor to automatically turn on the lights when you enter the house, but only if ambient light levels are low.

3. Sensor Gateway: Install this relay at strategic points in your home to ensure that remote temperature or water leak sensors always have a stable connection through the relay's repeater function.

Technical Specifications

• Model: MINI-ZB2GS (Extreme Zigbee Neutral Version)

• Wireless Protocol: Zigbee 3.0 (IEEE 802.15.4)

• Power Supply: 100-240V AC, 50/60Hz

• Maximum Load: 10A / 2400W (Resistive)

• Installation Requirement: Requires Phase wire + Null wire (L + N)

• Material: V0 flame retardant polycarbonate

• Dimensions: 39.5 x 33 x 16.8 mm

• Colour: Silver Grey

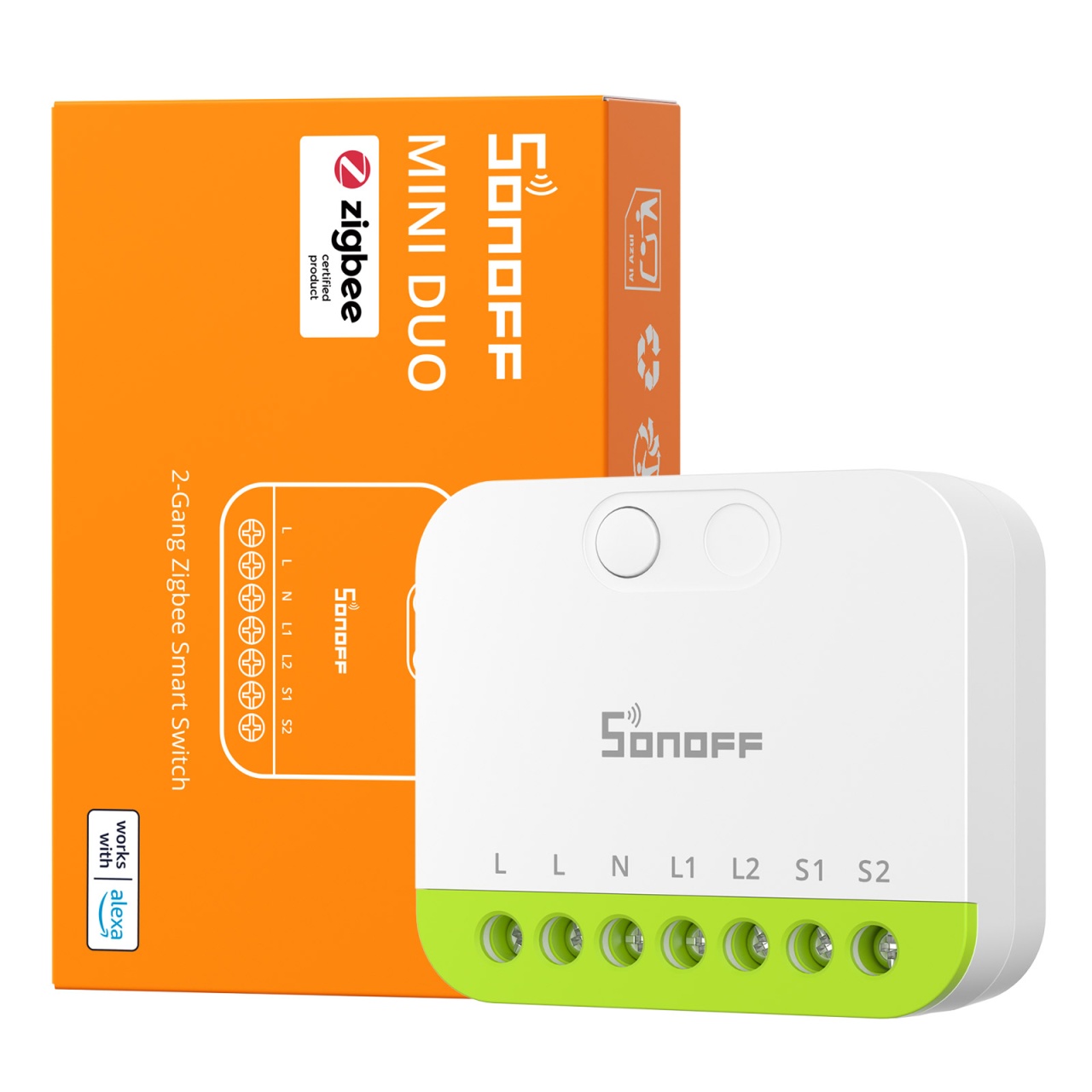

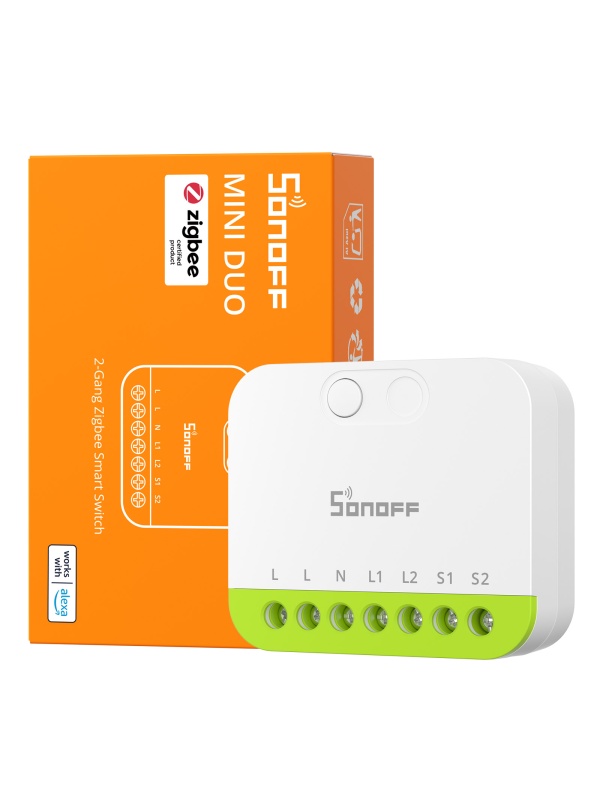

Package Contents: 1 x Sonoff MINI-ZB2GS Relay, universal mounting bracket, user manual(Note: A compatible Zigbee 3.0 Hub/Gateway is required for intelligent control).

Why choose Sonoff MINI-ZB2GS?

It's the professional's choice for those who want a robust Zigbee network and a clean installation. If you've got null wire in your cans, this model is superior to the "No Neutral" variants because it improves coverage throughout your smart home, while being small enough not to put strain on your favourite switch mechanism.
