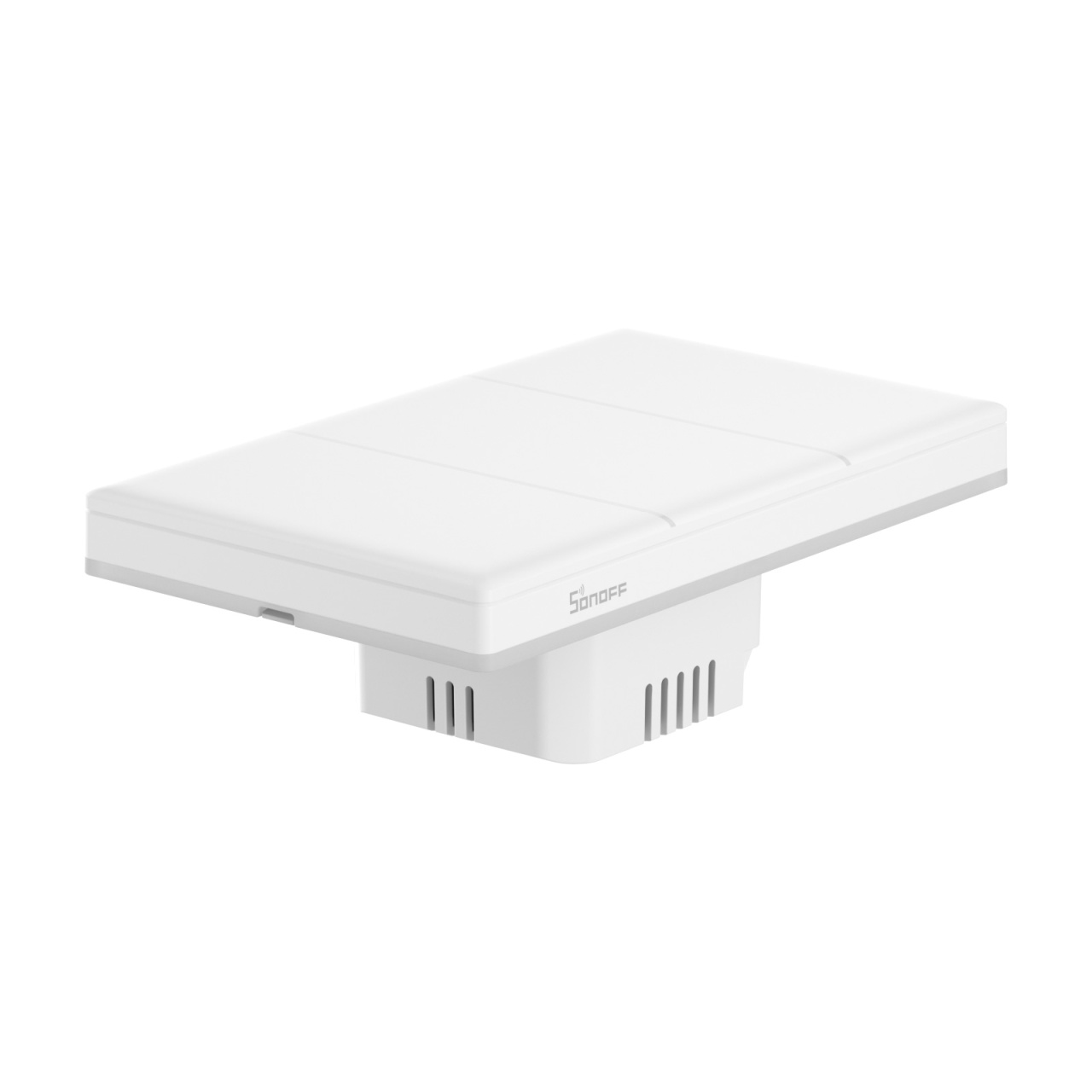

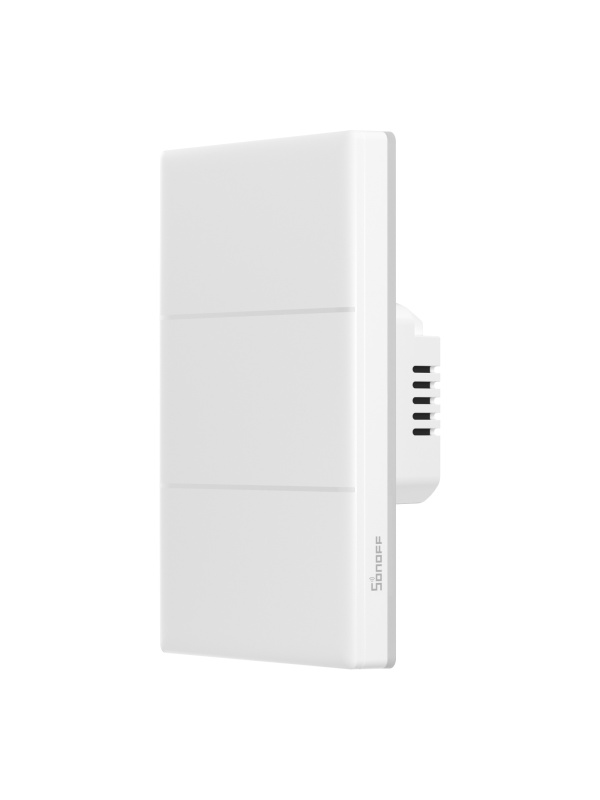

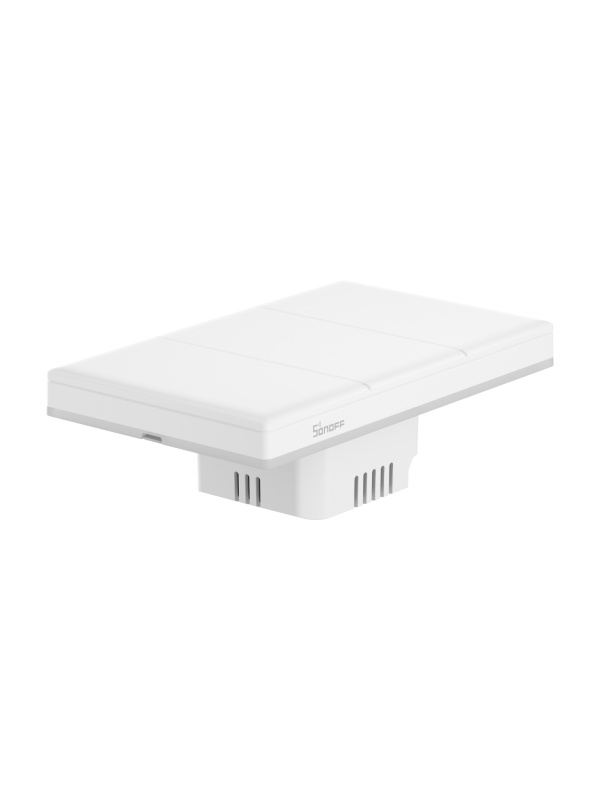

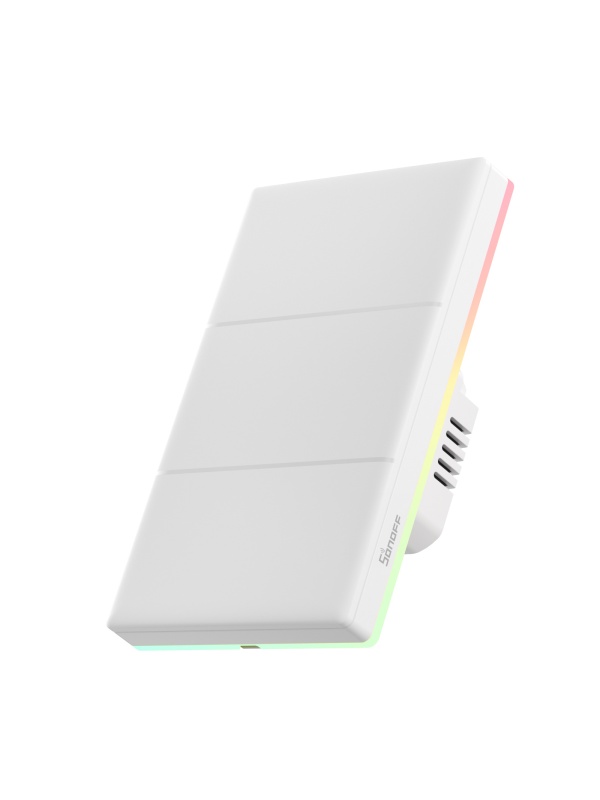

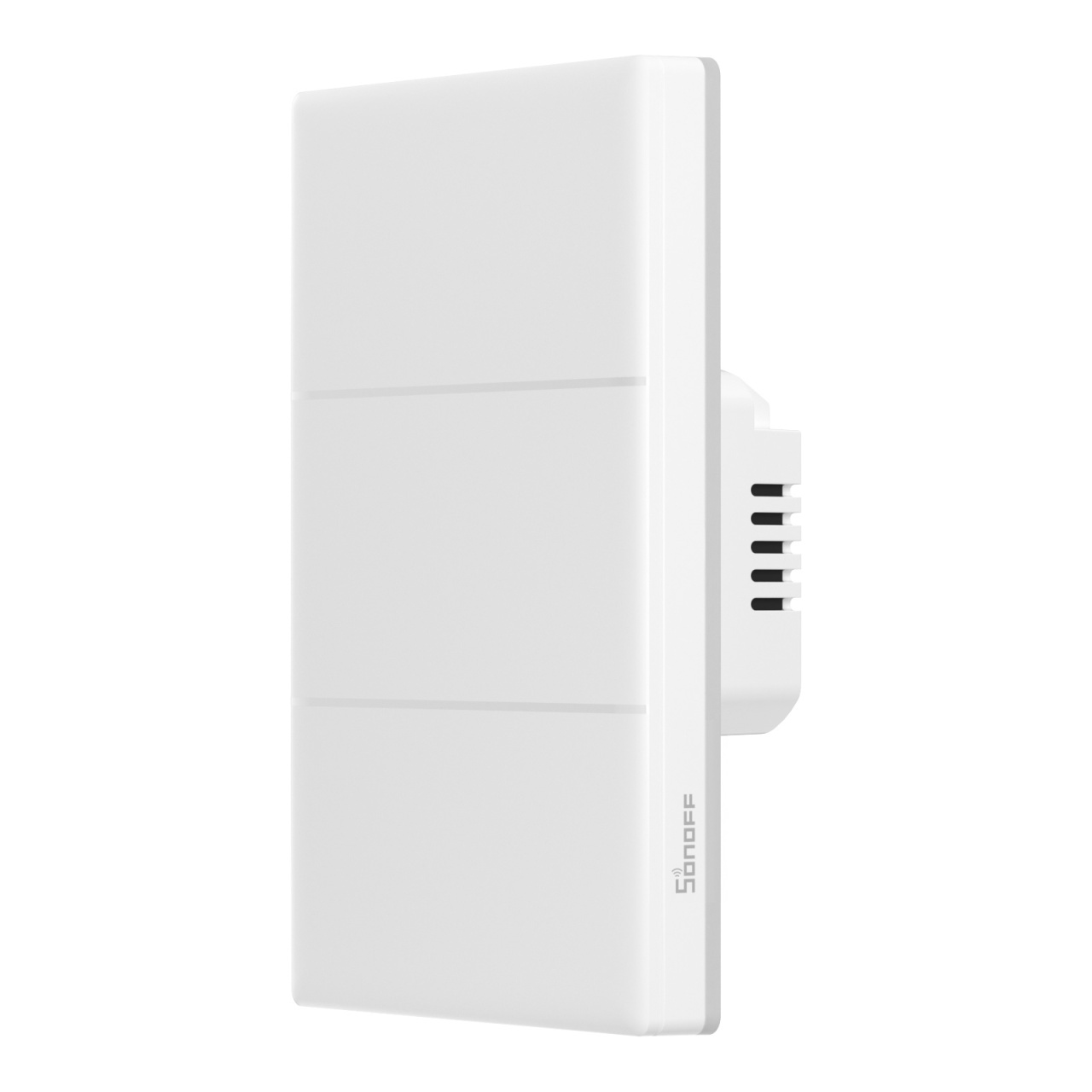

Sonoff Smart Touch Wall Switch T5-3C-120 - 3 Channel Smart Wall Switch with Touch Panel, RGB Illumination and Sound Effects

The Sonoff T5-3C-120 (TX Ultimate) is the next generation of smart switches from Sonoff, combining precision touch control with futuristic aesthetics. This three-channel model transforms simply switching on the light into a sensory experience, providing feedback through RGB colour, sound and vibration. The 120 (rectangular) design is ideal for upright or recessed mounting, bringing a modern feel to any room.

Key Selling Points

• Full Area Touch Control: Unlike traditional limited-area touch switches, the T5 allows touch actuation over almost the entire panel surface. A simple light touch activates the desired channel, providing instant response.

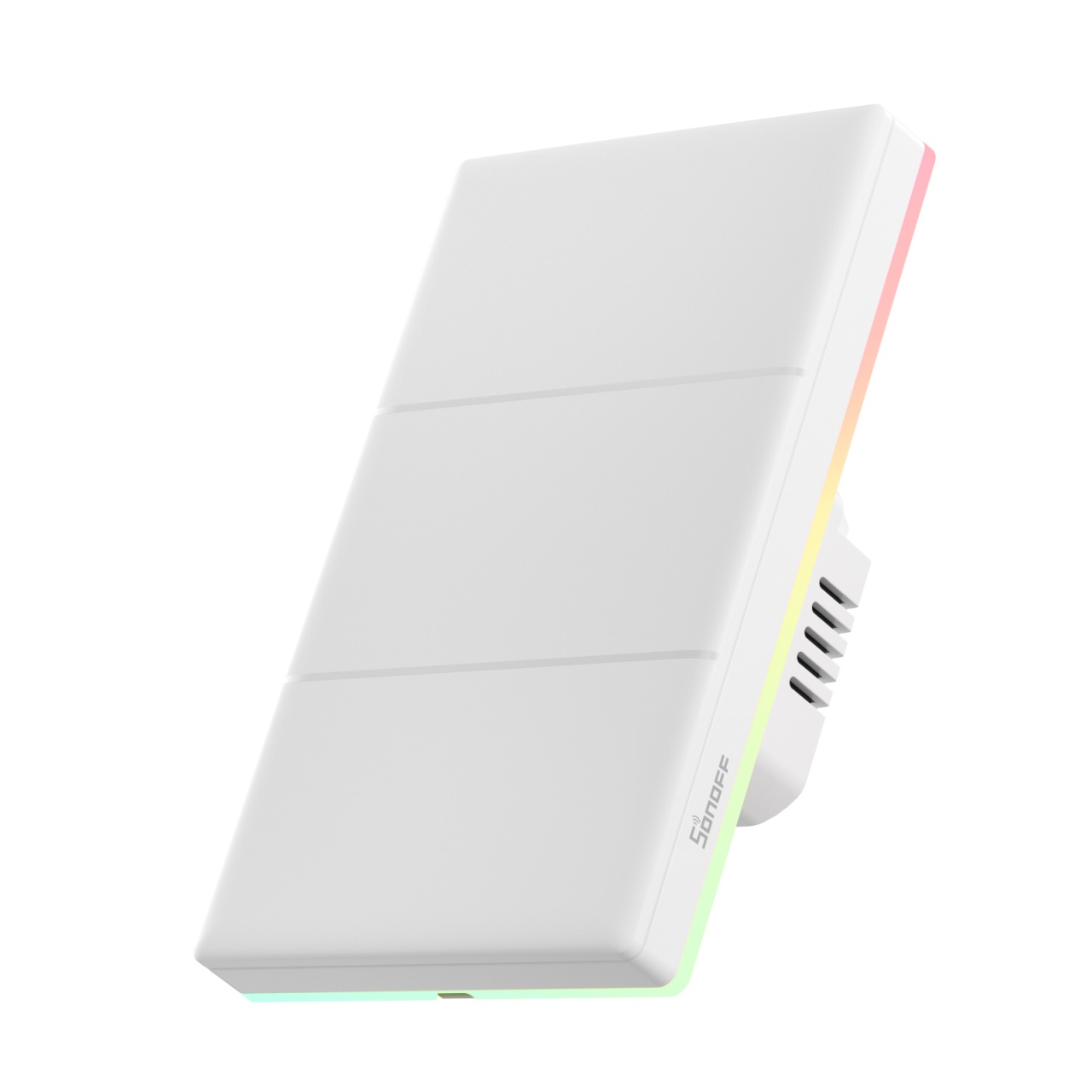

• RGB Ambient Illumination: The switch is surrounded by an RGB LED strip that can be configured in a variety of ways. This can function as a night light, status indicator for smart devices or create a colourful atmosphere in the room, supporting up to 8 different lighting modes.

• Multisensory feedback: every action is confirmed by customisable sounds, vibrations and light effects. These features can be turned on or off from the eWeLink app, depending on your preferences.

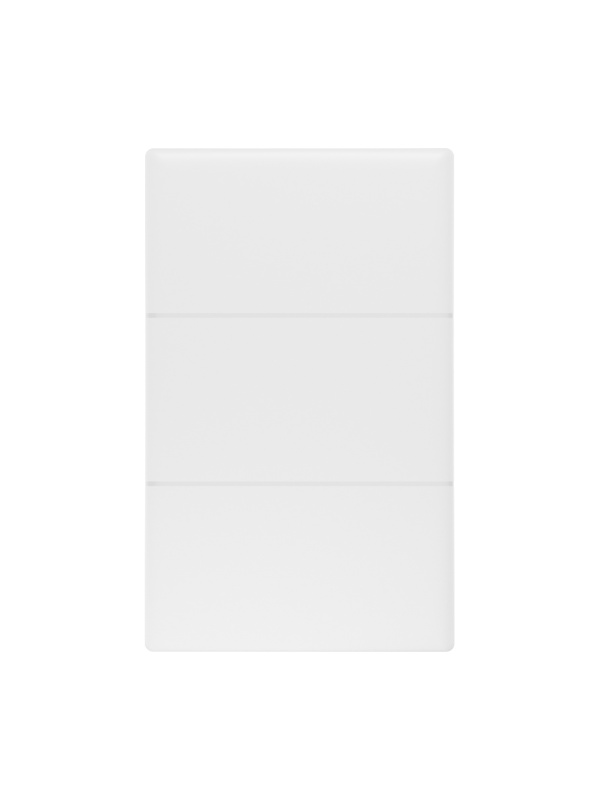

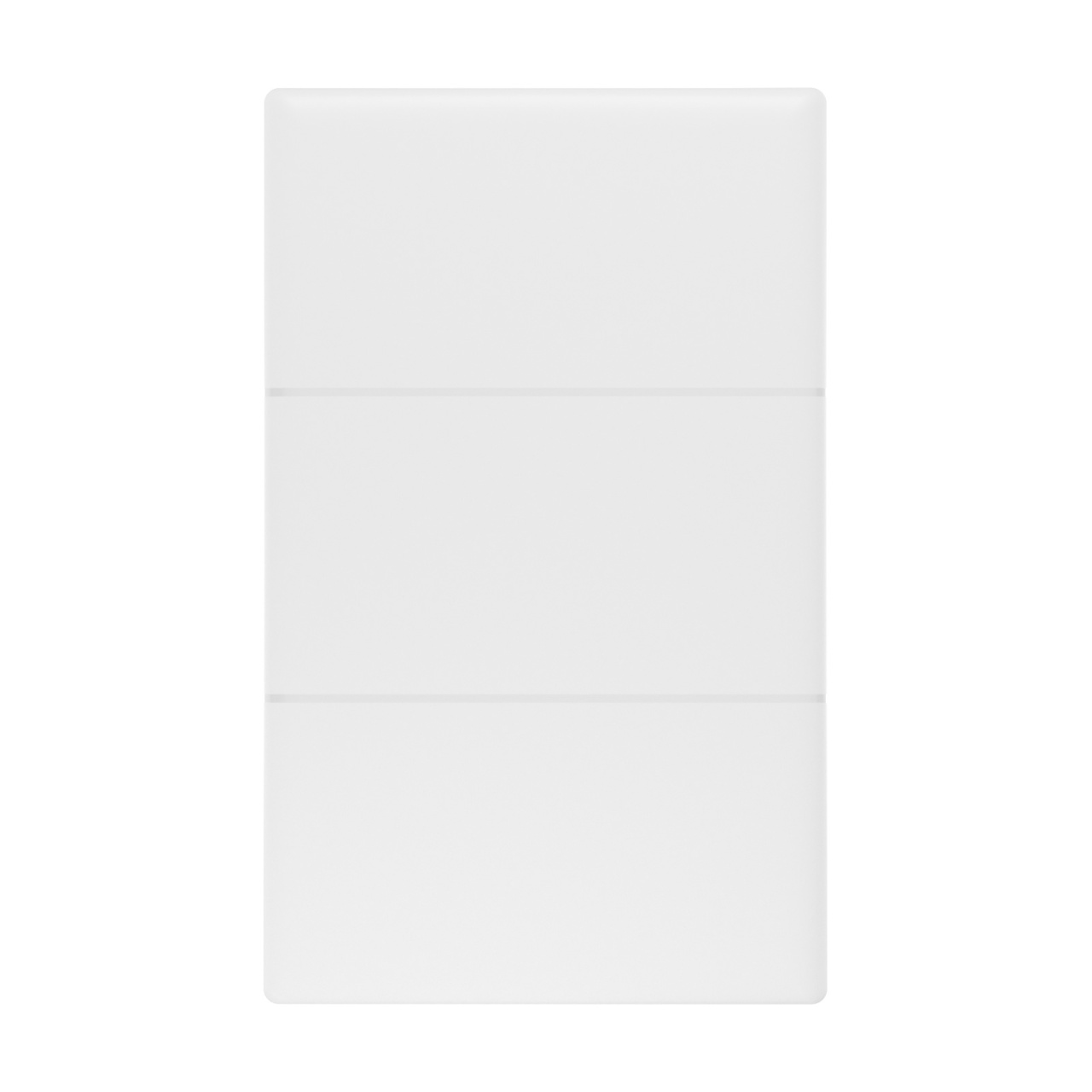

• Interconnectable and Customisable Panel: The front panel of the TX Ultimate series is detachable. You can change the look of the switch using other enclosures in the range (such as the "Starry" or "Cartoon" versions) to perfectly match the interior design of your home.

• Control via eWeLink-Remote: Works as an "eWeLink-Remote" gateway, allowing you to add sub-devices such as the R5 remote control or S-MATE module. This way, you can control the same light from multiple points (wireless head-to-tail system) without pulling new wires.

• Voice Control & Cloud Integration: It is fully compatible with Amazon Alexa, Google Home and Siri Shortcuts, allowing voice control and checking the status of lights from wherever you are.

Advanced Features and Safety

• Installation Requirements: To operate the electronics, RGB strip and Wi-Fi connection, this switch requires mandatory Null wire in the can.

• Display Mode: The LED strip can be synchronised with other smart devices. For example, it can flash red if a security sensor is triggered, providing an immediate visual warning.

Technical Specifications

• Model: T5-3C-120

• Number of Channels: 3 (Triple Channel)

• Standard: Type 120 (Rectangular Mount)

• Power Supply: 100-240V AC, 50/60Hz

• Maximum Current: 15A total (5A per channel)

• Maximum Power: 3300W total (1100W per channel)

• Wireless: Wi-Fi IEEE 802.11 b/g/n 2.4GHz + Bluetooth (for fast pairing)

• Material: PC + CRS (durable and flame retardant)

• Dimensions: 120 × 74 × 39 mm

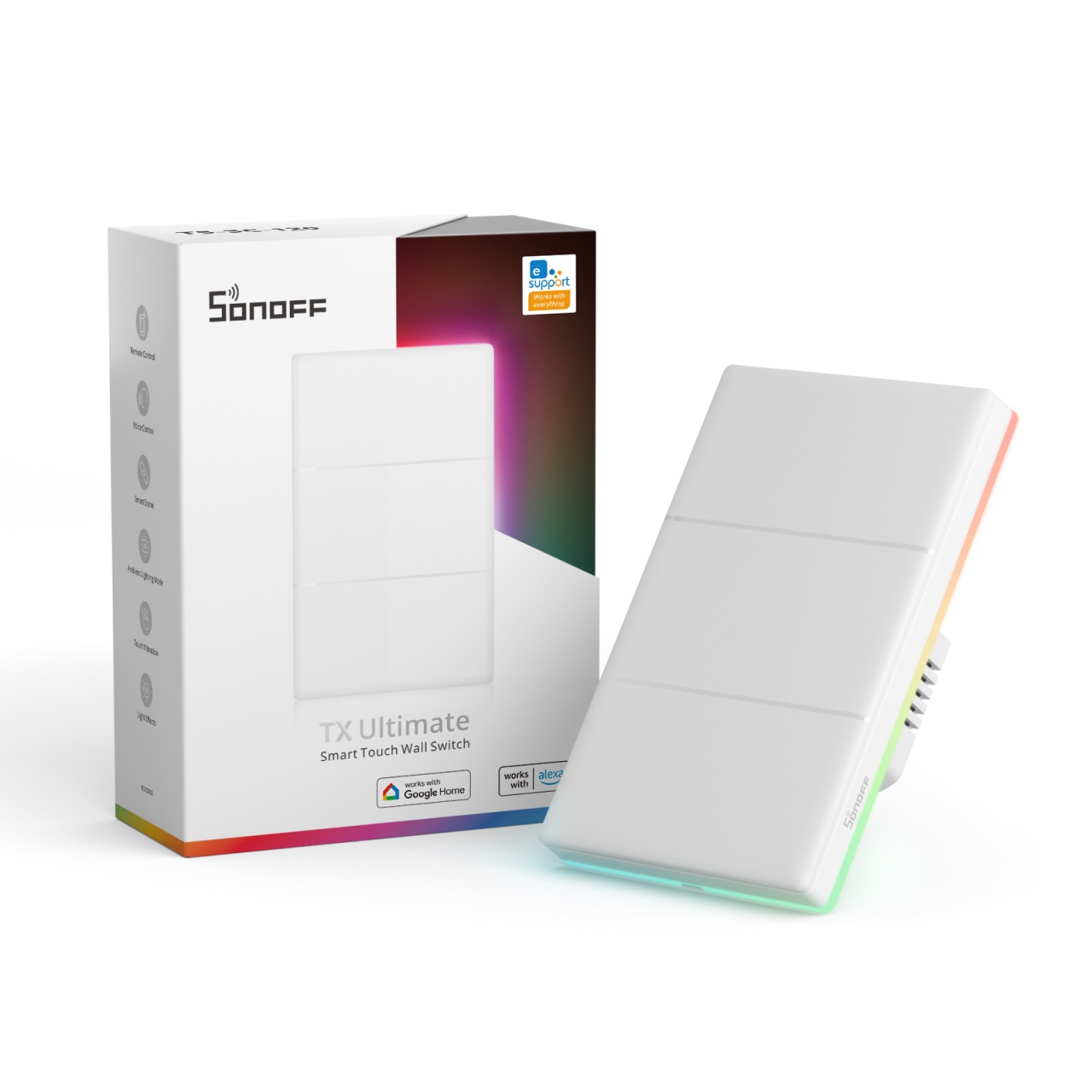

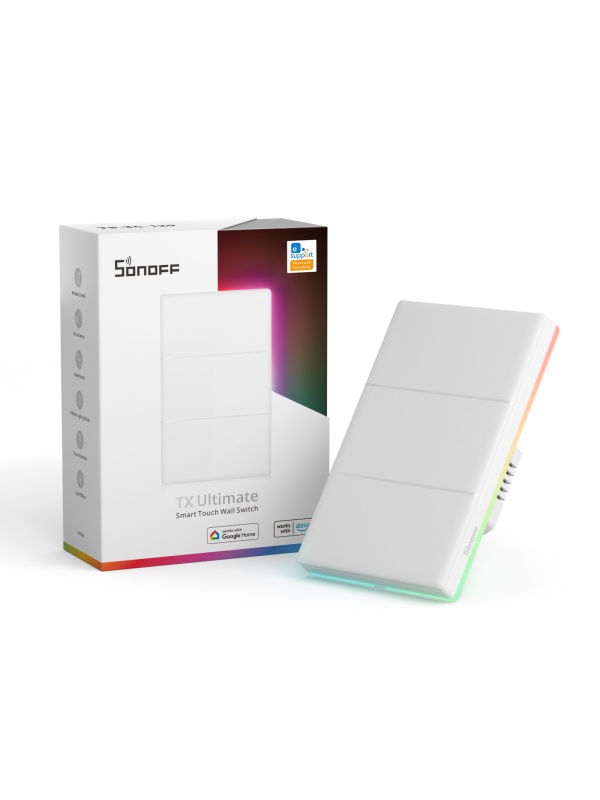

Package contents: Sonoff T5-3C-120 switch, mounting screws, user manual.

Why choose Sonoff TX Ultimate T5?

The ideal choice for those who want more than just a switch. The T5-3C-120 is a tech design element that brings interactivity into the home. With the ability to control three separate circuits, haptic feedback and integrated RGB lighting, this model raises the standard in smart lighting control.
