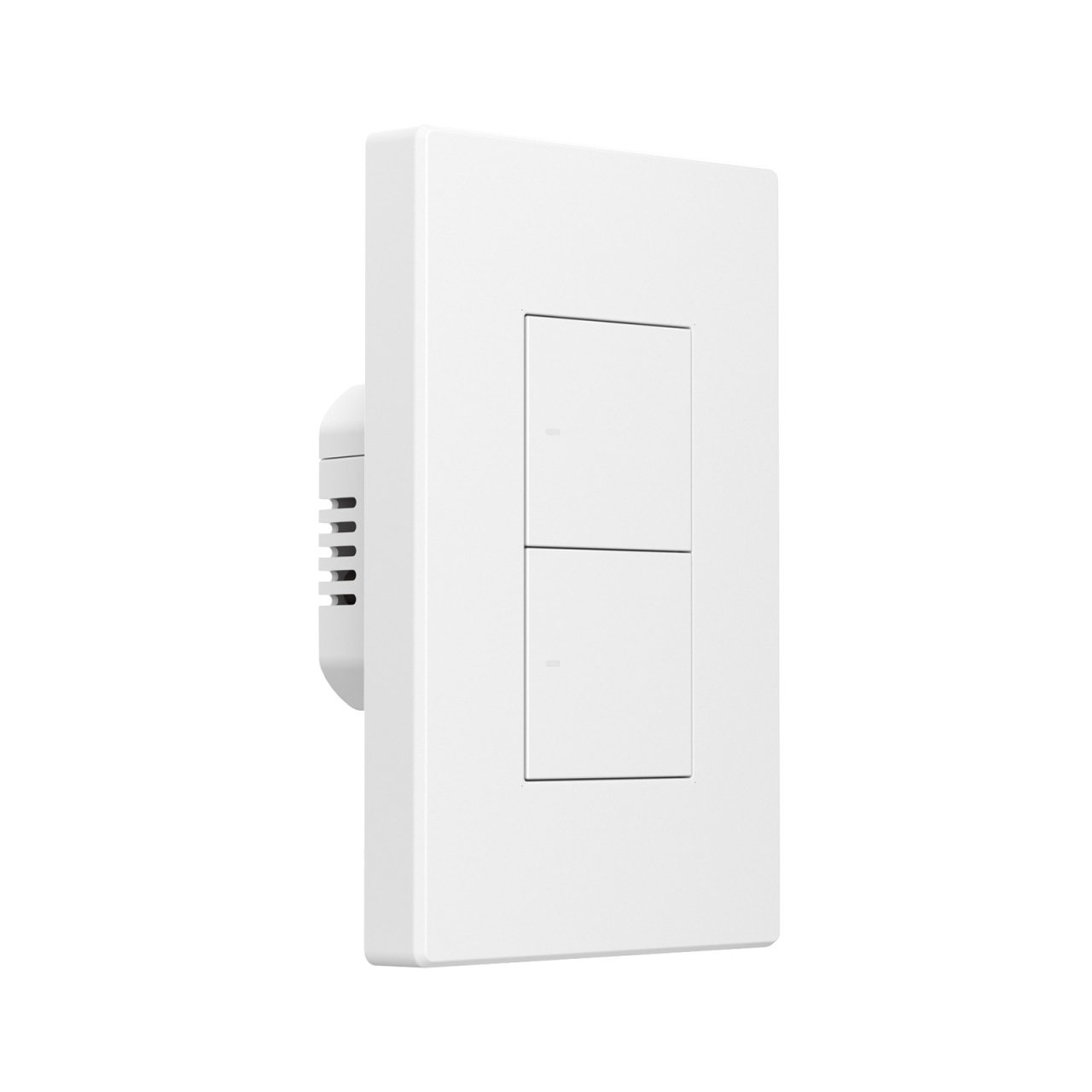

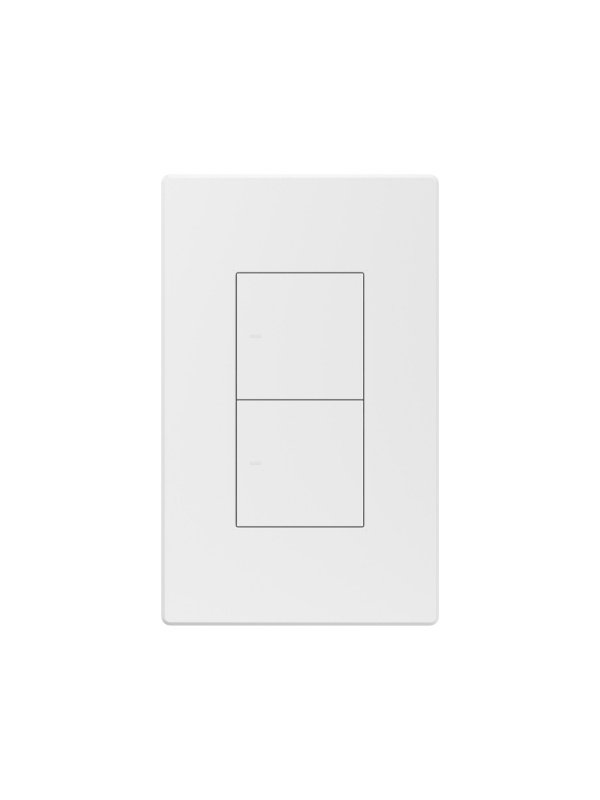

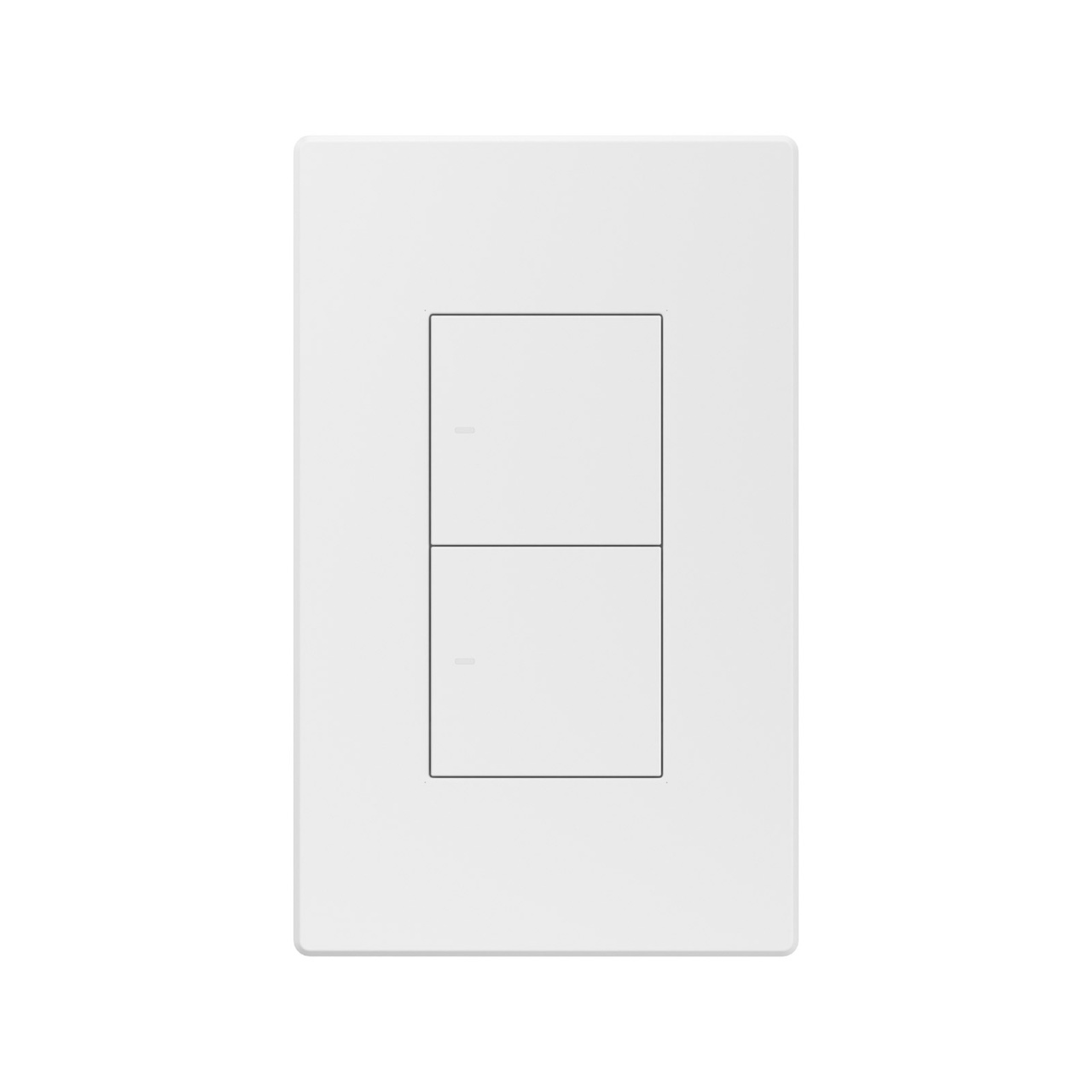

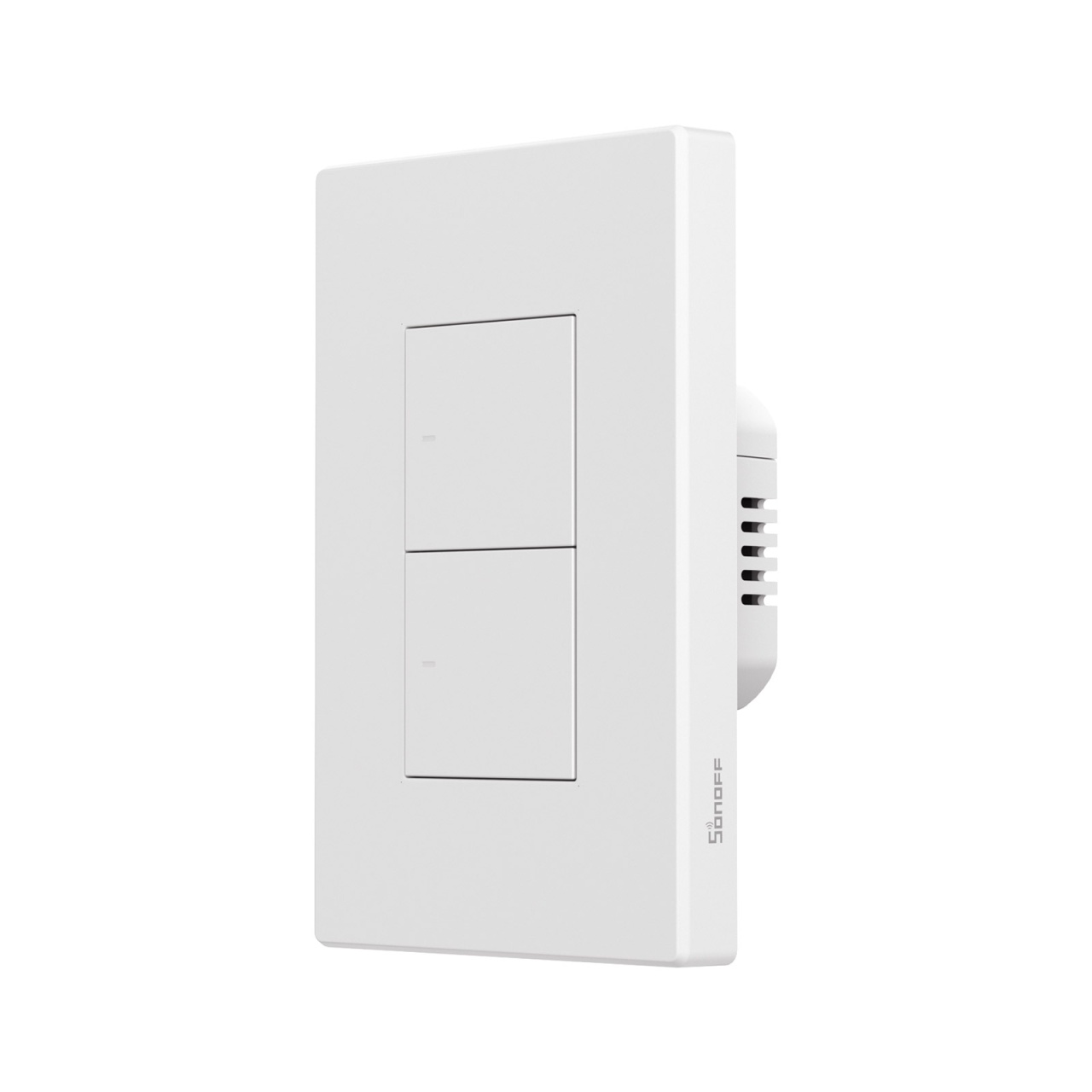

Sonoff SwitchMan M5-2C-120W - 2 Channel Smart Switch with Physical Buttons and Wi-Fi Control

TheSonoff M5-2C-120W is a two-channel smart switch, part of the SwitchMan series, designed to provide modern and refined control over the lighting in your home. This model is equipped with high-precision physical buttons, providing excellent tactile feedback combined with advanced smart features accessible through the eWeLink app. Its design is tailored for Type 120 wall docks (standard often used in certain regions or for specific wall mounts).

Key Selling Points

• Dual Control with Physical Buttons: Unlike touch models, the M5-2C features rugged mechanical buttons, ideal for users who prefer the classic push-button feel but want all the benefits of a smart home. Two channels allow separate control of two light circuits from a single unit.

• Adjustable LED Indicator Light: The indicator light on the buttons helps you find the switch in the dark. Its intensity can be adjusted from the app so as not to disturb your sleep, ideal for bedrooms.

• Remote Control and Voice Commands: Manage your lights from anywhere via the eWeLink app or by voice commands using Amazon Alexa, Google Assistant or Siri Shortcuts. It's the perfect solution for those times when you leave the house and you're not sure if you've turned off the lights.

• Smart Automations and Scenarios: You can create running programmes, timers or complex scenarios. For example, you can set the lights to switch on automatically at dusk or switch them all off with a single press when you leave your home.

• Compatibility with eWeLink-Remote: M5-2C can be used in conjunction with the S-MATE wall remote or R5 buttons, allowing control of lights from multiple points (virtual head-switch) without the need for additional wiring between switches.

Installation and Safety

• Requires Null Wire: For stable operation and always-on Wi-Fi communication, this device requires the connection of both Phase and Null wires.

• Certification and Protection: Constructed of flame retardant materials (PC V0), the switch is designed to withstand high temperatures and provide long term safe use in your home's electrical network.

Technical Specifications

• Model: M5-2C-120W

• Number of Channels: 2 (Dual Channel)

• Standard: Type 120 (Specific vertical/ square mounting)

• Power Supply: 100-240V AC, 50/60Hz

• Maximum Current: 10A (5A per channel)

• Maximum Power: 2200W (1100W per channel)

• Wireless Protocol: Wi-Fi IEEE 802.11 b/g/n 2.4GHz

• Enclosure Material: PC V0 (Fire Resistant)

• Operating Temperature: -10°C ~ 40°C

Package Contents: Sonoff M5-2C-120W switch M5-2C-120W, set of mounting screws, user manual.

Why choose the Sonoff SwitchMan M5 series?

The M5-2C-120W is the ideal choice if you prefer the reliability of physical buttons over touch panels. It offers great aesthetic integration into modern homes and high connection stability, making it a mainstay in any lighting automation project that values ergonomics and safety.
