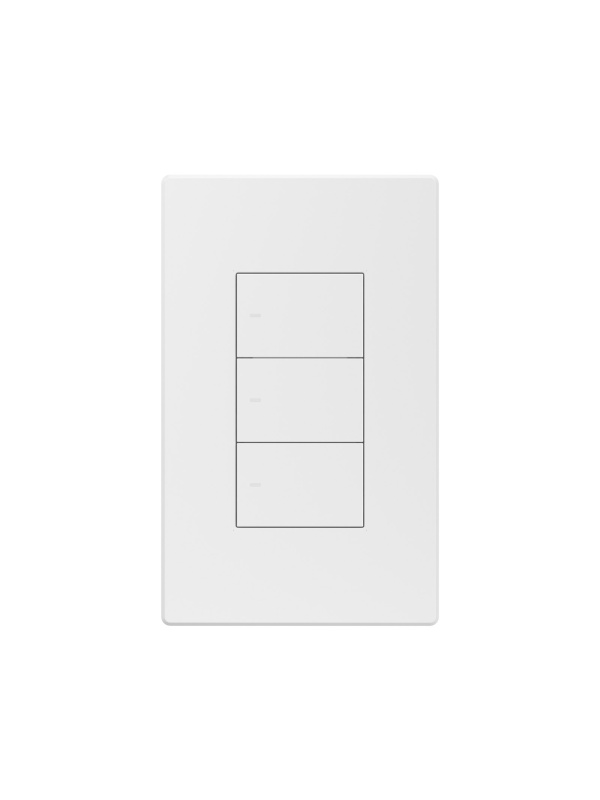

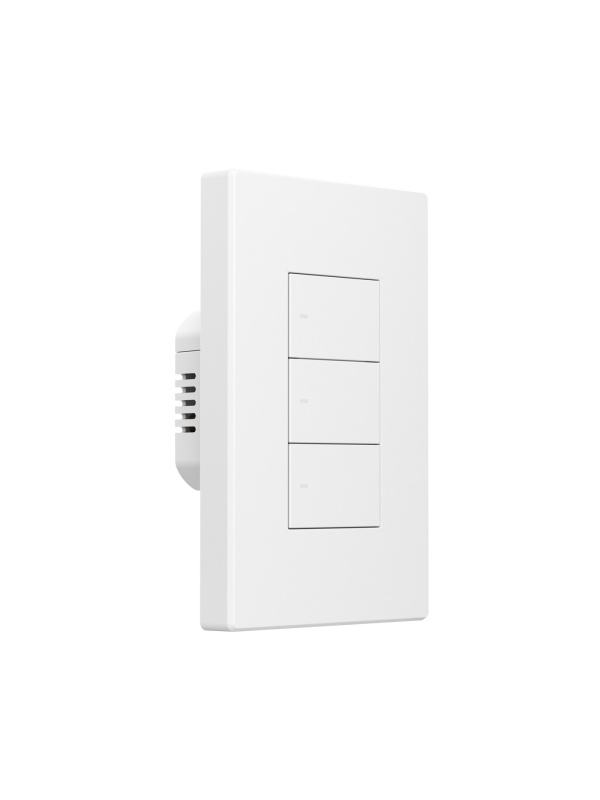

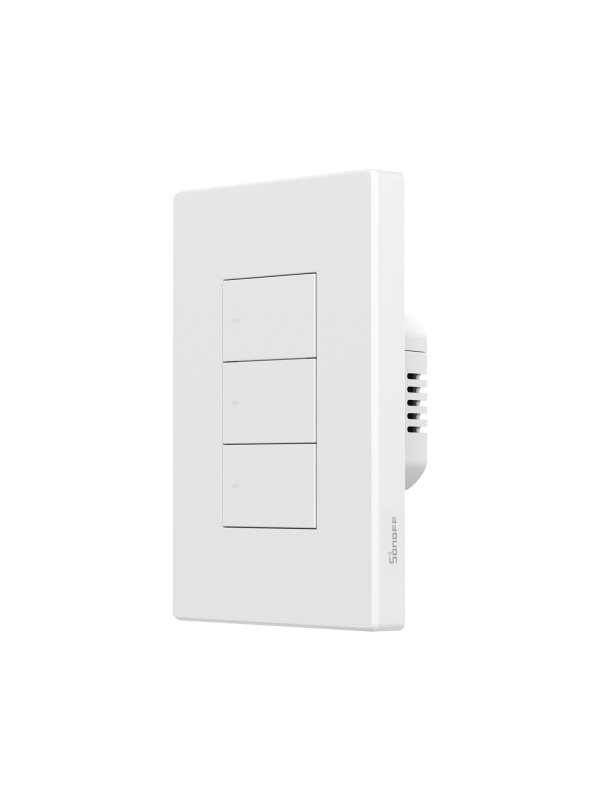

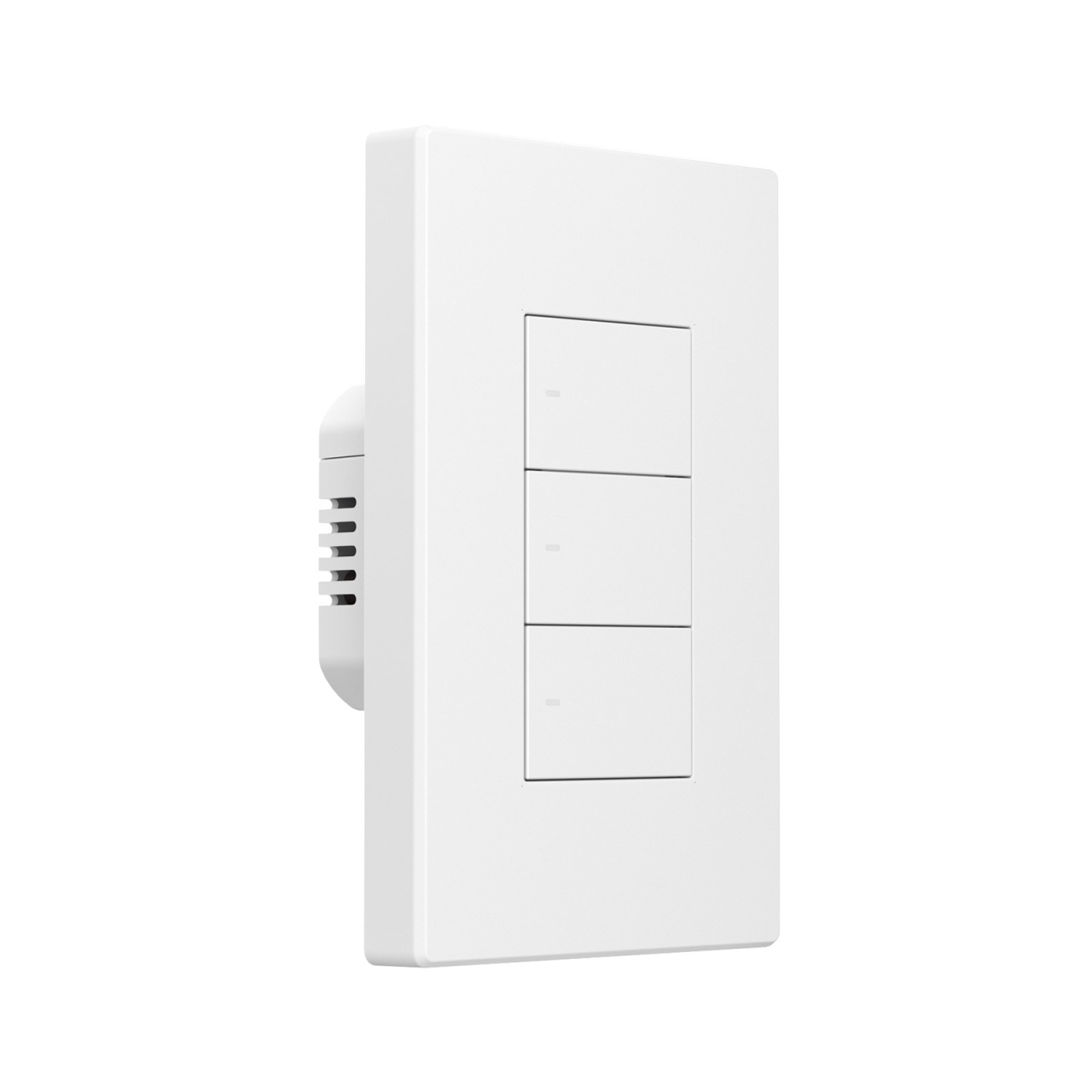

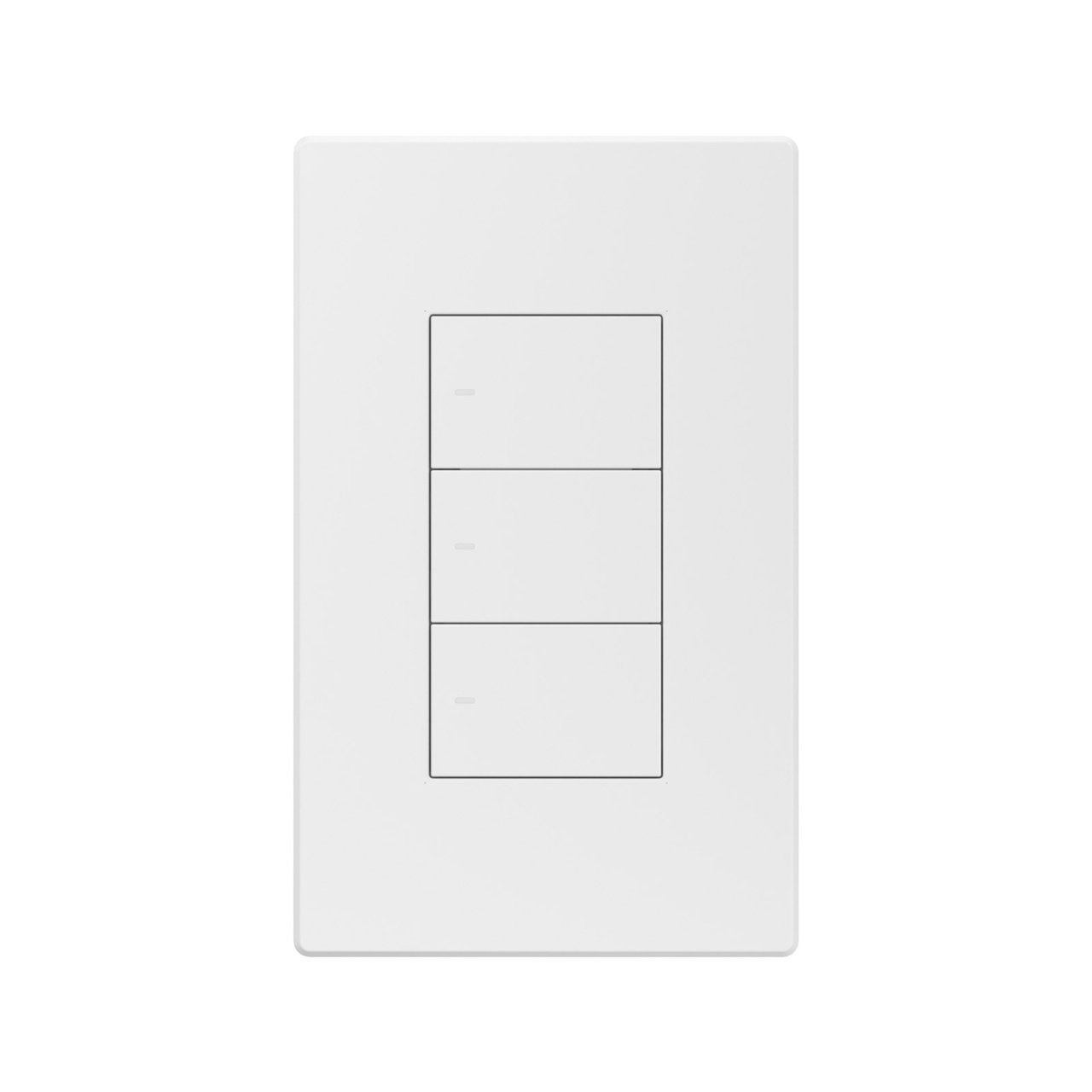

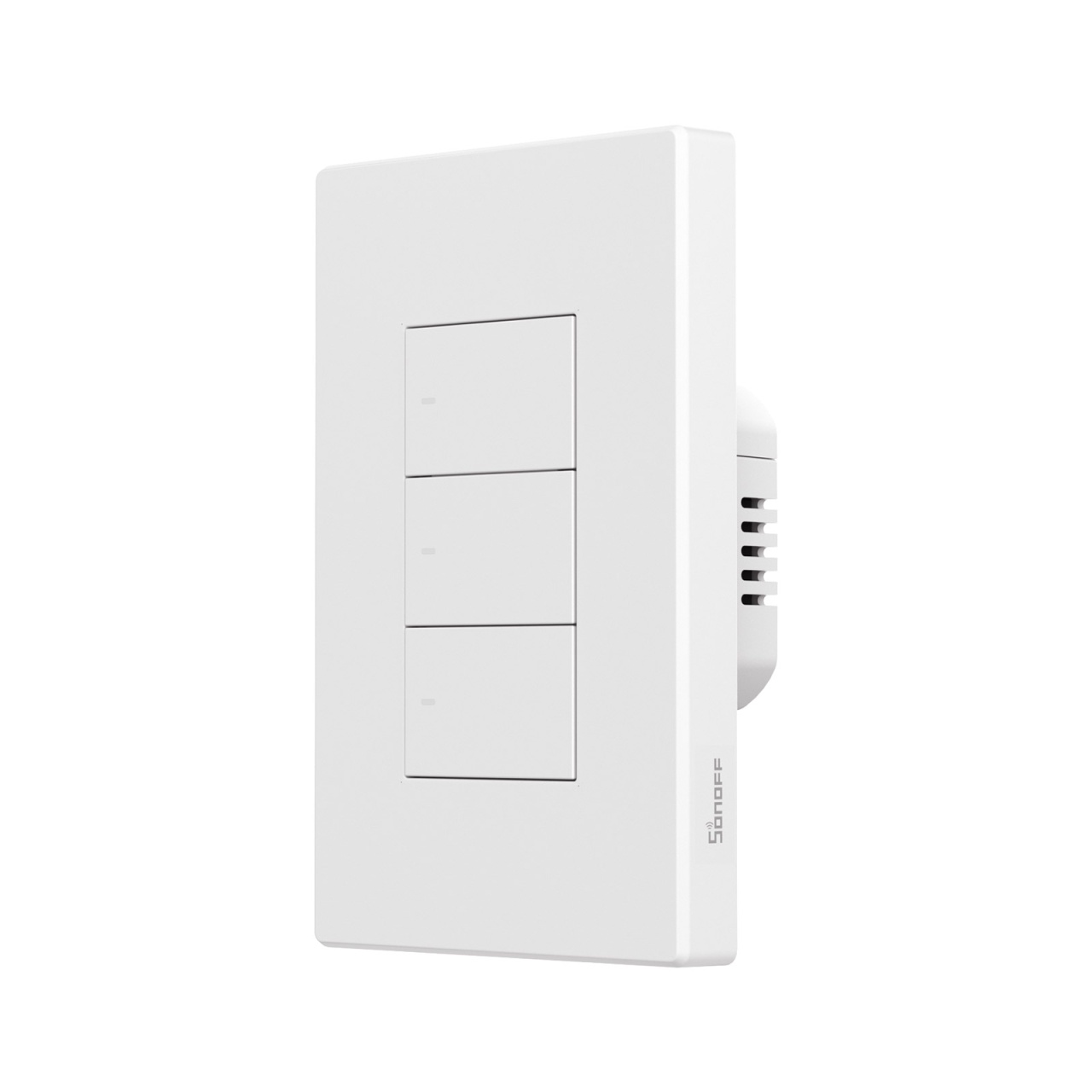

Sonoff SwitchMan M5-3C-120W - 3 Channel Smart Switch with Physical Buttons and Wi-Fi Control

TheSonoff M5-3C-120W is a premium three-channel smart switch designed to provide centralised and efficient control over the lighting in your home. Part of the SwitchMan series, this model stands out with high-precision mechanical buttons that provide natural tactile feedback, making it the ideal solution for those looking to combine the classic physical switch experience with the advanced features of a smart home. The Type 120 format is ideal for vertical mounts or specific rectangular rectangular pods.

Key Selling Points

• Triple Control from a Single Unit: With three independent channels, this switch lets you manage three separate light circuits from a single point. It's the perfect solution for areas with multiple light sources, such as living rooms or large hallways, reducing the number of wall-mounted can spots required.

• High Quality Physical Buttons: M5-3C emphasises ergonomics. The mechanical buttons are robust and easy to operate, providing a reliable alternative to touch panels while ensuring a long device life.

• Smart LED Indicator: Each button is equipped with a discreet LED indicator. From the app, you can adjust their brightness or switch them off completely, so they won't disturb you at night but remain easy to locate when needed.

• Full Smart Integration: Control your lights from anywhere via the eWeLink app or by voice, and is compatible with Amazon Alexa, Google Assistant and Siri Shortcuts. You can check the status of your lights (on/off) in real time, even when you're away from home.

• Local Scripting and Automation: You can schedule on/off times or link the switch to other sensors in the Sonoff ecosystem. What's more, it supports the "eWeLink-Remote" feature, allowing you to create a wireless head-to-head system using the R5 remote or S-MATE module, without additional wires.

Installation and Safety

• Wiring Requirements: In order to ensure the operation of the smart modules and Wi-Fi connection, this model requires mandatory Null Wire in the mounting socket.

• Fire Resistant Construction: The housing is made of flame resistant PC V0 V0 material, minimising the risks in case of any electrical problems and providing increased safety for your family.

Technical Specifications

• Model: M5-3C-120W

• Number of Channels: 3 (Triple Channel)

• Mounting Standard: Type 120 (Rectangular/vertical mounting)

• Power Supply: 100-240V AC, 50/60Hz

• Maximum Current: 6A total (2A per channel)

• Maximum Power: 1320W total (440W per channel)

• Wireless Protocol: Wi-Fi IEEE 802.11 b/g/n 2.4GHz

• Material: PC V0 (Fire Resistant)

• Operating Temperature: -10°C ~ 40°C

Package Contents: Sonoff M5-3C-120W switch, fixing screws, user manual.

Why choose Sonoff M5-3C-120W?

This model is the pinnacle of triple control in the SwitchMan series. It offers a clean, modern aesthetic and superior mechanical reliability. It is the perfect choice for users who want a discreet yet powerful smart home where manual control remains as important as digital.
