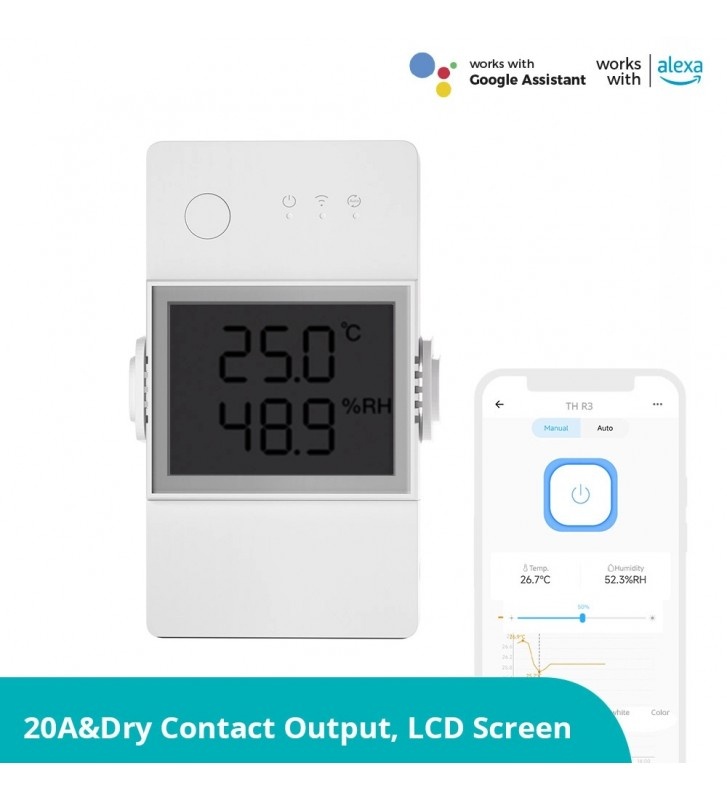

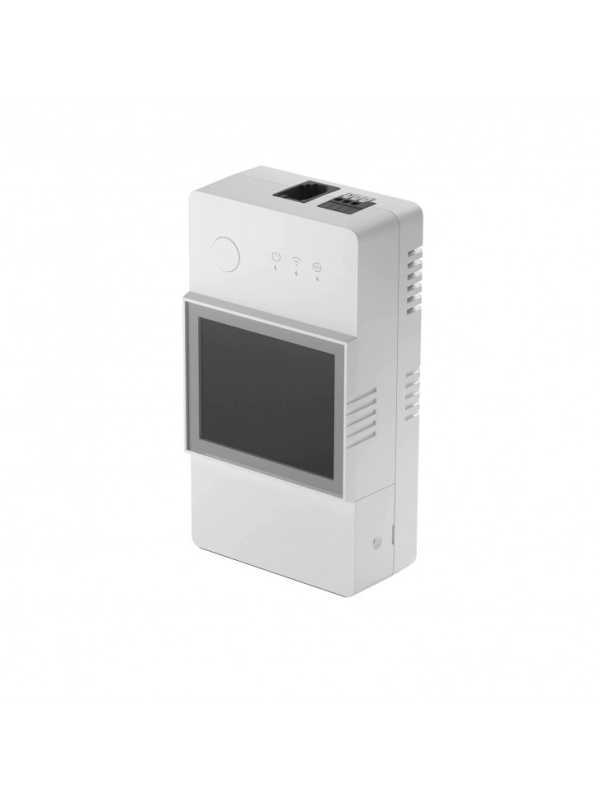

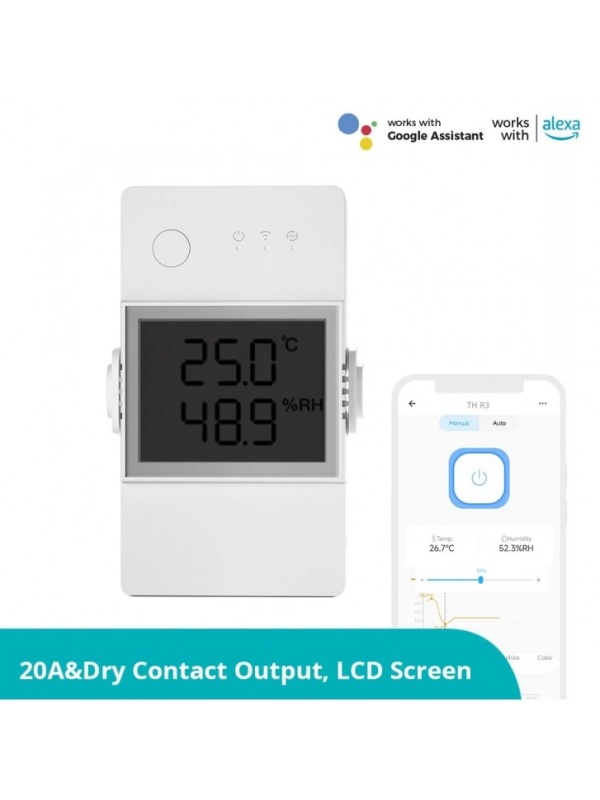

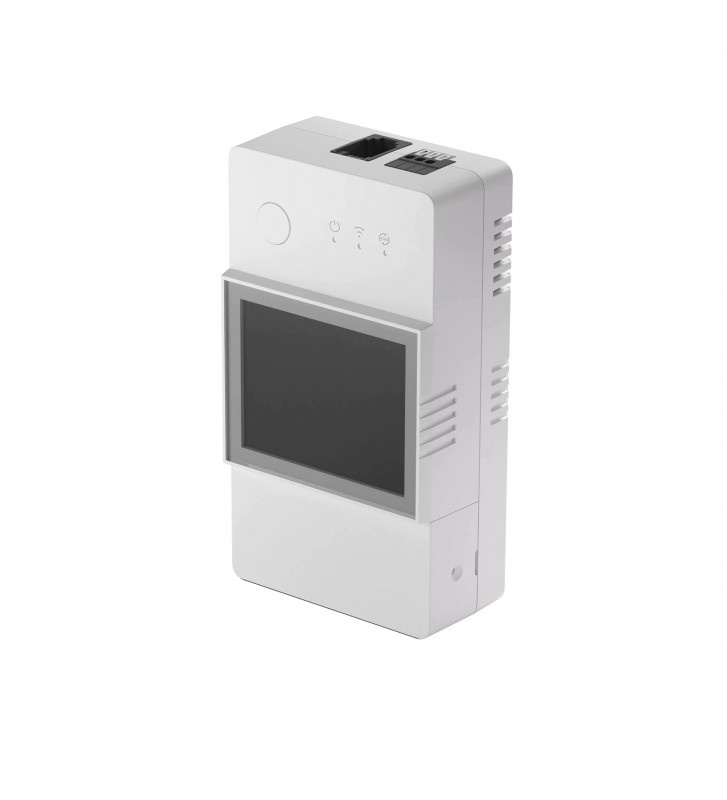

Sonoff THR320D Smart Relay

Sonoff
RONย 116.10 (VAT included)
RONย 95.95 (VAT excluded)
shipping cost is not included
Sonoff
Stock 56
Product code - SKU 6920075777543
EAN 6920075777543
Add to Favorites

Description

Smart WiFi relay Sonoff TH Elite (R3 - THR320D), 230V / 20A, NO/NC dry contact, LCD display

TheSonoff THR320D is a new generation smart relay in the TH Elite range with significantly improved performance over the previous TH10/TH16 series. With an optimised design and modern hardware, it is the ideal choice for the automation of air conditioning, heating, ventilation or irrigation systems, depending on temperature, air humidity or soil.

โœ”๏ธ Superior performance

  • +50% faster processor

  • ROM memory expanded by +300%

  • Overall performance optimised by +200%

  • Improved hardware structure and firmware for fast response and stability

๐Ÿ“Š Real-time monitoring with LCD display

The digital display continuously displays measured temperature and humidity values, updated every 5 seconds. Directly visualise ambient conditions without opening the app.

Full control via eWeLink

Control the relay remotely, set automations, create scenarios and monitor sensor readings from the free eWeLink app, available on Android and iOS.

๐ŸŒก๏ธ Sensor-based automation

Works with sensors (purchased separately) for:

  • Temperature and humidity: THS01, AM2301, SI7021

  • Water resistant temperature: DS18B20

  • Soil Moisture: MS01
    Quick connect via RJ9 4P4C connector.

๐Ÿ’พ 6 months data history

The app saves measured data for up to 6 months. You can analyse and export history in .xlsx format .

๐Ÿ—ฃ๏ธ Voice assistant compatibility

Control your device by voice, using Amazon Alexa or Google Assistant.
Also compatible with IFTTT, Google Nest and other smart services.

๐Ÿ”Œ Dry contact NO/NC

Enables control of equipment with potential-free contact - ideal for boilers, power stations, HVAC systems, pumps, etc.
Output: 5-30V, max 1A

๐Ÿ”’ Safety and quality

  • High temperature resistant housing (PC V0 material)

  • Surge and lightning protection

  • RoHS certified

  • Robust construction for use in residential or industrial environments

๐Ÿ“ฆ Package Contents:

  • Sonoff THR320D Smart Relay

  • User manual

โš ๏ธ Temperature/humidity sensors purchased separately.

๐Ÿ“ Technical Specifications:

Feature Specification
Model THR320D (TH Elite R3)
Power 100-240V AC, 50/60Hz
Maximum load 20A
Wi-Fi 2.4 GHz, IEEE 802.11 b/g/n
Compatibility eWeLink, Alexa, Google Assistant
Compatible sensors THS01, DS18B20, MS01 (RJ9 4P4C)
Dry contact function 5-30V, max. 1A
Operating temperature -10°C ~ +40°C
Operating Humidity 5% - 95% RH, non-condensing
Dimensions 98 × 54 × 31 mm
Housing material PC V0 flame retardant
Data storage 6 months, export .xlsx

Choose Sonoff THR320D for complete, safe and smart control of the appliances in your home or tech space! ๐ŸŒก๏ธ๐Ÿ’ก
