Switch TP-Link Omada ES210GP, 10 Gigabit ports, Easy Managed, PoE+
Description

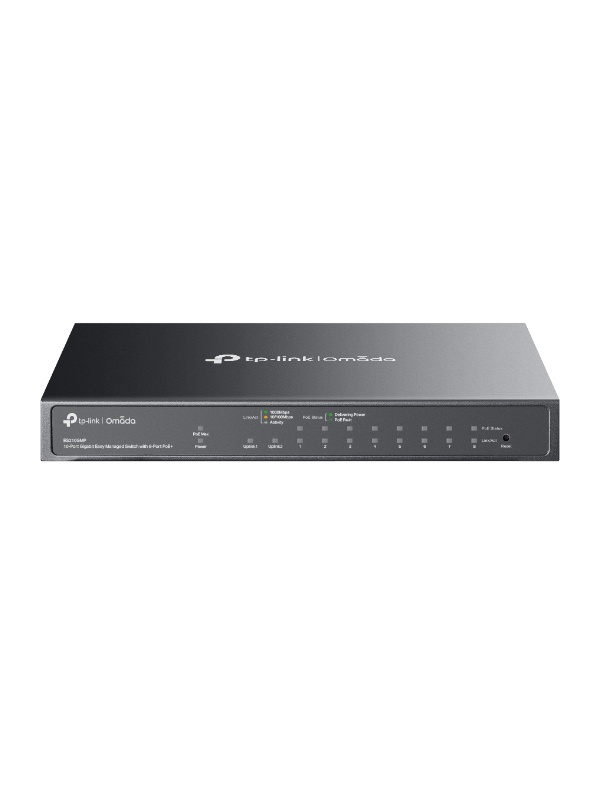

TP-Link ES210GP - Omada Easy Managed Switch, 10 Gigabit PoE+ Ports
TP-Link ES210GP is an Omada Easy Managed switch with 10 Gigabit ports, 8 of which support PoE+ (802.3af/at), plus an RJ45/SFP combo port for flexible uplink. With a total PoE power budget of 63W (up to 30W per port), it is suitable for small networks that combine PoE equipment such as surveillance cameras or access points with standard workstations.
The fanless design and rugged metal housing ensure silent operation and long-term durability. In Extend mode, ES210GP can deliver PoE power and data over distances of up to 250 metres, exceeding the standard limit of 100 metres, which is useful for surveillance installations with remotely located cameras.
Key features:
- 10 Gigabit ports, 8 with PoE+ (802.3af/at)
- Total PoE power budget of 63W, up to 30W per port
- RJ45/SFP combo port for flexible uplink
- Extend mode for PoE transmission over up to 250 metres
- Fanless design, metal housing
- Centralised management via the Omada platform, cloud or mobile app
As a mid-size model in the Easy Managed range, ES210GP covers the needs of a small office network or a surveillance system with up to 8 PoE cameras, while keeping the flexibility of a fibre uplink port.
Practical use cases:
- Powering and connecting a system of up to 8 IP surveillance cameras
- Connecting several Wi-Fi access points and a few workstations in a small office
- Setting up a fibre optic uplink to the main switch, using the SFP combo port
Technical specifications:
| Hardware | |
| Interface | 8x Gigabit RJ45 PoE+ (802.3af/at) + 1x Gigabit RJ45 + 1x Gigabit SFP/RJ45 combo, Auto-Negotiation/Auto MDI/MDIX |
| Fan | Fanless |
| Installation | Desktop or wall mounting |
| Physical security slot | Yes |
| Power supply | AC/DC adapter (input 100-240V AC, output 53.5V DC/1.31A) |
| Total PoE budget | 63 W, maximum 30 W per port, Fast PoE, Perpetual PoE, PoE Auto Recovery |
| PoE distance (Extend mode) | up to 250 m (port speed reduced to 10 Mbps) |
| Dimensions | 209 x 126 x 26 mm |
| Surge protection | ±6kV |
| Performance | |
| Packet buffer memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Switching capacity | 20 Gbps |
| Packet forwarding rate | 14.88 Mpps |
| MAC address table | 8K |
| Software and L2 features | |
| QoS | Port-based / 802.1p / DSCP, 8 priority queues (WRR), bandwidth control, Storm Control |
| Link Aggregation | Static, up to 4 groups, maximum 6 ports/group |
| Other L2 features | Port Isolation, Loopback Detection, Flow Control 802.3x, Port Mirroring, LLDP, IEEE 802.3az EEE |
| IGMP Snooping | v1/v2/v3, Fast Leave, Report Suppression |
| VLAN | 802.1Q Tag VLAN, up to 32 groups, 4K VID |
| Transfer method | Store-and-Forward |
| Management | |
| Management platform | Omada (Cloud-Based Controller, Hardware Controller or Software Controller) |
| Cloud access and mobile app | Yes, via Omada App |
| Zero-Touch Provisioning | Yes (requires Omada Cloud-Based Controller) |
| Other management features | HTTPS/HTTP, DHCP Client, Cable Diagnostics, ONVIF, automatic device discovery, batch configuration and firmware upgrade |
| Other | |
| Certifications | FCC, CE, RoHS |
| Package contents | ES210GP switch, power adapter, power cord, mounting feet, installation guide |
| Operating temperature | -5°C ~ 40°C |
| Operating humidity | 10% ~ 90%, non-condensing |
TP-Link ES210GP offers a good balance between the number of PoE ports, the power budget and uplink flexibility, for small and medium-sized networks.
