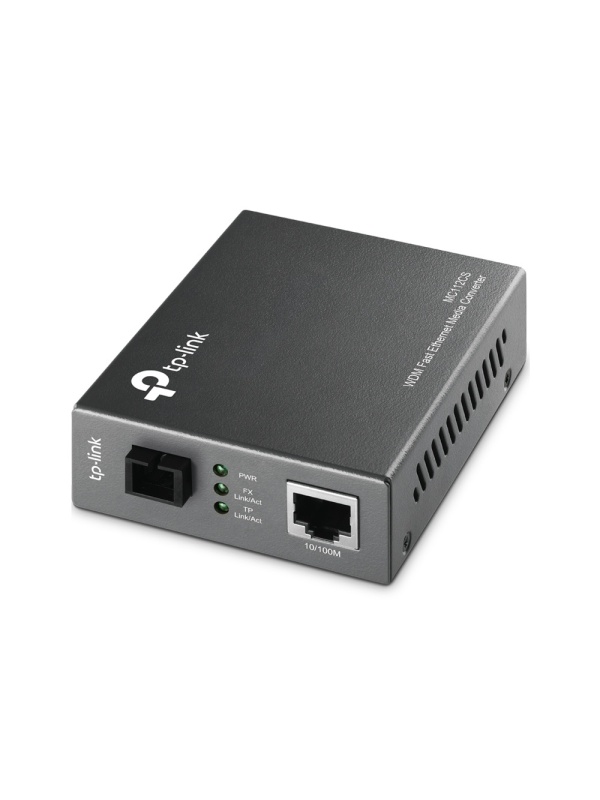

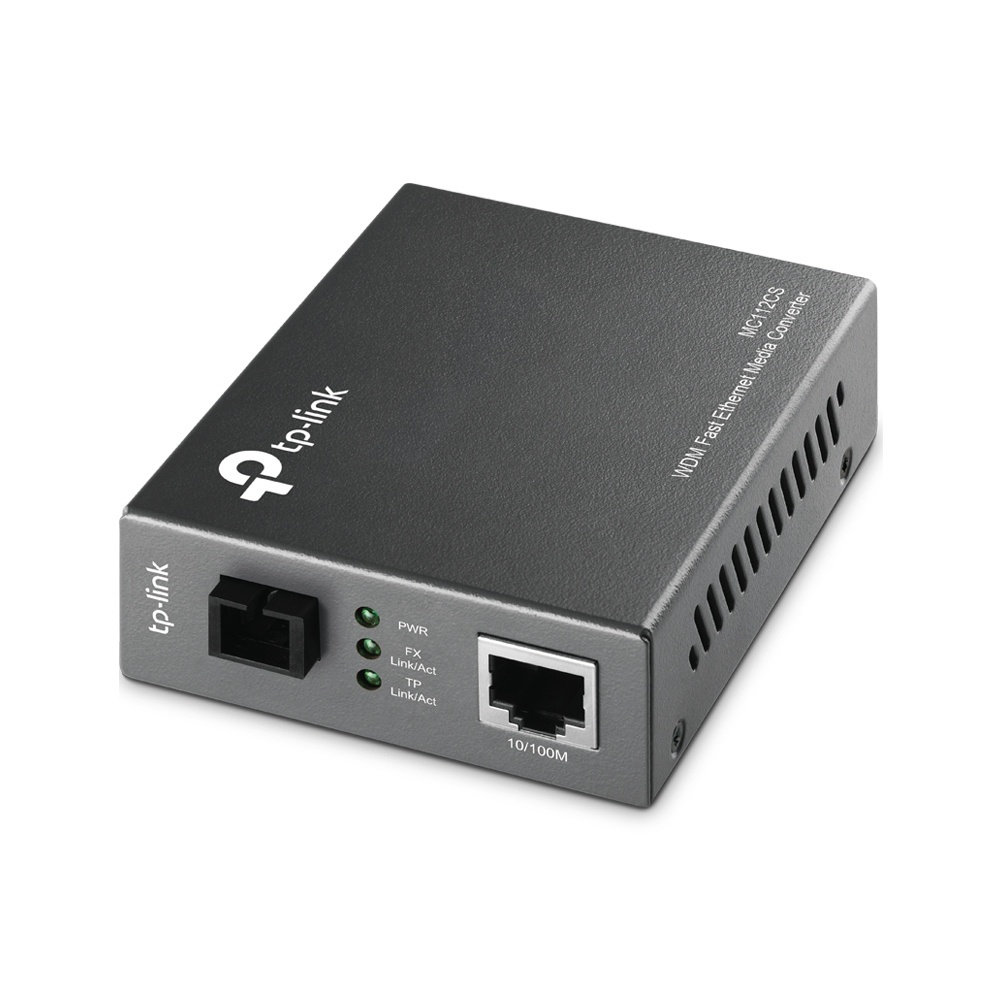

TP-Link MC112CS Media Converter

Media Converter Fast Ethernet WDM - TP-Link MC112CS
📡 Extend your network over a single single-mode fibre up to 20 km

The TP-Link MC112CS is a Fast Ethernet (10/100 Mbps) media converter that uses Wave Division Multiplexing (WDM ) technology to transmit and receive signals over a single single single-mode (SC) fibre. It is the cost-effective solution for point-to-point connections that is cost-effective and easy to deploy between buildings or in extended network infrastructures.

🔌 C ompatible interfaces

• 1× RJ45 10/100 Mbps port (Auto MDI/MDIX)

• 1× 100 Mbps single-mode SC port

🌐 WDM standard - 1 fibre
Transmit at 1310 nm, receive at 1550 nm, saving cabling and costs(tp-link.com, walmart.com).

📏 Extended distance - up to 20 km
Perfect for connections between remote locations, campuses or separate buildings.

🔁 Auto-negotiation and full duplex
Supports 10/100 Mbps Half & Full Duplex with IEEE 802.3x flow control(tp-link.com).

⚠️ Link Fault Pass-Through (LFP)
Automatically detects and passes link faults, maintaining connection stability(static.tp-link.com).

🔧 Plug & Play installation
Standalone converter or can be integrated into the MC1400 chassis without additional configuration(tp-link.com).

LED status indicators
Monitor power, link and activity on both copper and fibre ports(tp-link.com).

🔌 External power supply
Includes power adapter, low power consumption (~1.2-2.4 W) .

✅ Type: WDM Fast Ethernet media converter
✅ Ports: 1× 10/100 Mbps RJ45, 1× 100 Mbps SC fibre
✅ Voltage/fibre: TX 1310 nm, RX 1550 nm
✅ Max. distance: up to 20 km
✅ Management: Plug & Play, LFP, LED monitoring
✅ Mounting: standalone or in TP-Link TL-MC1400 chassis

💼 TP-Link MC112CS - the economical and practical solution for single-mode fibre Fast Ethernet network extension over distances up to 20 km with simple installation and reliable performance.
