TP-Link MC212CS-20 – Gigabit Single-Mode Media Converter, 1000 Mbps RJ45 port, Single-Mode SC port, 20 km

The TP-Link MC212CS-20 is a robust Gigabit media converter, specifically designed to convert signals from copper cable (1000Base-T) to optical signals (1000Base-LX/LH) and vice versa. Equipped with a single-mode SC fibre port, this device allows the network to be extended over impressive distances of up to 20 kilometres. It is the ideal professional solution for interconnecting remote workstations, perimeter surveillance systems or network nodes across a large campus.

Key Benefits (Selling Points)

• Full-Duplex Gigabit Conversion: Offers a transfer rate of 1000 Mbps, ensuring a high-speed connection with no packet loss, which is essential for heavy data traffic or video streaming.

• Long-Distance Transmission (20 km): Thanks to Single-Mode technology (1310 nm wavelength), the device can transmit the network signal well beyond the limits of standard cabling, achieving a coverage range of 20 km.

• Auto MDI/MDI-X Technology: The RJ45 port automatically detects the type of cable used (straight-through or crossover), eliminating the need for special cables and simplifying the installation process.

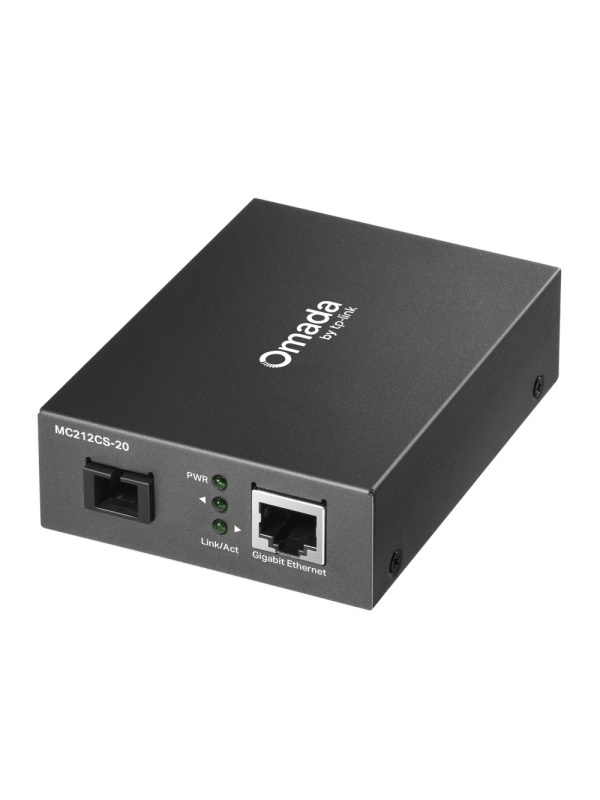

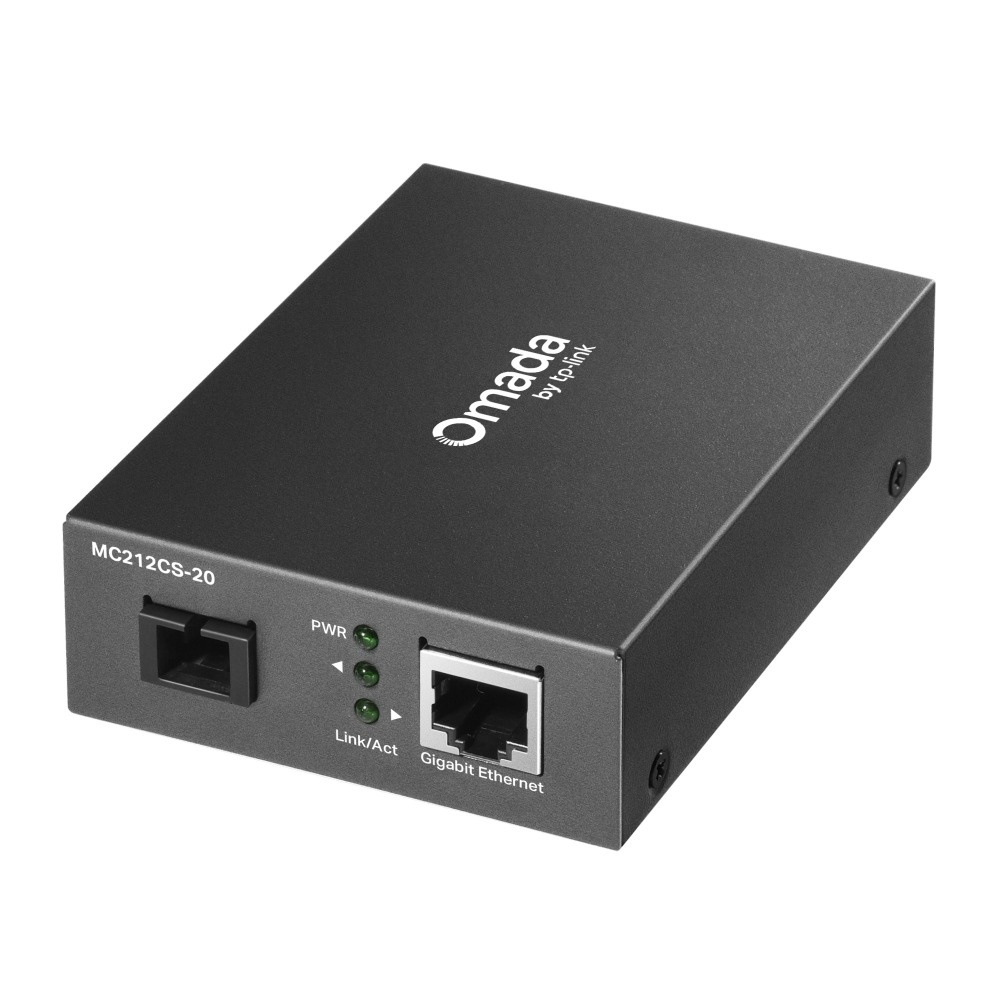

• LED Indicators for Quick Diagnostics: The front panel features LEDs to monitor power and activity on both ports (TP and Fibre), allowing for a quick check of the connection status.

• Durable Metal Housing: The steel design ensures excellent heat dissipation and protects the internal components, guaranteeing stable 24/7 operation in professional environments.

• Plug-and-Play Installation: The device works as soon as it is powered up and connected to the network, without requiring any additional software configuration or drivers.

Examples of Use

1. Head Office–Warehouse Interconnection: Ideal for extending the local network from the head office to a branch or warehouse located a few kilometres away, using fibre-optic cabling to avoid interference.

2. Urban Security Systems: Enables the connection of high-resolution IP cameras located at great distances from the monitoring centre, ensuring a constant and clear video feed.

3. University or Industrial Campuses: Facilitates rapid communication between geographically dispersed buildings, providing a stable infrastructure that is immune to electromagnetic interference.

Technical Specifications

• Model: MC212CS-20

• Standards and Protocols: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

• Port Interface:

  • 1 × Gigabit RJ45 port (1000 Mbps)

  • 1 × SC-type fibre optic port (1000 Mbps)

• Fibre Type: Single-mode (9/125 µm)

• Wavelength: 1310 nm

• Maximum Distance: 20 km

• Control Functions: Full-Duplex Flow Control (IEEE 802.3x)

• Power Supply: External power adaptor included (9V/0.6A or 5V/0.6A depending on version)

• Housing: Metal, Desktop

Package Contents: 1 x MC212CS-20 Media Converter, external power adaptor, installation guide.

Why choose the TP-Link MC212CS-20?

When your network project requires distances that exceed the usual physical limitations, the MC212CS-20 is the key component you need. It provides a secure link capable of delivering Gigabit speeds over 20 kilometres, all in a compact and highly reliable package. It is the strategic choice for a modern infrastructure capable of communicating efficiently over long distances.
