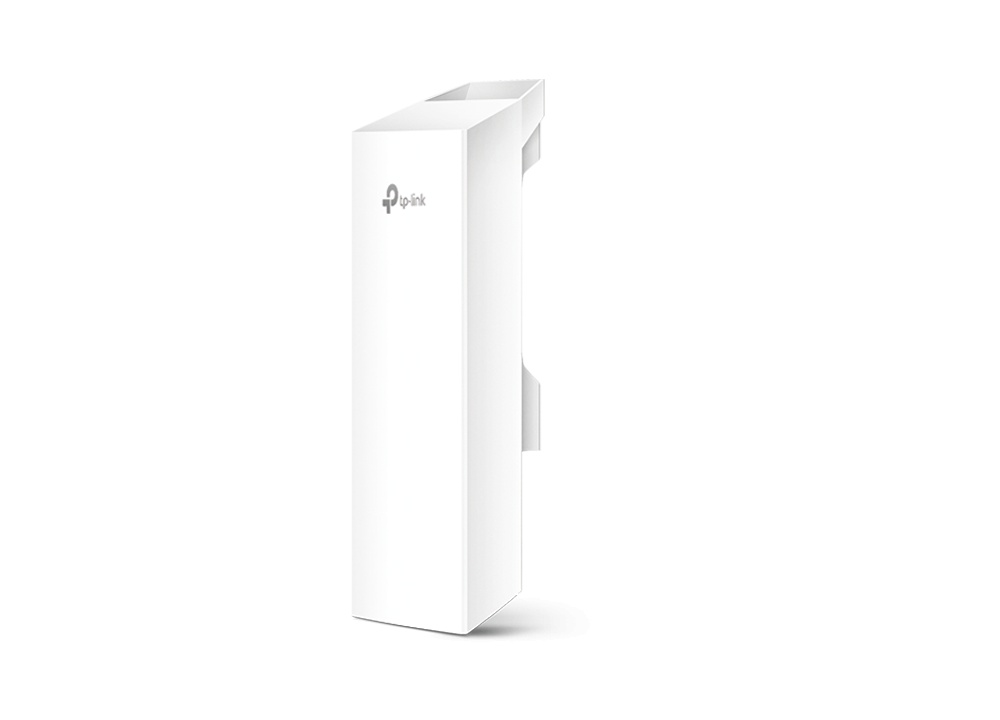

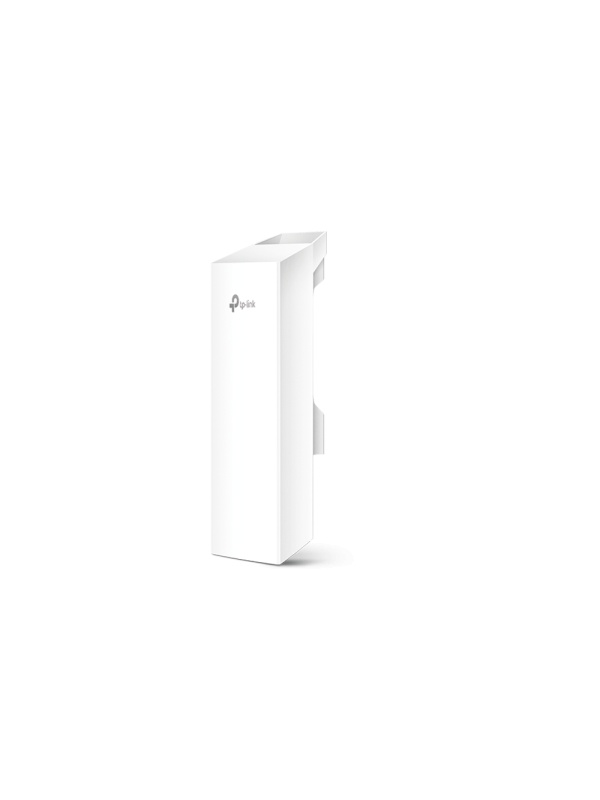

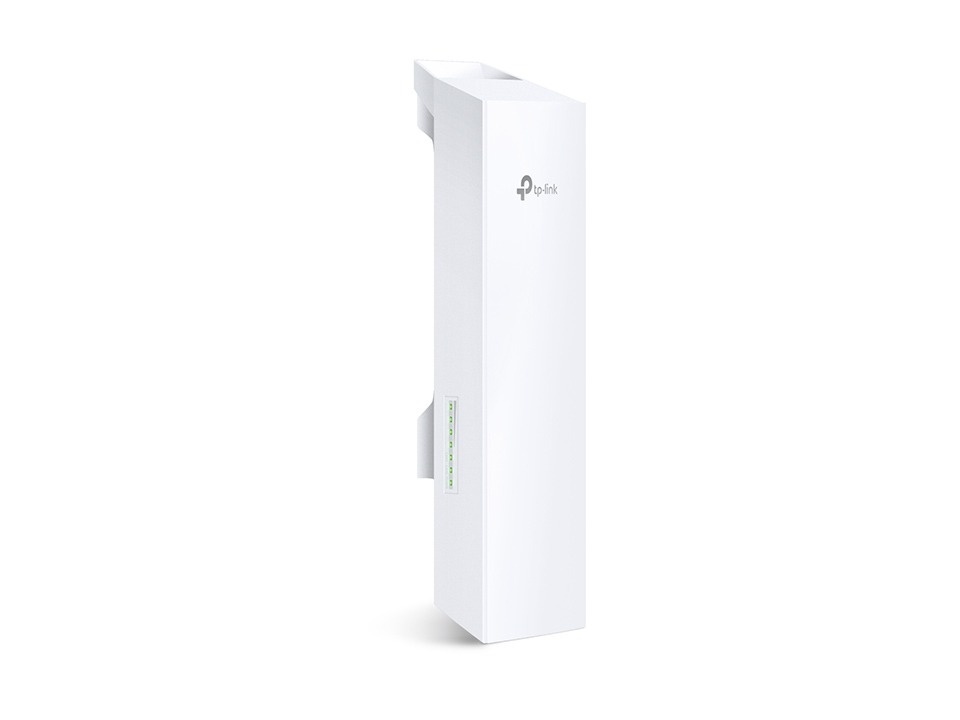

TP-Link Omada CPE220 – 2.4GHz 300Mbps Outdoor Access Point, 12dBi High-Gain Antenna, Transmission Range 13km+

The TP-Link Omada CPE220 is a professional outdoor solution, designed to provide stable, high-speed wireless connections over considerable distances. Operating in the 2.4GHz band, this device is equipped with a high-power internal antenna, making it ideal for point-to-point or point-to-multipoint scenarios. Thanks to its robust design and state-of-the-art technologies, the CPE220 ensures extensive coverage, making it the perfect solution for industrial estates, farms or remote video surveillance networks.

Key Benefits (Selling Points)

• High-Gain Directional Antenna (12 dBi): It features an internal dual-polarisation antenna (2x2 MIMO), specially designed to focus the signal and reduce interference, offering a much more stable connection than standard access points.

• Long-Range Transmission (13 km+): Thanks to its high-power amplifiers and high reception sensitivity, the device can establish robust wireless links over distances of more than 13 kilometres in open terrain.

• TP-Link Pharos MAXtream Technology: Uses the TDMA (Time Division Multiple Access) protocol to improve throughput and reduce latency, preventing data collisions even when the network becomes congested.

• Centralised Management System (Pharos Control): Allows IT administrators to manage and monitor all devices on the network from a single, intuitive interface, facilitating bulk configuration and maintenance.

• Weather-Resistant Design: The outdoor-certified housing is designed to withstand extreme weather conditions (from -40°C to 70°C). It includes 15 kV ESD protection and 6 kV lightning protection.

• Passive PoE Power Supply: Enables flexible installation on poles or tall buildings by transmitting power and data via the same Ethernet cable (up to 60 metres from the power source).

Examples of Use

1. Connections between Buildings: Wireless interconnection of two remote warehouses or company premises, eliminating the need for costly underground cabling.

2. Wireless Surveillance Systems: Transmitting video signals from outdoor IP cameras to the monitoring centre across large areas (construction sites, logistics parks).

3. Wi-Fi Coverage in Open Spaces: Providing internet access in ports, parks or university campuses where better signal penetration is required (specific to the 2.4GHz band).

Technical Specifications

• Model: CPE220 (Pharos Range / Omada Ecosystem)

• Frequency: 2.4 ~ 2.483 GHz

• Wireless Speed: Up to 300 Mbps

• Antenna: 12 dBi Directional, Dual Polarisation (Beamwidth: 60°/30°)

• Interface: 1 × 10/100 Mbps Ethernet port (PoE IN), 1 × Earth terminal

• Operating Modes: AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP)

• Protection: IPX5 (Water-resistant), 15 kV ESD, 6 kV Lightning Protection

• Power Supply: Passive PoE via included adapter (24 VDC, 0.6 A)

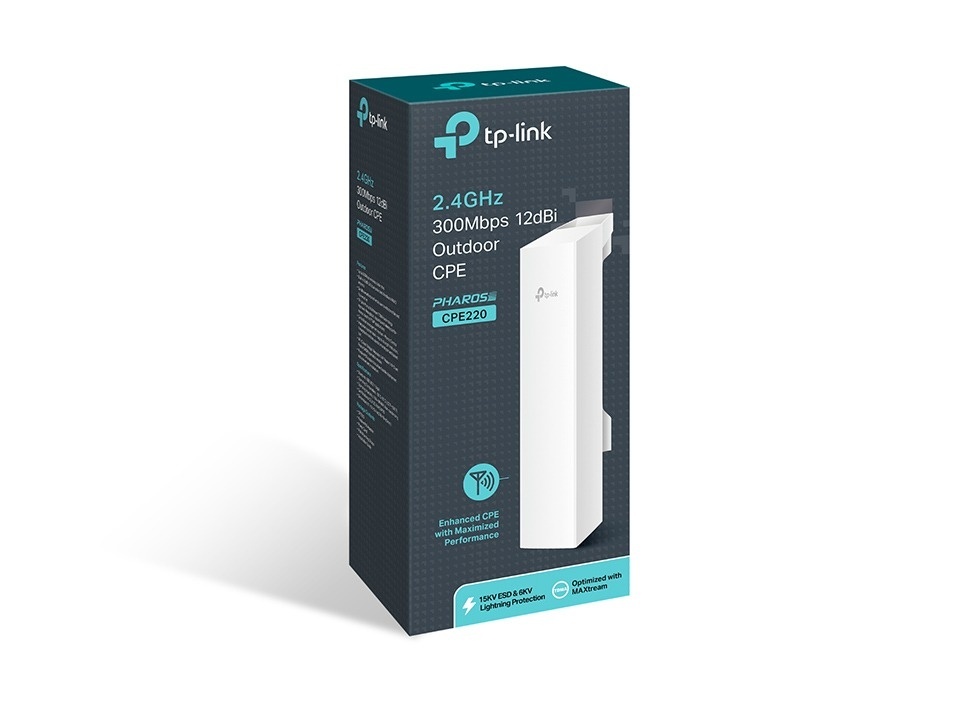

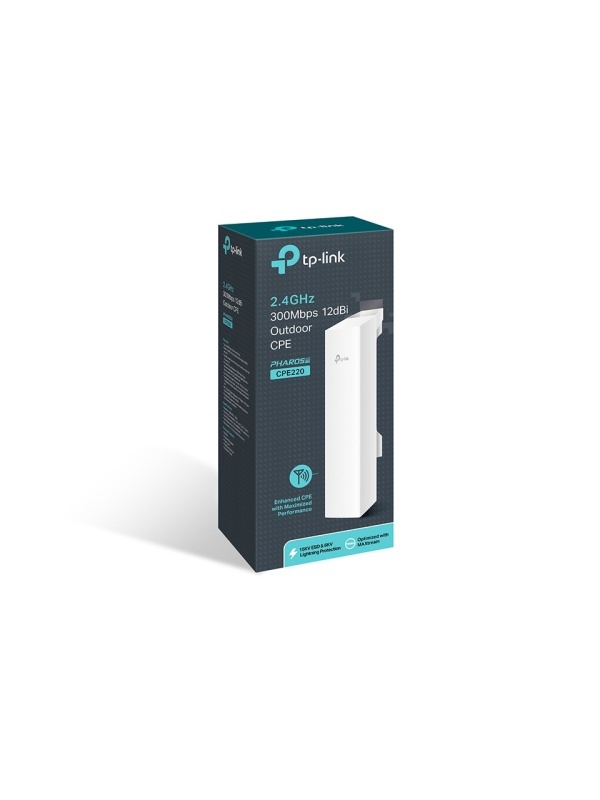

Package Contents: 1 × CPE220, Passive PoE Adapter, Power Cable, Pole Mounting Kit, Quick Installation Guide.

Why choose the TP-Link Omada CPE220?

The CPE220 combines the power of a 12dBi antenna with the reliability of the Pharos platform to deliver an unbeatable outdoor solution in the 2.4GHz band. It is a robust device, designed to operate 24/7 in harsh conditions, offering a coverage range far superior to entry-level models. If you need a wireless link spanning several kilometres, the CPE220 is a sound investment for your business.
