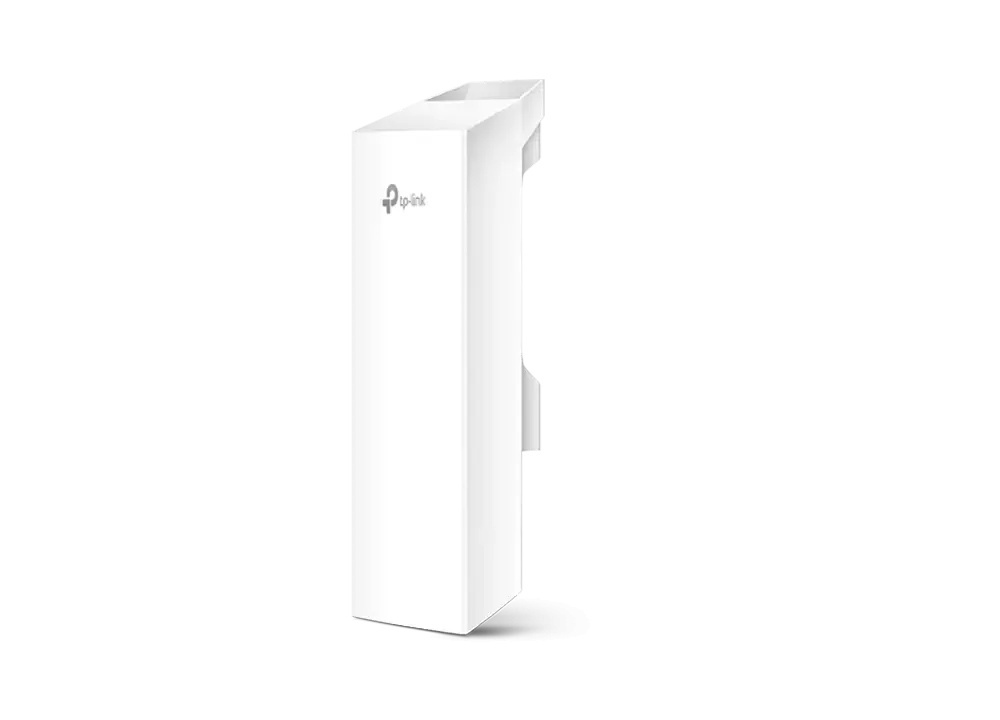

TP-Link Omada CPE510 – 5GHz 300Mbps Outdoor Access Point, 13dBi Directional Antenna, 15km+ Transmission Range

The TP-Link Omada CPE510 is a professional outdoor solution, specifically designed for long-range wireless networking applications. Operating in the uncluttered 5GHz band, this device eliminates interference caused by 2.4GHz home Wi-Fi networks, providing a stable connection for data transfer at speeds of up to 300Mbps. Equipped with an internal dual-polarisation antenna and a weatherproof design, the CPE510 is the ideal choice for point-to-point or point-to-multipoint connections.

Key Benefits (Selling Points)

• High-Gain Directional Antenna (13 dBi): Features an internal dual-polarisation antenna with a metal reflector, ensuring high gain and reduced background noise for clear connections over long distances.

• Long-Range Transmission (15 km+): Thanks to its adjustable transmission power (up to 23 dBm) and high sensitivity, the device can establish stable wireless links over distances exceeding 15 kilometres (in a straight line, without obstacles).

• TP-Link Pharos MAXtream Technology: Uses TDMA (Time Division Multiple Access) technology to prevent data collisions between network nodes, improving throughput and reducing latency in large-scale applications.

• Centralised Management System (Pharos Control): Enables administrators to manage hundreds of devices from a single location, facilitating efficient configuration, status monitoring and firmware updates.

• Weather-Resistant Design: The outdoor-certified housing is designed to withstand extreme temperatures (-40°C to 70°C) and includes protection against electrostatic discharge (15 kV ESD) and lightning strikes (6 kV).

• Passive PoE Power Supply: Simplifies installation in hard-to-reach locations (poles, roofs), enabling the transmission of data and electrical power via the same Ethernet cable over distances of up to 60 metres.

Examples of Use

1. Point-to-Point Connections: Wireless interconnection of two buildings (head office and warehouse) located kilometres apart, eliminating the high costs of underground cabling.

2. Remote Video Surveillance: Transmitting video streams from IP cameras located in remote areas to a central monitoring centre.

3. Internet Distribution (WISP): Providing internet access in rural areas or industrial estates via point-to-multipoint networks.

Technical Specifications

• Model: CPE510 (Pharos / Omada Ecosystem range)

• Frequency: 5.15 ~ 5.85 GHz

• Wireless Speed: Up to 300 Mbps (2x2 MIMO)

• Antenna: 13 dBi Directional, Dual Polarisation (Beamwidth: 45°/30°)

• Interface: 1 × 10/100 Mbps Ethernet port (PoE IN), 1 × Earth terminal

• Operating Modes: AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP)

• Protection: IPX5 (water-resistant), 15 kV ESD, 6 kV lightning protection

• Power Supply: Passive PoE via included adapter (24 VDC, 0.6 A)

Package Contents: 1 × CPE510, Passive PoE Adapter, Power Cable, Pole Mounting Kit, Quick Installation Guide.

Why choose the TP-Link Omada CPE510?

The CPE510 turns the challenges of distance into simple and affordable connectivity solutions. It is a robust device that combines enterprise-grade hardware with intuitive management software, offering remarkable stability even in congested wireless environments. If you need a secure wireless bridge that’s resistant to rain and sun and capable of transmitting data over kilometres, the CPE510 is your trusted partner.
