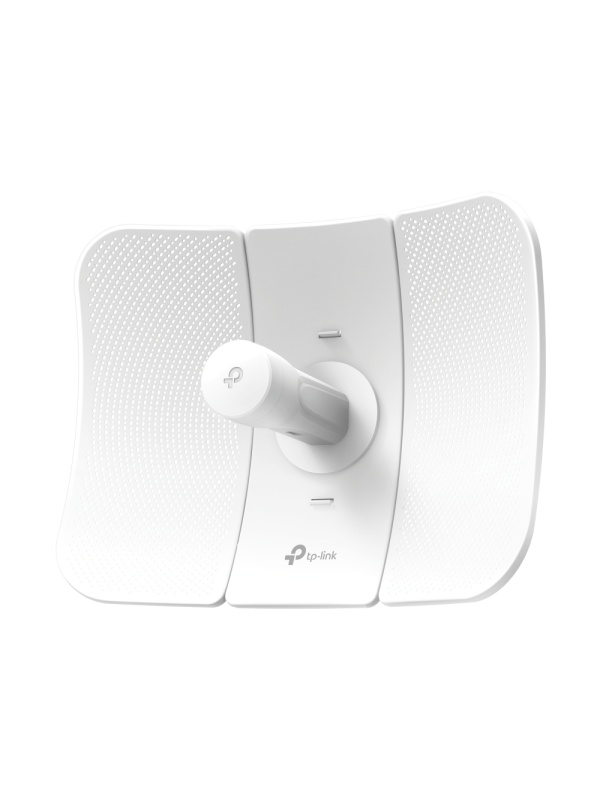

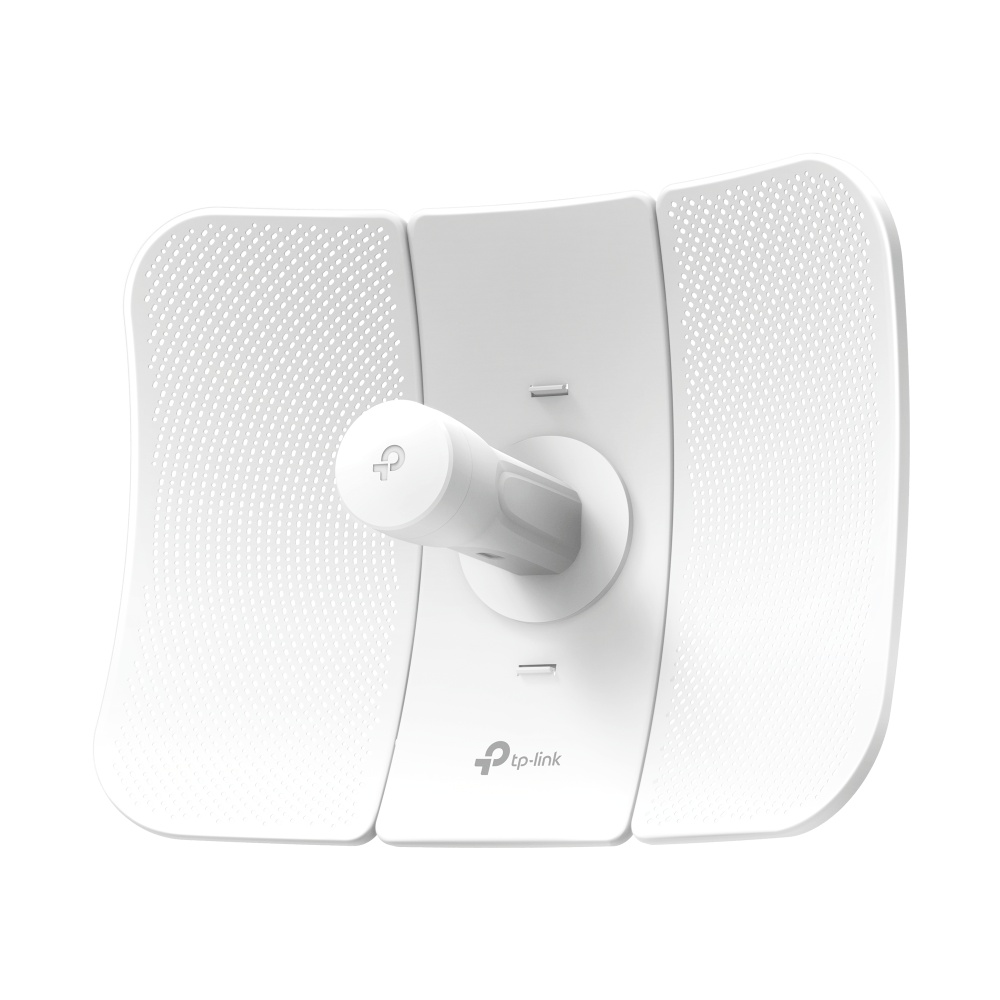

TP-Link Omada CPE605 – 5GHz 150Mbps Outdoor Access Point, 23dBi High-Gain Antenna, 20km+ Transmission Range

The TP-Link Omada CPE605 is a professional and affordable outdoor solution, designed to establish stable wireless connections over long distances. Equipped with a directional ‘dish’ antenna with a high gain of 23dBi, this device is ideal for Point-to-Point (PTP) projects, offering excellent signal focus in the 5GHz band. Its robust, wind-resistant design makes it the perfect choice for expanding networks in rural areas, industrial estates or for remote video surveillance systems.

Key Benefits (Selling Points)

• High-Gain Directional Antenna (23 dBi): Thanks to its professional design, the antenna concentrates the signal into a narrow beam, enabling stable data transmissions over distances of up to 20 kilometres under line-of-sight conditions.

• Structural Wind Stability: The ‘grid’ reflector allows air to pass through, offering minimal wind resistance. This feature ensures precise alignment and signal quality are maintained even during storms.

• TP-Link Pharos MAXtream Technology: Uses the TDMA protocol to eliminate data collisions and optimise bandwidth utilisation, delivering low latency and superior performance compared to standard outdoor routers.

• Centralised Management (Pharos Control): Allows IT administrators to manage the entire network of Pharos devices from a single location, facilitating remote configuration, monitoring and maintenance.

• Rugged Construction (IP65): The housing is designed to withstand the elements, including protection against electrostatic discharge (15 kV ESD) and lightning strikes (6 kV), ensuring a long service life outdoors.

• Quick Mounting and Easy Alignment: The pole-mounting system allows for intuitive installation and easy angle adjustment to achieve the best signal between the two connection points.

Examples of Use

1. Remote Internet Extension: Connecting a remote location (farm, warehouse, security post) to the main headquarters network, eliminating the need for kilometres of cabling.

2. Wireless Video Surveillance: Transmitting the signal from outdoor IP cameras to a remote recording centre without any loss of data packets.

3. Cost-Effective Point-to-Point Connections: Ideal for budget-conscious projects that still require the power of a dish-type antenna to penetrate areas with low radio noise.

Technical Specifications

• Model: CPE605 (Pharos / Omada Ecosystem range)

• Frequency: 5.15 ~ 5.85 GHz

• Wireless Speed: Up to 150 Mbps

• Antenna: 23 dBi Directional (Grid Type)

• Interface: 1 × 10/100 Mbps Ethernet port (PoE IN)

• Protection: IP65 (water and dust resistant), 15 kV ESD, 6 kV lightning protection

• Wind resistance: Up to 216 km/h

• Power supply: Passive PoE (24 VDC, 0.5 A) via included adapter

Package contents: 1 × Reflector (Dish), 1 × Antenna feed, Pole mounting bracket, Passive PoE adapter, Quick installation guide.

Why choose the TP-Link Omada CPE605?

The CPE605 offers the power of a professional 23dBi antenna at an extremely competitive price. It is the more affordable ‘sibling’ of the CPE610 model, retaining the same wind resistance and range capability, whilst being optimised for speeds of 150Mbps. If your project requires a stable wireless link spanning several kilometres and hardware that won’t let the weather get the better of it, the CPE605 is the ideal solution.
