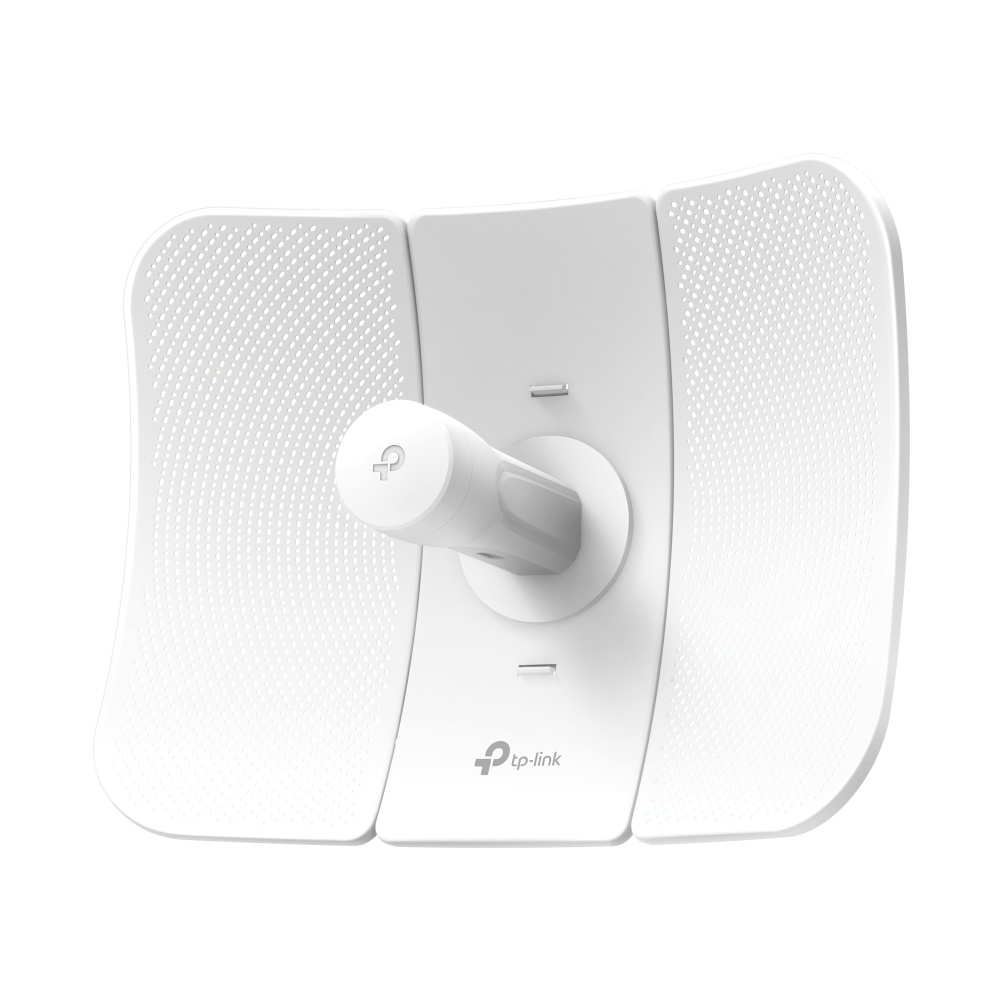

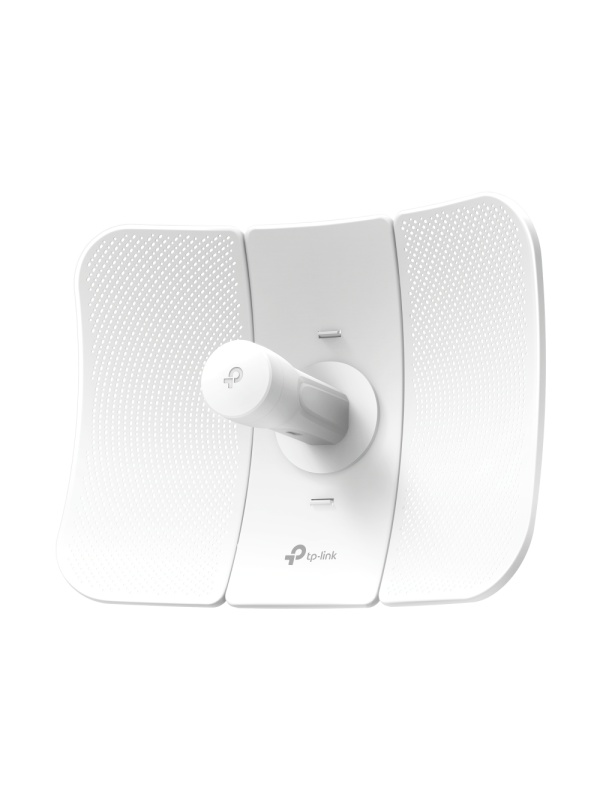

TP-Link Omada CPE610 – 5GHz 300Mbps Outdoor Access Point, 23dBi High-Gain Antenna, Transmission Range 30km+

The TP-Link Omada CPE610 is a high-performance professional outdoor solution, designed to establish wireless connections over record distances. Equipped with a directional ‘dish’ antenna with a gain of 23dBi, this device is capable of transmitting data at speeds of 300Mbps in the 5GHz band, making it ideal for critical infrastructure, point-to-point (PTP) networks or video surveillance over vast areas. Its aerodynamic design and advanced technology make it extremely stable even in strong winds or environments with high levels of interference.

Key Benefits (Selling Points)

• Professional Directional Antenna (23 dBi): 2x2 MIMO technology and high gain allow for extremely precise signal focusing, ensuring a stable connection over distances exceeding 30 kilometres.

• Superior Structural Stability: The ‘grid’ reflector design allows air to pass through, offering minimal wind resistance and preventing vibrations that can affect alignment and signal quality over long distances.

• TP-Link Pharos MAXtream Technology: Uses the TDMA protocol to eliminate the ‘hidden node’ problem and optimise throughput, delivering low latency and superior efficiency compared to the classic Wi-Fi standard.

• Centralised Management System (Pharos Control): Enables full control of the network from a single interface, facilitating remote configuration of the entire fleet of devices installed in the field.

• Industrial-Grade Protection (IP65): The housing is water- and dust-resistant, includes 15 kV electrostatic discharge protection and 6 kV lightning protection, and is designed to withstand the harshest weather conditions.

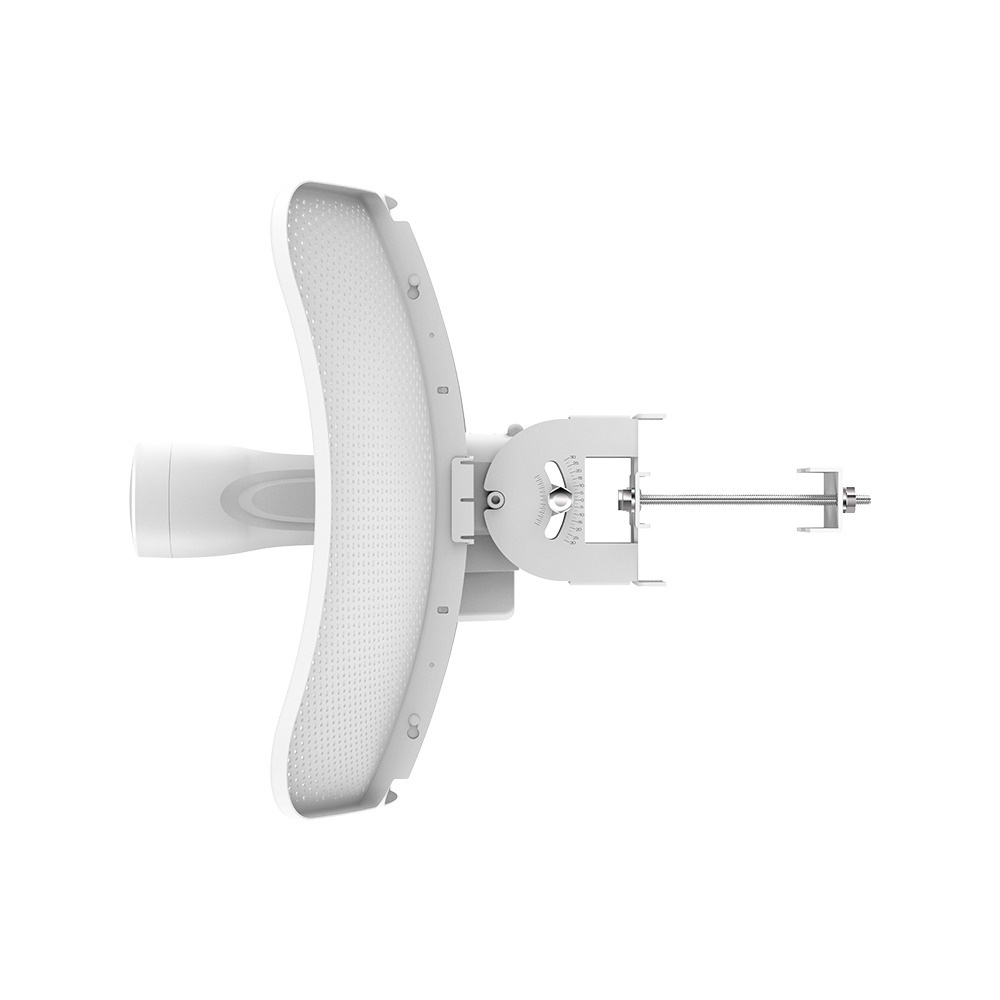

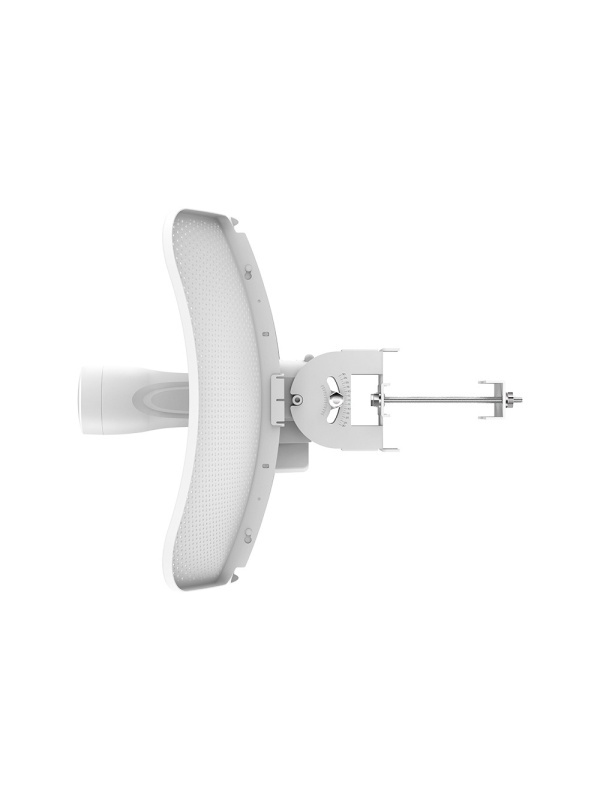

• Easy and Flexible Mounting: The mounting system allows for precise alignment along three axes, ensuring rapid installation on poles, which is essential for achieving maximum performance in bridge-type connections.

Examples of Use

1. Long-Distance Wireless Backhaul: Creating a wireless backbone between two company headquarters or industrial sites tens of kilometres apart.

2. Video Surveillance in Remote Areas: Transmitting signals from high-resolution cameras in agricultural areas, solar farms or construction sites to a control centre.

3. Internet Service Providers (WISPs): Use as high-power customer premises equipment (CPE) to receive signals from transmission masts in rural areas.

Technical Specifications

• Model: CPE610 (Pharos / Omada Ecosystem range)

• Frequency: 5.15 ~ 5.85 GHz

• Wireless Speed: Up to 300 Mbps

• Antenna: 23 dBi Directional (Grid Type), Dual Polarisation

• Interface: 1 × 10/100 Mbps Ethernet port (PoE IN)

• Operating Modes: AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP)

• Wind Resistance: Up to 216 km/h

• Power Supply: Passive PoE (24 VDC, 0.5 A) via included adapter

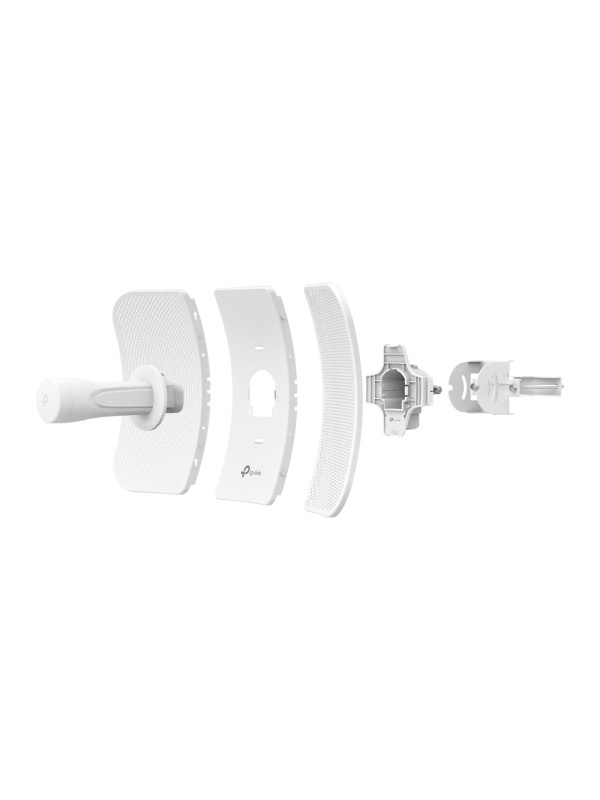

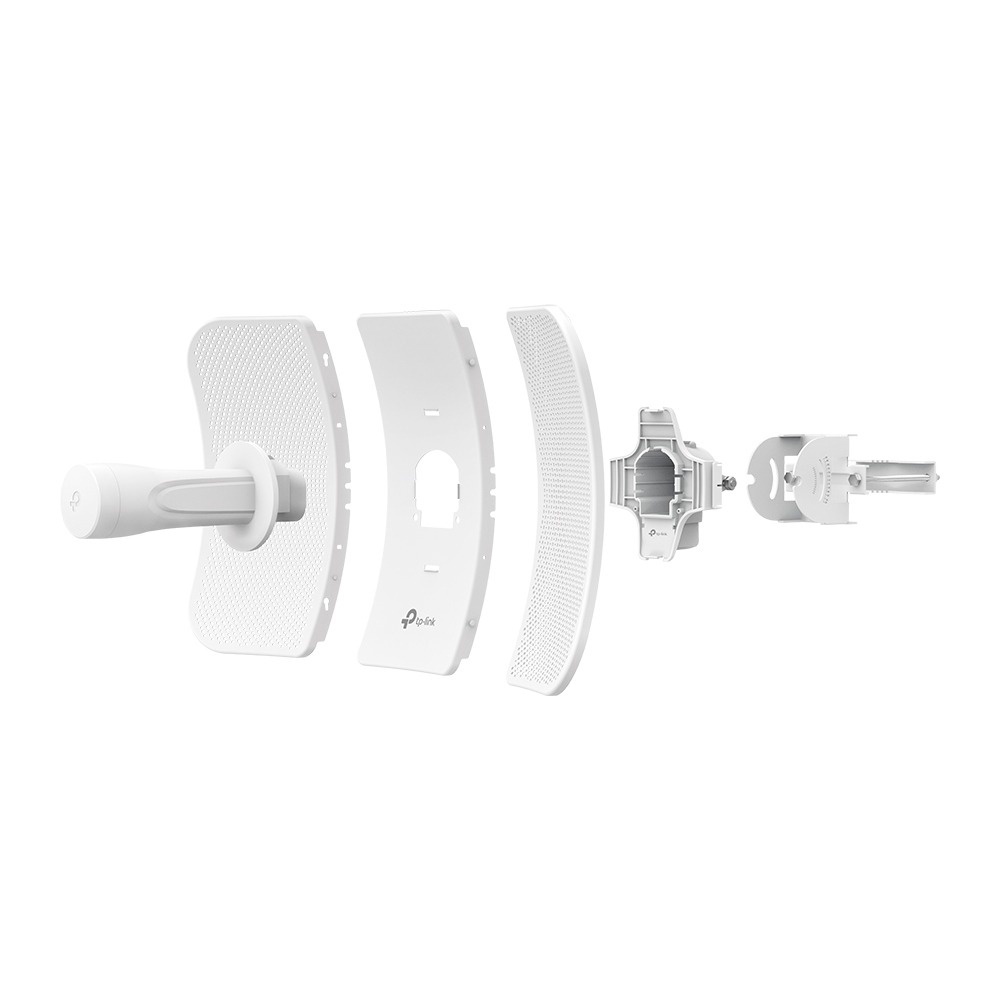

Package Contents: 1 × Reflector (Dish), 1 × Antenna Feed, Mounting Bracket, Passive PoE Adapter, Power Cable, Quick Installation Guide.

Why choose the TP-Link Omada CPE610?

If your project requires a rock-solid wireless link over a distance of more than 20–30 km, the CPE610 is the unbeatable solution. The combination of its high-gain antenna and structural wind resistance makes it the most powerful device in its range. It’s a safe investment for an infrastructure that needs to operate flawlessly, regardless of distance or weather conditions.
