TP-Link Omada CPE710 – 5GHz AC867 Outdoor Access Point, 23dBi High-Gain Antenna, 30km+ Range

The TP-Link Omada CPE710 is the flagship model in the Pharos series, a high-performance outdoor device designed for high-speed wireless connections over record distances. Unlike standard models, it utilises 802.11ac technology, delivering speeds of up to 867 Mbps in the 5GHz band. With a 23dBi directional ‘dish’ antenna, the CPE710 is the ultimate solution for high-volume data backhaul, interconnecting sites tens of kilometres apart, or 4K surveillance infrastructure.

Key Benefits (Selling Points)

• Ultra-Fast AC867 Speed: Wi-Fi 5 technology enables data transfer rates nearly three times faster than N300 models, capable of supporting heavy data traffic, HD video conferencing and large file transfers without latency.

• Professional Directional Antenna (23dBi): The ‘grid’ reflector design focuses the signal into a narrow beam, enabling stable wireless connections over distances exceeding 30 kilometres under line-of-sight conditions.

• Stability in Strong Winds: The antenna’s special construction allows air to flow through the grid slats, offering minimal wind resistance and preventing misalignment of equipment mounted on tall masts.

• TP-Link Pharos MAXtream Technology: Optimises access to the medium via the TDMA protocol, eliminating data collisions and ensuring maximum network efficiency even in areas with a high density of wireless equipment.

• Centralised Management (Pharos Control): Enables IT administrators to manage and monitor all access points on the network from a single location, facilitating remote maintenance and configuration.

• Industrial-Grade Protection and Easy Installation: The rugged housing features 15 kV electrostatic discharge (ESD) protection and 6 kV lightning protection. The 3-axis mounting system allows for millimetre-precise alignment for maximum performance.

Examples of Use

1. Wireless Backhaul: Creating a high-speed backbone link between two network nodes or industrial sites located at great distances.

2. 4K / Multi-Camera Video Surveillance: Simultaneous transmission of video streams from multiple high-resolution cameras to a centralised NVR, without any loss of quality.

3. Internet Expansion in Rural Areas: Providing broadband internet access in locations where terrestrial infrastructure is not available.

Technical Specifications

• Model: CPE710 (Pharos Range / Omada Ecosystem)

• Wireless Standard: IEEE 802.11a/n/ac (Wi-Fi 5)

• Wireless Speed: Up to 867 Mbps in the 5GHz band

• Antenna: 23 dBi Directional (Grid), 2x2 MIMO, Beamwidth 9° (Azimuth) / 7° (Elevation)

• Interface: 1 × 10/100/1000 Mbps Ethernet port (Gigabit PoE IN)

• Processor: Dedicated CPU for high stability

• Wind resistance: Up to 216 km/h

• Power supply: Passive PoE (24 V DC) via included adapter

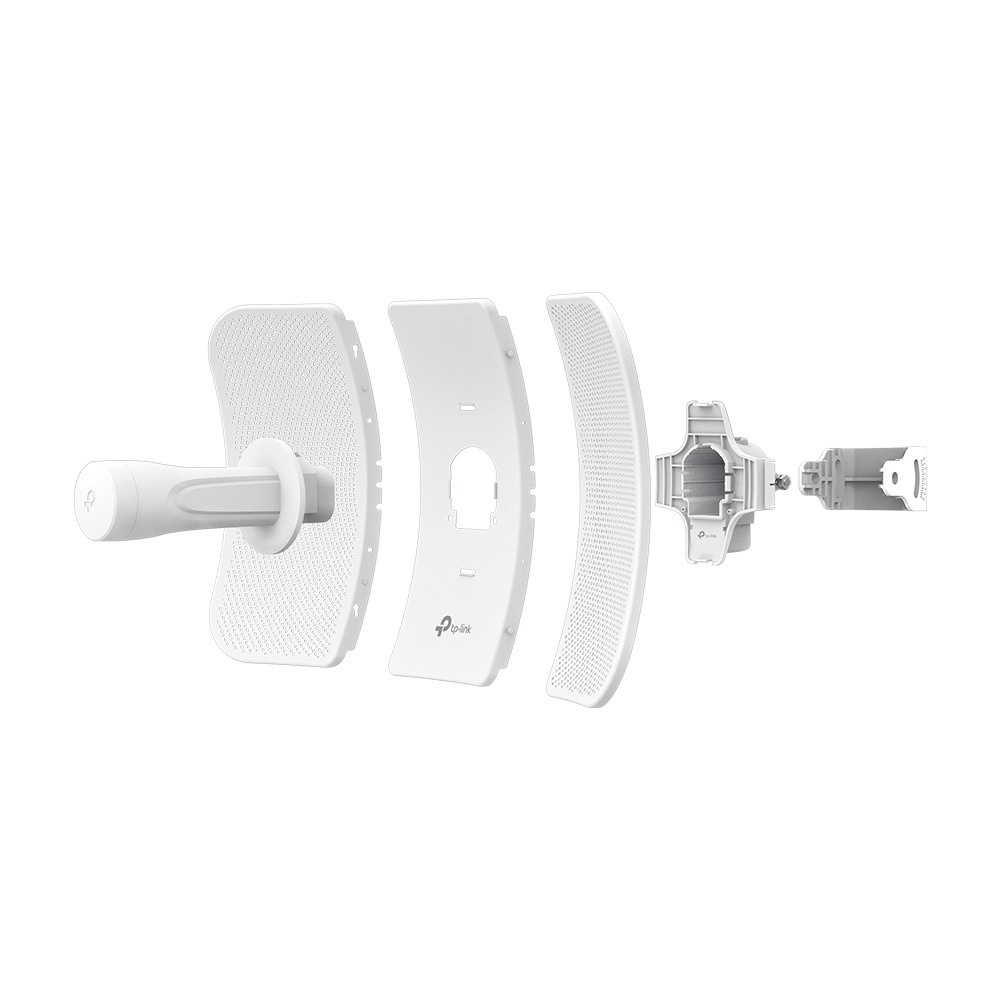

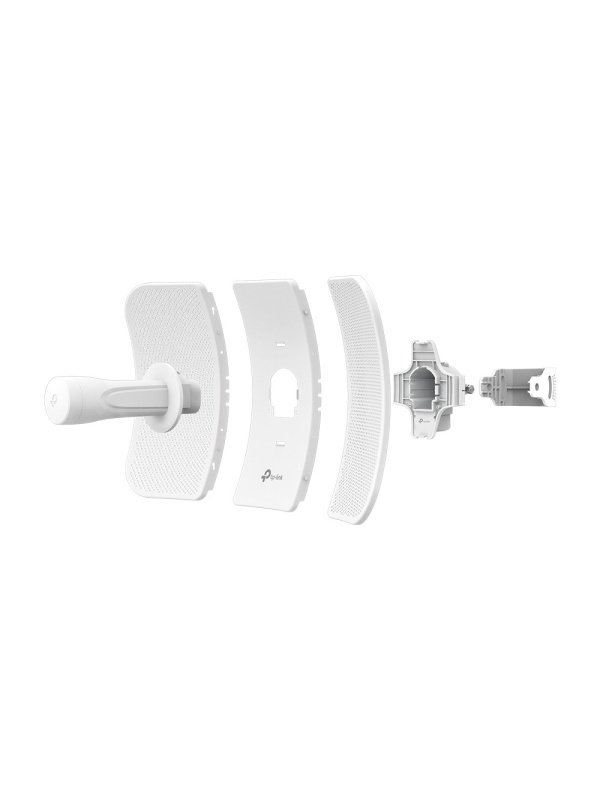

Package contents: 1 × Reflector (Dish), 1 × Antenna feed, Pole mounting bracket, Passive PoE adapter, Power cable, Quick installation guide.

Why choose the TP-Link Omada CPE710?

When you need the highest possible speed over the longest wireless distance, the CPE710 is the top of the range. It combines the precision of a professional 23dBi antenna with the power of the AC867 standard, resulting in a connection that makes no compromises. It is the ideal choice for professional projects where reliability and high bandwidth are non-negotiable requirements.
