TP-Link Omada EAP100-Bridge KIT – 2.4 GHz Outdoor Wireless Bridge Kit, 300 Mbps, Range up to 500 m, IP65, Automatic Plug-and-Play Setup

The TP-Link Omada EAP100-Bridge KIT is a ready-to-use professional solution for extending your network over long distances, without the need for digging or costly cabling. This two-unit kit (Point-to-Point package) uses the 2.4 GHz frequency to provide a stable wireless link with high penetration power over a distance of up to 500 metres. Optimised for challenging outdoor environments, it is the ideal solution for connecting remote surveillance cameras, warehouses, farms or access barriers to the company’s central network.

Key Benefits

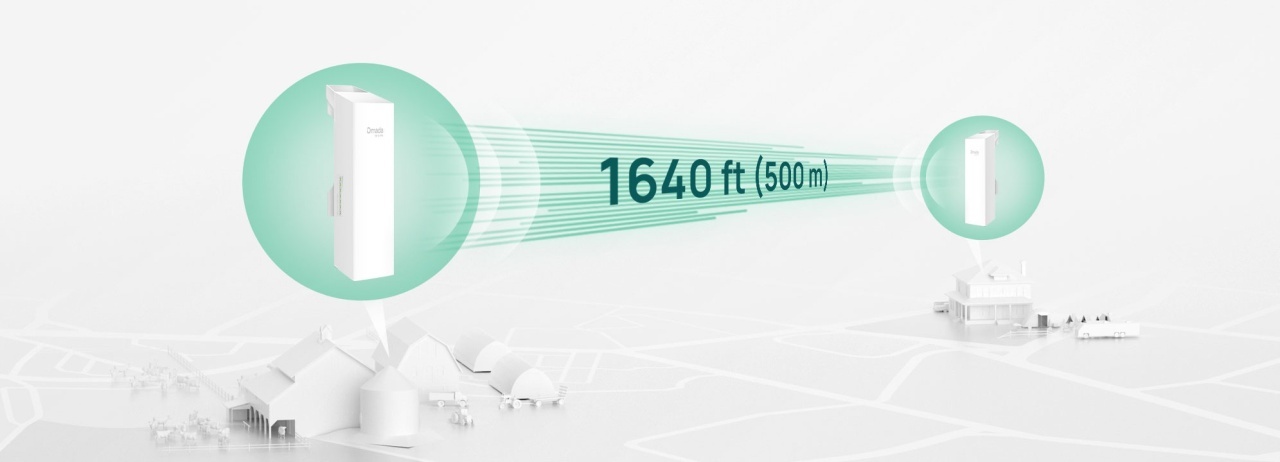

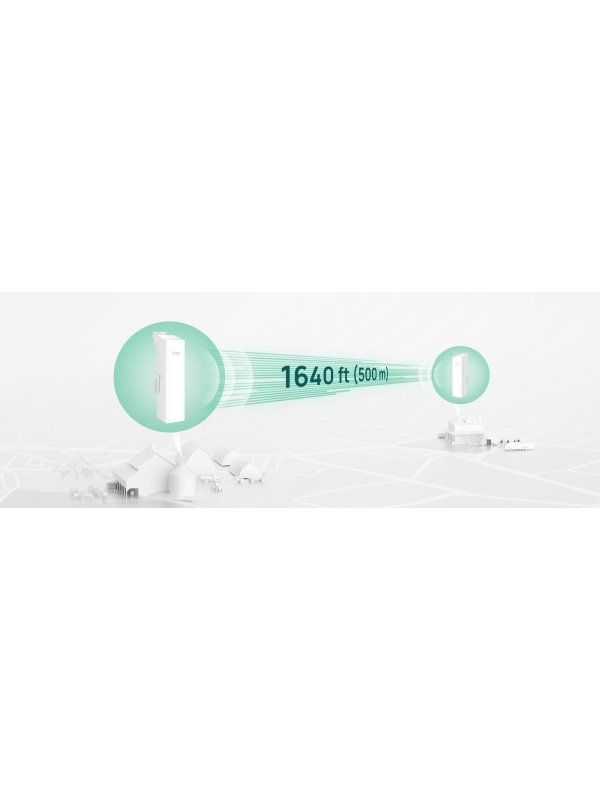

• Stable Connection up to 500m: Thanks to the integrated 8 dBi dual-polarisation directional antennas, the kit provides a strong and stable signal, perfect for transferring video streams from IP security cameras.

• Plug-and-Play Installation (Pre-configured): The kit comes factory-paired (Auto-Pairing). All you need to do is mount the two units, power them up, and the point-to-point wireless connection will be established instantly, without any complicated software configuration.

• Connection Hub (3 Ethernet Ports): Each unit features 3 Fast Ethernet ports (10/100 Mbps). This allows you to connect multiple IP cameras or devices directly to the bridge at the destination, without the need for an additional switch.

• Flexible Power Supply (PoE and DC): Supports the 802.3af PoE standard, as well as Passive PoE (24V/48V) or standard 12V DC power supply. This maximum flexibility makes it perfectly compatible with solar power systems used in remote locations.

• App-Guided Alignment: Physically aligning antennas over long distances is made extremely simple. The Omada app provides a graphical display of real-time signal strength and includes a built-in speed test to validate the installation.

• Resistance to Extreme Conditions (IP65): The IP65-certified housing is fully protected against dust and the elements. With a 6 kV electrical discharge resistance and an operating temperature range of -40°C to +70°C, the kit guarantees network stability in all seasons.

Examples of Use

1. Outdoor CCTV Systems: Connecting perimeter IP cameras mounted on poles, in car parks or at access gates, eliminating the cost of long-distance cabling.

2. Extending Internet Coverage to Outbuildings: Transmitting the internet signal from the main office to a storeroom, garage or guest house within a 500-metre radius.

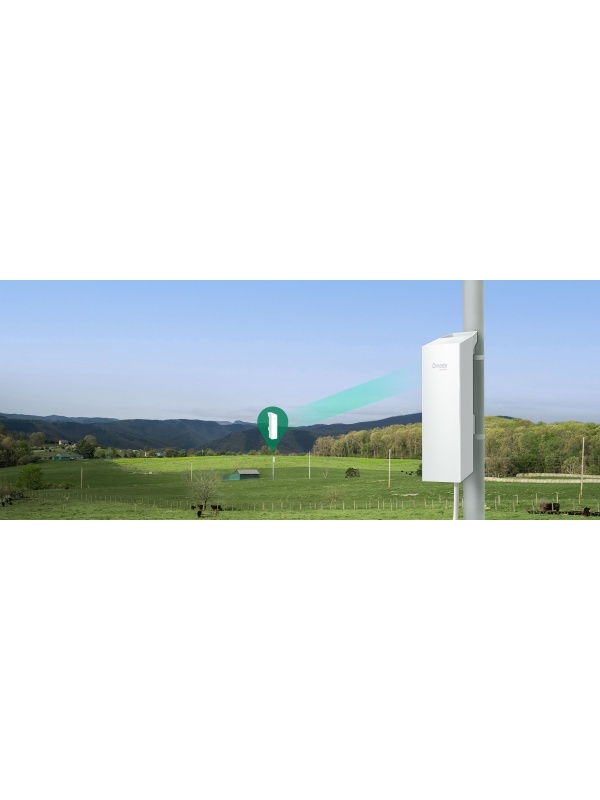

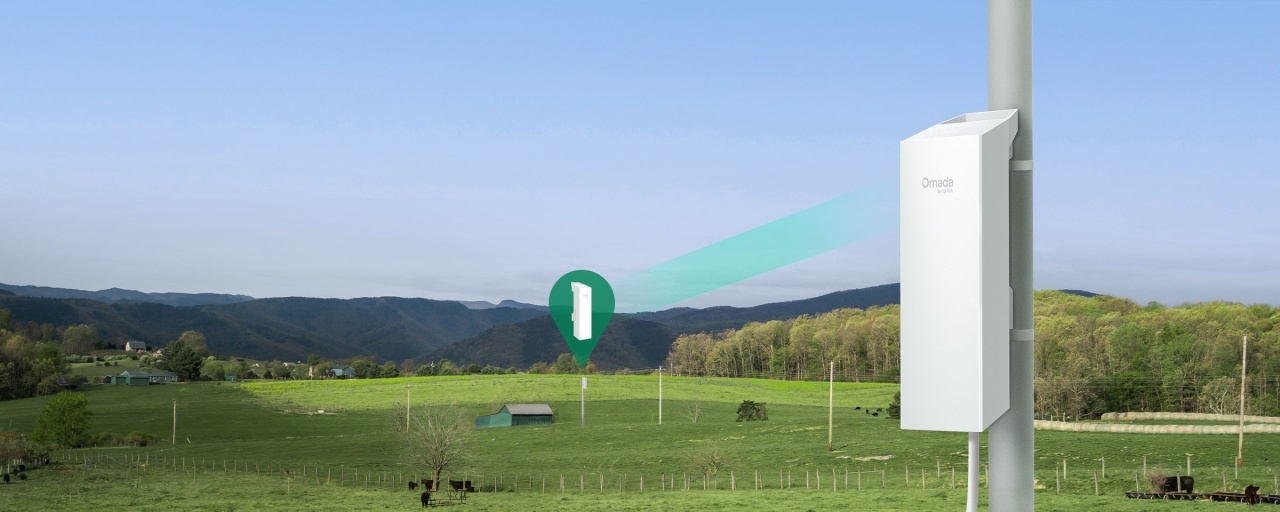

3. Agricultural Projects and Construction Sites: Real-time monitoring of farms, orchards or construction sites by bringing an internet connection to previously inaccessible areas.

Technical Specifications

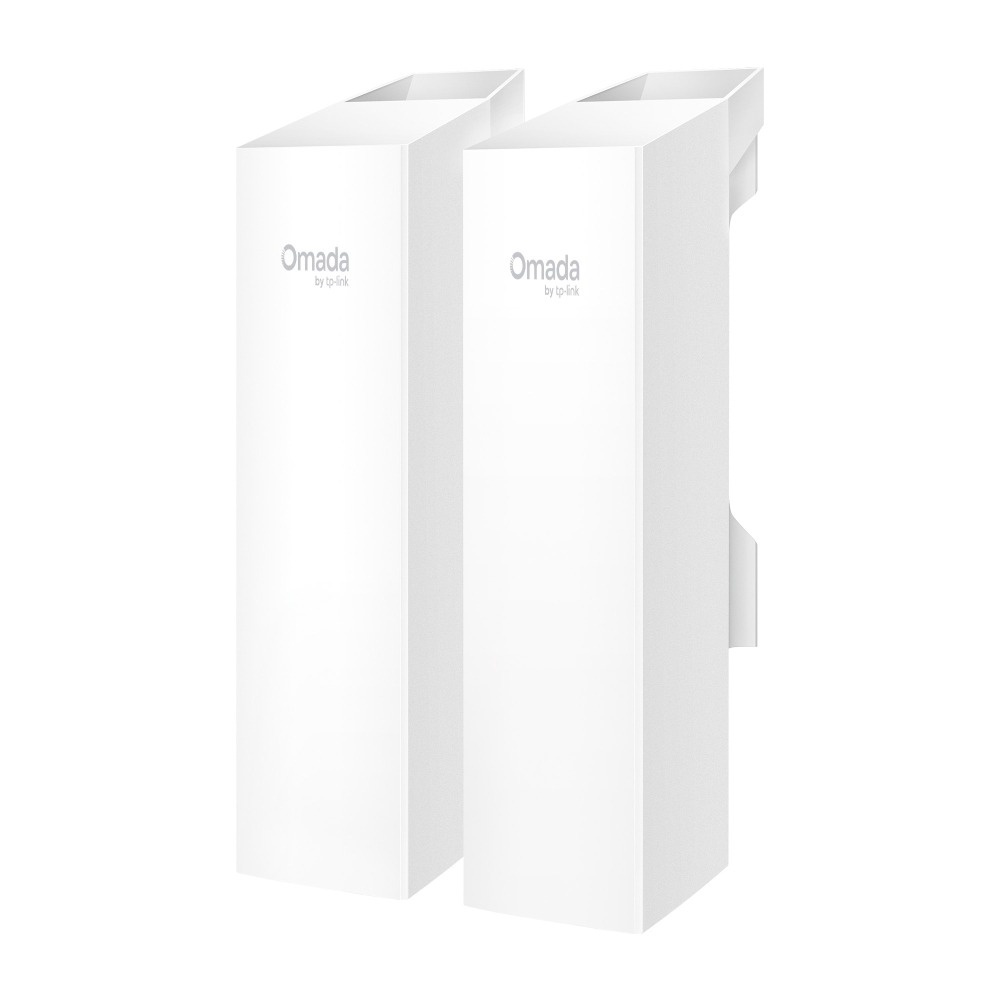

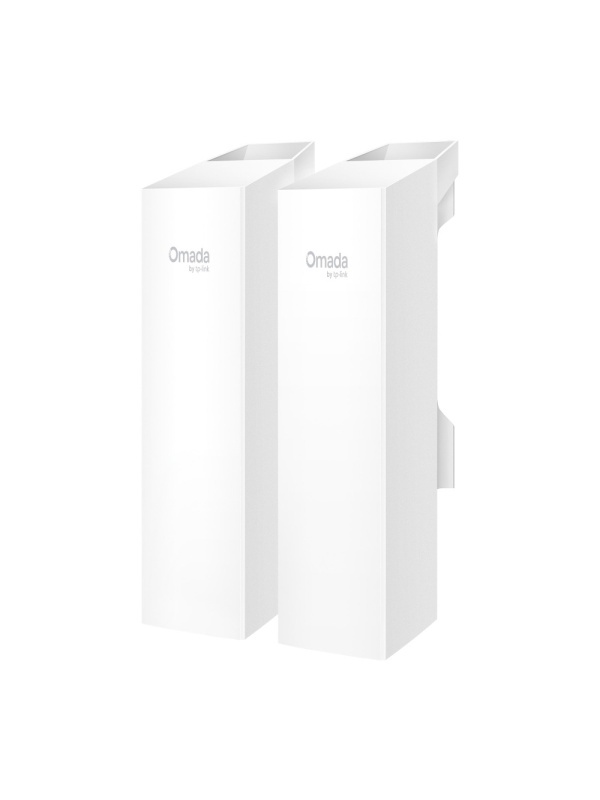

• Model: EAP100-Bridge KIT (Package includes 2 units)

• Frequency: 2.4 GHz (IEEE 802.11b/g/n standard)

• Wireless Transfer Speed: Up to 300 Mbps

• Antenna: Internal, directional, 2×2 MIMO, 8.0 dBi gain (Angle: 70° horizontal / 70° vertical)

• Network Interface: 3 × 10/100 Mbps Ethernet ports (per unit)

• Power Supply: 802.3af PoE, Passive PoE (24V/48V) or 12V DC (Max. power consumption: 4.8W)

• Outdoor Protection: IP65 certification, 6 kV lightning protection

• Centralised Management: Full integration with the Omada SDN platform (Cloud-Based Controller, Hardware/Software Controller or the Omada app)

Package contents: 2 × EAP100-Bridge devices, 2 × Passive PoE adapters, Pole/mast mounting kit, Quick installation guide.

Why choose the TP-Link Omada EAP100-Bridge KIT?

It’s the most affordable and efficient way to transmit internet or video signals over the air, without the hassle of configuration. SmartBridging technology eliminates the need for a specialist to carry out the installation, whilst the reliability of the Omada SDN range allows you to monitor the connection status remotely, directly from your phone, providing a stable and secure infrastructure 365 days a year.
