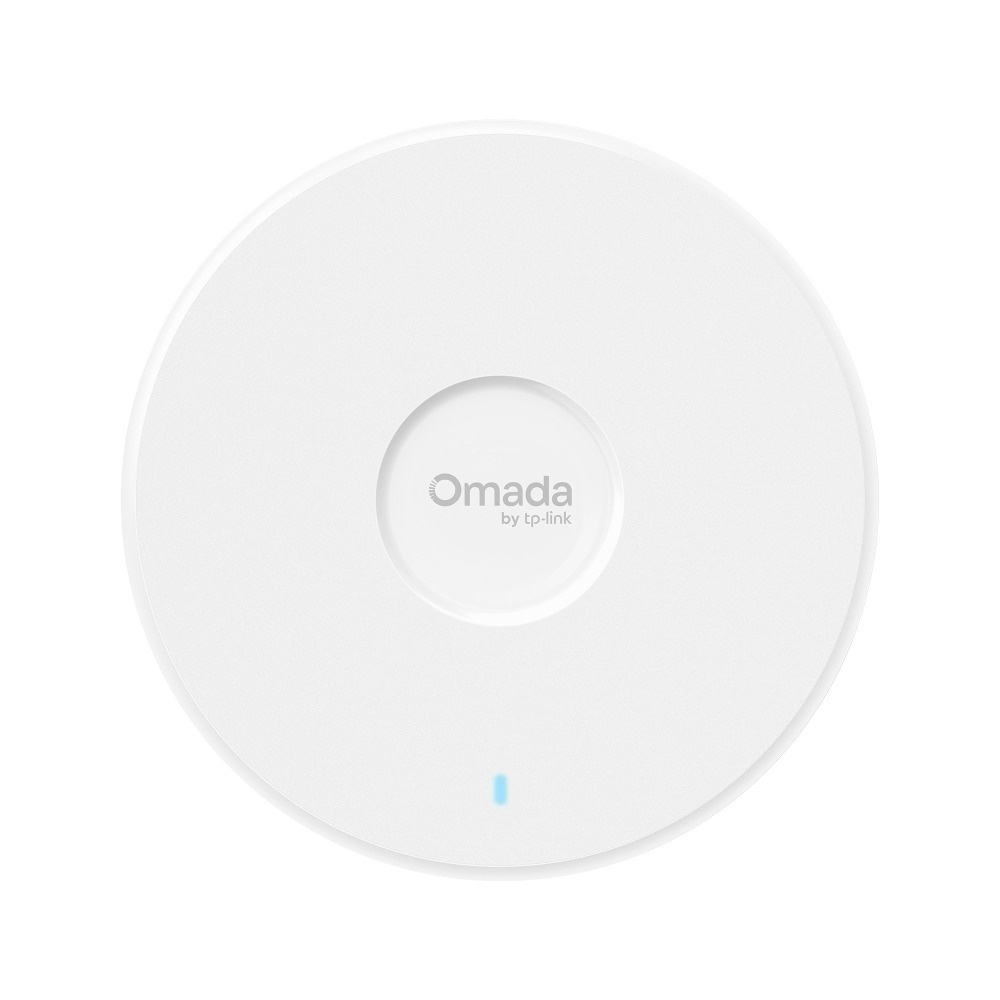

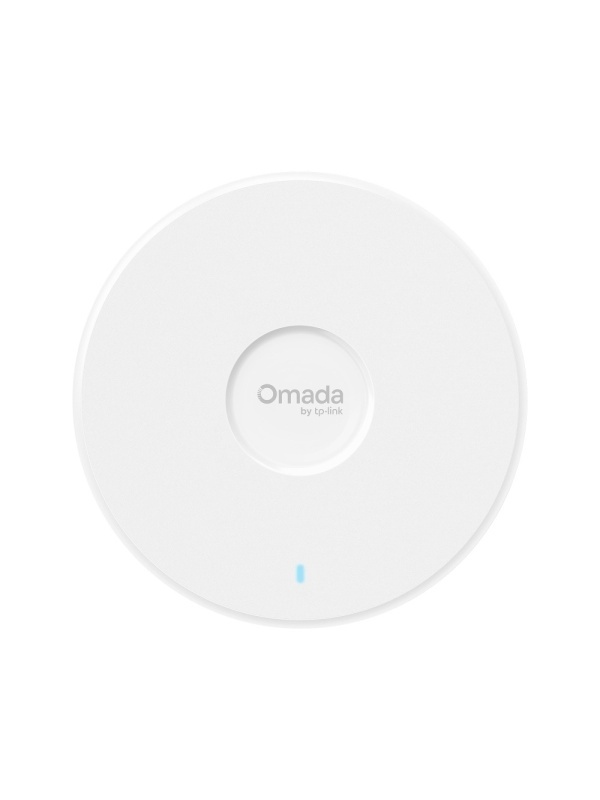

TP-Link Omada EAP787 – Wi-Fi 7 Tri-Band BE19000 Access Point, Ceiling-Mounted, Dual 10G Ports, Centralised Cloud Management

The TP-Link Omada EAP787 represents the cutting edge of wireless connectivity for businesses, hotels, campuses or premium homes that refuse to compromise. Equipped with revolutionary Wi-Fi 7 (802.11be) technology, this Tri-Band Access Point delivers breathtaking speeds of up to 19 Gbps (BE19000). Featuring two 10 Gbps ports, the EAP787 eliminates any bandwidth bottlenecks, ensuring ultra-low latency and massive connection capacity for hundreds of devices simultaneously, all integrated into the TP-Link Omada centralised management ecosystem.

Key Benefits

• Next-Generation Wi-Fi 7 Speeds: Experience Tri-Band performance with aggregate speeds of up to 19 Gbps (across the 6 GHz, 5 GHz and 2.4 GHz bands). Wi-Fi 7 introduces crucial technologies such as the 320 MHz wide channel and 4096-QAM modulation for massive data transfer.

• Dual 10G Multi-Gigabit Ports: Features two 10 Gbps Ethernet ports (one of which supports PoE++), ensuring that the wired infrastructure can fully support the wireless performance of the Wi-Fi 7 standard.

• Advanced Multi-RU and MLO Technologies: The Multi-Link Operation (MLO) function allows compatible devices to send and receive data simultaneously across different bands and frequencies, minimising latency and increasing connection reliability.

• Massive Connectivity Capacity: Designed for extremely dense environments (conference rooms, restaurants, open-plan offices), the EAP787 effortlessly manages hundreds of concurrent connections without compromising performance.

• Integration into the Omada SDN Ecosystem: Enables centralised management, either locally or via the cloud. Monitor, configure and troubleshoot your entire network from a single intuitive interface (web or the Omada app), benefiting from zero-touch provisioning.

• Top-Tier Enterprise Security: Protect your company’s network with advanced features such as WPA3, isolated guest networks with an authentication portal (Captive Portal), URL filtering, access control (ACL) and detection of rogue access points (Rogue AP).

Use Cases

1. Modern Business Environments and Offices: Ideal for companies handling large files, 4K/8K video calls and cloud applications where every millisecond of latency counts.

2. Education and Event Venues: Stable and seamless coverage in lecture theatres or exhibition spaces, where a large number of users connect to the network simultaneously.

3. Luxury Smart Homes and Entertainment: Prepare your home for the future by ensuring you have the bandwidth required for VR/AR streaming, online gaming at ultra-high resolutions and hundreds of active IoT devices.

Technical Specifications

• Model: TP-Link Omada EAP787

• Wireless Standard: Wi-Fi 7 (IEEE 802.11be/ax/ac/n/g/b/a)

• Transfer Speed: Tri-Band BE19000 (6 GHz: up to 11,520 Mbps | 5 GHz: up to 5,760 Mbps | 2.4 GHz: up to 1,376 Mbps)

• Network Interface: 2 × 10 Gbps RJ45 Ethernet ports

• Power Supply: PoE++ (802.3bt) or external DC adaptor (not included in some enterprise packages)

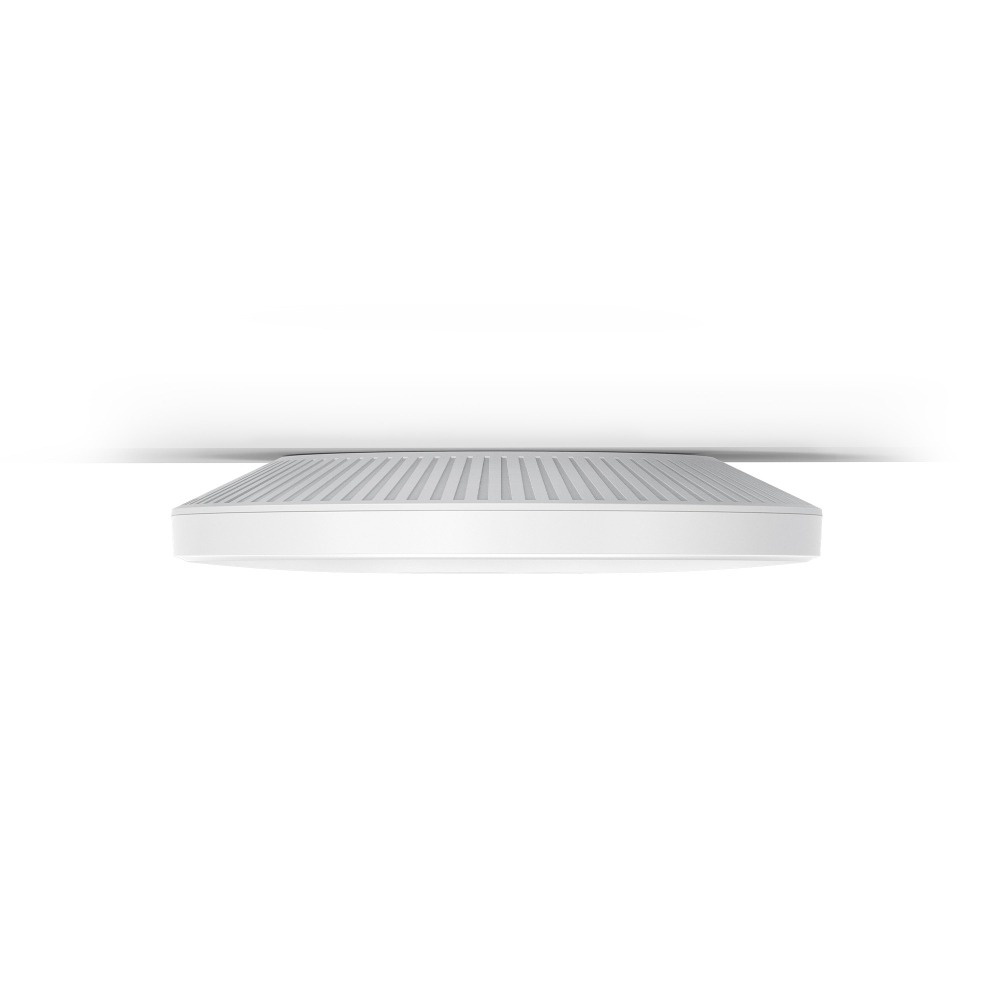

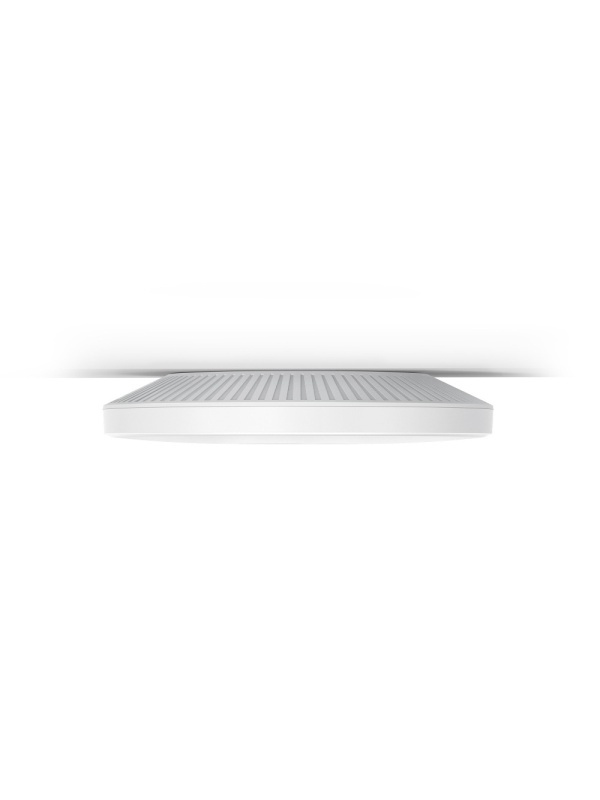

• Mounting: Ceiling or wall-mounted (mounting kit included)

• Advanced Features: MLO, 320 MHz bandwidth, 4K-QAM, Multi-RU, Seamless Roaming (802.11k/v/r), Mesh

• Management: Omada App, Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller

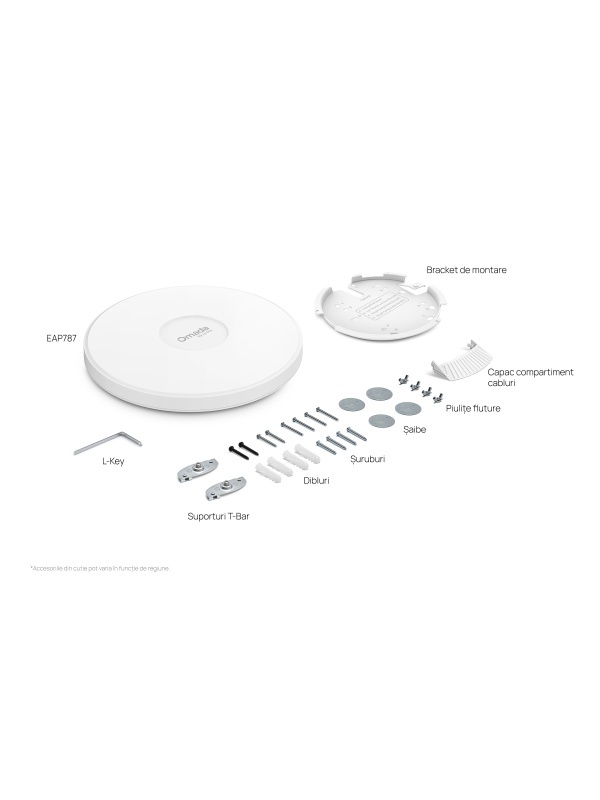

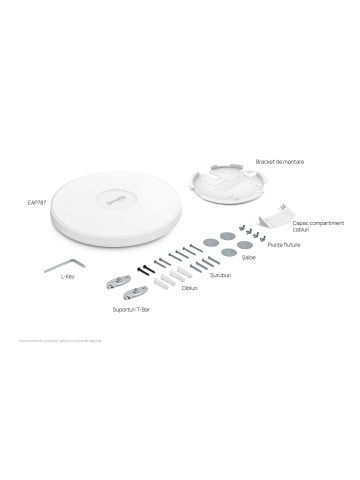

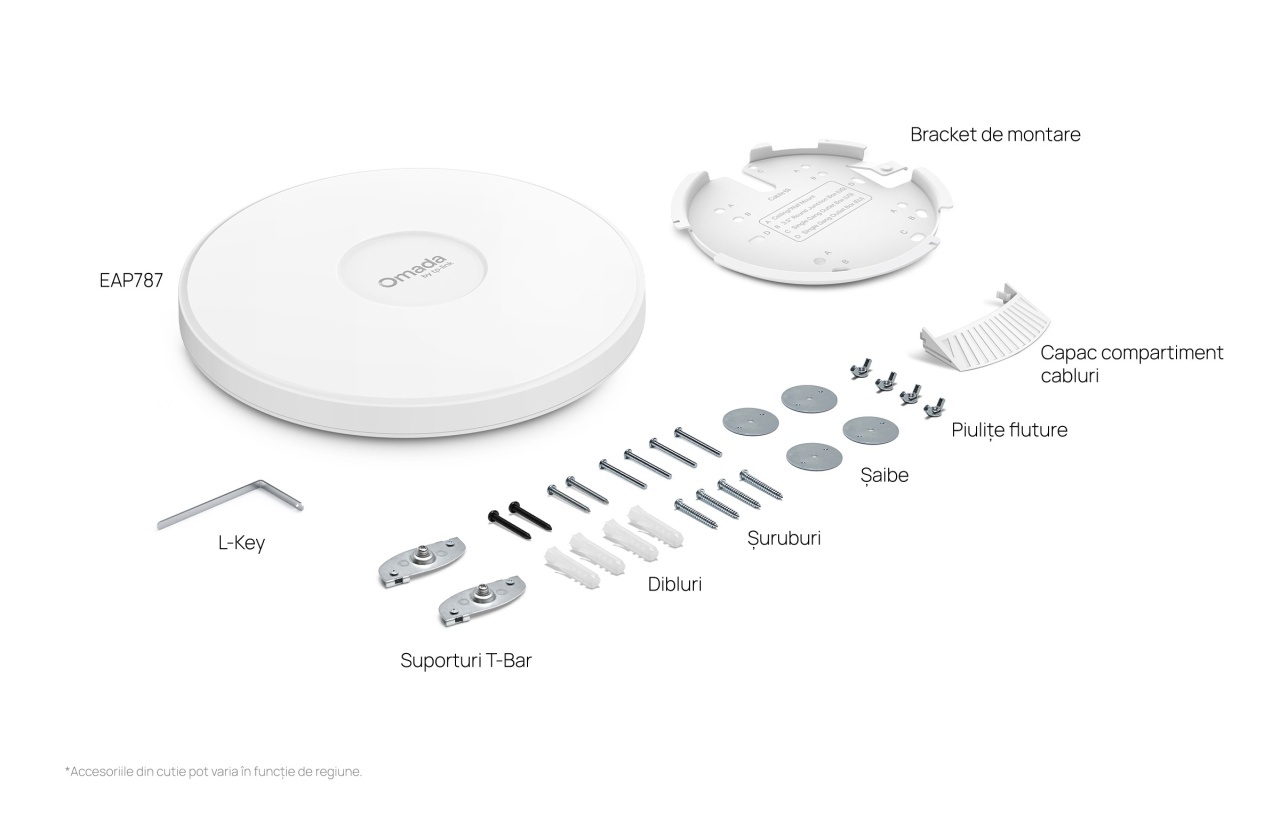

Package contents: 1 × TP-Link Omada EAP787 Access Point, Ceiling/wall mounting kit, Quick installation guide.

Why choose the TP-Link Omada EAP787?

If you want your network to be ready for the next decade, the EAP787 is the right investment. The Wi-Fi 7 standard not only delivers increased speed but also revolutionises the way data is managed in crowded spaces. With its dual 10G ports and Omada Cloud integration, this access point delivers a rock-solid, flexible wireless infrastructure that’s easy to manage remotely.
