TP-Link Omada MC211CS-20 – Gigabit Single-Mode Media Converter, 1000 Mbps RJ45 port, Single-Mode SC port, 20 km

The TP-Link Omada MC211CS-20 is a highly reliable Gigabit media converter, designed to convert signals from copper cable (1000Base-T) to optical signals (1000Base-LX/LH) and vice versa. Equipped with a single-mode SC fibre port, this device enables network extension over considerable distances of up to 20 kilometres. It is the ideal professional solution for interconnecting remote workstations, perimeter surveillance systems or network nodes across a large campus.

Key Benefits (Selling Points)

• Full-Duplex Gigabit Conversion: Offers a transfer rate of 1000 Mbps on both ports, ensuring a high-speed connection without packet loss, which is essential for heavy data traffic or high-resolution video streams.

• Long-Distance Transmission (20 km): Thanks to Single-Mode technology (1310 nm wavelength), the device can transmit the network signal far beyond the limits of standard copper cabling, achieving a coverage range of 20 km.

• Auto MDI/MDI-X Technology: The RJ45 port automatically detects the speed and type of cable used (straight-through or crossover), eliminating the need for special cables and facilitating quick ‘plug-and-play’ installation.

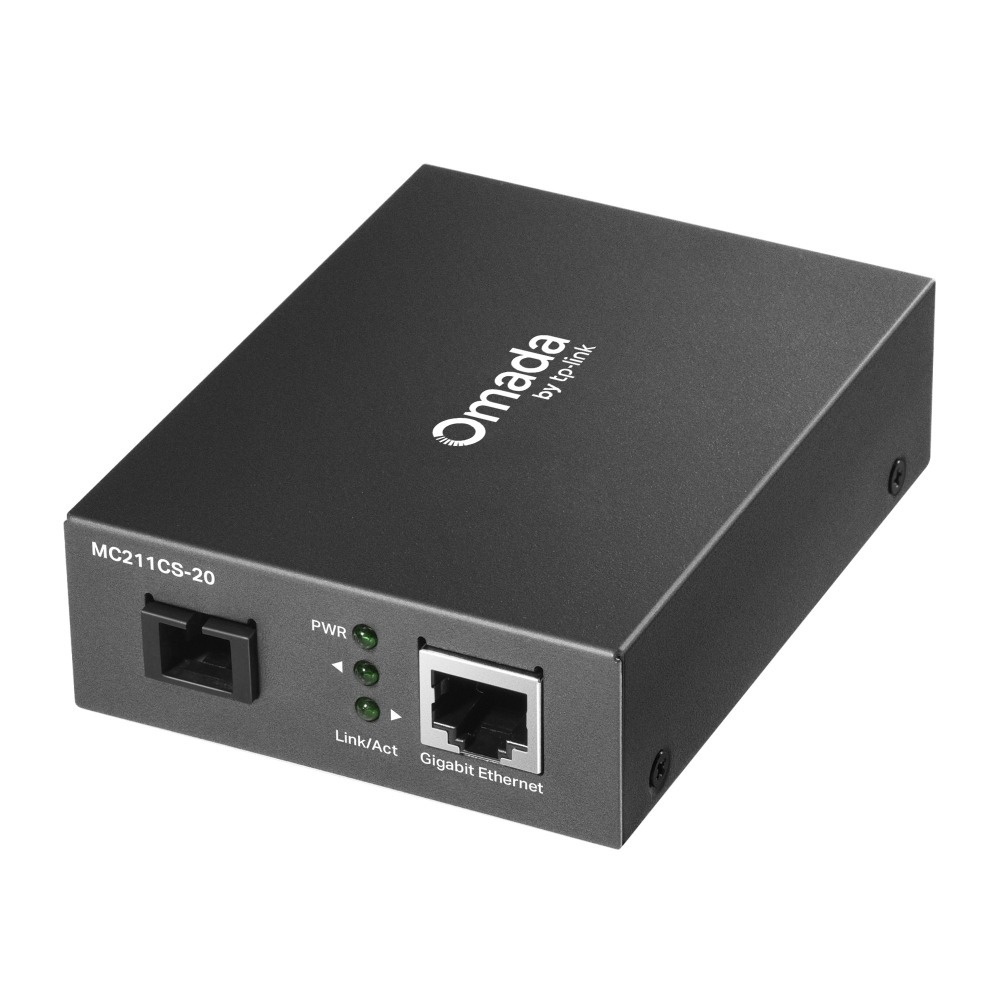

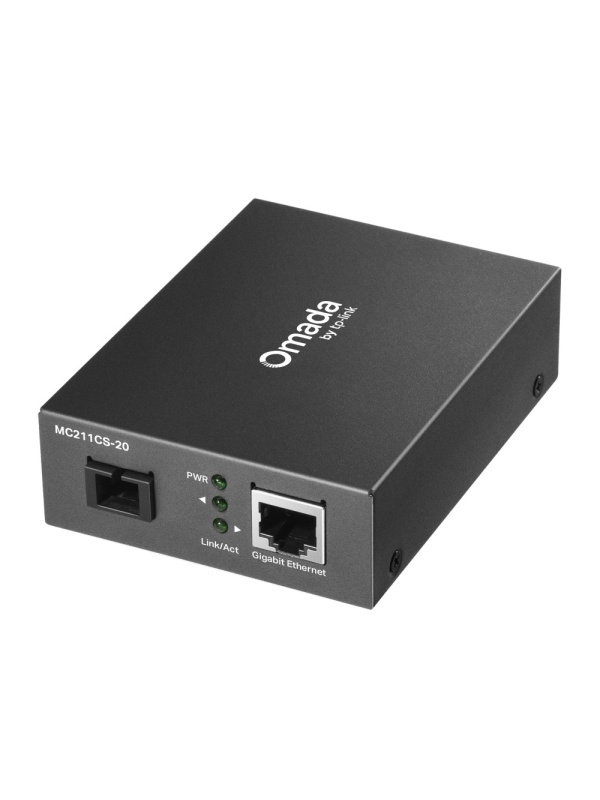

• LED Indicators for Quick Diagnostics: The front panel features LEDs to monitor power and activity on both ports (TP and Fibre), allowing for immediate visual verification of the connection status.

• Robust Metal Housing: The steel design ensures excellent heat dissipation and protects the internal components, guaranteeing stable 24/7 operation in professional or industrial environments.

• Omada Compatibility: Can be used as a standalone device or installed in a rack-mount chassis for organised management of multiple fibre connections.

Examples of Use

1. Head Office–Warehouse Interconnection: Ideal for extending the local network from the head office to a branch or warehouse located kilometres away, using fibre optics to avoid electrical interference.

2. Urban Surveillance Systems: Enables the connection of IP cameras located at great distances from the monitoring centre, ensuring a constant and stable video feed.

3. Industrial Campuses: Facilitate rapid communication between geographically dispersed buildings, providing an infrastructure immune to the electromagnetic noise produced by heavy machinery.

Technical Specifications

• Model: MC211CS-20

• Standards and Protocols: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

• Port Interface:

  • 1 × Gigabit RJ45 port (10/100/1000 Mbps)

  • 1 × SC-type fibre optic port (1000 Mbps)

• Fibre Type: Single-mode (9/125 µm)

• Wavelength: 1310 nm

• Maximum Distance: 20 km

• Control Functions: Full-Duplex Flow Control (IEEE 802.3x)

• Power Supply: External power adaptor included (5V/0.6A)

• Housing: Metal, Desktop (rack-mountable)

Package Contents: 1 x MC211CS-20 Media Converter, external power adaptor, quick installation guide.

Why choose the TP-Link Omada MC211CS-20?

When your network project requires distances that exceed the physical limitations of copper, the MC211CS-20 is the key component you need. It provides a secure link capable of delivering Gigabit speeds over 20 kilometres, all in a compact and highly reliable package. It is the strategic choice for a modern infrastructure capable of communicating effectively over long distances.
