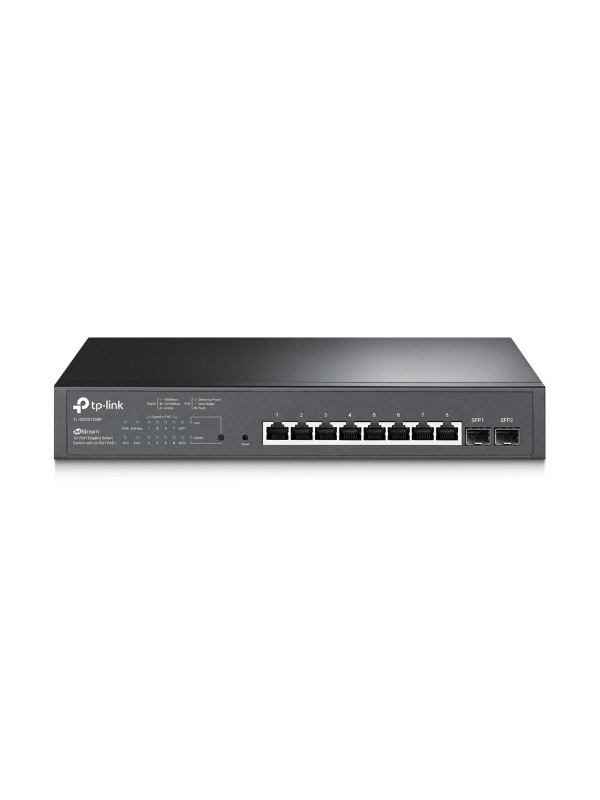

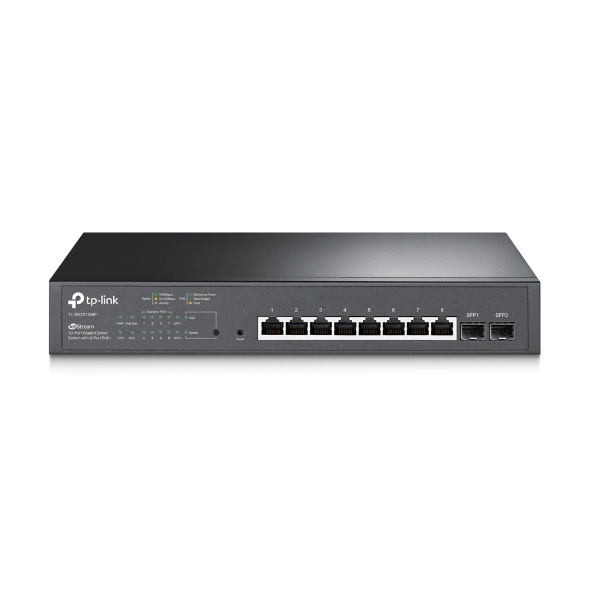

TP-Link Omada TL-SG2210MP JetStream Switch with Management TP-Link Omada TL-SG2210MP, 10 ports, POE

TP-link
RON 936.54 (VAT included)
RON 774.00 (VAT excluded)
shipping cost is not included
TP-link
Stock 2
Product code - SKU SG2210MP
EAN 6935364030674
Add to Favorites

Description

Smart JetStream Switch with 10× Gigabit Ports and 8× PoE+ Ports

  • 150 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power of 150 W*
  • Full Gigabit Ports:: 8×Gigabit PoE+ ports and 2×Gigabit SFP slots provide super-fast connections
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralised Cloud Management and Intelligent Monitoring
  • Centralised management: Cloud access and Omada App provide easy and convenient administration
  • Robust security strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication and more
  • Optimisation for Voice and Video applications: L2/L3/L4 QoS and IGMP snooping.
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface - 8× RJ45 10/100/1000 Mbps ports, all support PoE+ (Auto-Negotiation/Auto MDI/MDIX)
- 2× SFP 100/1000 Mbps slots
Media network - 10BASE-T: UTP/STP category 3, 4, 5 cable (max 100m)
- 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above (max 100m)
- 100BASE-FX: MMF, SMF
- 1000BASE-X: MMF, SMF
Number of fans 1
Physical Security Lock Yes
Power supply 100-240V AC, 50/60Hz
Ports (RJ45) PoE - Standard: 802.3at/af compliant
- PoE+ Ports: 8 ports
- PoE Power Budget: 150 W*
Dimensions (L x W x H) 294 x 180 x 44 mm (11.6 x 7.1 x 1.7 inch)
Mounting Desktop/rack mount
Maximum power consumption - V1: 173.9 W (110 V/60 Hz) (with 150 W PD connected); 12.2 W (110 V/60 Hz) (no PD connected)
- V2: 169.5 W (220 V/50Hz) (with 150 W PD connected)
- V3: 175.3 W (110 V/60Hz) (with 150 W PD connected)
- V4: 174.2 W (110V/60Hz) (with 150 W PD connected)
Max Heat Dissipation - V1: 41.63 BTU/h (with no PD connected); 539.35 BTU/h (with 150 W PD connected)
- V2: 578.42 BTU/hr (220V/50 Hz) (with 150 W PDconnected)
- V3: 597.8 BTU/hr (110 V/60 Hz) (with 150 W PD connected)
- V4: 594.46 BTU/hr (110V/60Hz) (with 150 W PD connected)
PERFORMANCE
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.9 Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service - 802.1p CoS/DSCP priority
- 8 priority queues
- Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port/Flow based Rating Limit
- Smoother Performance
- Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features - DHCP Relay
- DHCP VLAN Relay
- DHCP L2 Relay
- Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group
- Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
- Loopback Detection
- Flow Control
- 802.3x Flow Control
- Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
- Device Link Detect Protocol (DLDP)
- 802.1ab LLDP/ LLDP-MED
L2 Multicast - 511 IPv4, IPv6 shared multicast groups
- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- Static Group Config
- Multicast VLAN Registration (MVR)
- Multicast Filtering
- MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast (256 profiles and 16 entries per profile)
VLAN - VLAN Group
- Max. 4K VLAN Groups
- 802.1Q tag VLAN
- MAC VLAN: 12 Entries
- Protocol VLAN
- GVRP
- Voice VLAN
Access Control List - Support up to 230 entries
- Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
- Time-based ACL
- MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
- IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
- IPv6 ACL
- Combined ACL
- Rule Operation
- Permit/Deny
- Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
- ACL Rules Binding
- Port Binding
- VLAN Binding
- Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
Security - AAA
- 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and
accountability
- IP/IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
- IP Source Guard
- 253 Entries
- Source IP+Source MAC
- IPv6 Source Guard
- 183 Entries
- Source IPv6 IPv6 Address+Source MAC
- DoS Defend
- Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
- Port Isolation
- Secure web management through HTTPS with
SSLv3/TLS 1.2
- Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
- IP/Port/MAC based access control
IPv6 - IPv6 Static Routing and ACL
- IPv6 Dual IPv4/IPv6
- IPv6 Interface
- Multicast Listener Discovery (MLD) Snooping
- IPv6 neighbour discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP)
version 6
- TCPv6/UDPv6
- IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet(v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
Advanced Features - Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
MIBs - MIB II (RFC1213)
- Bridge MIB (RFC1493)
- P/Q-Bridge MIB (RFC2674)
- Radius Accounting Client MIB (RFC2620)
- Radius Authentication Client MIB (RFC2618)
- Remote Ping, Traceroute MIB (RFC2925)
- Support TP-Link private MIBs
- RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
Omada App Yes, through
- Omada Cloud-Based Controller (Not Supported by TL-SG2210MP v2)
- OC300
- OC200
- Omada Software Controller
Centralised Management - Omada Cloud-Based Controller (Not Supported by TL-SG2210MP v2)
- Omada Hardware Controller OC300
- Omada Hardware Controller OC200
- Omada Software Controller
Cloud Access Yes (via OC300, OC200, Omada Cloud-Based Controller or Omada Software Controller)
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210MP v1, v3 and above, while is not supported by TL-SG2210MP v2)
Management Features - Web-based GUI
- Command Line Interface (CLI) through telnet
- SNMPv1/v2c/v3
- SNMP Trap/Inform
- RMON (1,2,3,9 groups)
- SDM Template
- DHCP/BOOTP Client
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- EEE
- SNTP
- System Log
ALTELE
Certifications CE, FCC, RoHS
Package Contents - TL-SG2210MP
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment - Operating temperature: 0-50 ℃ (32-122 ℉);
- Storage Temperature: -40-70 ℃ (-40-158 ℉)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
