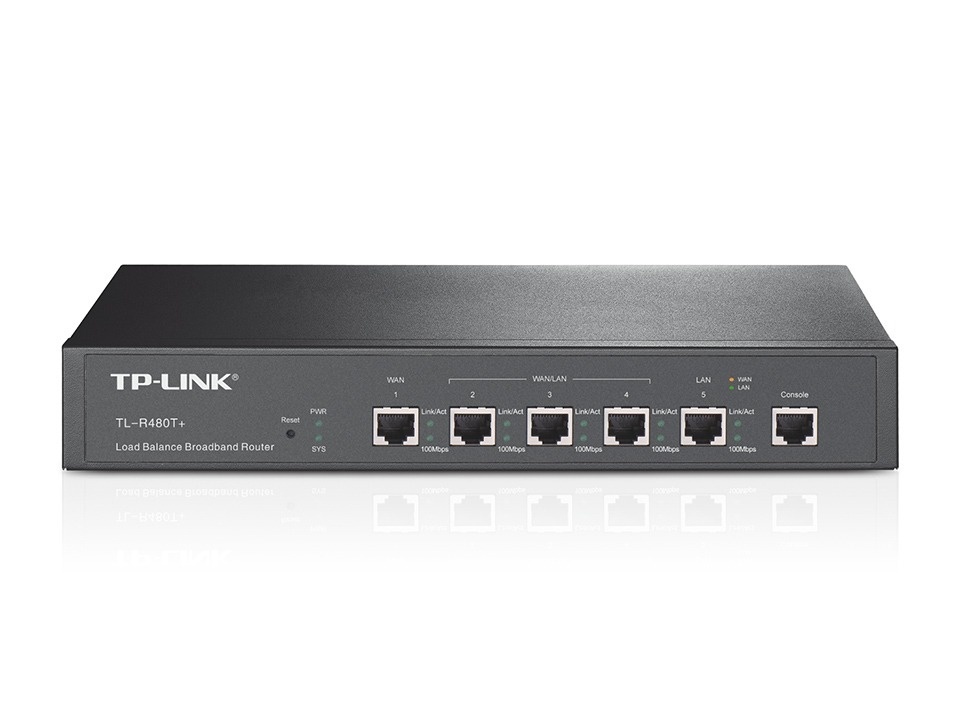

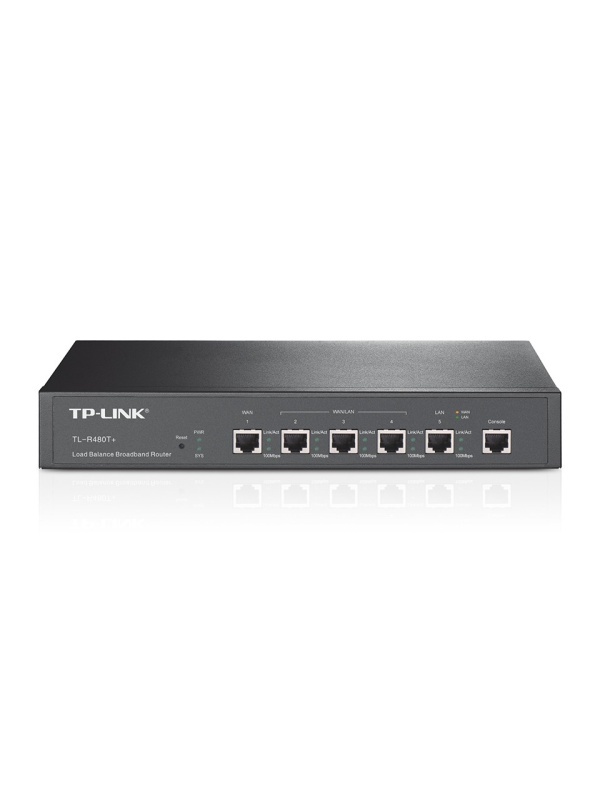

TP-Link TL-R480T+ – Multi-WAN Broadband Load-Balancing Router with Advanced Management and Robust Security

The TP-Link TL-R480T+ is a professional load-balancing router, designed to provide rock-solid stability for networks in small businesses, offices and internet cafés. Its main function is to efficiently manage up to four internet connections simultaneously, providing aggregated bandwidth and, most importantly, a backup (redundant) connection. With superior processing power and a built-in firewall, this router acts as a shield, safeguarding your business continuity against accidental internet outages.

Key Benefits (Selling Points)

• Up to 4 WAN Ports (Load Balancing): The router features configurable ports that allow you to connect up to 4 different internet service providers. The system intelligently distributes traffic across these lines to ensure optimal utilisation of the total bandwidth.

• Reliability through Link Backup: You can set up secondary internet lines to automatically take over all traffic should the primary connection fail. This failover function completely eliminates the risk of being left without internet at critical moments.

• Advanced Bandwidth Management: The IP-based Bandwidth Control feature allows administrators to allocate a specific speed to each user or department, preventing situations where a single person consumes the office’s entire internet bandwidth.

• Enterprise-Grade Security: It includes a comprehensive firewall with filtering policies based on IP, MAC or URL, protecting the internal network from intrusions and DoS (Denial of Service) cyber-attacks.

• Professional Power Supply: Unlike entry-level models, the TL-R480T+ features a certified internal power supply, offering enhanced protection against voltage fluctuations and an extended service life.

• Robust Metal Housing: The steel design facilitates heat dissipation without noisy fans and provides protection against electromagnetic interference in technical environments.

Management and Control Features

1. Policy-Based Routing: Allows specific types of traffic (e.g. banking data or VoIP) to be routed over a specific internet connection, considered to be more secure or stable.

2. Protection Against ARP Attacks: Features IP & MAC Binding, which prevents ‘Man-in-the-Middle’ attacks and ensures that only authorised devices can access the network.

3. Authentication Portal (Captive Portal): Facilitates the management of visitors’ internet access via a customised page, an essential feature for commercial premises or hotels.

Technical Specifications

• Device Type: Broadband Load-Balancing Router

• Port Configuration (10/100 Mbps):

  • 1 × Fixed RJ45 WAN port

  • 1 × Fixed RJ45 LAN port

  • 3 × Configurable RJ45 WAN/LAN ports

• Session Capacity: 30,000 concurrent sessions

• L3 Functions: Static Routing, Policy Routing, Load Balancing, Link Backup

• Security: Firewall, URL/IP/MAC filtering, DoS protection, IP & MAC binding

• Power supply: Internal (100–240 V AC, 50/60 Hz)

• Housing: Metal, Desktop (rack-mountable with optional kit)

Package Contents: 1 x TL-R480T+ Router, AC Power Cable, RJ45 Ethernet Cable, Quick Installation Guide.

Why choose the TP-Link TL-R480T+?

The TL-R480T+ model represents a step forward in terms of robustness and processing capacity (30,000 concurrent sessions). It’s the right choice for businesses that have grown and need more granular user management and enhanced security. With this router, you can ensure your digital infrastructure stays online 24/7, transforming the vulnerability of a single internet connection into a robust, redundant network.
