Shelly 1PM GEN3 intelligent relay 1PM, 1 channel, 16A, WiFi, consumption monitoring function

Shelly 1PM Gen3 - Wi-Fi smart relay with power meter, 1 channel, 16A

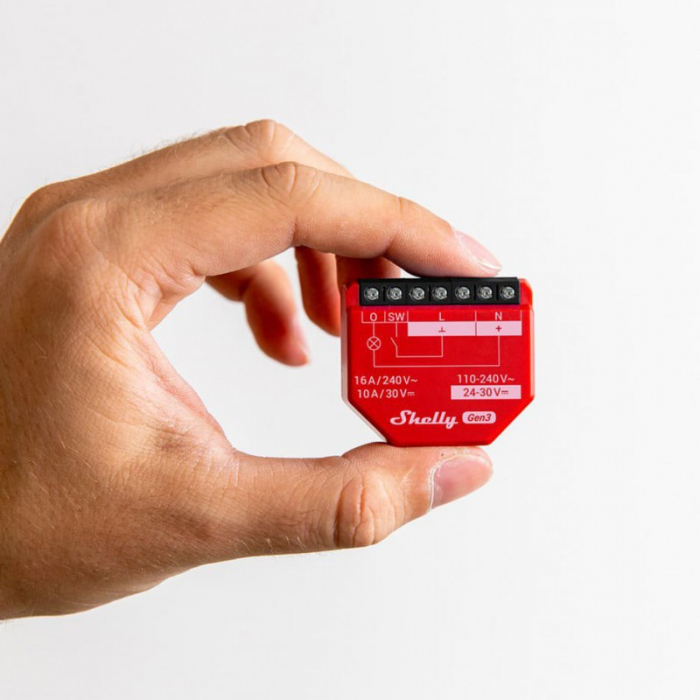

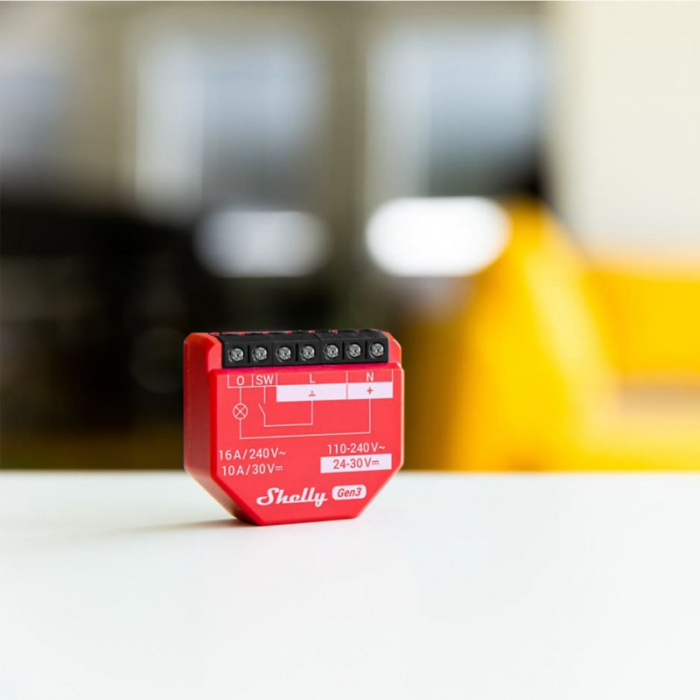

TheShelly 1PM Gen3 is a Wi-Fi smart relay ideal for remotely controlling appliances and accurately monitoring power consumption. It automates home devices in less than 10 minutes and controls them from anywhere. Thanks to its compact size, it fits behind most sockets and switches and is compatible with existing smart home systems.

🔋 Real-time consumption monitoring + free cloud storage

• New ESP-Shelly-C38F chip with expanded 8MB memory

• Durable connection terminals and enhanced security

• Also works as Wi-Fi extender and Bluetooth gateway

• Supports: scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS, custom certificates

• No HUB required! Easy control via Shelly Smart Control app, protocols and voice assistants

🔧 Key Features

• 🌐 Wi-Fi operation - Connects directly to your network

• 📲 Bluetooth - Quickly add devices from the Shelly Cloud app

• ⚡ Energy metering - Accurate consumption metering and data storage

• 🔌 Wide range of supported voltages - Compatible with many types of appliances

• ⏰ S mart programmes - Routine or sunrise/sunset based

• 🧠 Customised scenarios - In combination with other Shelly devices

• S helly Smart Control app - One place for spaces, consumption and spending

• 🗣️ Voice Control - Compatible with Alexa, Google Home, Android, iOS

💡 Usage Examples

✅ S mart Boiler - Control your boiler by time or energy tariffs. You can also add the DS18B20 sensor to measure water temperature.

✅ Underfloor heating - Automatically switches on in the morning and off at night. Energy efficiency and increased comfort.

✅ S mart socket - Mount behind a socket to automate appliances (radiator, coffee maker, etc.) and monitor their consumption.

⚙️ Gen3 series features

• 🧠 Matter Ready - Device can be upgraded for Matter compatibility

• 💾 Dual memory (8MB) - Faster performance and new features

• 🌐 Unified control through virtual components - Integrate and control non-Shelly products in the same application

📐 Technical Specifications

• Dimensions: 37 × 42 × 16 mm

• Weight: 27 g

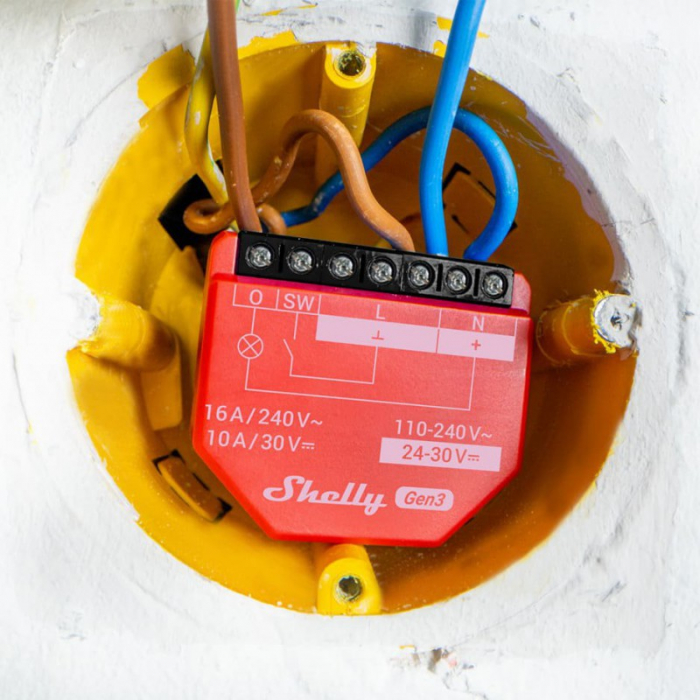

• Mounting: In can or on wall bracket

• Housing Material: Plastic

• Colour: Red

⚡ Power supply:

• 110-240 V~

• 24-30 V⎓

• Power consumption: < 1.2 W

🔋 Switching:

• Maximum voltage: 240 V~ / 30 V⎓

• Maximum current: 16 A (240 V~) / 10 A (30 V⎓)

🧪 Integrated measurements:

• Internal temperature sensor

• AC Voltmeter

• AC ammeter

Connectivity:

• Wi-Fi: 802.11 b/g/n, 2401-2483 MHz, < 20 dBm

• Bluetooth: v4.2, < 4 dBm

• Wi-Fi range: up to 50 m outdoor / 30 m indoor

• Bluetooth range: up to 30 m outdoor / 10 m indoor

🧠 Other features:

• Microcontroller: ESP-Shelly-C38F, Flash: 8 MB

• 20 Programmes + 20 Webhooks (5 URLs/hook)

• Support: MQTT, scripting, TLS encryption

• Works as Wi-Fi extender and BLE gateway
