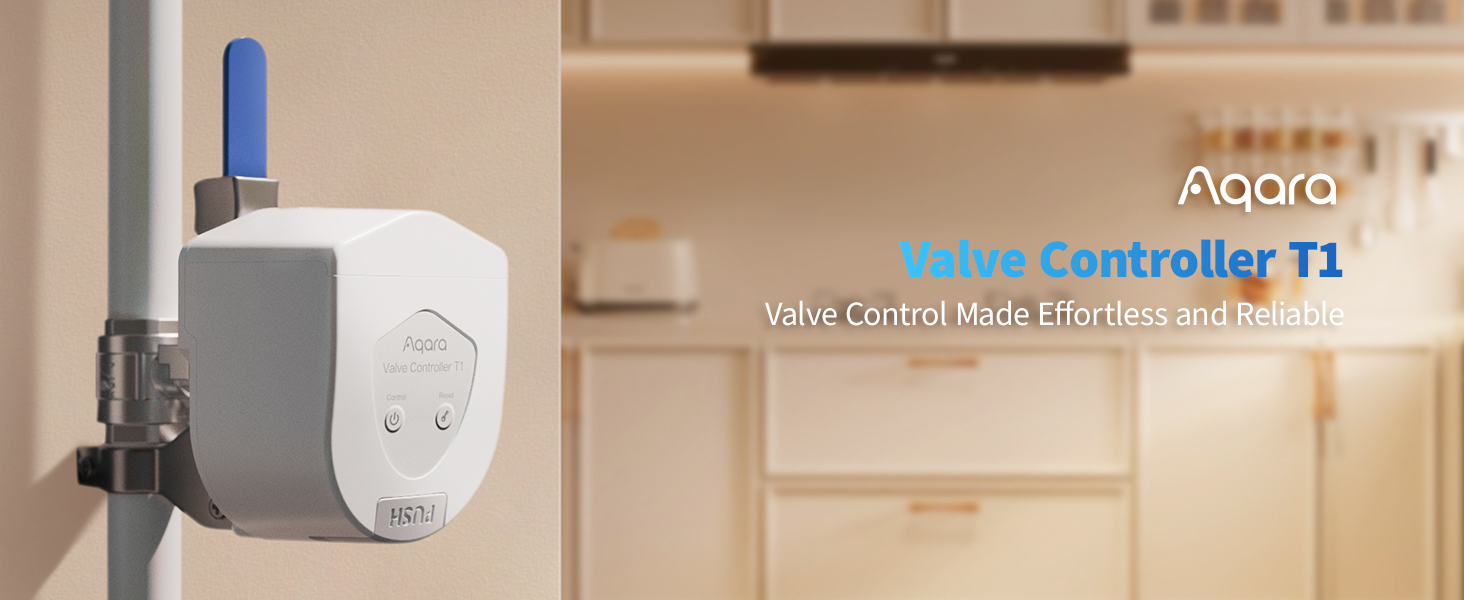

Aqara Valve Controller T1

Aqara Valve Controller T1 - Water and gas valve control made simple and safe

The Aqara Valve Controller T1 utilises Zigbee technology to intelligently control water or gas pipes, providing both in-app and manual control. It mounts easily onto existing valves without the need for plumbing modifications. Integrated with sensors to detect water or gas leaks, it can automatically switch off the supply in your absence, providing safety and peace of mind.

Key features:

Constant monitoring and automatic shut-off:
The device monitors in real time and automatically switches off the supply when a leak is detected. It integrates with water/gas sensors and the Aqara hub to form a complete safety system, shutting off the valve within 5-20 seconds* of detection.

• Pair with water or gas sensors

• Continuous monitoring

• Immediate automatic shut-off

• Automatic 30-day self-test reminder

Multiple intelligent control:
Enables manual, remote control via app or timed, providing precise and user-friendly operation.

• Manual control

• Real-time control from the app

• Hourly programming

• Automation with other devices

• Simple and intuitive operation

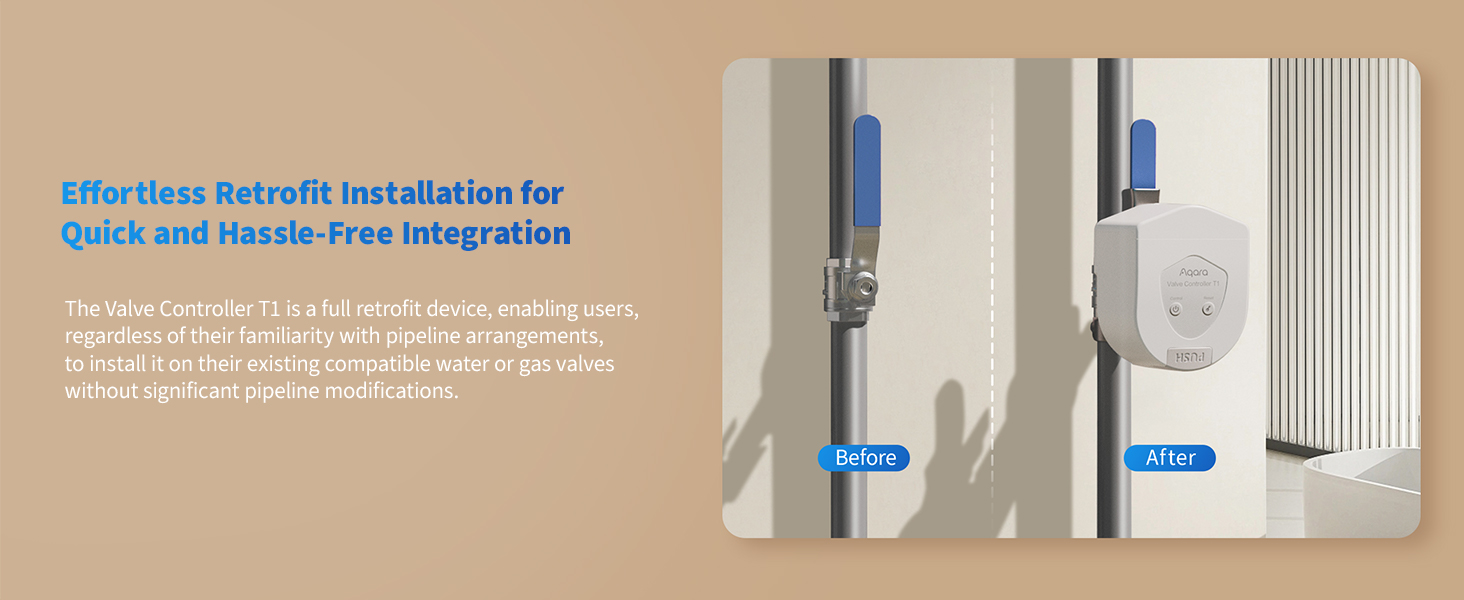

Easy installation without special tools:
Mounts onto existing taps without the need for special tools or plumbing knowledge. Perfect for any user.

• A few simple installation steps

• No extra tools required

• No plumbing knowledge required

Wide compatibility with household taps:
Compatible with different types of taps (lever or butterfly) and pipe sizes DN15, DN20, DN25.

• Lever or butterfly valve

• DN15 (1/2"), DN20 (3/4"), DN25 (1")

Automation and integration with smart ecosystems:
Requires an Aqara Zigbee hub** and offers Matter over Bridge*** support for integration with Alexa, Google Assistant, Apple Home and other platforms.

• Apple Home

• Amazon Alexa

• Google Home

• Samsung SmartThings

• Home Assistant

• Homey

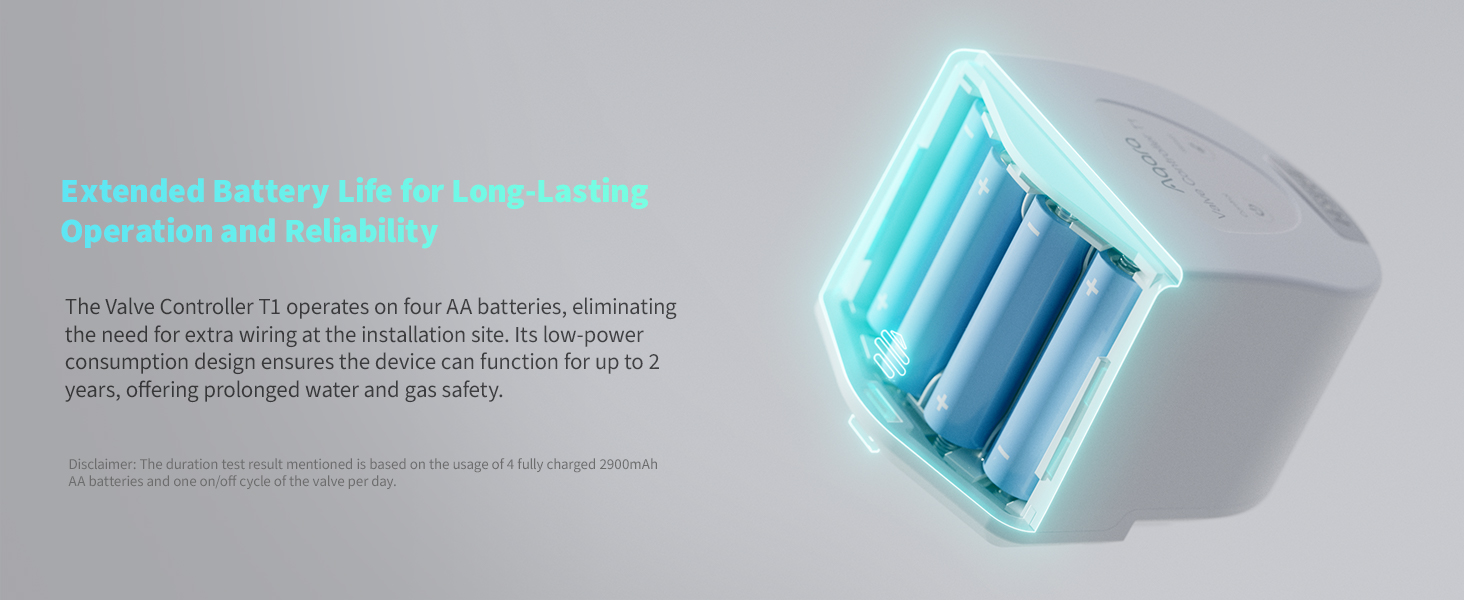

Long battery life and durability:
Powered by 4 AA batteries, no wires. Up to 2 years**** battery life, ensuring continuous and reliable operation.

• Cordless with 4 AA batteries

• Operates up to 2 years

Example scenarios:

1. Remote switch off while on holiday
Control the taps from the app from anywhere, or set preset times for closing/opening.

2. Leak Protection
Connects to the Aqara water sensor to automatically shut off the water/gas supply in the event of a leak.

3. Flexible installation for any scenario
Can be easily mounted anywhere and works with multiple water sensors.

4. Automate water supply on farms
Ideal for remote controllable irrigation management and animal feeding.

Technical Specifications:

• Model: VC-X01D

• Wireless protocol: Zigbee

• Dimensions: 93 × 72 × 84 mm

• Power supply: 4 × AA batteries

• Valve pressure: 1.6 MPa

• Maximum torque: ≤ 60 kg-cm / 3.6 N-m

• Opening/closing time: 5-20 seconds

• Pipe compatibility: DN15, DN20, DN25

• Handle compatibility: lever or butterfly type

• Operating temperature: -10 °C ~ 40 °C

• Humidity: 0-95% RH

Package contains:

• 1 × Aqara Valve Controller T1

• 1 × User manual

• 1 × Accessory kit

• 4 × AA batteries
