‎Aqara Display Switch V1

Aqara Display Switch V1 EU

Display Switch V1 EU is a two-channel neutral wall switch which equipped with four physical buttons and a 2.08-inch LCD screen. It can be customized with texts that match the device and user habits, which can help users to clearly understand which device each button controls. Its power monitoring function can help users improve energy efficiency. With matter over bridge, users can access the switch in the third-party ecosystem.




Highlights:

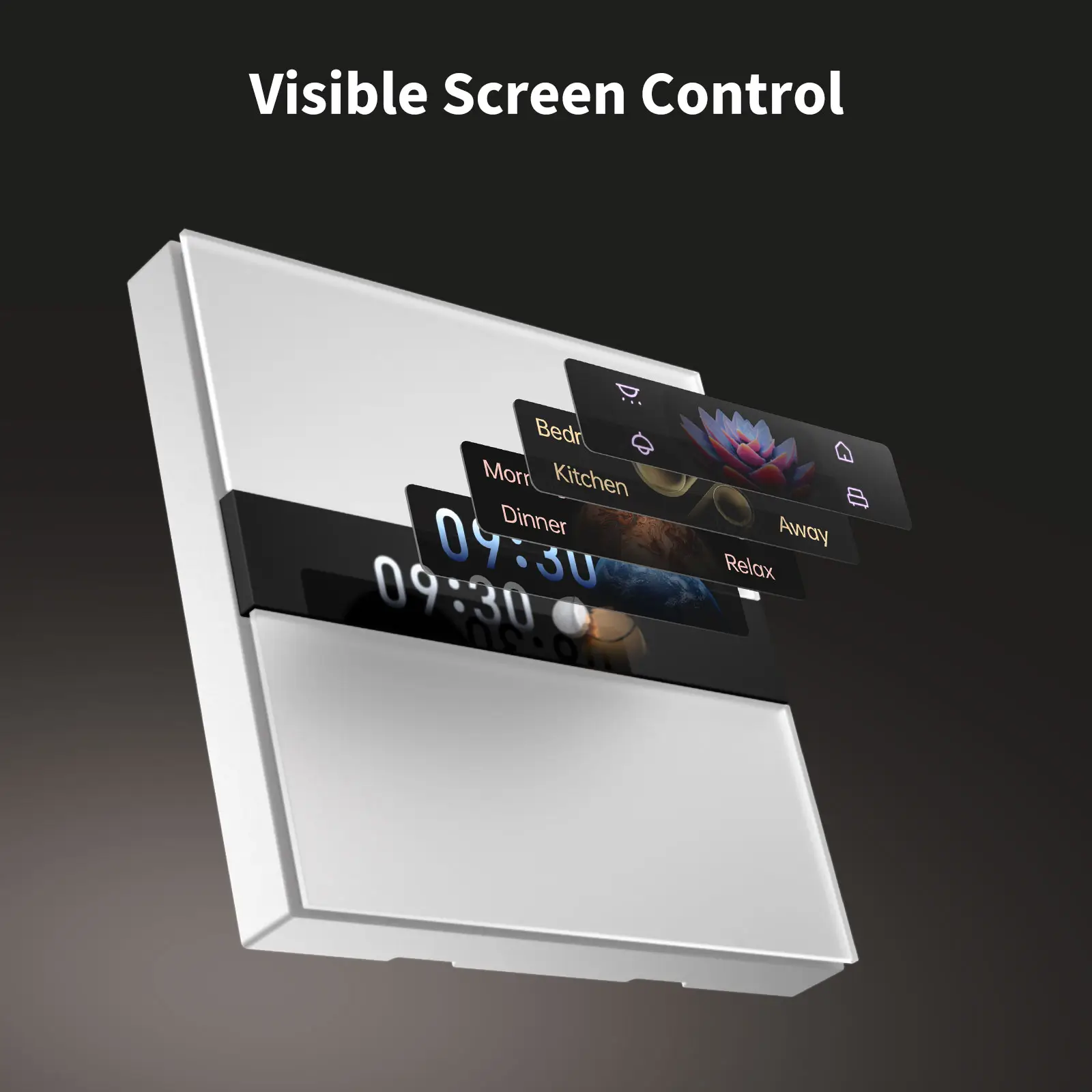

• Visible Screen: Buttons can be renamed via App to identify their functions①. This 4-button switch features a 2.08” LCD screen that can display user-defined text and icons, ensuring clear identification of the device controls by each button and the actual function. Users can also adjust text size②, color, and icons for a tailored and user-friendly experience.
• Flexible Control③: The 2 buttons on the left are designed as electrical switches (controlling wired loads), users can configure the device through Aqara Home and control it through switches. The 2 buttons on the right are wireless switches, and the 4 buttons can be used as wireless switches at the same time or directly used as customized scene triggers.
• Zigbee with Matter over Bridge④Support: With Matter over Bridge Support, it can integrate the switch with other third-party ecosystem such as Apple Home, Amazon Alexa, Google Home, Samsung SmartThings, Home Assistant and Homey. With Zigbee, it can be used as a Zigbee repeater to maintain stable communication among sub-devices, and has ultra-low standby power consumption, reducing electricity costs.
• Proximity Activation⑤: Built-in presence sensor, the switch allowing users to trigger the screen based on distance. The switch's default automation allows users to set automation according to their preferences when someone approaches, bringing users a convenient experience.
• Power Monitoring⑥: The switch monitors the power consumption of connected devices and provides daily/weekly/monthly energy consumption reports in Aqara Home. Users can use these data reports to optimize their daily electricity usage to reduce consumption and increase sustainable energy use.
• Premium Texture and Fingerprint Resistance: The AG glass panel gives the switch an outstanding appearance and comfortable texture. The fingertips feel warm and comfortable like skin, and the micro switch brings a smooth control feel like a dragonfly touching the water. The switch panel adopts anti-fingerprint technology to effectively reduce fingerprints and stains, keeping the surface smooth and clean as new.

Specificatii:



• Nume produs: Touchscreen Dial V1 EU
• Model: WS-K02D

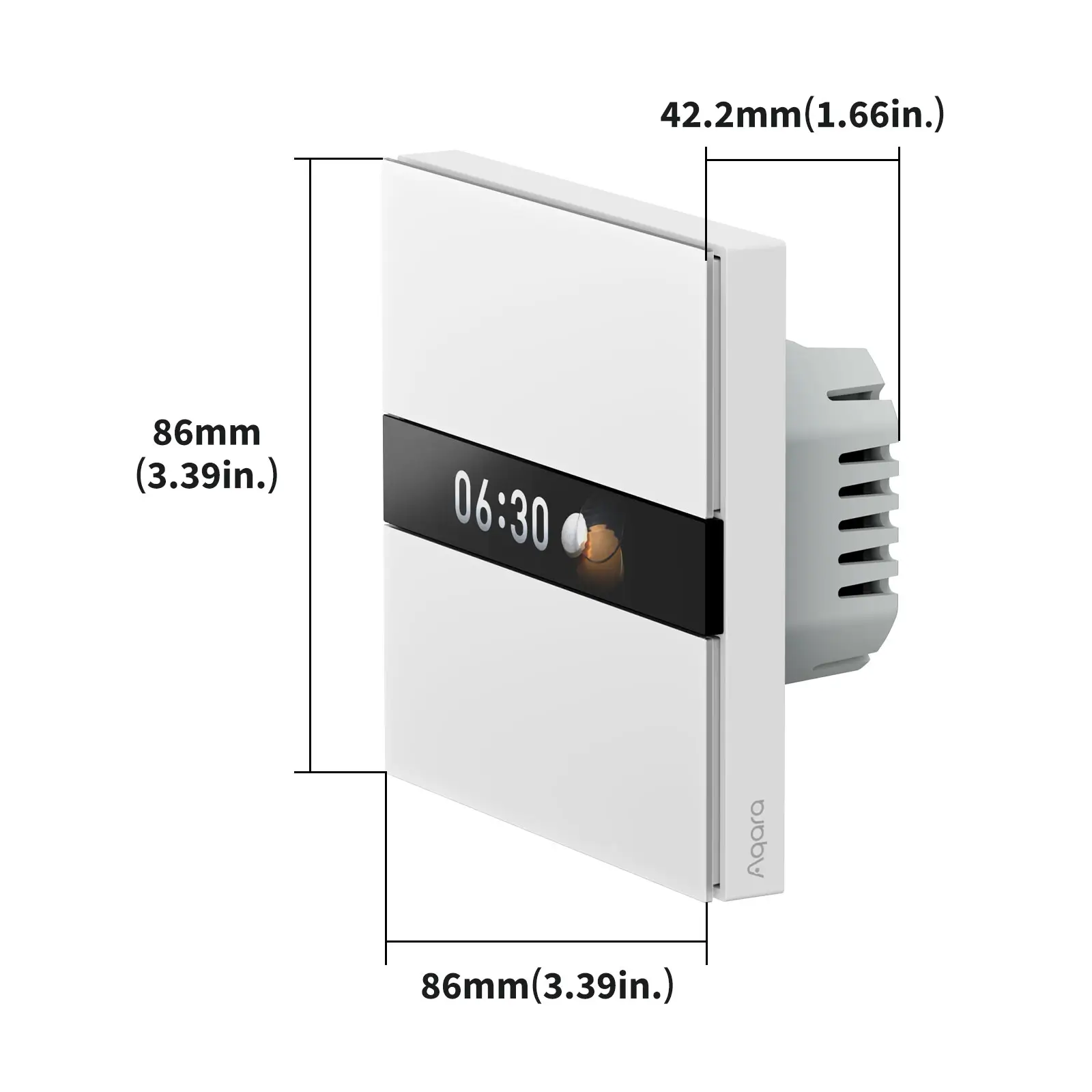

• Dimensiunile produsului: 86 × 86 × 62,1 mm (3,39 × 3,39 × 2,45 inchi)
• Temperatura de funcționare: -10°C ~ 40°C (14°F ~ 104°F)
• Umiditate de funcționare: 0 ~ 95% RH, fără condens
• Valoare electrică: 200–240 VAC, 50/60 Hz, Max 8 A (sarcină rezistivă), μ
• Protocoale wireless: Wi-Fi IEEE 802.11 a/b/g/n/ac 2.4GHz/5GHz, Zigbee IEEE802.15.4, Bluetooth



Ce este în cutie:



• Ecran tactil Dial V1 EU × 1,
• Manual de utilizare × 1,
• Declarație de conformitate × 1,
• Kit de șuruburi × 2
