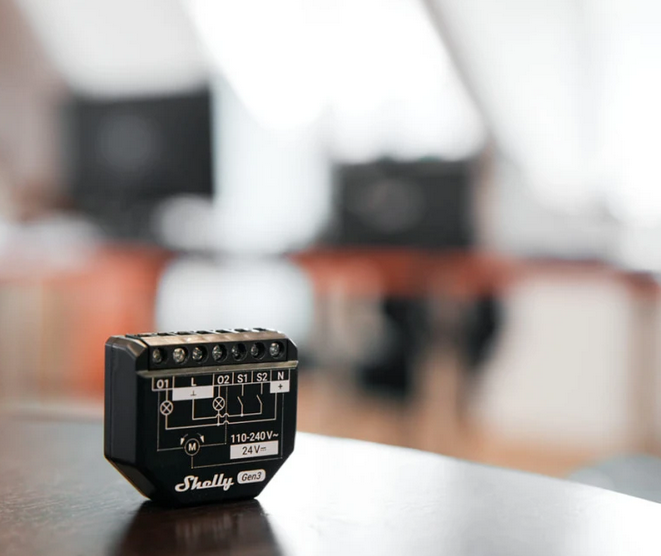

Shelly 2PM Gen3 - relay switch with power metering 2x 10A (WiFi, Bluetooth)

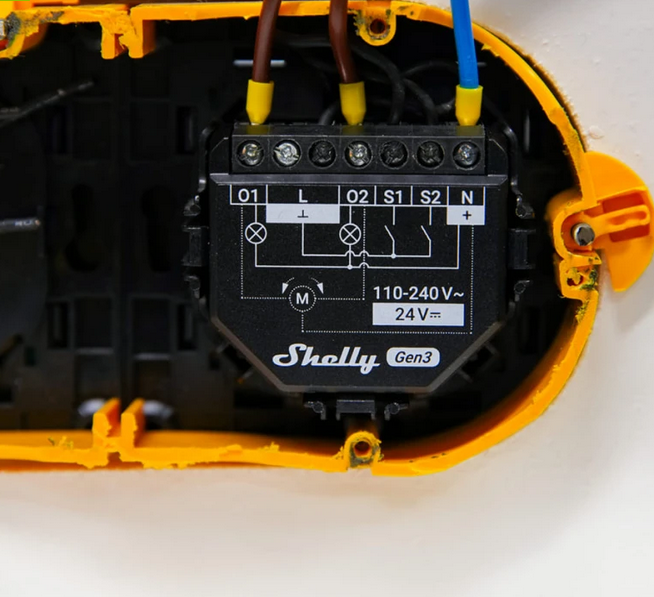

Shelly 2PM Gen3 is a smart switch with dual-channel control, power metering, and cover control. Remotely control and monitor two different electrical circuits, or roller shutters, blinds, and other bi-directional motors from anywhere. Perfect for retrofitting standard electrical wall boxes, power sockets, and light switches, even in spaces with limited room.

• 2 channels on the same phase
• Power metering on each channel
• Cover (roller) control - automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors, and other bi-directional motors
• Slats angle control - use with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room.
• New processor - ESP-Shelly-C38F chip with an increased memory of 8 MB
• Improved durability of terminals
• Virtual components
• Wi-Fi range extender & Bluetooth gateway
• Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
• No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants.
• Supports KNXnet / IP communication

One Device, Different possibilities

• 2-Channel Smart Switch - Automate your lights and track their real-time power usage.
• Cover (Roller) Control - Automate and control the positioning of roller shutters, curtains, blinds, awnings, gates, pool covers, and other bi-directional AC motors.

Functionalities

• Wi-Fi operated - Connect Shelly 2PM Gen3 to your Wi-Fi network. No HUB required!
• Bluetooth - Quick inclusion via Bluetooth or use it as a Bluetooth gateway.
• Power Monitoring - Two integrated precise power meters allow you to monitor the consumption for each channel.
• Slats angle control - Use with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room.
• Smart Schedules - Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
• Smart Scenes - Set custom scenes by combining Shelly 2PM Gen3 with your other Shelly devices.

Endless use applications

• Automated Bedroom Curtains or Shutters - Set Shelly 2PM Gen3 to open your bedroom curtains or shutters at a specific time each morning using “Schedules”. Wake up naturally with gradual light as the curtains open to your desired position, starting your day with ease.
• Control Two Lights with One Device - Shelly 2PM Gen3 lets you control and monitor two different lights on the same phase using a single device. Each light's power consumption is tracked separately, making your lighting setup more efficient. Use the manual switch, app, preferred home automation system, or your voice!
• Energy Management - Take charge of your energy usage with the power metering feature on each channel. Monitor and analyze the power consumption of connected devices in real-time, and use this data to make informed decisions to reduce energy costs.
• Smart blinds - Integrate Shelly 2PM Gen3 with your blinds for an energy-efficient home. Automatically adjust the blinds based on the time of day or the weather conditions. For instance, close the blinds during the hottest part of the day to keep your home cool, and open them in the morning to let in natural light and reduce the need for artificial lighting.

Specifications

• Physical Size (HxWxD): 37x42x16 mm /1.46x1.65x0.63 in
• Weight: 30 g / 1.06 oz
• Screw terminals max torque: 0.4 Nm / 3.5 lbin
• Conductor cross section: 0.2 to 2.5 mm²/ 24 to 14 AWG (solid, stranded, and bootlace ferrules)
• Conductor stripped length: 6 to 7 mm /0.24 to 0.28 in
• Mounting: Wall console / In-wall box
• Shell material: Plastic
• Shell color: Black
• Environmental Ambient working temperature: -20°C to 40°C / -5°F to 105°F
• Humidity: 30% to 70% RH
• Max. altitude: 2000 m / 6562 ft
• Electrical Power supply: 110-240V~, 24 VDC ±10%
• Power consumption: < 1. 4 W
• Max. switching voltage: 240V~, 30V DC
• Max. switching current: 16A (240V~), 10A (30V DC)
• Internal-temperature sensor: Yes
• Voltmeter (AC): Yes
• Ammeter (AC): Yes
• Overheating protection: Yes (AC)
• Overvoltage protection: Yes (AC)
• Overcurrent protection: Yes (AC)
• Overpower protection: Yes
• Obstacle detection: Yes (cover mode)
• Safety switch: Yes (cover mode)
• Radio Wi-Fi Protocol: 802.11 b/g/n
• RF band: 2400 - 2495 МHz
• Max. RF power: < 20 dBm
• Range: Up to 50 m / 164 ft outdoors, up to 30 m / 98 ft indoors (depending on local conditions)
• Bluetooth Protocol: 4.2
• RF band: 2400 - 2483.5 MHz
• Max. RF power: <4 dBm
• Range: Up to 30 m / 98 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions)
• Microcontroller unit CPU: ESP-Shelly-C38F
• Flash: 8 MB
• Schedules: 20
• Webhooks (URL actions): 20 with 5 URLs per hook
• Wi-Fi range extender: Yes
• BLE Gateway: Yes
• Scripting: Yes
• MQTT: Yes
• Encryption: Yes
