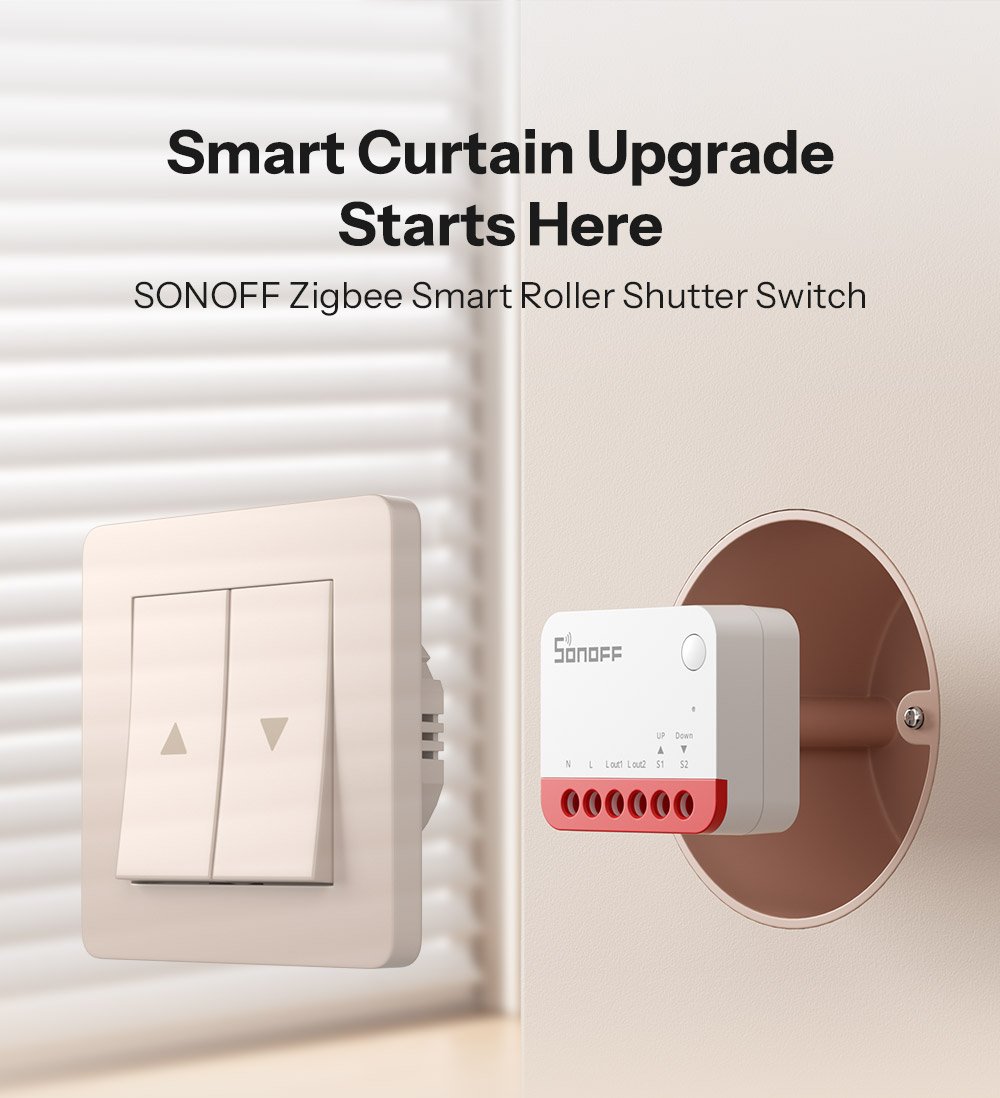

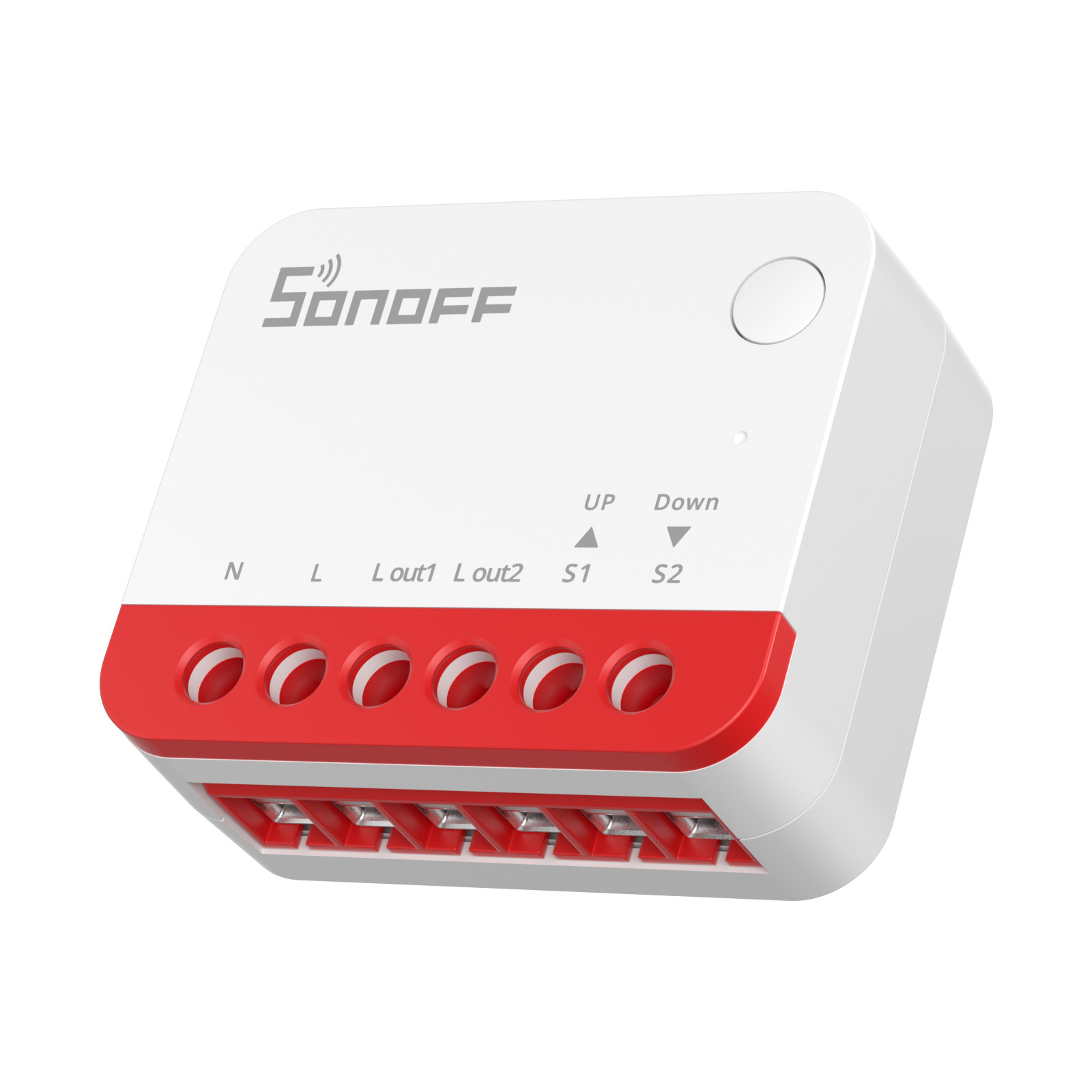

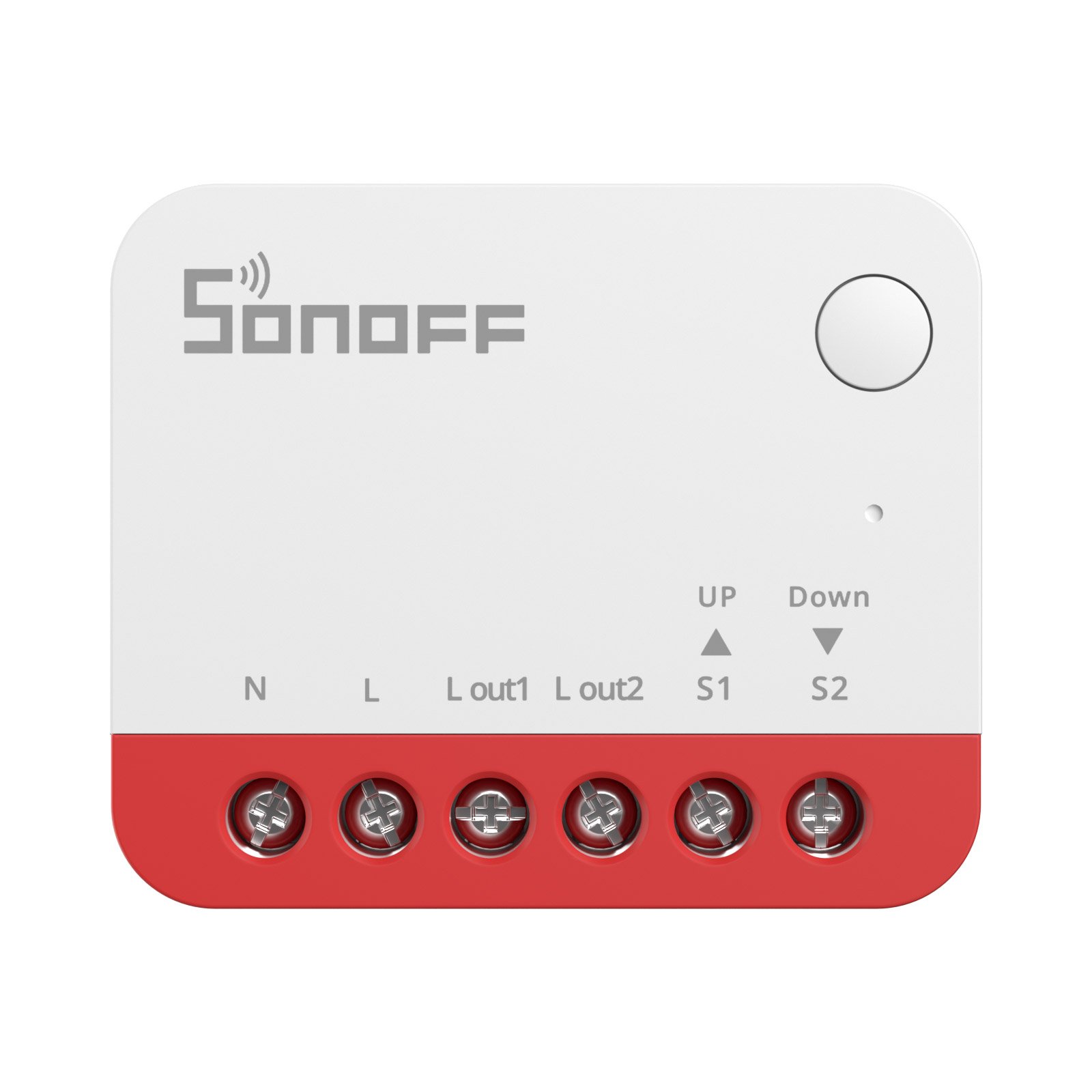

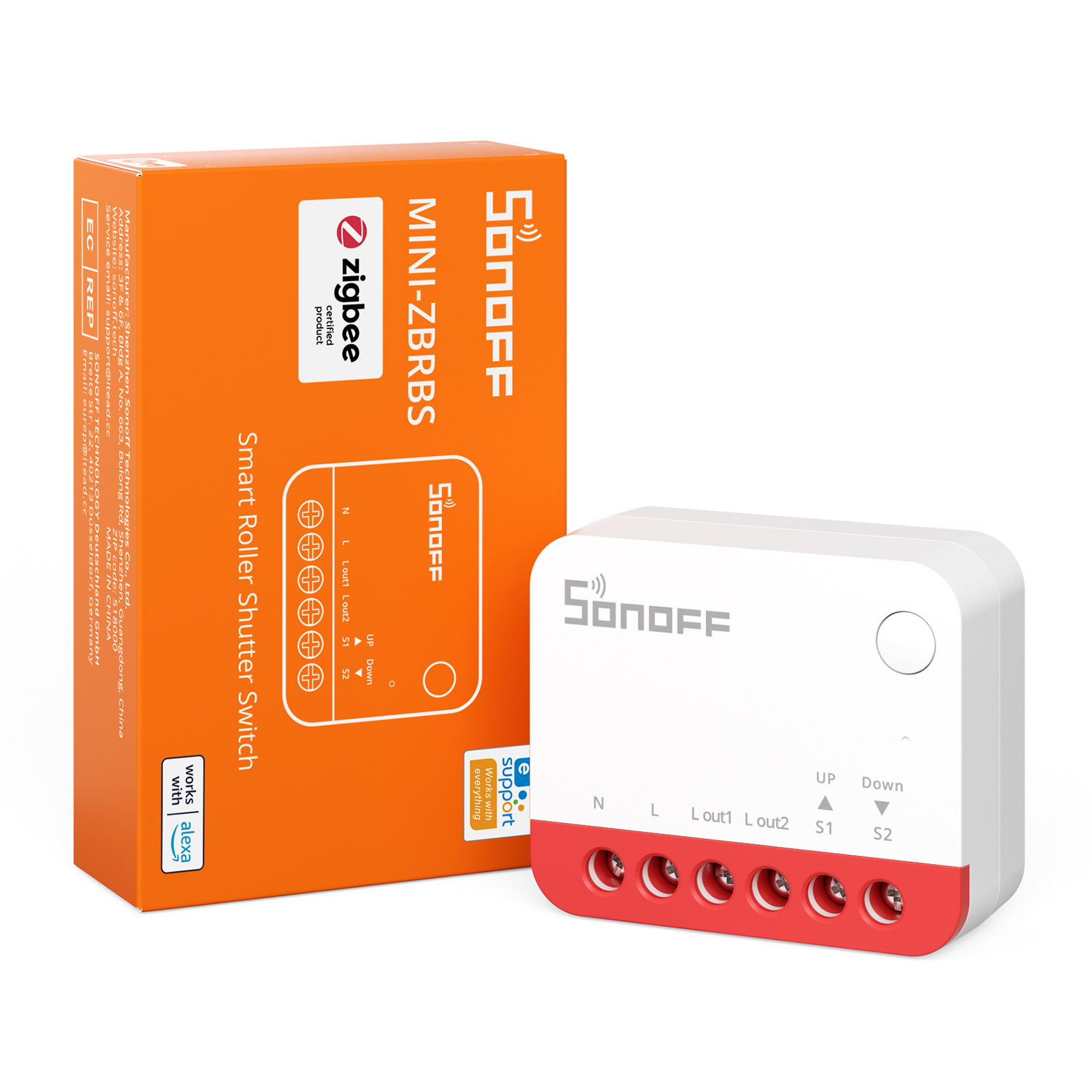

SONOFF Zigbee Smart Roller Shutter Switch MINI-ZBRBS – Smart Control for Blinds and Roller Shutters

The SONOFF MINI-ZBRBS is a Zigbee 3.0 smart module designed to automate and control electric blinds, curtains, and roller shutters.
Through the eWeLink app and Zigbee ecosystem, you can open, close, or stop your blinds at any position with precise control.
It works seamlessly with Alexa, Google Home, and SmartThings for voice commands and advanced automations.

Main features

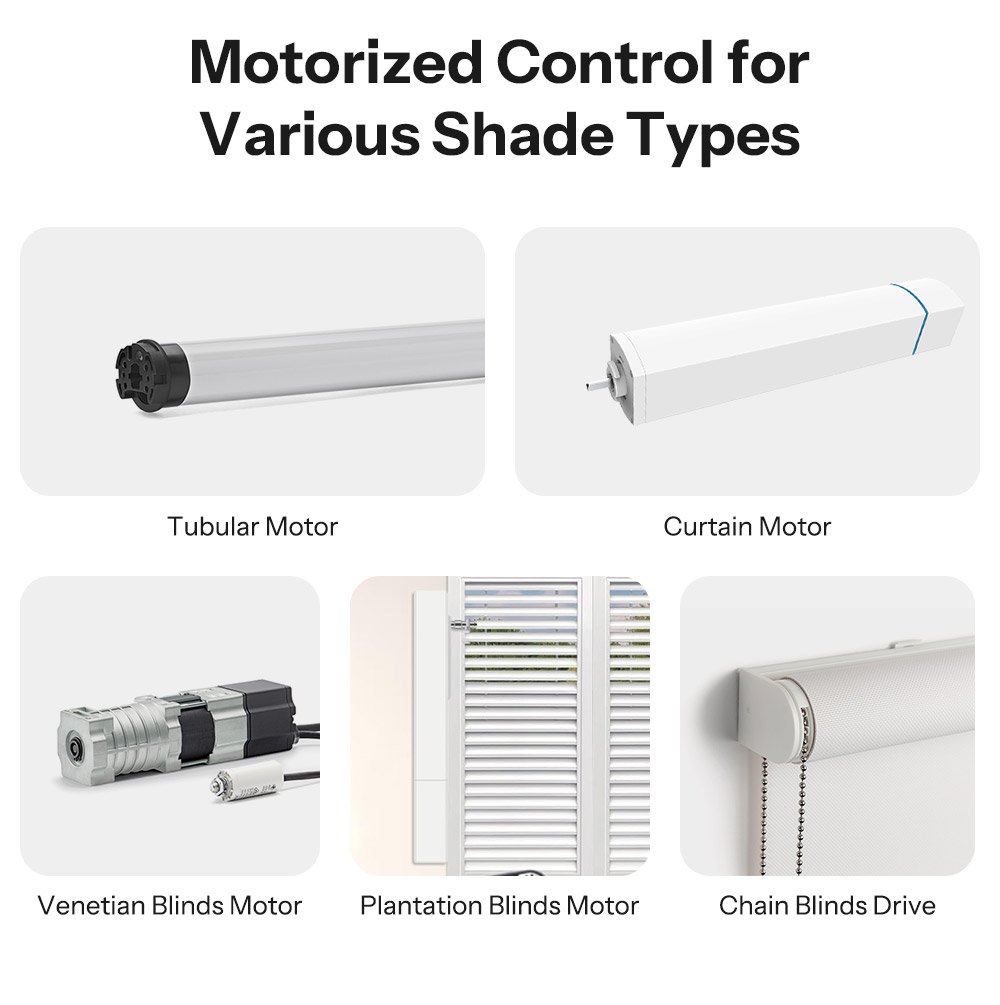

• Full control of blinds, curtains, roller shutters, and pergolas

• Zigbee 3.0 protocol for reliable, secure, and fast connectivity

• Precise position adjustment between 0% and 100%

• Works with eWeLink, Alexa, Google Assistant, and SmartThings

• Local and remote control capabilities

• Supports voice commands and custom automation scenes

• Compatible with multiple Zigbee Hubs (Sonoff, Aqara, Tuya, etc.)

• Overload protection and low power consumption

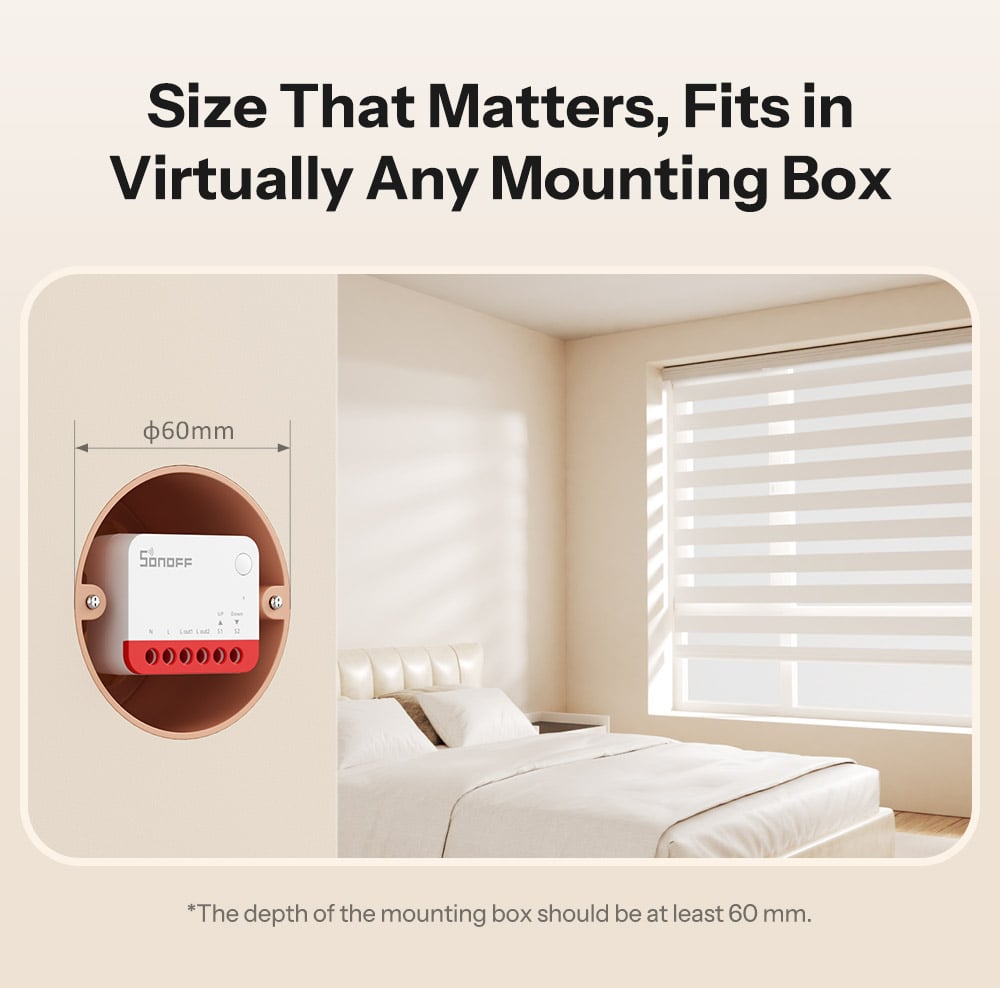

• Compact design for easy installation in wall boxes

Technical specifications

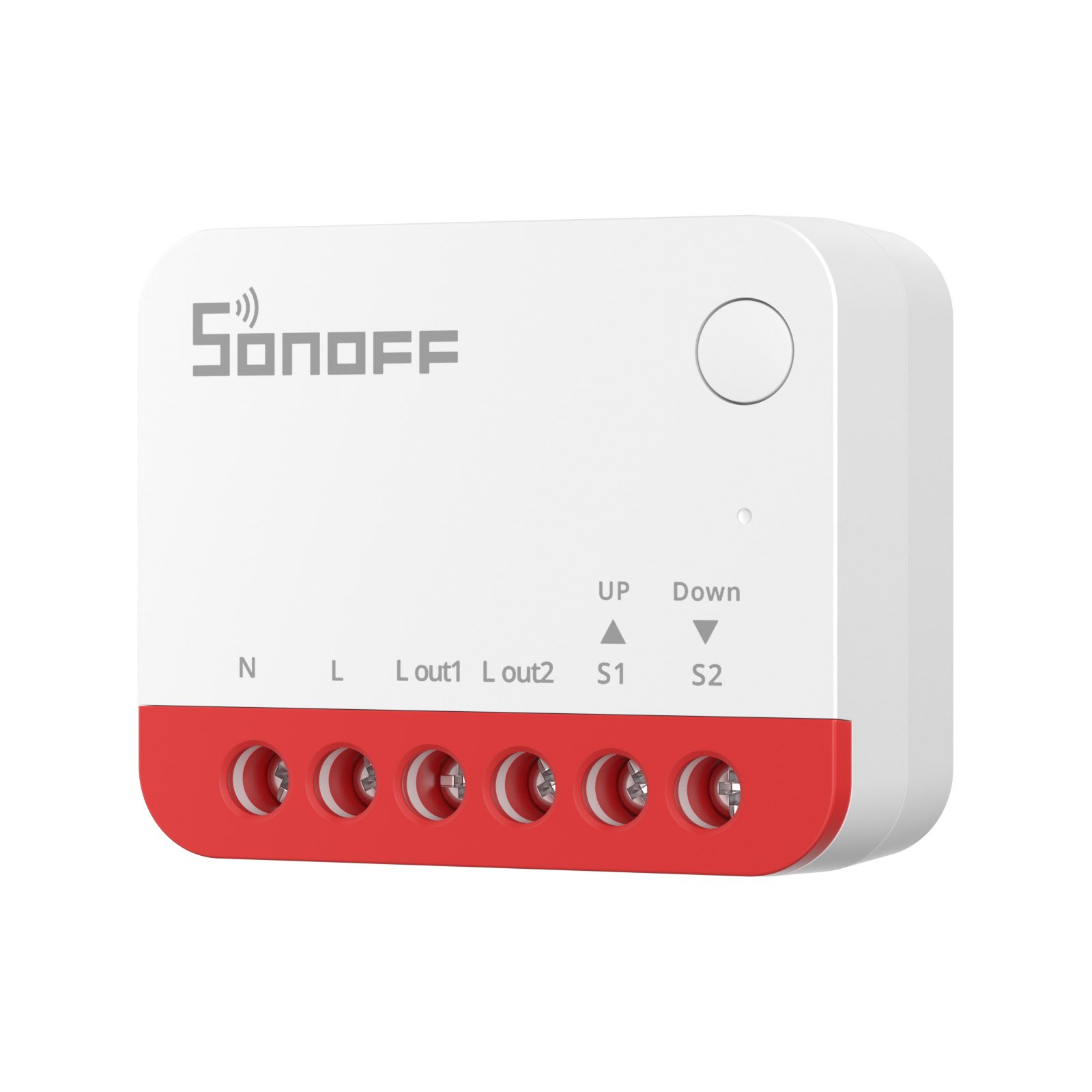

• Model: SONOFF MINI-ZBRBS

• Communication protocol: Zigbee 3.0

• Power supply: 100–240V AC, 50/60Hz

• Max current: 2A

• Max power: 480W at 240V AC

• Position range: 0% – 100% (auto/manual calibration)

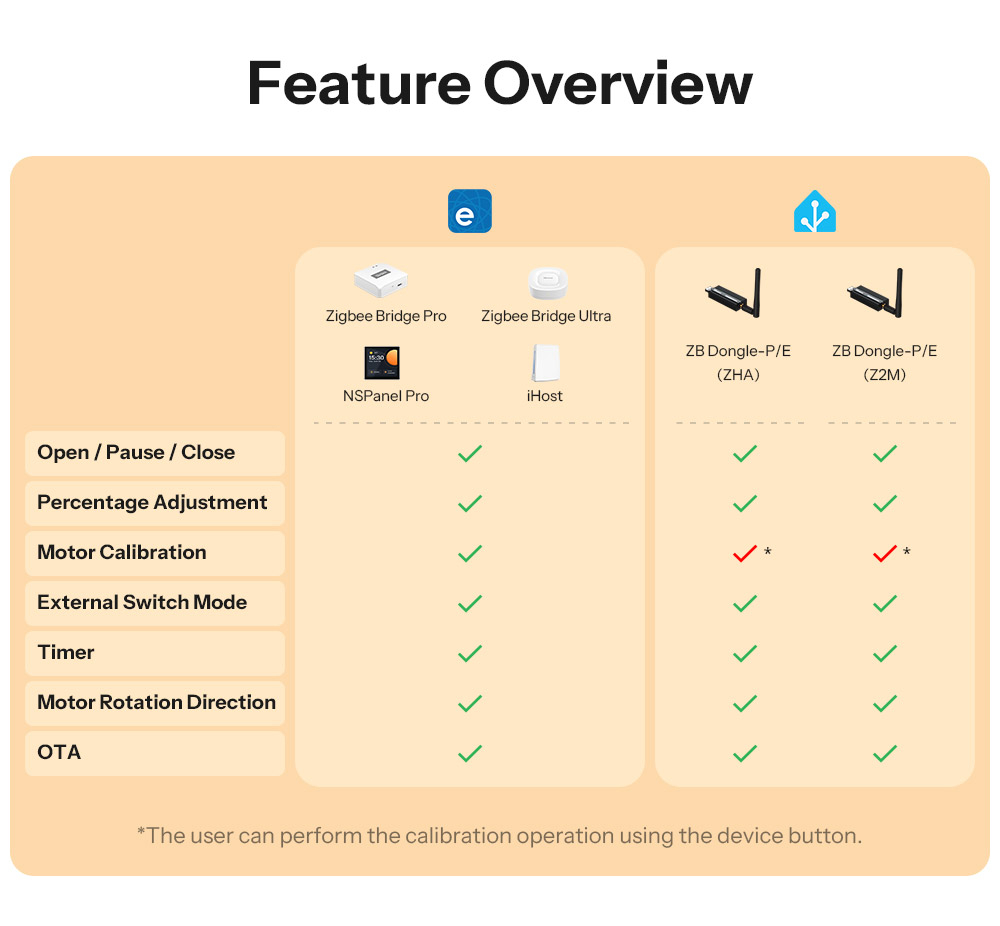

• Compatibility: eWeLink, Alexa, Google Home, SmartThings, various Zigbee hubs

• Operating temperature: –10°C to +40°C

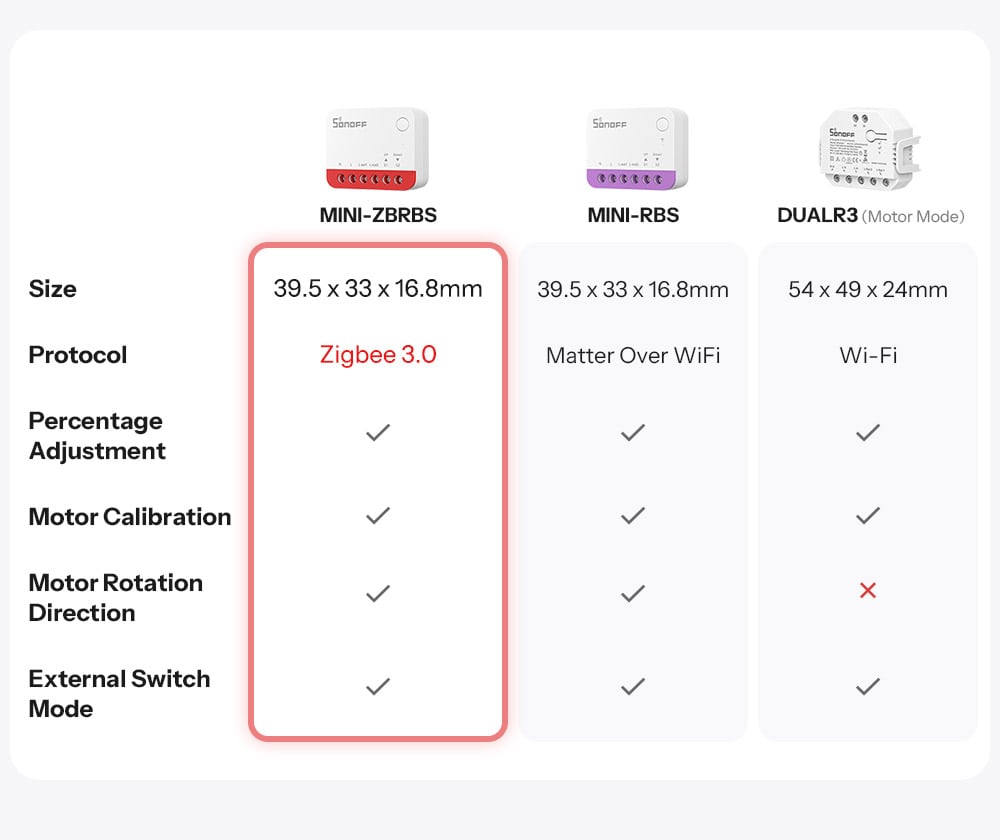

• Dimensions: 39.5 x 39.5 x 18 mm

User benefits

• Smart control for blinds and curtains via app or voice

• Precise position calibration for ideal light management

• Wide Zigbee compatibility with popular hubs

• Compact design and easy installation

• Operates locally even without internet (Zigbee protocol)

• Ideal for window blinds, pergolas, and roller shutters automation
