Home Assistant Voice Preview Edition

Home Assistant Voice Preview Edition is an open-source, privacy-focused voice assistant designed to seamlessly connect with Home Assistant and give you a glimpse of the future of voice control today. With an advanced audio processor and dual microphones, it captures your commands and controls your devices. Tactile buttons, an injection-molded case, and an LED ring contribute to its premium feel, allowing it to blend naturally into any home.

Note: Home Assistant Voice Preview Edition requires Home Assistant to operate. Weaker Home Assistant hardware may result in slower voice processing. If you have less powerful Home Assistant hardware, it’s recommended to offload speech processing to Home Assistant Cloud.

🔗 Learn more from the manufacturer’s website
📚 Complete device documentation

Key Features

• Built for Home Assistant:
  The first voice hardware designed by the Home Assistant development team, created from the ground up for seamless integration.

• Preview the future of voice today:
  Home Assistant is rapidly developing a privacy-focused, open-source voice assistant. Preview Edition lets you participate in this development and experience the future of voice control today.

• The easiest way to start with Assist:

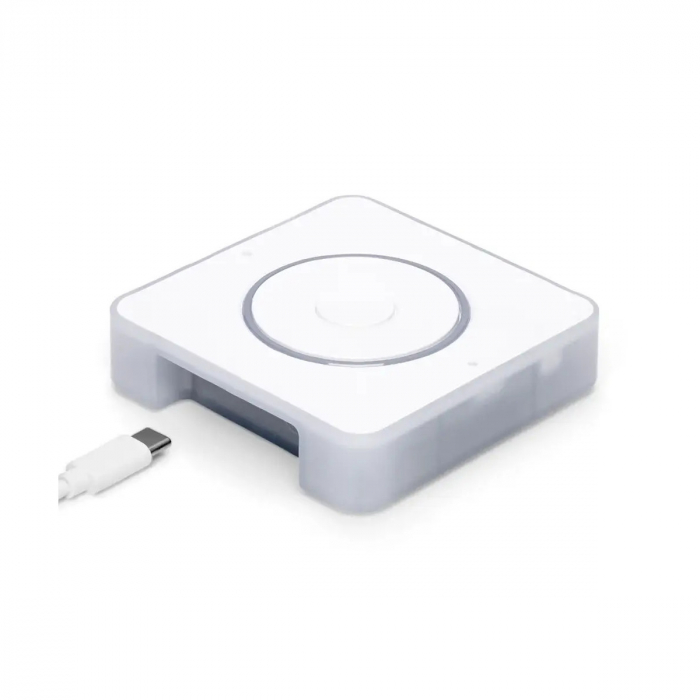

  Simply connect it to USB-C power (cable and power supply not included) and follow the intuitive setup wizard. No assembly required.

• The private voice assistant:
  When paired with powerful Home Assistant hardware, it can run fully locally or offload audio processing to the privacy-respecting Home Assistant Cloud. Includes a physical mute switch to disable the microphones.

• Language support:
  Assist aims to support more languages than other voice assistants, but development is ongoing. Check the Home Assistant Assist documentation for currently supported languages.

• Advanced Audio Processing:
  Dual microphones and the XMOS audio processor capture your voice clearly, even in noisy environments.

• Visual and audio feedback:
  The multicolored LED ring shows listening status, volume levels, and more. Receive feedback such as sensor readings, timers, and other responses via the internal speaker or through an external speaker via the 3.5mm headphone jack.

• Intuitive physical controls:
  The rotary dial adjusts volume and LED brightness, and the multifunction button can trigger Assist or be customized in Home Assistant.

• Sleek, discreet design:
  The small, injection-molded housing has a premium look and feel, blending elegantly into any setting.

• Expandable:
  Based on ESPHome, it allows adding sensors or accessories via the included Grove port.

• Fully open-source and community-driven:
  Open software, firmware, and hardware backed by a passionate community customizing and expanding functionality.

Technical Specifications

• Processor: ESP32-S3 with 16 MB FLASH storage, 8 MB octal PSRAM

• Audio Processing: XMOS XU316

  • Echo cancellation

  • Stationary noise removal

  • Automatic gain control (AGC)

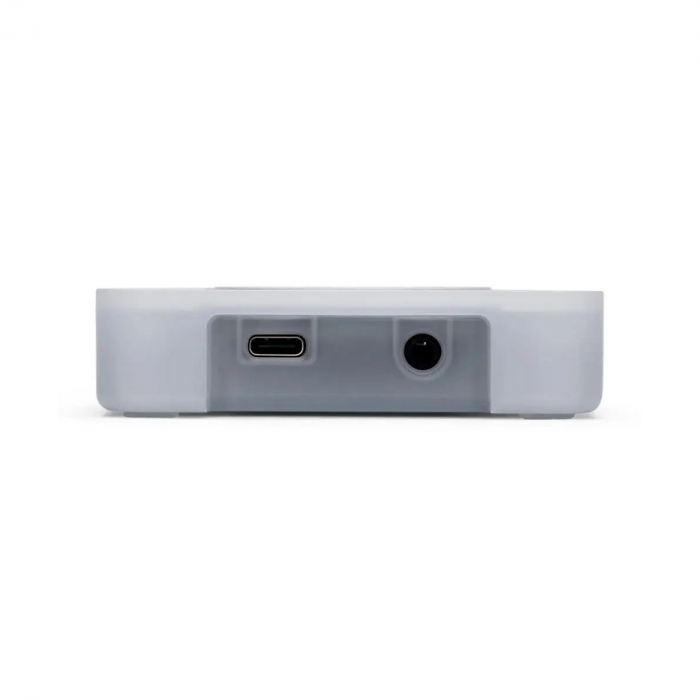

• Power/Data: USB-C, 5 V DC, 2 A

• Connectivity: 2.4 GHz Wi-Fi, Bluetooth 5.0 Low Energy

• Audio Output: 3.5 mm stereo headphone jack

• DAC: TI AIC3202, 48 kHz sampling rate

• Physical Controls:

  • Multipurpose button

  • Rotary dial for volume and brightness

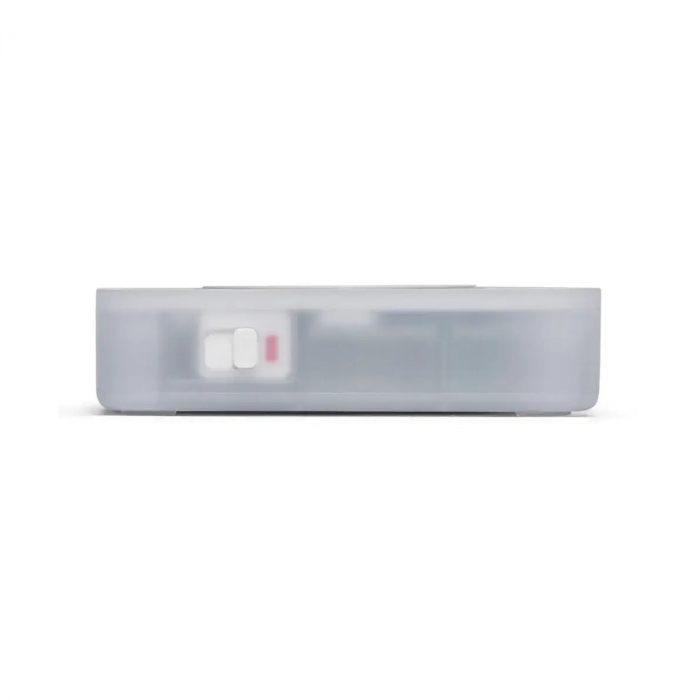

  • Physical mute switch for microphones

• Microphone and Speaker:

  • Built-in speaker

  • Dual-microphone array

  • Dedicated I2S lines for audio input and output

• Expandability:

  • Grove port for sensors/accessories

  • Easy to open (no clips, only screws)

  • Exposed PCB pads for modding

• Software: Preloaded with ESPHome
  Fully open-source firmware for both the ESP32 and XMOS chips

• Requirements: Home Assistant already set up on another device.
  For fully local voice processing, an Intel N100 or more powerful Home Assistant setup is recommended. Weaker hardware will require a Home Assistant Cloud subscription for optimal performance.

• Language Support: Check the Home Assistant Assist documentation for an up-to-date list.

• Environmental Conditions:

  • Indoor use only

  • Temperature: 0 °C to 30 °C (32 °F to 86 °F)

• Humidity: Non-condensing. Keep in a dry, dust-free environment to avoid damage.

• Dimensions & Weight:

  • Device: 84×84×21 mm, 96 g

  • With box: 94×94×30 mm, 120 g

• Material: Injection-molded polycarbonate plastic

• Colors: White and semi-transparent
