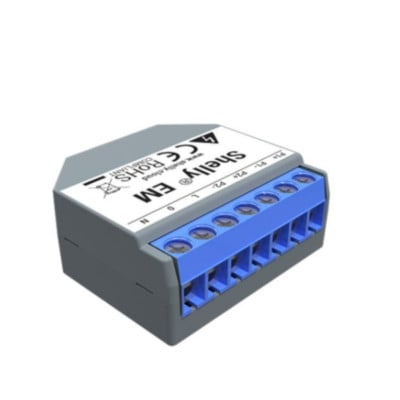

Shelly EM Single phase 2 channel energy meter with contactor control
![Shelly EM [1]](https://gomagcdn.ro/domains2/wifishop.ro/files/product/original/modul-wi-fi-pentru-activarea-scenelor-shelly-plus-i4-dc-4-canale-compatibil-cu-amazon-alexa-si-google-assistant-copie-809536.jpg "Shelly EM [1]")
![Shelly EM [2]](https://gomagcdn.ro/domains2/wifishop.ro/files/product/original/modul-wi-fi-pentru-activarea-scenelor-shelly-plus-i4-dc-4-canale-compatibil-cu-amazon-alexa-si-google-assistant-copie-904165.jpg "Shelly EM [2]")
![Shelly EM [3]](https://gomagcdn.ro/domains2/wifishop.ro/files/product/original/modul-wi-fi-pentru-activarea-scenelor-shelly-plus-i4-dc-4-canale-compatibil-cu-amazon-alexa-si-google-assistant-copie-401772.jpg "Shelly EM [3]")
![Shelly EM [0]](https://gomagcdn.ro/domains2/wifishop.ro/files/product/medium/modul-wi-fi-pentru-activarea-scenelor-shelly-plus-i4-dc-4-canale-compatibil-cu-amazon-alexa-si-google-assistant-copie-809536.jpg "Shelly EM [0]")
![Shelly EM [1]](https://gomagcdn.ro/domains2/wifishop.ro/files/product/medium/modul-wi-fi-pentru-activarea-scenelor-shelly-plus-i4-dc-4-canale-compatibil-cu-amazon-alexa-si-google-assistant-copie-904165.jpg "Shelly EM [1]")
![Shelly EM [2]](https://gomagcdn.ro/domains2/wifishop.ro/files/product/medium/modul-wi-fi-pentru-activarea-scenelor-shelly-plus-i4-dc-4-canale-compatibil-cu-amazon-alexa-si-google-assistant-copie-401772.jpg "Shelly EM [2]")
- Description
- Reviews (0)
Shelly EM is Shelly's single-phase power meter, recommended for both domestic and commercial use. Shelly ЕМ can monitor energy consumption in real time in 2 points simultaneously (up to 120A each). With Shelly EM you can also measure how much energy your solar system is producing and energy consumption at the same time.
It can automatically shut down the entire circuit if consumption or energy (prepaid energy option) reaches the set limit and has built-in relay output for contactor control.
Characteristics:
110-230V ± 10, 50 / 60Hz AC, Shelly EM is compatible with all major international voltage standards.
Small size: 39x36x17mm
equipped with built-in Wi-Fi
accurate power meter with 1% accuracy, 50A and 120A current transformers available, sold separately
MQTT, API support
Monthly expenses
365-day consumption history stored on the device

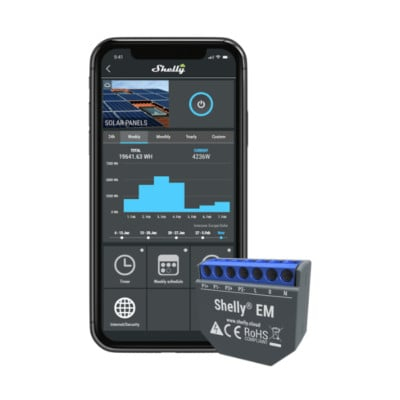

Easy to use charts
Detailed report downloadable in CSV
Relay output for contactor control: 2 A / 230 VAC / 50/60 Hz
Measurements:
2 x consumption (W),
1 x current (A)
1 x voltage (V)
2 x energy (Wh), energy consumed from the electrical network
2 x energy (Wh), energy generated from a photovoltaic system
2 x reactive power (Var)
