Smart relay Shelly Plus 1PM - 1 channel with energy meter, WiFi, application control, compatible with Amazon Alexa, Google Assistant and Home Assistant

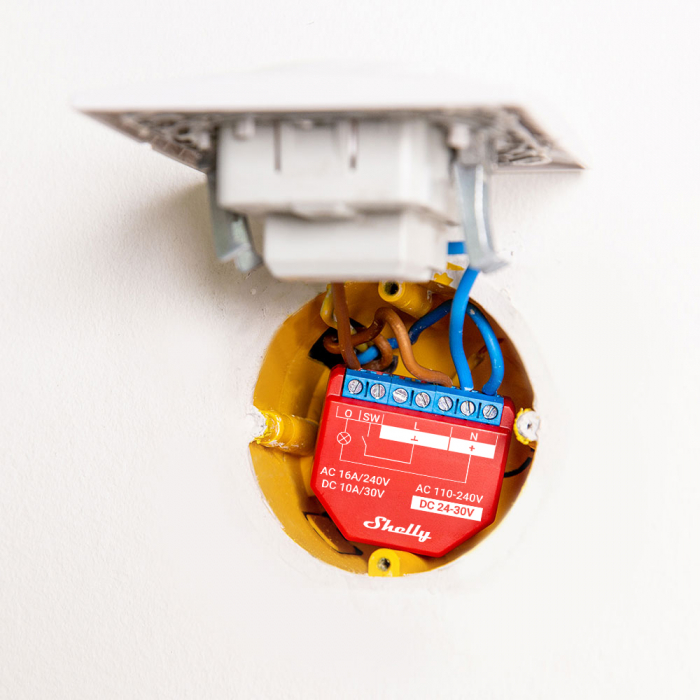

Shelly PLUS 1PM is one of the world's smallest WiFi smart relay switches with power meter function. Due to its small size, it fits in the wall under the outlet or in a standard light switch.

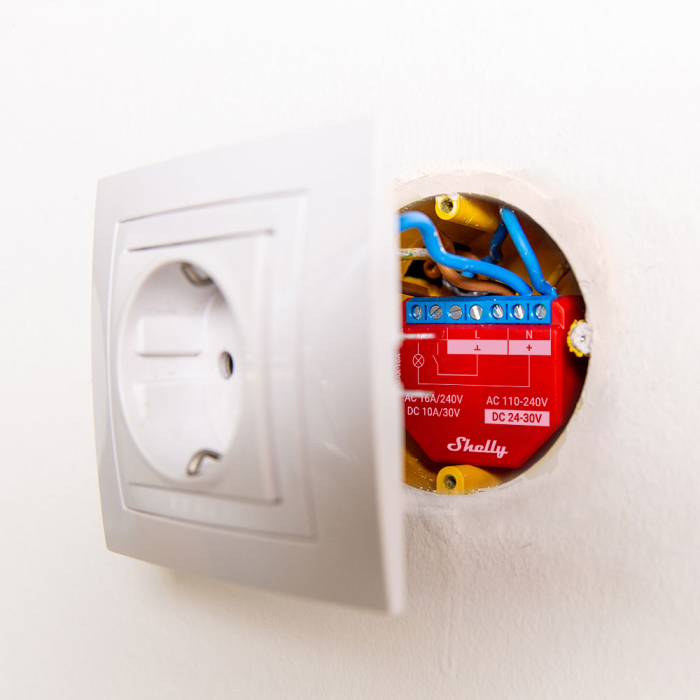

Shelly PLUS 1PM is the power meter equipped version of Shelly 1. This is one of the smallest open source devices with WiFi access to intelligent control circuits. Due to its small size, you can embed it behind a standard power socket / light switch or in an electrical cabinet.

New and Improved
Shell The Shelly Plus line comes in a unified and improved form. Plus Line devices' small dimensions allow you to easily mount them behind any wall switch or wall outlet, and they are completely retrofit. Each device in the Plus line comes with a wiring diagram printed on the housing to ensure safe and easy installation.



PLUS SERIES:

Increased safety: improved over-temperature protection with software thresholds to control and prevent malfunctions
Extremely fast processor: for immediate command execution and notification
Wi-Fi operated: Connect Shelly Plus 1 to your Wi-Fi network. No
Bluetooth HUB required: Add devices quickly and easily via Bluetooth connection using the Shelly Cloud app
Improved API: wide range of cloud connections and local integrations with much lower integration costs
Improved security: MQTT and WSS support, TLS support and custom certificates for a wide range of use cases

CHARACTERISTICS:

Wi-Fi Powered - Connects to your Wi-Fi network. No HUB required!
Bluetooth - Add devices quickly and easily via Bluetooth connection using the Shelly Cloud app
Power measurement with data storage
Wide range of supported voltages
Extremely fast processor – ESP32
Enhanced safety – overpower, overvoltage and overtemperature protection
Enhanced security - MQTT and WSS support, support TLS and custom certificates
Improved API
Wireless: No HUB needed - Connect Shelly 1PM directly to your home Wi-Fi.
Control remotely: control your home lighting, no matter where you are. No more lights left on and no more coming home in the dark.
Highly compatible: Compatible with Android, iOS, Amazon Alexa and Google Assistant. Control your devices with your voice.
Wide range of voltage support: Shelly 1PM can be used to control a wide range of devices and appliances.
Sunrise/Sunset Schedules: Automatically track the sun and turn Shelly on/off based on sunrise and sunset times.
Weekly Schedules: Create custom daily schedules for your devices
Overheat Protection: Internal temperature sensor for overheat protection.
Power metering: precise monitoring of the energy consumption of your appliances.
By building the Shelly PLUS 1PM behind them, you can control the lights keeping the existing switches and monitor their status (on / off).

Consumption history, anywhere, anytime.
We developed Shelly 1PM to allow you to monitor the status and history, as well as current consumption, electricity for the day, week, month or year.

Use with any device: Shelly 1PM supports a wide range of AC and DC power sources and allows you to control a wide range of devices and appliances.

Cleverly designed to fit into most electrical boxes and switches. Shelly 1PM is smaller than two cookies stacked together.

Countdown Timer: Don't forget to turn off your appliances. The built-in countdown timer can automatically turn off the oven after one hour.

Overheat and Overconsumption Protection: Internal temperature sensor for overheat protection. If the PCB temperature exceeds a danger level, the device will shut down. Shelly 1PM will immediately stop the circuit if it detects a consumption higher than the defined power setting.

Light control: About to watch a movie, sitting on the sofa with popcorn in your lap? Or maybe you go to bed and have to turn off all the lights, so annoying. To avoid these unpleasant situations install Shelly 1PM at home and you will be able to control your lights with one touch via your smartphone or with your voice.

Motion Sensor with Light Control: With the Shelly 1PM and a motion detector, you can use it as a motion-sensing switch for your outdoor lights.

Capable of alternate and crossover operation. It has power measurement.

Timer function:

set on/off schedules for any day of the week
supports dawn/dusk adaptive schedules
Free service based on Mongoose OS and manufacturer's smartphone app are also available to intelligently control Shelly 1PM.

Embedded web server, configurable from web interface via local network. LAN compatible, controllable via local network without Shelly Cloud and Internet access. Supports MQTT.

Compatible with Google Home and Amazon Echo voice control.

The device works with an ESP8266 based control, the firmware can be changed as you like via the built-in pin-bus (Sonoff-Tasmota, ESPEasy, ESPurna e.g.), it can be easily integrated with your own automation server.

Like other smart switches, this device must be connected to the live wire and the neutral wire.

Power supply: 24 – 240V / 12V stabilized; 110-230V ±10%, 50/60Hz

Maximum power: 3500W / 16A

One app, countless possibilities: With the world's best cloud service, easy to use



Specification
Weight 0.027 kg
Dimensions 41 × 36 × 15 cm
Color
red, with printed design

Product type
smart WiFi relay with powermeter

Number of bands/circuits
1

Switch/relay switch
yes

Energy consumption measurement
yes

Dimmer/light controller
No

DIN rail compatible
yes, together with Shelly DIN adapter (not included)

Physical on/off button
yes

External switch inputs
yes

Momentary switch
yes, auto on and auto off settings are available

Device power supply
110-240V AC, 24 – 240V DC

Wiring
230V AC (live and neutral), 24 – 240V DC

Circuit controlled
110V-240V AC, 24V-60V DC

Maximum capacity
16A/240V

Overheat protection
yes

Surge protection
yes

Controllable from the internet
yes

WiFi connection
yes

WiFi standards
802.11 b/g/n (2.4GHz)

Bluetooth
pairing with bluetooth

RF/ radio control (433.92 MHz)
No

Zigbee connection
No

Cloud mode
yes, could work from shelly cloud (configurable)

Local network mode
yes, works only in local network mode, full functionality (adjustable)

REST API support
yes

MQTT support
yes

Supported integrations
Amazon Echo, Google Home, HomeSeer, openHAB, Home Assistant, ioBroker, Hubitat, Hoobs, Symcan, Domoticz, nymea, SmartThings (beta), REST API

Manufacturer smartphone app
yes, free app (Shelly Cloud) (iOS, Android)

Web admin interface
yes, almost the same functionality as the app

Notification functions
send email, Shelly app notification

Voice control
Compatible with Amazon Alexa and Google Assistant

Timers, timers
yes, (after internet clock sync) a limited number of timers work in offline mode, any additional timers can be run from the cloud in online mode

History
yes: history on/off in app (last 50 events for each Shelly account)

Power consumption
< 1W

Temperature range
0-40℃

Manufacturer
Shelly
