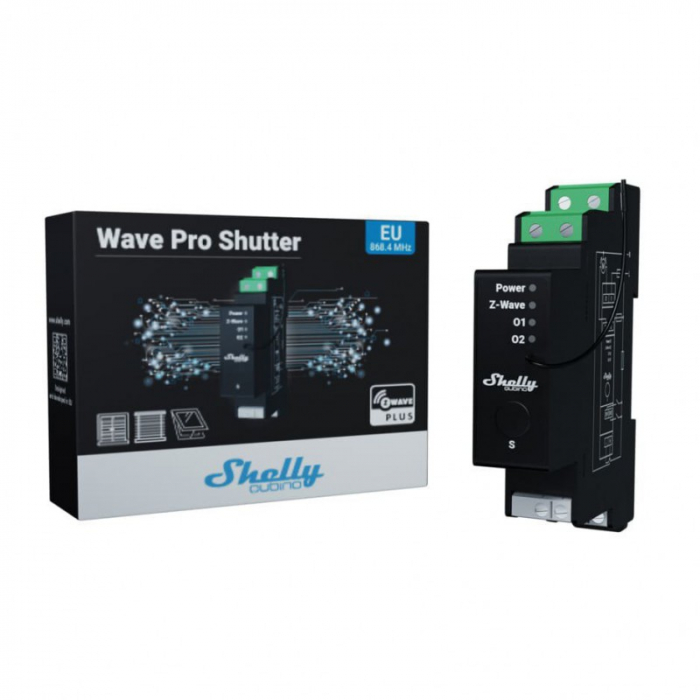

Shelly Qubino Wave Pro Shutter - module for controlling blinds (Z-Wave)

Shelly Qubino Wave Pro Shutter - Professional DIN rail Z-Wave® shutter control with power metering, 16 A per channel

Suitable for home and facility automation with remote control of motorized blinds, roller shutters, venetian blinds, awnings, etc. DIN-rail mountable inside a breaker box.  It is recommended to use only motors with electronic or mechanical limit switches.

• Control the tilt position (angle) of the venetian blind slats
• Supports push-buttons/momentary switches, and toggle switches
• Power metering
• Extremely low power consumption: < 0.3 W
• Z-Wave frequency band: 868.4 MHz (CEPT countries)
• Latest technology: Z-Wave 800 Series
• Automatic set-up with SmartStart
• Security 2 Authenticated for the highest level of security
• Supports over-the-air firmware updates
• Works with Z-Wave certified gateways and over 4,000 Z-Wave devices
• Overheating, overvoltage, overpower protections, used fire retardant materials (V-0)

*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.



WHY WAVE PRO SHUTTER? The best solution for new home buildings and business facilities

Wave Pro Shutter is a relay, supporting up to 16 A per channel. It is equipped with an integrated power meter that allows customers to control and monitor the power  consumption for each channel. Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs.



Shelly Qubino works on Z-Wave

By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.

*Z-wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-wave hub. For more information, please visit the official Z-wave website: www.z-wave.com



Works with any Z-Wave gateway

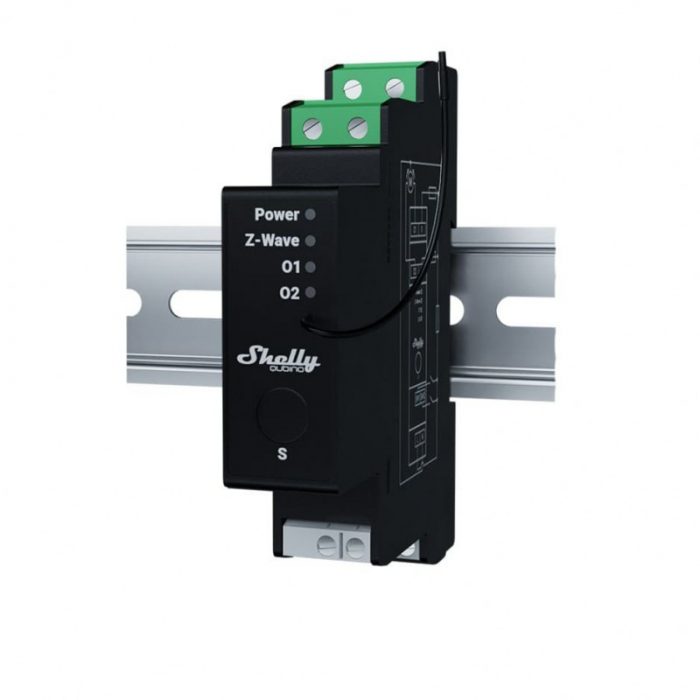

Wave Pro Series is designed to be installed on the DIN-rail inside the breaker box. Once installed, include it in your Z-Wave network (Z-Wave gateway is required) and control connected appliances from anywhere using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.



Wave Pro Series

Enhanced with overheating, overpower, and overvoltage* load protection, Wave Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.

*Overpower and overvoltage features are available only for power metering-enabled devices.



Functionalities

• Z-Wave operated - Include Wave Pro Shutter to your Z-Wave network and control it remotely. It‘s compatible with all certified Z-Wave gateways.
• Slats angle control - Use Wave Pro Shutter with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room.
• Position control - Set the desired position of your blinds, roller shutters, screens, awnings, and other devices powered by bi-directional AC motors.
• Associations - Establish direct communication between devices in your Z-Wave local network and set custom actions with no hub present!
• Smart Schedules - Set up your blinds to work automatically by creating personalized schedules aligned with your daily routine or synchronize with sunrise/sunset (gateway required).
• Smart Scenes - Set custom scenes by combining Wave Pro Shutter with any other Z-Wave devices (gateway required).

Endless use applications

Blinds that follow your office hours - Optimize work enviroment and add comfort to your office space with automated blinds that seamlessly integrate into your daily office routine. Program the Wave Pro Shutter to open and close the blinds at designated times, aligning with your office's operating hours. Enhance productivity and create the ideal work atmosphere with ease.

Personalization at its best - Experience ultimate control with position-adjustable blinds, allowing you to tailor natural light levels and perfect the workspace atmosphere according to your preferences. Enjoy the flexibility of manual operation through switches or push-buttons, accommodating the unique needs of each office member. Also, with Wave Pro Shutter, you can effortlessly adjust the position and angle of your venetian blinds directly from your smart home app. Control the blinds without ever leaving your desk, ensuring uninterrupted workflow and maximum productivity.

Enhance the security of your home with smart scenes - Concerned about leaving your home unprotected while on vacation or a business trip? Enhance your home’s safety by integrating Wave Pro Shutter with other devices to establish the “Vacation Scene.” When you’re away, your window coverings will adjust automatically at pre-determined times daily, and both indoor and outdoor lights will illuminate every evening. This will give the impression that someone is at home, deterring potential intruders. Secure peace of mind along with your property, even when you're miles away.

Let your awnings follow the weather - By creating associations between the Wave Pro Shutter and other Z-Wave devices, they can communicate directly without a gateway. For example, you can connect Wave Pro Shutter with a Z-Wave wind sensor/weather station. When strong wind is detected, your awnings will automatically close to avoid damage.



Specifications

• Power supply 110 - 240 V AC, 50/60 Hz
• Power consumption < 0.3 W
• Power measurement [W] Yes
• Max. switching voltage AC 240 V
• Max. switching current AC 16 A per channel
• Overheating protection Yes
• Overload protection Yes
• Overvoltage protection Yes
• Distance Up to 40 m indoors (131 ft.) (depends on local condition)
• Z-Wave® repeater: Yes
• CPU? Z-Wave® S800
• Z-Wave® frequency bands 868,4 MHz
• Maximum radio frequency power transmitted in frequency band(s) < 25 mW

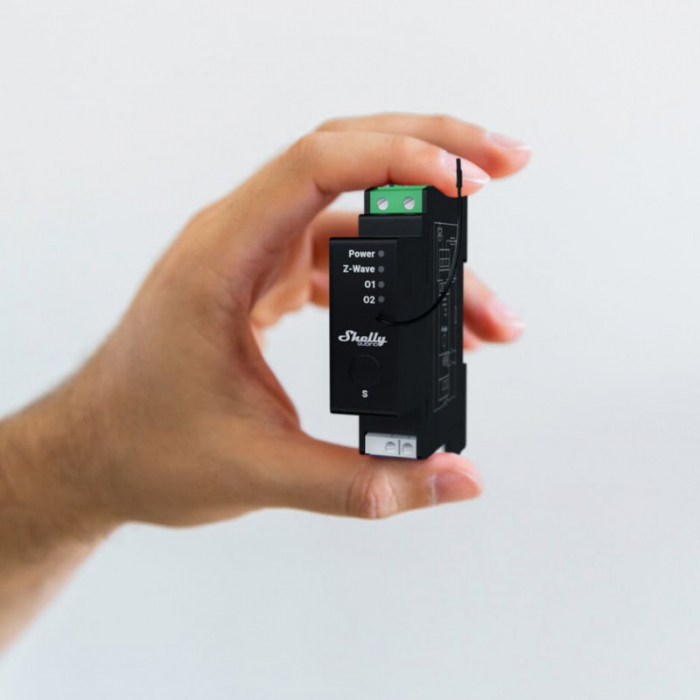

• Size (H x W x D) 94x19x69 ± 0.5 mm / 3.70x0.75x2.71 ± 0.02 in
• Weight 75 g / 2.65 oz.
• Mounting DIN rail
• Screw terminals max. torque 0.4 Nm / 3.54 lbin
• Conductor cross section 0.5 to 2.5 mm / 20 to 14 AWG (green connector) 0.5 to 1.5 mm / 20 to 16 AWG (white connectors)
• Conductor stripped length 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (white connectors)
• Shell material Plastic
• Color Black
• Ambient temperature -20°C to 40°C / -5°F to 105°F
• Humidity 30% to 70% RH
• Max. altitude 2000 m / 6562 ft.
